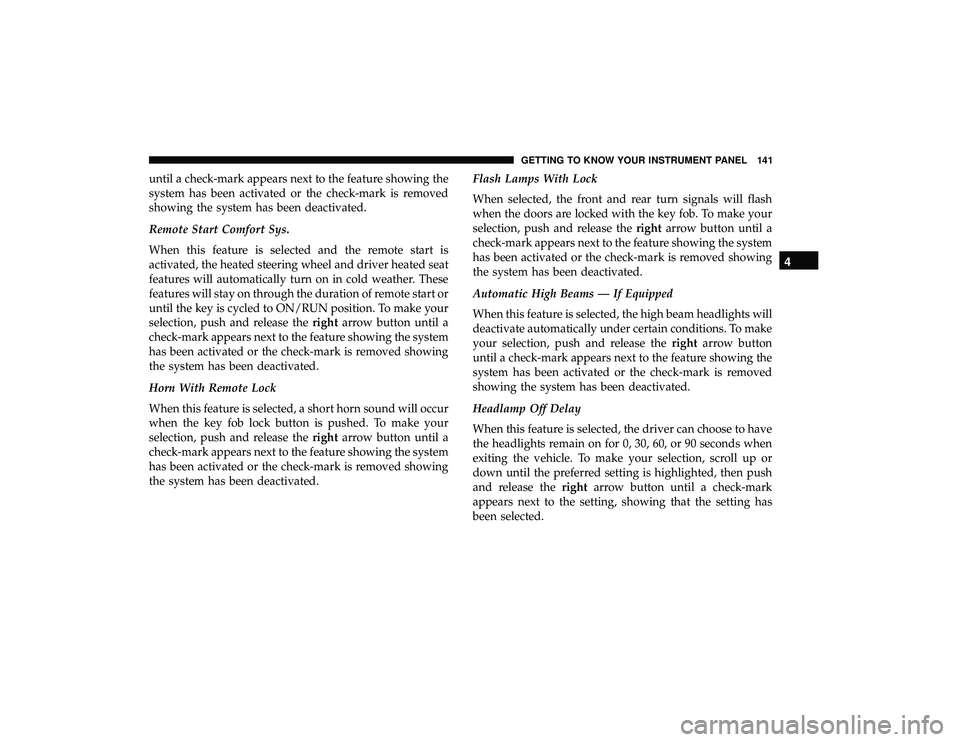

2019 DODGE GRAND CARAVAN remote start

until a check-mark appears next to the feature showing the
system has been activated or the check-mark is removed
showing the system has been deactivated.
Remote Start Comfort Sys.
When this feature is selected and the remote start is
activated, the heated steering wheel and driver heated seat
features will automatically turn on in cold weather. These
features will stay on through the duration of remote start or
until the key is cycled to ON/RUN position. To make your
selection, push and release therightarrow button until a
check-mark appears next to the feature showing the system
has been activated or the check-mark is removed showing
the system has been deactivated.
Horn With Remote Lock
When this feature is selected, a short horn sound will occur
when the key fob lock button is pushed. To make your
selection, push and release the rightarrow button until a
check-mark appears next to the feature showing the system
has been activated or the check-mark is removed showing
the system has been deactivated. Flash Lamps With Lock
When selected, the front and rear turn signals will flash
when the doors are locked with the key fob. To make your
selection, push and release the
rightarrow button until a
check-mark appears next to the feature showing the system
has been activated or the check-mark is removed showing
the system has been deactivated.
Automatic High Beams — If Equipped
When this feature is selected, the high beam headlights will
deactivate automatically under certain conditions. To make
your selection, push and release the rightarrow button
until a check-mark appears next to the feature showing the
system has been activated or the check-mark is removed
showing the system has been deactivated.
Headlamp Off Delay
When this feature is selected, the driver can choose to have
the headlights remain on for 0, 30, 60, or 90 seconds when
exiting the vehicle. To make your selection, scroll up or
down until the preferred setting is highlighted, then push
and release the rightarrow button until a check-mark
appears next to the setting, showing that the setting has
been selected.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 141

MULTIMEDIA
CONTENTS
CYBERSECURITY ...................... .403
 RADIO 430/430N CD/DVD/HDD/NAV —
IF EQUIPPED ......................... .404
▫ Operating Instructions (Voice Command System) —
If Equipped .......................... .404
▫ Operating Instructions (Uconnect Phone) —
If Equipped .......................... .404
▫ Accessibility — If Equipped ...............404
 STEERING WHEEL AUDIO CONTROLS —
IF EQUIPPED ......................... .405
▫ Radio Operation ....................... .405
▫ CD Player ........................... .405
 IPOD/USB/MP3 CONTROL — IF EQUIPPED . . .406
▫ Connecting The iPod Or External USB Device . . .406
▫ Using This Feature ..................... .407▫
Controlling The iPod Or External USB Device
Using Radio Buttons .................... .407
▫ Play Mode ........................... .407
▫ List Or Browse Mode ................... .408
▫ Bluetooth Streaming Audio (BTSA) ..........410
 UCONNECT MULTIMEDIA — VIDEO
ENTERTAINMENT SYSTEM (VES) —
IF EQUIPPED ..........................411
▫ Getting Started ........................411
▫ Play Video Games ..................... .412
▫ Play A DVD Using The Touchscreen Radio .....413
▫ Play A DVD Using The VES Player —
If Equipped .......................... .414
▫ VES Remote Control — If Equipped .........416
▫ Remote Control Storage ..................418
10

Browse
Browsing is not available on a Bluetooth Streaming Audio
(BTSA) device. Only the current song that is playing will
display info.
UCONNECT MULTIMEDIA — VIDEO
ENTERTAINMENT SYSTEM (VES) — IF EQUIPPED
Your rear seat Video Entertainment System (VES) is de-
signed to give your family years of enjoyment. You can
play your favorite CDs or DVDs, listen to audio over the
wireless headphones, or plug and play a variety of stan-
dard video games or audio devices. Please review this
Owner’s Manual to become familiar with its features and
operation.
NOTE:The screen is located in the 2nd row overhead
console.
Getting Started
• Screen located in the overhead console: Unfold the
overhead LCD screen(s) by pushing the button on the
overhead console behind the screen(s).
• Cycle the ignition to the ON or ACC position.
• Turn on the Player by pushing the Power button, located
on the far left, or by pushing the button on the Remote
Control.
• When the video screen is open and a DVD is inserted
into the VES player, the screen turns on automatically,
the headphone transmitters turn on and playback be-
gins.
• The system can be controlled by the front seat occupants
using either the touchscreen radio, the DVD, or by the
rear seat occupants using the remote control.
10
MULTIMEDIA 411

Using The Touchscreen Radio Controls
1. Push the MENU button on the radio faceplate.
2. Press the Rear VES button on the touchscreen to displaythe Rear VES Controls. If a channel list is displayed,
press the HIDE LIST button on the touchscreen to
display the Rear VES Controls screen.
3. Press the 1 button on the touchscreen and then press either AUX 1 or AUX 2 in the VES column (depending
which AUX input is used). To exit press the back arrow
button at the top of the touchscreen.
Play A DVD Using The Touchscreen Radio
NOTE: Headunit DVD player does not play Blu-ray Discs.
1. Push the OPEN/CLOSE or LOAD button on the radio faceplate (Touchscreen).
2. Insert the DVD with the label facing up. The radio automatically selects the appropriate mode after the disc
is recognized and displays the menu screen or starts
playing the first track.
Using The Remote Control
1. Push the SOURCE button on the Remote Control.
2. Highlight DISC by either pushing Up/Down/Left/Right buttons or by repeatedly pushing the SOURCE
button, then push ENTER/OK.
NOTE: The VES will retain the last setting when turned off.
Rear VES Button On The Touchscreen
10
MULTIMEDIA 413

Using The Touchscreen Radio Controls
1. Push the MENU button on the radio faceplate.
2. Press the Rear VES button on the touchscreen to displaythe Rear VES Controls. If a channel list is displayed,
press the HIDE LIST button on the touchscreen to
display the Rear VES Controls screen.
3. Press the DISC button on the touchscreen in the MEDIA column. To exit press the back arrow button at the top
left of the screen. NOTE:
•
To view a DVD on the radio push the RADIO/MEDIA
button on the radio faceplate, then press the DISC tab
button on the touchscreen and then the VIEW VIDEO
button on the touchscreen.
• Viewing a DVD on the Touchscreen radio screen is not
available in all states/provinces. If available, the vehicle
must be stopped and the gear selector must be in the
PARK position for vehicles with an automatic transmis-
sion. In vehicles with a manual transmission the parking
brake must be engaged.
• Pressing the screen on a Touchscreen radio while a DVD
is playing brings up basic remote control functions for
DVD play such as scene selection, Play, Pause, FF, RW,
and Stop. Pressing the X in the upper corner will turn off
the remote control screen functions.
Play A DVD Using The VES Player — If Equipped
Insert the DVD with the label facing up. The VES player
automatically selects the appropriate mode after the disc is
recognized and starts playing the DVD.
NOTE: The VES player has basic DVD control function
such as Menu, Play, Pause, FF, RW and Stop.Rear VES Button On The Touchscreen
414 MULTIMEDIA

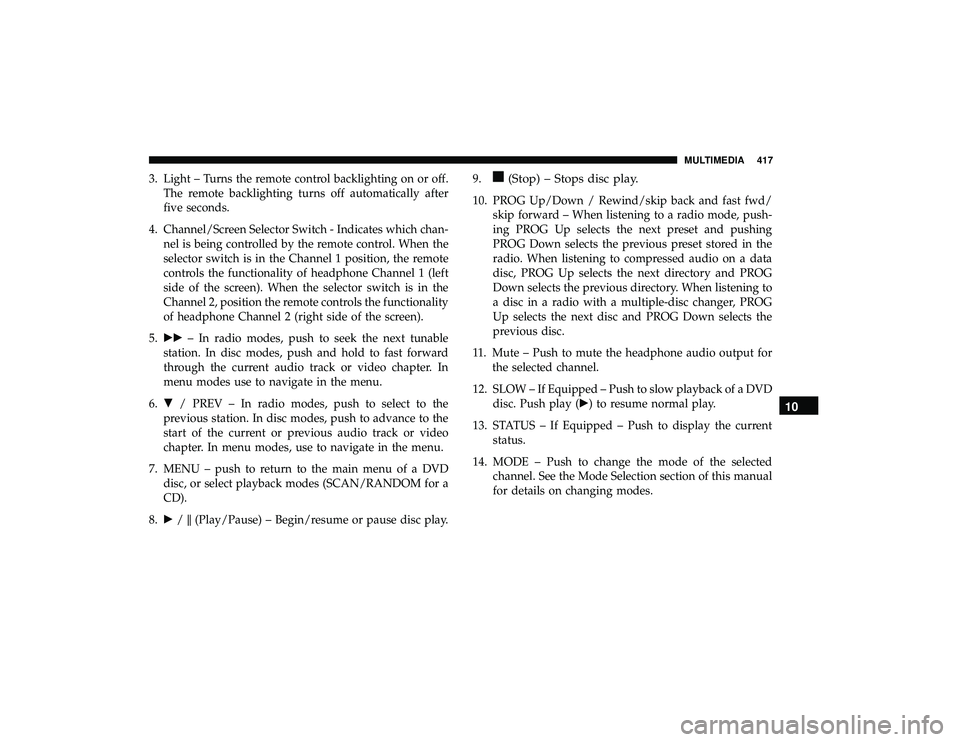

3. Light – Turns the remote control backlighting on or off.The remote backlighting turns off automatically after
five seconds.
4. Channel/Screen Selector Switch - Indicates which chan- nel is being controlled by the remote control. When the
selector switch is in the Channel 1 position, the remote
controls the functionality of headphone Channel 1 (left
side of the screen). When the selector switch is in the
Channel 2, position the remote controls the functionality
of headphone Channel 2 (right side of the screen).
5.  – In radio modes, push to seek the next tunable
station. In disc modes, push and hold to fast forward
through the current audio track or video chapter. In
menu modes use to navigate in the menu.
6.  / PREV – In radio modes, push to select to the
previous station. In disc modes, push to advance to the
start of the current or previous audio track or video
chapter. In menu modes, use to navigate in the menu.
7. MENU – push to return to the main menu of a DVD disc, or select playback modes (SCAN/RANDOM for a
CD).
8. /(Play/Pause) – Begin/resume or pause disc play. 9.(Stop) – Stops disc play.
10. PROG Up/Down / Rewind/skip back and fast fwd/
skip forward – When listening to a radio mode, push-
ing PROG Up selects the next preset and pushing
PROG Down selects the previous preset stored in the
radio. When listening to compressed audio on a data
disc, PROG Up selects the next directory and PROG
Down selects the previous directory. When listening to
a disc in a radio with a multiple-disc changer, PROG
Up selects the next disc and PROG Down selects the
previous disc.
11. Mute – Push to mute the headphone audio output for the selected channel.
12. SLOW – If Equipped – Push to slow playback of a DVD disc. Push play () to resume normal play.
13. STATUS – If Equipped – Push to display the current status.
14. MODE – Push to change the mode of the selected channel. See the Mode Selection section of this manual
for details on changing modes.
10
MULTIMEDIA 417

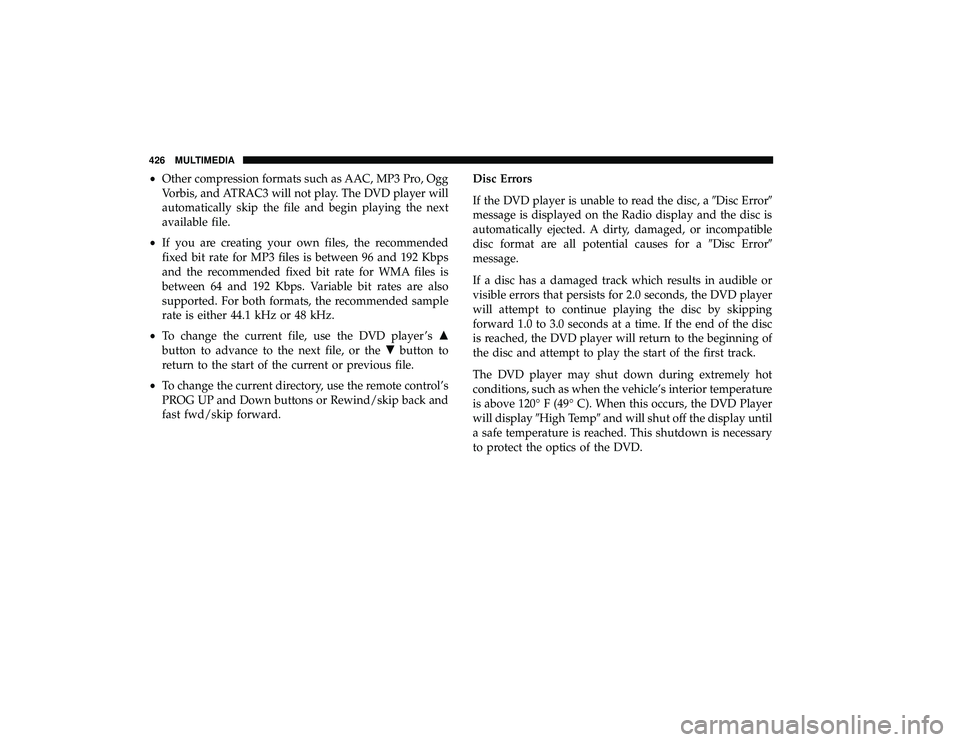

•Other compression formats such as AAC, MP3 Pro, Ogg
Vorbis, and ATRAC3 will not play. The DVD player will
automatically skip the file and begin playing the next
available file.
• If you are creating your own files, the recommended
fixed bit rate for MP3 files is between 96 and 192 Kbps
and the recommended fixed bit rate for WMA files is
between 64 and 192 Kbps. Variable bit rates are also
supported. For both formats, the recommended sample
rate is either 44.1 kHz or 48 kHz.
• To change the current file, use the DVD player ’s
button to advance to the next file, or the button to
return to the start of the current or previous file.
• To change the current directory, use the remote control’s
PROG UP and Down buttons or Rewind/skip back and
fast fwd/skip forward. Disc Errors
If the DVD player is unable to read the disc, a
Disc Error
message is displayed on the Radio display and the disc is
automatically ejected. A dirty, damaged, or incompatible
disc format are all potential causes for a Disc Error
message.
If a disc has a damaged track which results in audible or
visible errors that persists for 2.0 seconds, the DVD player
will attempt to continue playing the disc by skipping
forward 1.0 to 3.0 seconds at a time. If the end of the disc
is reached, the DVD player will return to the beginning of
the disc and attempt to play the start of the first track.
The DVD player may shut down during extremely hot
conditions, such as when the vehicle’s interior temperature
is above 120° F (49° C). When this occurs, the DVD Player
will display High Temp and will shut off the display until
a safe temperature is reached. This shutdown is necessary
to protect the optics of the DVD.
426 MULTIMEDIA

Cupholders...........................113,385
Customer Assistance ....................... .466
Cybersecurity ............................ .403
Daytime Brightness, Interior Lights ...............66
Daytime Running Lights ................... .61, 62
Dealer Service ............................ .341
Defroster, Windshield ....................... .235
Delay (Intermittent) Wipers ....................67
Diagnostic System, Onboard ...................153
Dimmer Switch Headlight ........................... .61, 62
Dipsticks Automatic Transmission ................... .357
Oil (Engine) ........................... .340
Power Steering ......................... .254
Disabled Vehicle Towing .................... .330
Disposal Antifreeze (Engine Coolant) .................353
Door Ajar ............................ .146, 147
Door Ajar Light ....................... .146, 147
Door Locks Automatic ..............................29
Doors ....................................27
Driver ’s Seat Back Tilt .................... .32, 33Driving
Through Flowing, Rising, Or Shallow Standing
Water ................................ .283
DVD Player (Video Entertainment System) .........411
E-85 Fuel ............................... .394
Economy (Fuel) Mode ...................... .247
Electrical Power Outlets ......................115
Electric Brake Control System ..................159
Anti-Lock Brake System ................... .158
Traction Control System ................... .163
Electric Remote Mirrors .......................59
Electronic Speed Control (Cruise Control) .........255
Electronic Stability Control (ESC) ...............163
Electronic Throttle Control Warning Light .........146
Emergency, In Case Of Freeing Vehicle When Stuck .................329
Hazard Warning Flasher ...................286
Jacking ........................ .297,
303, 357
Jump Starting .......................... .324
Emission Control System Maintenance ............154
Engine ................................. .339
Air Cleaner ............................ .344
Block Heater ........................... .242
Break-In Recommendations .................242
12
INDEX 475
