To Unlock The Doors And Liftgate
Push and release the unlock button on the key fob once to
unlock the doors. Push and release the unlock button a
second time within 5 seconds to unlock the liftgate. The
turn signal lights will flash to acknowledge the unlock
signal.
To Lock The Doors And Liftgate
Push and release the lock button on the key fob once to lock
the doors. The turn signal lights will flash to acknowledge
the lock signal.
Replacing The Battery In The Key Fob With Remote
Control
The replacement battery is one CR2032 battery.
NOTE:
•Perchlorate Material — special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate
• Do not replace coin battery unless the cluster display
indicates a message “Key Fob Low Battery”
• Do not touch the battery terminals that are on the back
housing or the printed circuit board.
1. Remove the emergency key by sliding the mechanical latch on the back of the key fob sideways with your
thumb and then pull the key out with your other hand.
Emergency Key Removal
18 GETTING TO KNOW YOUR VEHICLE

NOTE:If you crank or start the engine, you will have to
start this test over.
2. As soon as you cycle the ignition switch to the ON position, you will see the “Malfunction Indicator Light
(MIL)” symbol come on as part of a normal bulb check.
3. Approximately 15 seconds later, one of two things will happen:
• The MIL will flash for about ten seconds and then return
to being fully illuminated until you turn OFF the igni-
tion or start the engine. This means that your vehicle’s
OBD II system is not readyand you should notproceed
to the I/M station.
• The MIL will not flash at all and will remain fully
illuminated until you place the ignition in the off posi-
tion or start the engine. This means that your vehicle’s
OBD II system is readyand you can proceed to the I/M
station. If your OBD II system is
not ready,you should see an
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your vehicle
as you normally would in order for your OBD II system to
update. A recheck with the above test routine may then
indicate that the system is now ready.
Regardless of whether your vehicle’s OBD II system is
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced
before going to the I/M station. The I/M station can fail
your vehicle because the MIL is on with the engine
running.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 155

5. Pull the bottle away from the Compressor.
NOTE:
•For sealant bottle installation, follow these steps reverse
order.
• Replacement sealant bottles are available at authorized
service centers.JUMP STARTING
If your vehicle has a discharged battery it can be jump
started using a set of jumper cables and a battery in another
vehicle or by using a portable battery booster pack. Jump
starting can be dangerous if done improperly so please
follow the procedures in this section carefully.
NOTE: When using a portable battery booster pack follow
the manufacturer ’s operating instructions and precautions.
WARNING!
Do not attempt jump starting if the battery is frozen. It
could rupture or explode and cause personal injury.
CAUTION!
Do not use a portable battery booster pack or any other
booster source with a system voltage greater than 12
Volts or damage to the battery, starter motor, alternator
or electrical system may occur.
Remove The Bottle
324 IN CASE OF EMERGENCY

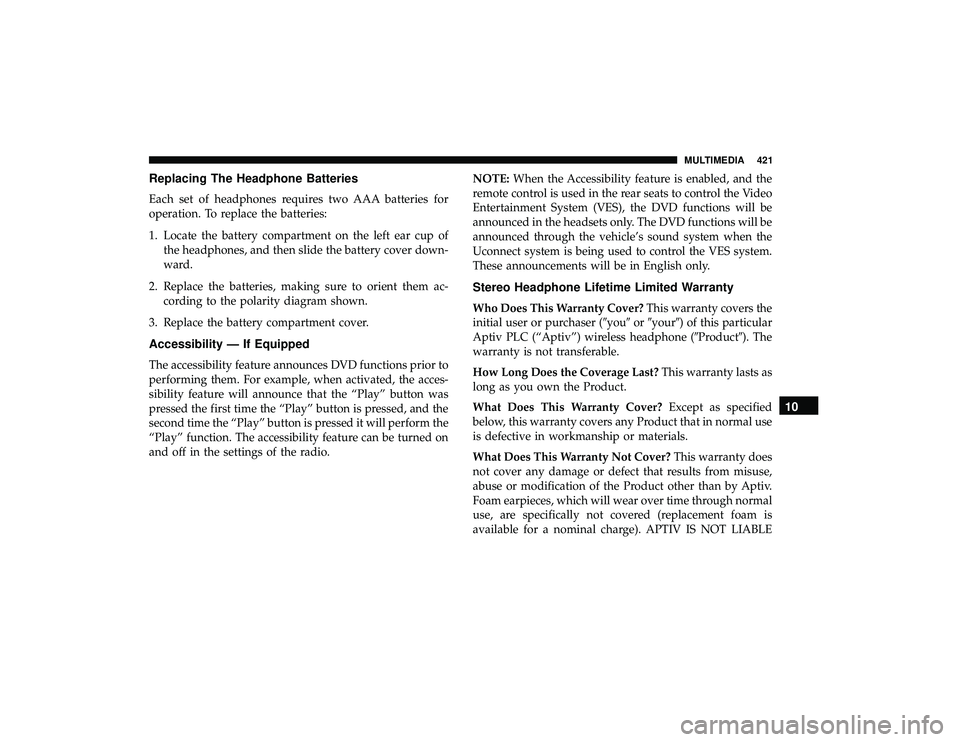

Replacing The Headphone Batteries
Each set of headphones requires two AAA batteries for
operation. To replace the batteries:
1. Locate the battery compartment on the left ear cup ofthe headphones, and then slide the battery cover down-
ward.
2. Replace the batteries, making sure to orient them ac- cording to the polarity diagram shown.
3. Replace the battery compartment cover.
Accessibility — If Equipped
The accessibility feature announces DVD functions prior to
performing them. For example, when activated, the acces-
sibility feature will announce that the “Play” button was
pressed the first time the “Play” button is pressed, and the
second time the “Play” button is pressed it will perform the
“Play” function. The accessibility feature can be turned on
and off in the settings of the radio. NOTE:
When the Accessibility feature is enabled, and the
remote control is used in the rear seats to control the Video
Entertainment System (VES), the DVD functions will be
announced in the headsets only. The DVD functions will be
announced through the vehicle’s sound system when the
Uconnect system is being used to control the VES system.
These announcements will be in English only.
Stereo Headphone Lifetime Limited Warranty
Who Does This Warranty Cover? This warranty covers the
initial user or purchaser (you oryour) of this particular
Aptiv PLC (“Aptiv”) wireless headphone (Product). The
warranty is not transferable.
How Long Does the Coverage Last? This warranty lasts as
long as you own the Product.
What Does This Warranty Cover? Except as specified
below, this warranty covers any Product that in normal use
is defective in workmanship or materials.
What Does This Warranty Not Cover? This warranty does
not cover any damage or defect that results from misuse,
abuse or modification of the Product other than by Aptiv.
Foam earpieces, which will wear over time through normal
use, are specifically not covered (replacement foam is
available for a nominal charge). APTIV IS NOT LIABLE
10
MULTIMEDIA 421

Automatic Headlights........................62
Automatic Transmission ..................245, 357
Adding Fluid ....................... .357, 400
Fluid And Filter Change ...................357
Fluid Change .......................... .357
Fluid Level Check .................... .356, 357
Fluid Type ......................... .356, 400
Gear Ranges ........................... .248
Special Additives ........................ .356
Torque Converter ....................... .253
Axle Fluid .............................. .400
Axle Lubrication .......................... .400
Battery .............................. .146, 340
Charging System Light ................... .146
Jump Starting .......................... .324
Keyless Key Fob Replacement ................18
Battery Saver Feature .........................64
Belts, Seat ............................... .235
Body Mechanism Lubrication ..................347
B-Pillar Location .......................... .363
Brake Assist System ........................ .160
Brake Control System, Electronic ................159
Brake Fluid .............................. .400
Brake System ......................... .354, 388Anti-Lock (ABS)
........................ .388
Fluid Check ........................ .355, 400
Parking .............................. .243
Warning Light .......................... .145
Brake/Transmission Interlock ..................246
Bulb Replacement ......................... .287
Bulbs, Light .......................... .237, 287
Calibration Compass ............................. .138
Camera, Rear ............................ .265
Capacities, Fluid .......................... .397
Caps, Filler Oil (Engine) ........................... .339
Power
Steering ......................... .254
Radiator (Coolant Pressure) .................353
Carbon Monoxide Warning ................234, 393
Cargo Vehicle Loading ..........................97
Cargo Area Cover ...........................97
Cargo Compartment .........................97
Luggage Carrier ........................ .122
Car Washes .............................. .382
Cellular Phone ........................ .432, 456
Center High Mounted Stop Light ...............290
12
INDEX 473

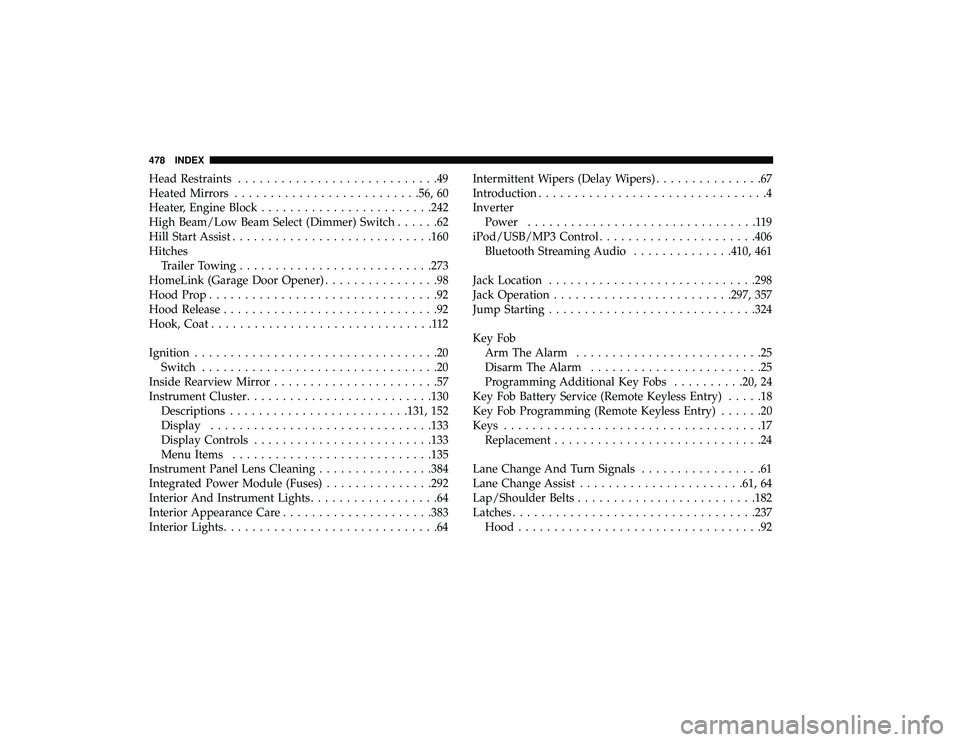

Head Restraints............................49
Heated Mirrors ......................... .56, 60
Heater, Engine Block ....................... .242
High Beam/Low Beam Select (Dimmer) Switch ......62
Hill Start Assist ........................... .160
Hitches Trailer Towing .......................... .273
HomeLink (Garage Door Opener) ................98
Hood Prop ................................92
Hood Release ..............................92
Hook, Coat ...............................112
Ignition ..................................20
Switch .................................20
Inside Rearview Mirror .......................57
Instrument Cluster ......................... .130
Descriptions ........................ .131, 152
Display .............................. .133
Display Controls ........................ .133
Menu Items ........................... .135
Instrument Panel Lens Cleaning ................384
Integrated Power Module (Fuses) ...............292
Interior And Instrument Lights ..................64
Interior Appearance Care .................... .383
Interior Lights ..............................64 Intermittent Wipers (Delay Wipers)
...............67
Introduction ................................4
Inverter Power ................................119
iPod/USB/MP3 Control ..................... .406
Bluetooth Streaming Audio ..............410, 461
Jack Location ............................ .298
Jack Operation ........................ .297, 357
Jump Starting ............................ .324
Key Fob Arm The Alarm ..........................25
Disarm The Alarm ........................25
Programming Additional Key Fobs ..........20, 24
Key Fob Battery Service (Remote Keyless Entry) .....18
Key Fob Programming (Remote Keyless Entry) ......20
Keys ....................................17
Replacement .............................24
Lane Change And Turn Signals .................61
Lane Change Assist ...................... .61, 64
Lap/Shoulder

Belts ........................ .182
Latches ................................. .237
Hood ..................................92
478 INDEX

Leaks, Fluid............................. .237
Life Of Tires ............................. .371
Liftgate ..................................94
Closing ................................94
Opening ................................94
Light Bulbs .............................. .237
Lights .................................. .237
AirBag ........................ .145, 197, 235
Automatic Headlights ......................62
Back-Up .............................. .289
Battery Saver ............................64
Brake Assist Warning ..................... .165
Brake Warning ......................... .145
Bulb Replacement ....................... .287
Center Mounted Stop ..................... .290
Cruise ............................... .152
Daytime Running ...................... .61, 62
Dimmer Switch, Headlight ................61, 62
Electronic Stability Program(ESP) Indicator ......147
Exterior .............................. .237
Fog ............................... .63, 289
Hazard Warning Flasher ...................286
Headlights .......................... .61, 288
Headlights On Reminder ....................63
High Beam ..............................62 High Beam/Low Beam Select
..............61, 62
Instrument Cluster ........................61
Interior ................................64
License ............................... .290
Lights On Reminder .................... .61, 63
Malfunction Indicator (Check Engine) ..........150
Parade Mode (Daytime Brightness) .............66
Park ............................. .153, 289
Passing ............................. .61, 62
Reading ................................64
Rear Servicing .......................... .289
Rear Tail Lamps ........................ .289
Seat Belt Reminder ...................... .147
Security Alarm ......................... .148
Service ............................... .287
Side

Marker ........................... .289
Traction Control ........................ .165
Turn Signals .................. .61, 152, 237, 289
Warning Instrument Cluster Descriptions . . . .147, 152
Loading Vehicle ........................ .97, 268
Tires................................. .363
Load Leveling System ........................97
Locks Automatic Door ..........................29
Low Tire Pressure System .................... .174
12
INDEX 479
