2019 DODGE CHARGER SRT display

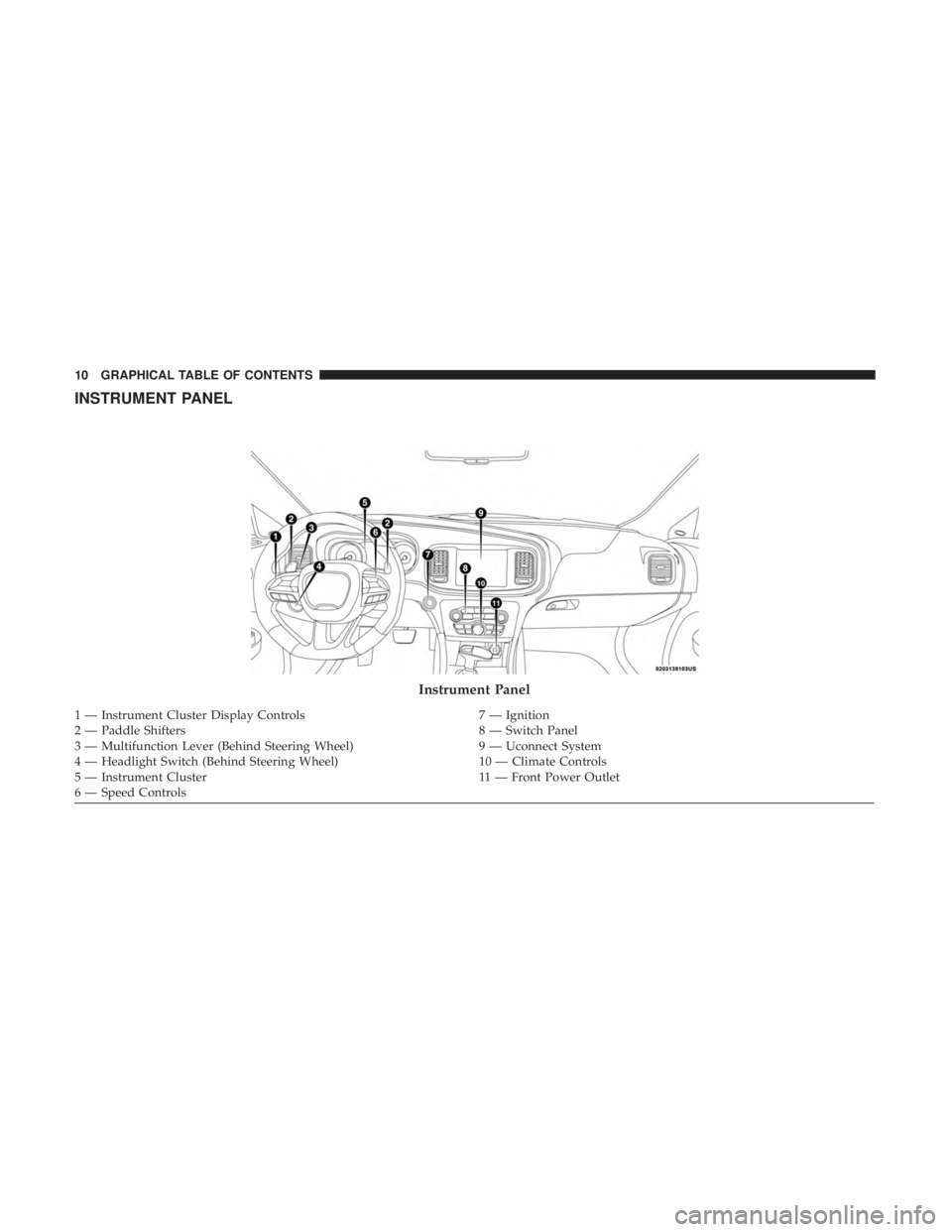

INSTRUMENT PANEL
Instrument Panel
1 — Instrument Cluster Display Controls7 — Ignition
2 — Paddle Shifters 8 — Switch Panel
3 — Multifunction Lever (Behind Steering Wheel) 9 — Uconnect System
4 — Headlight Switch (Behind Steering Wheel) 10 — Climate Controls
5 — Instrument Cluster 11 — Front Power Outlet
6 — Speed Controls 10 GRAPHICAL TABLE OF CONTENTS

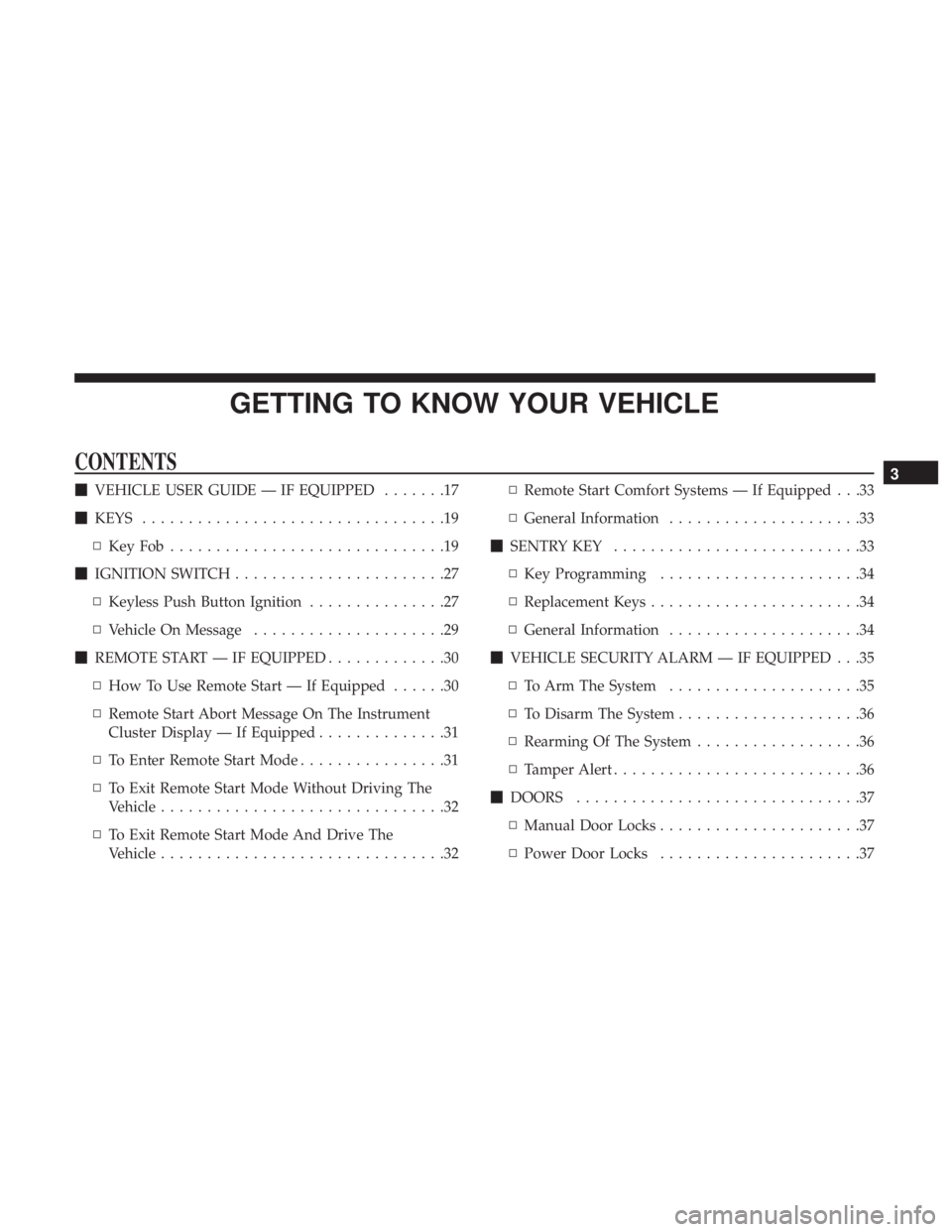

GETTING TO KNOW YOUR VEHICLE
CONTENTS
VEHICLE USER GUIDE — IF EQUIPPED .......17
 KEYS .................................19
▫ KeyFob..............................19
 IGNITION SWITCH .......................27
▫ Keyless Push Button Ignition ...............27
▫ Vehicle On Message .....................29
 REMOTE START — IF EQUIPPED .............30
▫ How To Use Remote Start — If Equipped ......30
▫ Remote Start Abort Message On The Instrument
Cluster Display — If Equipped ..............31
▫ To Enter Remote Start Mode ................31
▫ To Exit Remote Start Mode Without Driving The
Vehicle ...............................32
▫ To Exit Remote Start Mode And Drive The
Vehicle ...............................32 ▫
Remote Start Comfort Systems — If Equipped . . .33
▫ General Information .....................33
 SENTRY KEY ...........................33
▫ Key Programming ......................34
▫ Replacement Keys .......................34
▫ General Information .....................34
 VEHICLE SECURITY ALARM — IF EQUIPPED . . .35
▫ To Arm The System .....................35
▫ To Disarm The System ....................36
▫ Rearming Of The System ..................36
▫ Tamper Alert ...........................36
 DOORS ...............................37
▫ Manual Door Locks ......................37
▫ Power Door Locks ......................373

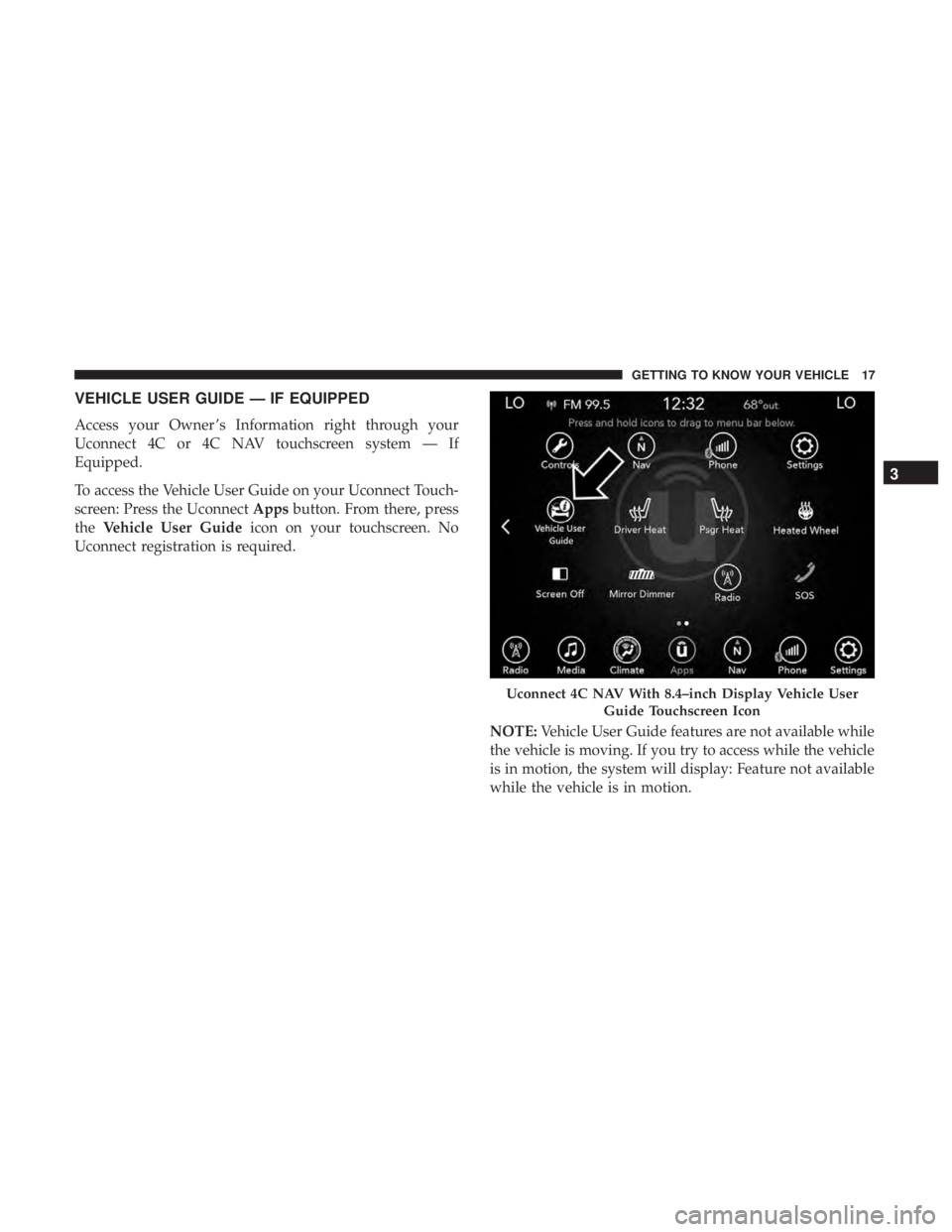

VEHICLE USER GUIDE — IF EQUIPPED
Access your Owner ’s Information right through your
Uconnect 4C or 4C NAV touchscreen system — If
Equipped.
To access the Vehicle User Guide on your Uconnect Touch-
screen: Press the UconnectAppsbutton. From there, press
the Vehicle User Guide icon on your touchscreen. No
Uconnect registration is required.
NOTE:Vehicle User Guide features are not available while
the vehicle is moving. If you try to access while the vehicle
is in motion, the system will display: Feature not available
while the vehicle is in motion.
Uconnect 4C NAV With 8.4–inch Display Vehicle User
Guide Touchscreen Icon
3
GETTING TO KNOW YOUR VEHICLE 17

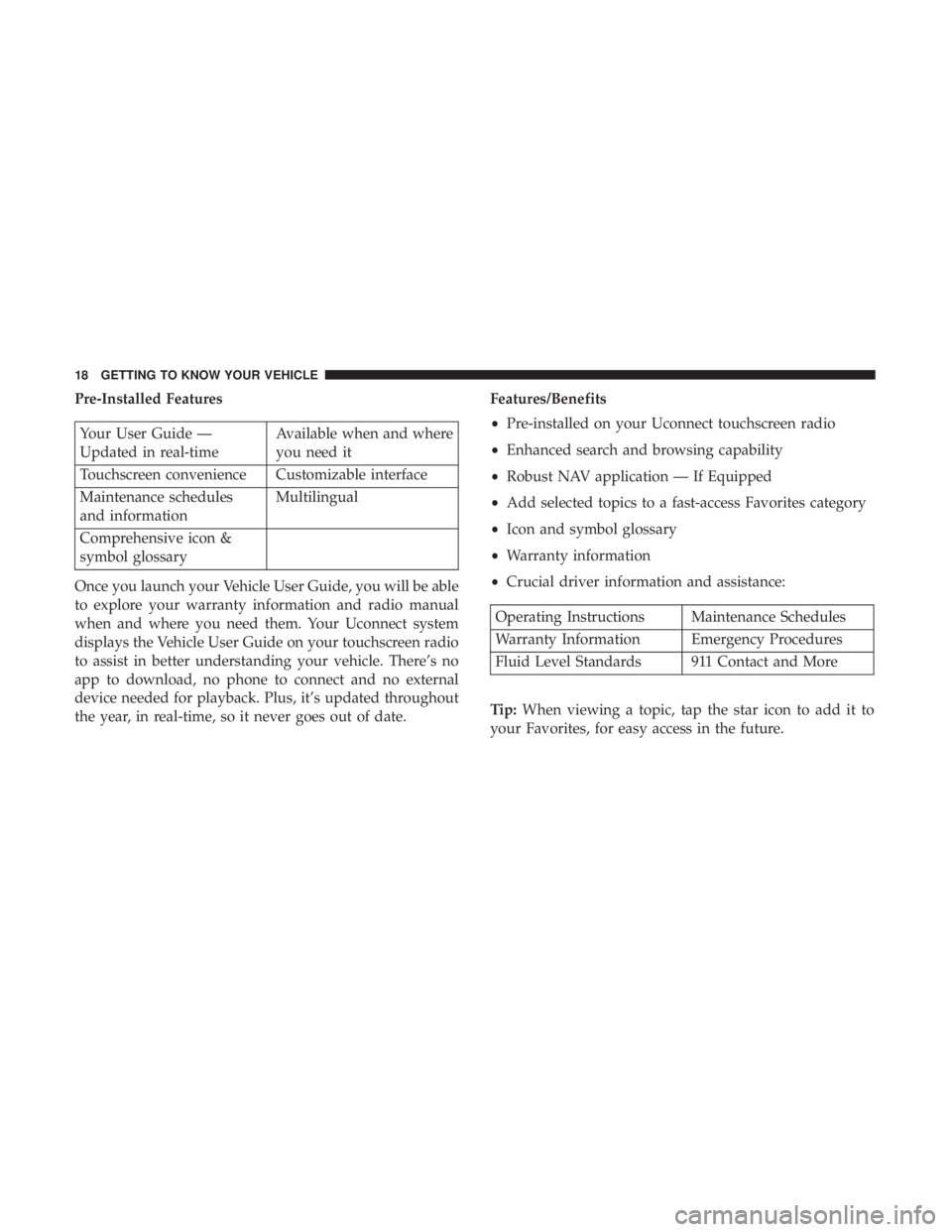

Pre-Installed Features
Your User Guide —
Updated in real-timeAvailable when and where
you need it
Touchscreen convenience Customizable interface
Maintenance schedules
and information Multilingual
Comprehensive icon &
symbol glossary
Once you launch your Vehicle User Guide, you will be able
to explore your warranty information and radio manual
when and where you need them. Your Uconnect system
displays the Vehicle User Guide on your touchscreen radio
to assist in better understanding your vehicle. There’s no
app to download, no phone to connect and no external
device needed for playback. Plus, it’s updated throughout
the year, in real-time, so it never goes out of date. Features/Benefits
•
Pre-installed on your Uconnect touchscreen radio
• Enhanced search and browsing capability
• Robust NAV application — If Equipped
• Add selected topics to a fast-access Favorites category
• Icon and symbol glossary
• Warranty information
• Crucial driver information and assistance:
Operating Instructions Maintenance Schedules
Warranty Information Emergency Procedures
Fluid Level Standards 911 Contact and More
Tip: When viewing a topic, tap the star icon to add it to
your Favorites, for easy access in the future.
18 GETTING TO KNOW YOUR VEHICLE

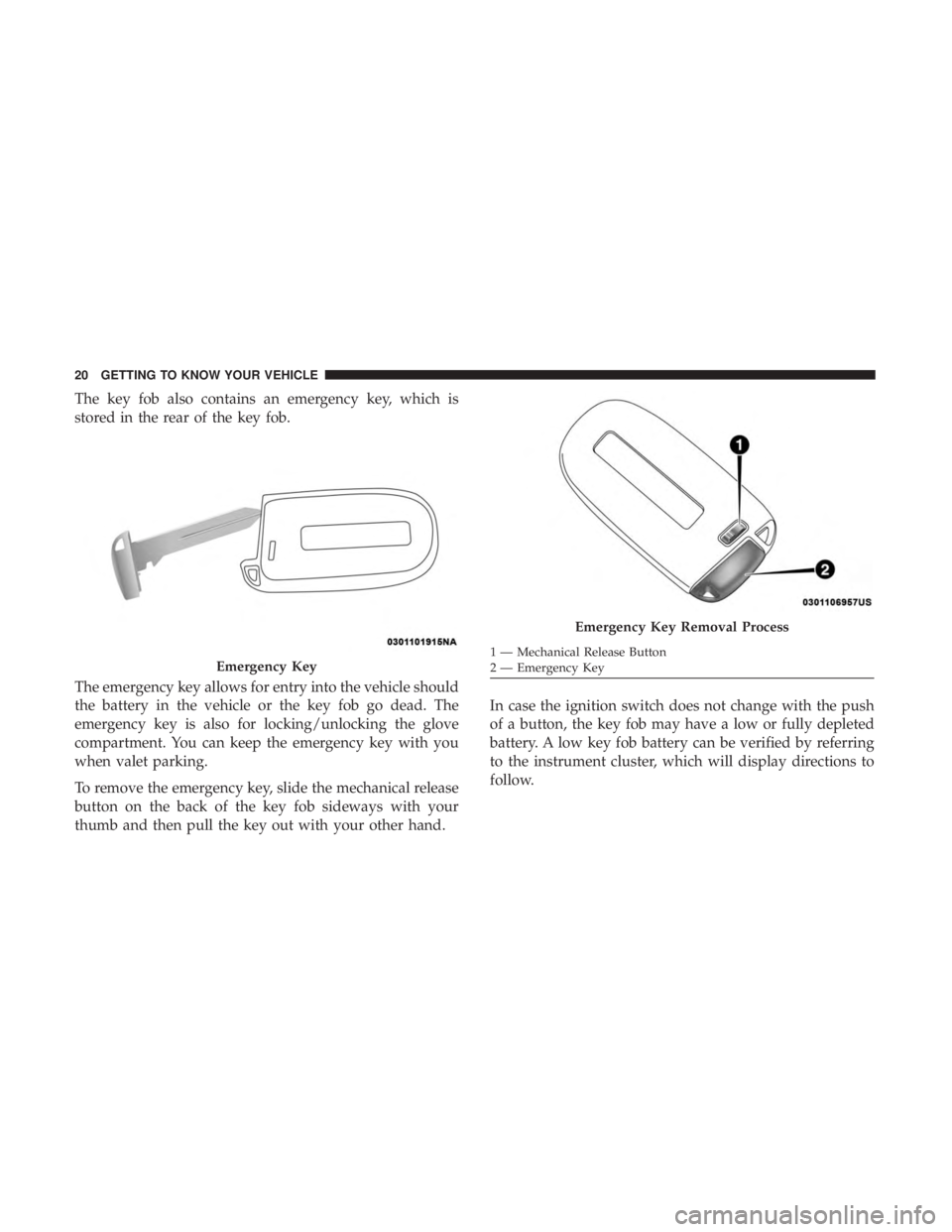

The key fob also contains an emergency key, which is
stored in the rear of the key fob.
The emergency key allows for entry into the vehicle should
the battery in the vehicle or the key fob go dead. The
emergency key is also for locking/unlocking the glove
compartment. You can keep the emergency key with you
when valet parking.
To remove the emergency key, slide the mechanical release
button on the back of the key fob sideways with your
thumb and then pull the key out with your other hand.In case the ignition switch does not change with the push
of a button, the key fob may have a low or fully depleted
battery. A low key fob battery can be verified by referring
to the instrument cluster, which will display directions to
follow.
Emergency Key
Emergency Key Removal Process
1 — Mechanical Release Button
2 — Emergency Key
20 GETTING TO KNOW YOUR VEHICLE

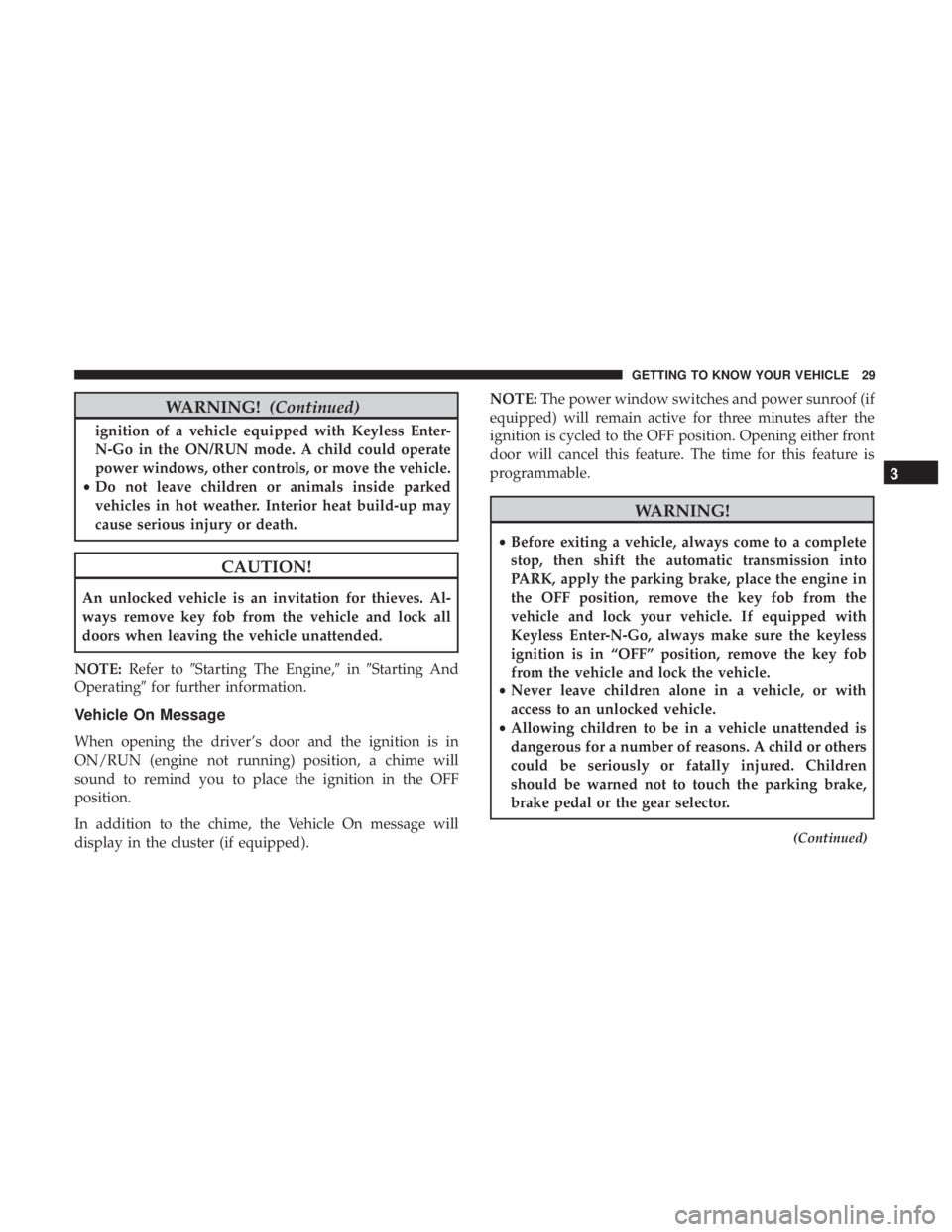

WARNING!(Continued)
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ON/RUN mode. A child could operate
power windows, other controls, or move the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked vehicle is an invitation for thieves. Al-
ways remove key fob from the vehicle and lock all
doors when leaving the vehicle unattended.
NOTE: Refer to Starting The Engine, inStarting And
Operating for further information.
Vehicle On Message
When opening the driver’s door and the ignition is in
ON/RUN (engine not running) position, a chime will
sound to remind you to place the ignition in the OFF
position.
In addition to the chime, the Vehicle On message will
display in the cluster (if equipped). NOTE:
The power window switches and power sunroof (if
equipped) will remain active for three minutes after the
ignition is cycled to the OFF position. Opening either front
door will cancel this feature. The time for this feature is
programmable.
WARNING!
• Before exiting a vehicle, always come to a complete
stop, then shift the automatic transmission into
PARK, apply the parking brake, place the engine in
the OFF position, remove the key fob from the
vehicle and lock your vehicle. If equipped with
Keyless Enter-N-Go, always make sure the keyless
ignition is in “OFF” position, remove the key fob
from the vehicle and lock the vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.
(Continued)
3
GETTING TO KNOW YOUR VEHICLE 29

•Ignition in STOP/OFF position
• Fuel level meets minimum requirement
• Vehicle Security Alarm is not signaling an intrusion
WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Monox-
ide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury
or death when inhaled.
• Keep key fobs away from children. Operation of the
Remote Start System, windows, door locks or other
controls could cause serious injury or death.
Remote Start Abort Message On The Instrument
Cluster Display — If Equipped
The following messages will display in the instrument
cluster display if the vehicle fails to remote start or exits
remote start prematurely:
• Remote Start Aborted — Door Open
• Remote Start Aborted — Hood Open
• Remote Start Aborted — Fuel Low •
Remote Start Aborted — Trunk Open
• Remote Start Disabled — Start Vehicle To Reset
The message will stay active until the ignition is turned to
the ON/RUN position.
To Enter Remote Start Mode
Push and release the remote start button on the key fob
twice within five seconds. The vehicle doors will lock, the
parking lights will flash, and the horn will chirp twice (if
programmed). Then, the engine will start, and the vehicle
will remain in the Remote Start mode for a 15-minute cycle.
NOTE:
• If an engine fault is present or fuel level is low, the
vehicle will start and then shut down in 10 seconds.
• The park lamps will turn on and remain on during
Remote Start mode.
• For security, power window and power sunroof opera-
tion (if equipped) are disabled when the vehicle is in the
Remote Start mode.
• The engine can be started two consecutive times with
the key fob. However, the ignition must be cycled by
pushing the START/STOP button twice (or the ignition
switch must be cycled to the ON/RUN position) before
you can repeat the start sequence for a third cycle.
3
GETTING TO KNOW YOUR VEHICLE 31

To Exit Remote Start Mode Without Driving The
Vehicle
Push and release the remote start button one time or allow
the engine to run for the entire 15-minute cycle.
NOTE:To avoid unintentional shutdowns, the system will
disable with a one time push of the remote start button for
two seconds after receiving a valid remote start request.
To Exit Remote Start Mode And Drive The Vehicle
Before the end of 15-minute cycle, push and release the
unlock button on the key fob to unlock the doors and
disarm the vehicle security alarm (if equipped). Then, prior
to the end of the 15-minute cycle, push and release the
START/STOP button. If the START/STOP button is not
present, insert the key fob into the ignition switch and turn
the switch to the ON/RUN position.
NOTE:
• For vehicles not equipped with the Keyless Enter-N-Go
— Passive Entry feature, the ignition switch must be in
the ON/RUN position in order to drive the vehicle. •
For vehicles not equipped with the Keyless Enter-N-Go
— Passive Entry feature, the message “Remote Start
Active — Insert Key and Turn To Run” will show in the
instrument cluster display until you insert the key.
• For vehicles equipped with the Keyless Enter-N-Go —
Passive Entry feature, the message “Remote Start Active
— Push Start Button” will show in the instrument
cluster display until you push the START button.
To Cancel Remote Start
Remote Starting will also cancel if any of the following
occur:
• The engine stalls or engine speed exceeds 2500 rpm.
• Any engine warning lights come on.
• Low Fuel Light turns on.
• The hood is opened.
• The hazard switch is pushed.
• The gear selector is moved out of PARK.
• The brake pedal is pushed.
