2019 DODGE CHARGER SRT mirror

FRONT VIEW
Front View
1 — Doors4 — Headlights
2 — Exterior Mirrors 5 — Windshield
3 — Wheels/Tires 6 — Hood/Engine Compartment

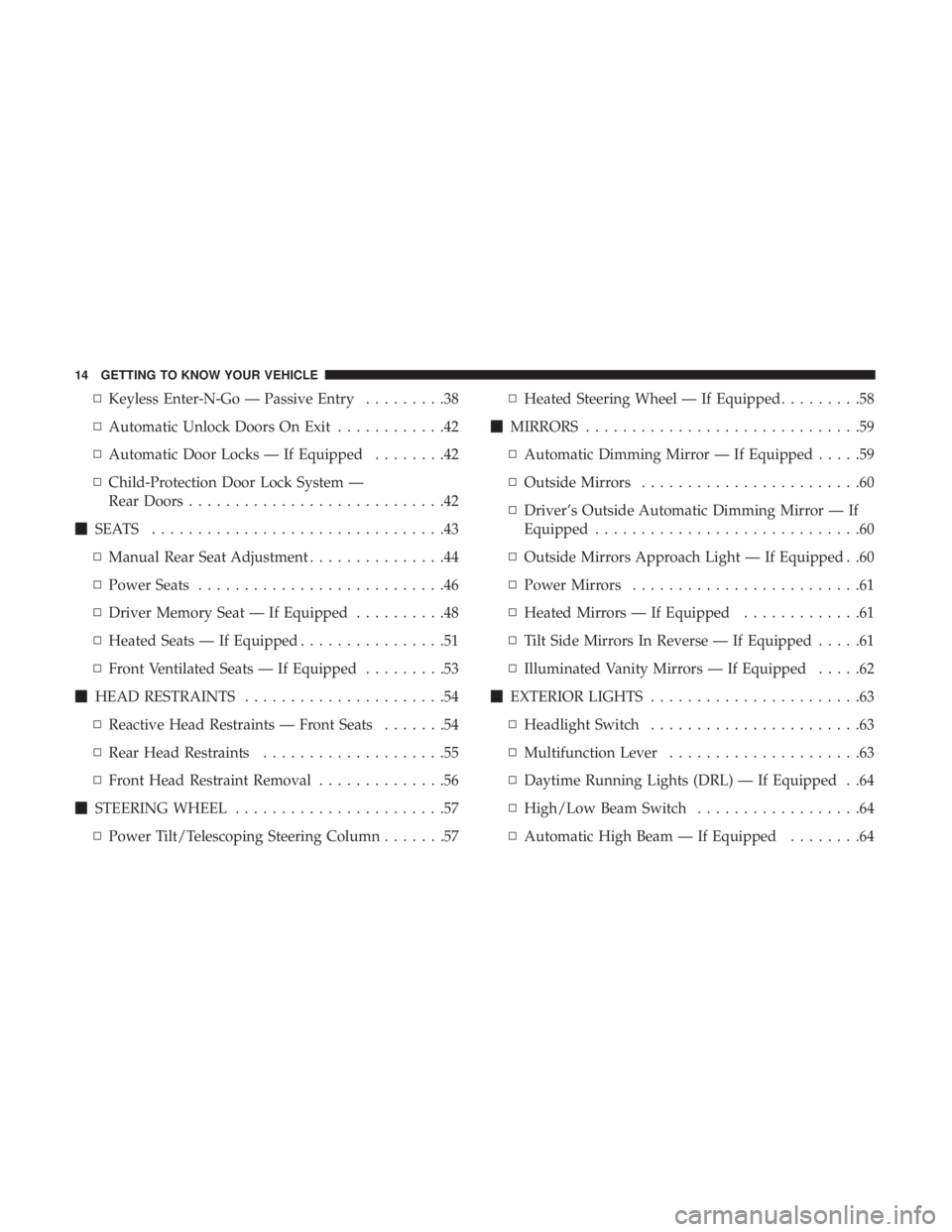

8 GRAPHICAL TABLE OF CONTENTS

▫Keyless Enter-N-Go — Passive Entry .........38
▫ Automatic Unlock Doors On Exit ............42
▫ Automatic Door Locks — If Equipped ........42
▫ Child-Protection Door Lock System —
Rear Doors ............................42
 SEATS ................................43
▫ Manual Rear Seat Adjustment ...............44
▫ Power Seats ...........................46
▫ Driver Memory Seat — If Equipped ..........48
▫ Heated Seats — If Equipped ................51
▫ Front Ventilated Seats — If Equipped .........53
 HEAD RESTRAINTS ......................54
▫ Reactive Head Restraints — Front Seats .......54
▫ Rear Head Restraints ....................55
▫ Front Head Restraint Removal ..............56
 STEERING WHEEL .......................57
▫ Power Tilt/Telescoping Steering Column .......57▫
Heated Steering Wheel — If Equipped .........58
 MIRRORS ..............................59
▫ Automatic Dimming Mirror — If Equipped .....59
▫ Outside Mirrors ........................60
▫ Driver’s Outside Automatic Dimming Mirror — If
Equipped .............................60
▫ Outside Mirrors Approach Light — If Equipped . .60
▫ Power Mirrors .........................61
▫ Heated Mirrors — If Equipped .............61
▫ Tilt Side Mirrors In Reverse — If Equipped .....61
▫ Illuminated Vanity Mirrors — If Equipped .....62
 EXTERIOR LIGHTS .......................63
▫ Headlight Switch .......................63
▫ Multifunction Lever .....................63
▫ Daytime Running Lights (DRL) — If Equipped . .64
▫ High/Low Beam Switch ..................64
▫ Automatic High Beam — If Equipped ........64
14 GETTING TO KNOW YOUR VEHICLE

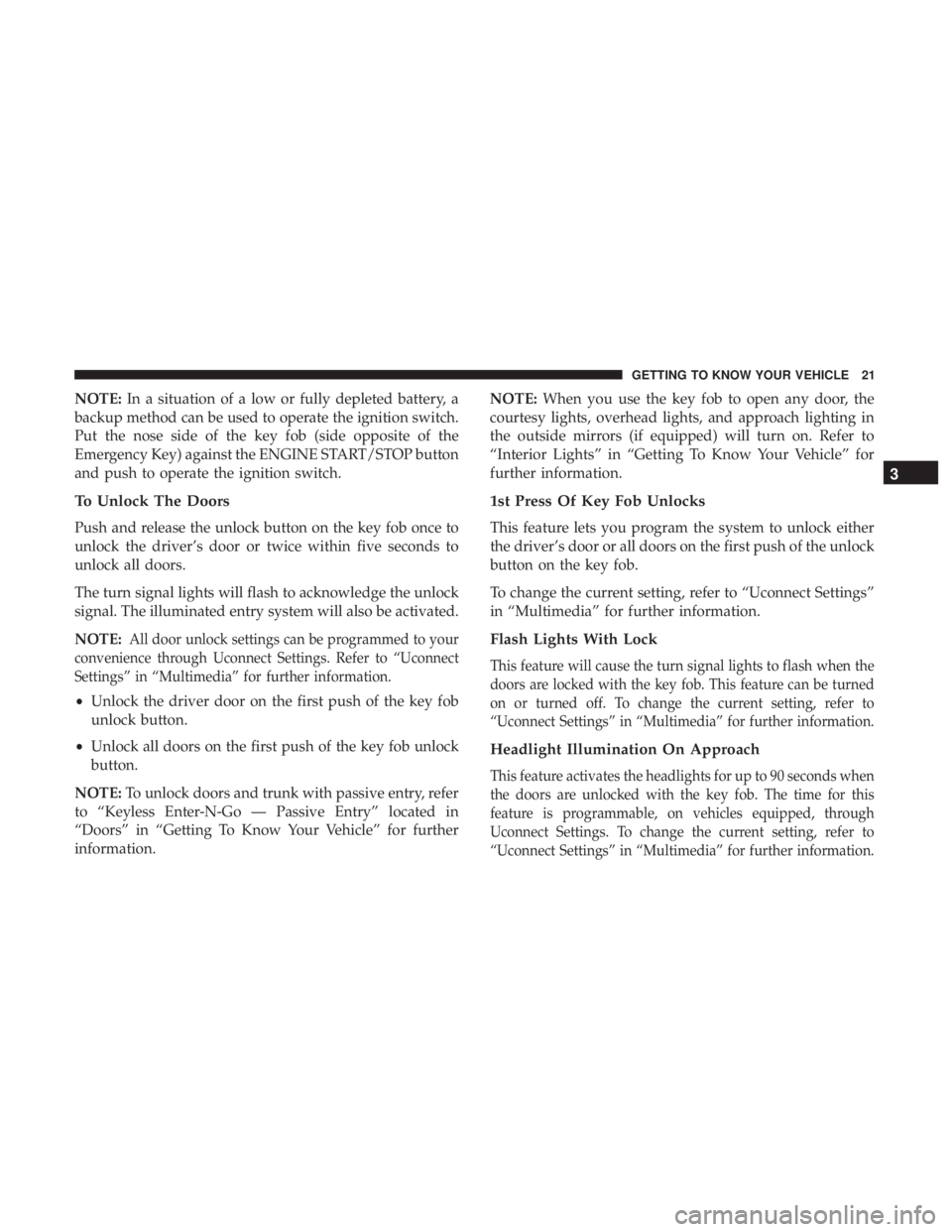

NOTE:In a situation of a low or fully depleted battery, a
backup method can be used to operate the ignition switch.
Put the nose side of the key fob (side opposite of the
Emergency Key) against the ENGINE START/STOP button
and push to operate the ignition switch.
To Unlock The Doors
Push and release the unlock button on the key fob once to
unlock the driver’s door or twice within five seconds to
unlock all doors.
The turn signal lights will flash to acknowledge the unlock
signal. The illuminated entry system will also be activated.
NOTE:
All door unlock settings can be programmed to your
convenience through Uconnect Settings. Refer to “Uconnect
Settings” in “Multimedia” for further information.
• Unlock the driver door on the first push of the key fob
unlock button.
• Unlock all doors on the first push of the key fob unlock
button.
NOTE: To unlock doors and trunk with passive entry, refer
to “Keyless Enter-N-Go — Passive Entry” located in
“Doors” in “Getting To Know Your Vehicle” for further
information. NOTE:
When you use the key fob to open any door, the
courtesy lights, overhead lights, and approach lighting in
the outside mirrors (if equipped) will turn on. Refer to
“Interior Lights” in “Getting To Know Your Vehicle” for
further information.
1st Press Of Key Fob Unlocks
This feature lets you program the system to unlock either
the driver’s door or all doors on the first push of the unlock
button on the key fob.
To change the current setting, refer to “Uconnect Settings”
in “Multimedia” for further information.
Flash Lights With Lock
This feature will cause the turn signal lights to flash when the
doors are locked with the key fob. This feature can be turned
on or turned off. To change the current setting, refer to
“Uconnect Settings” in “Multimedia” for further information.
Headlight Illumination On Approach
This feature activates the headlights for up to 90 seconds when
the doors are unlocked with the key fob. The time for this
feature is programmable, on vehicles equipped, through
Uconnect Settings. To change the current setting, refer to
“Uconnect Settings” in “Multimedia” for further information.
3
GETTING TO KNOW YOUR VEHICLE 21

Driver Memory Seat — If Equipped
This feature allows the driver to store up to two different
memory profiles for easy recall through a memory switch.
Each memory profile contains desired position settings for
the driver seat, side mirrors, and power tilt and telescopic
steering column (if equipped) and a set of desired radio
station presets. Your remote keyless entry key fob can also
be programmed to recall the same positions when the
unlock button is pushed.
NOTE:If your vehicle is equipped with two key fobs, one
key fob can be linked to memory position 1 and the other
key fob can be linked to memory position 2.
The memory seat switch is located on the driver ’s door
trim panel. The switch consists of three buttons: The set (S)
button, which is used to activate the memory save func-
tion, and the memory (1) and (2) buttons, which are used to
recall either of two pre-programmed memory profiles.
Programming The Memory Feature
NOTE: To create a new memory profile, perform the
following:
1. Cycle the vehicle’s ignition to the ON/RUN position (do not start the engine).
2. Adjust all memory profile settings to desired prefer- ences (i.e., seat, side mirror, power tilt and telescopic
steering column [if equipped], and radio station pre-
sets).
Memory Seat Switches
48 GETTING TO KNOW YOUR VEHICLE

MIRRORS
Automatic Dimming Mirror — If Equipped
The mirror head can be adjusted up, down, left, and right
for various drivers. The mirror should be adjusted to center
on the view through the rear window.
This mirror automatically adjusts for headlight glare from
vehicles behind you.
NOTE:The Automatic Dimming feature is disabled when
the vehicle is in REVERSE to improve rear view viewing.
The Automatic Dimming feature can be turned on or off
through the touchscreen.
• Press the mirror dimmer button once to turn the feature
on.
• Press the mirror dimmer button a second time to turn
the feature off. Refer to “Uconnect Settings” in “Multimedia” for further
information.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Automatic Dimming Mirror
3
GETTING TO KNOW YOUR VEHICLE 59

Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s) to
center on the adjacent lane of traffic and a slight overlap of
the view obtained from the inside mirror.
NOTE:The passenger side convex outside mirror will give
a much wider view to the rear, and especially of the lane
next to your vehicle.
WARNING!
Vehicles and other objects seen in an outside convex
mirror will look smaller and farther away than they
really are. Relying too much on side convex mirrors
could cause you to collide with another vehicle or other
object. Use your inside mirror when judging the size or
distance of a vehicle seen in a side convex mirror.
Driver’s Outside Automatic Dimming Mirror — If
Equipped
The driver ’s outside mirror will automatically adjust for
glare from vehicles behind you. This feature is controlled
by the inside automatic dimming mirror and will automati-
cally adjust for headlight glare when the inside mirror
adjusts.
Outside Mirrors Approach Light — If Equipped
Driver and passenger outside mirrors equipped with ap-
proach lighting contain one LED, which is located in the
upper outboard mirror glass corner. The approach light
supplies illuminated entry lighting, which turns on in both
mirrors when you use the remote keyless entry key fob or
open any door. This LED shines outward to illuminate the
front and rear door handles. It also shines downward to
illuminate the area in front of the doors.
60 GETTING TO KNOW YOUR VEHICLE

Power Mirrors
The power mirror controls are located on the driver’s door
trim panel.
The power mirror controls consist of mirror select buttons
and a four-way mirror control switch. To adjust a mirror,
push either the L (left) or R (right) button to select the
mirror that you want to adjust.
NOTE:A light in the select button will illuminate indicat-
ing the mirror is activated and can be adjusted.
Using the mirror control switch, push on any of the four
arrows for the direction that you want the mirror to move.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature will be activated whenever you turn on the
rear window defroster (if equipped). Refer to “Climate
Controls” in “Getting To Know Your Vehicle” for further
information.
Tilt Side Mirrors In Reverse — If Equipped
Tilt Side Mirrors In Reverse provides automatic outside
mirror positioning which will aid the driver ’s view of the
ground rearward of the front doors. The outside mirrors
will move slightly downward from the present position
when the vehicle is shifted into REVERSE. The outside
mirrors will then return to the original position when the
vehicle is shifted out of the REVERSE position. Each stored
memory setting will have an associated Tilt Side Mirrors In
Reverse position.
NOTE: The Tilt Side Mirrors In Reverse feature is not
turned on when delivered from the factory. The Tilt Side
Mirrors In Reverse feature can be turned on and off using
the Uconnect System. Refer to “Uconnect Settings” in
“Multimedia” for further information.
Power Mirror Control
3
GETTING TO KNOW YOUR VEHICLE 61

Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is located on the sun visor. To
use the mirror, rotate the sun visor downward and swing
the mirror cover upward. The light turns on automatically.
Closing the mirror cover turns off the light.
“Slide-On-Rod” And Extender Features Of Sun
Visor
To use the “Slide-On-Rod” feature of the sun visor, rotate
the sun visor downward and swing the sun visor so it is
parallel to the side window, grab the sun visor and pull
rearwards until the sun visor is in the desired position. To
use the extender feature of the sun visor, grab the extender
which is located at the rear of the visor and pull rearward.
Illuminated Vanity Mirror
Slide-On-Rod Feature
62 GETTING TO KNOW YOUR VEHICLE
