2019 DODGE CHALLENGER SRT Owners Manual

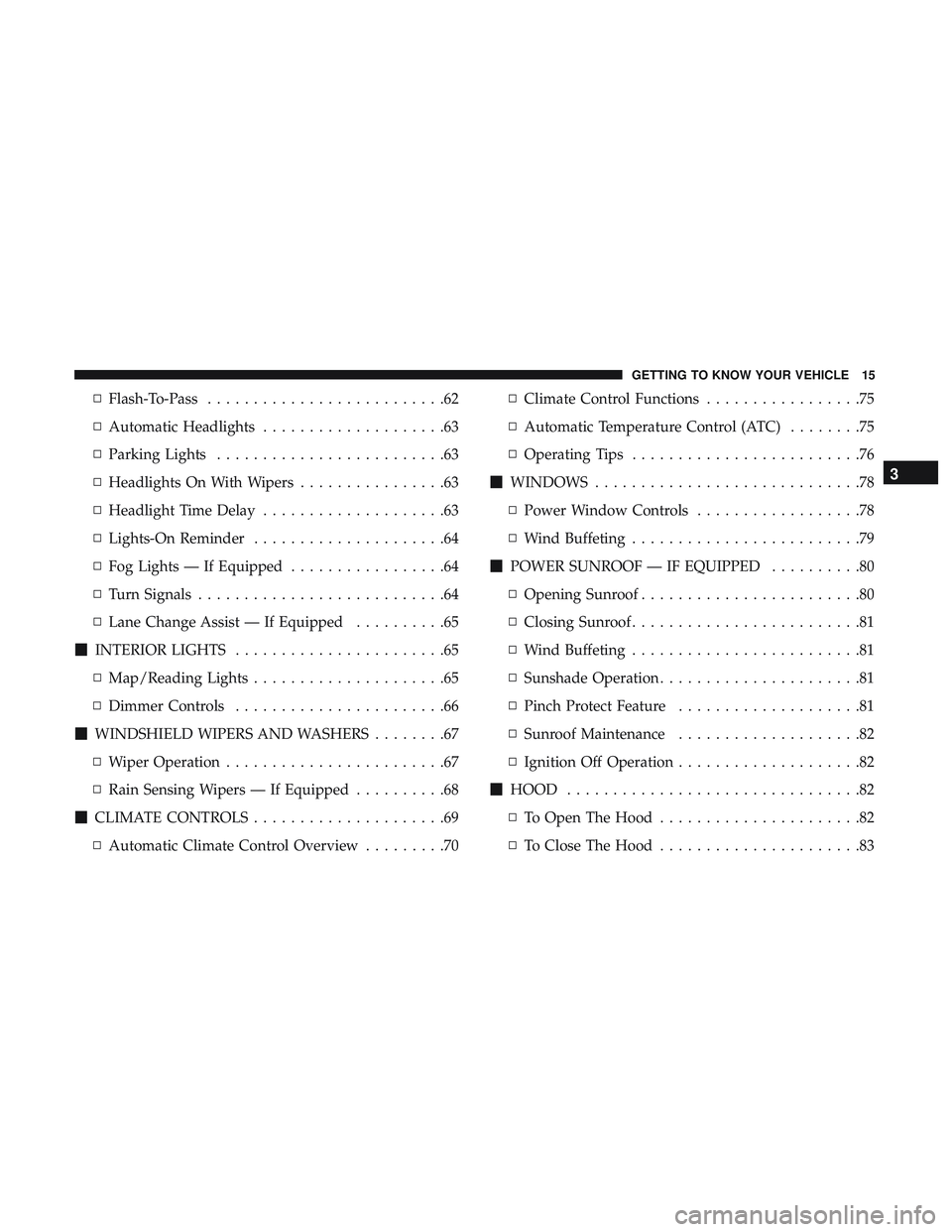

▫Flash-To-Pass ..........................62
▫ Automatic Headlights ....................63
▫ Parking Lights .........................63
▫ Headlights On With Wipers ................63
▫ Headlight Time Delay ....................63
▫ Lights-On Reminder .....................64
▫ Fog Lights — If Equipped .................64
▫ Turn Signals ...........................64
▫ Lane Change Assist — If Equipped ..........65
 INTERIOR LIGHTS .......................65
▫ Map/Reading Lights .....................65
▫ Dimmer Controls .......................66
 WINDSHIELD WIPERS AND WASHERS ........67
▫ Wiper Operation ........................67
▫ Rain Sensing Wipers — If Equipped ..........68
 CLIMATE CONTROLS .....................69
▫ Automatic Climate Control Overview .........70▫
Climate Control Functions .................75
▫ Automatic Temperature Control (ATC) ........75
▫ Operating Tips .........................76
 WINDOWS .............................78
▫ Power Window Controls ..................78
▫ Wind Buffeting .........................79
 POWER SUNROOF — IF EQUIPPED ..........80
▫ Opening Sunroof ........................80
▫ Closing Sunroof .........................81
▫ Wind Buffeting .........................81
▫ Sunshade Operation ......................81
▫ Pinch Protect Feature ....................81
▫ Sunroof Maintenance ....................82
▫ Ignition Off Operation ....................82
 HOOD ................................82
▫ To Open The Hood ......................82
▫ To Close The Hood ......................83
3
GETTING TO KNOW YOUR VEHICLE 15

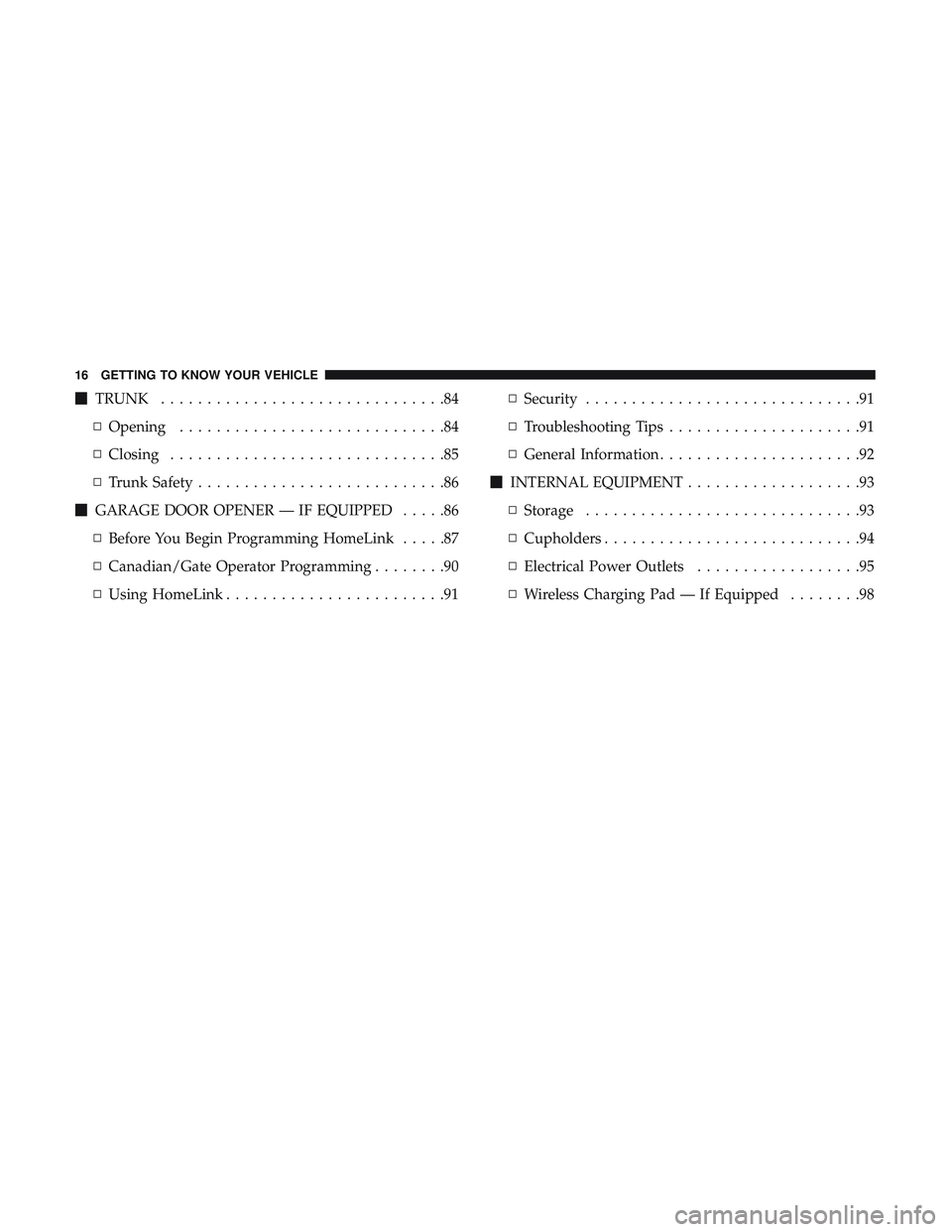

TRUNK ...............................84
▫ Opening .............................84
▫ Closing ..............................85
▫ Trunk Safety ...........................86
 GARAGE DOOR OPENER — IF EQUIPPED .....86
▫ Before You Begin Programming HomeLink .....87
▫ Canadian/Gate Operator Programming ........90
▫ Using HomeLink ........................91 ▫
Security ..............................91
▫ Troubleshooting Tips .....................91
▫ General Information ......................92
 INTERNAL EQUIPMENT ...................93
▫ Storage ..............................93
▫ Cupholders ............................94
▫ Electrical Power Outlets ..................95
▫ Wireless Charging Pad — If Equipped ........98
16 GETTING TO KNOW YOUR VEHICLE

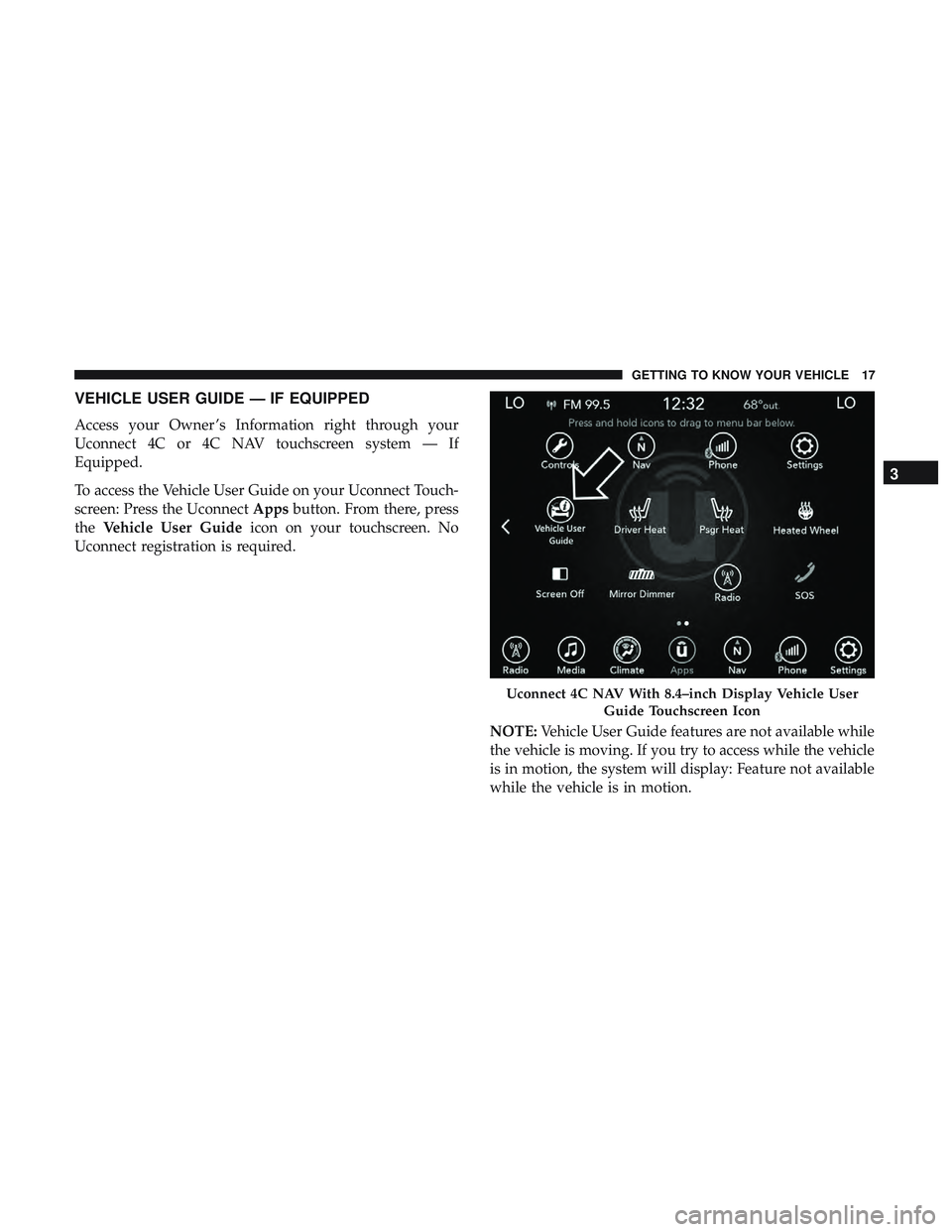

VEHICLE USER GUIDE — IF EQUIPPED
Access your Owner ’s Information right through your
Uconnect 4C or 4C NAV touchscreen system — If
Equipped.
To access the Vehicle User Guide on your Uconnect Touch-
screen: Press the UconnectAppsbutton. From there, press
the Vehicle User Guide icon on your touchscreen. No
Uconnect registration is required.
NOTE:Vehicle User Guide features are not available while
the vehicle is moving. If you try to access while the vehicle
is in motion, the system will display: Feature not available
while the vehicle is in motion.
Uconnect 4C NAV With 8.4–inch Display Vehicle User
Guide Touchscreen Icon
3
GETTING TO KNOW YOUR VEHICLE 17

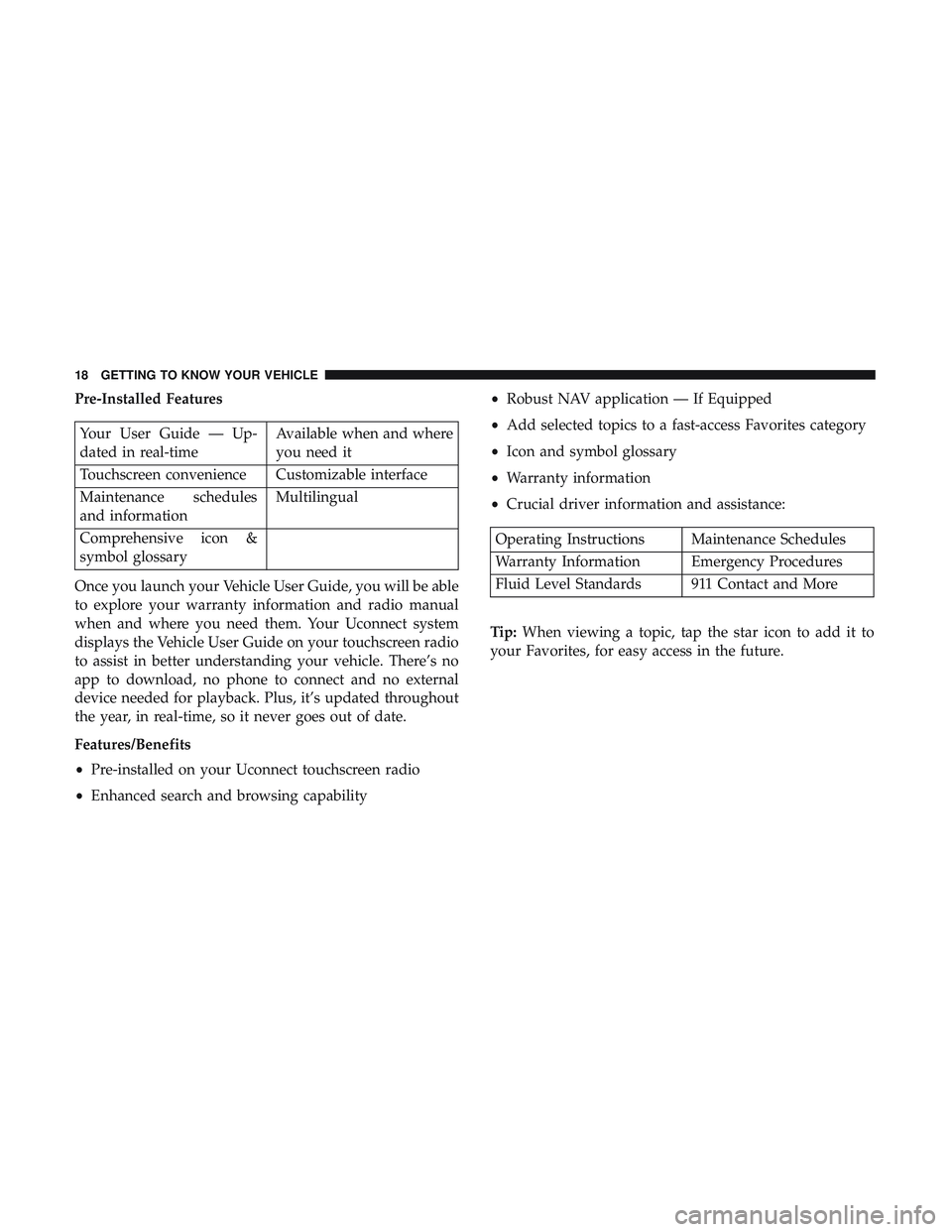

Pre-Installed Features
Your User Guide — Up-
dated in real-timeAvailable when and where
you need it
Touchscreen convenience Customizable interface
Maintenance schedules
and information Multilingual
Comprehensive icon &
symbol glossary
Once you launch your Vehicle User Guide, you will be able
to explore your warranty information and radio manual
when and where you need them. Your Uconnect system
displays the Vehicle User Guide on your touchscreen radio
to assist in better understanding your vehicle. There’s no
app to download, no phone to connect and no external
device needed for playback. Plus, it’s updated throughout
the year, in real-time, so it never goes out of date.
Features/Benefits
• Pre-installed on your Uconnect touchscreen radio
• Enhanced search and browsing capability •
Robust NAV application — If Equipped
• Add selected topics to a fast-access Favorites category
• Icon and symbol glossary
• Warranty information
• Crucial driver information and assistance:
Operating Instructions Maintenance Schedules
Warranty Information Emergency Procedures
Fluid Level Standards 911 Contact and More
Tip: When viewing a topic, tap the star icon to add it to
your Favorites, for easy access in the future.
18 GETTING TO KNOW YOUR VEHICLE

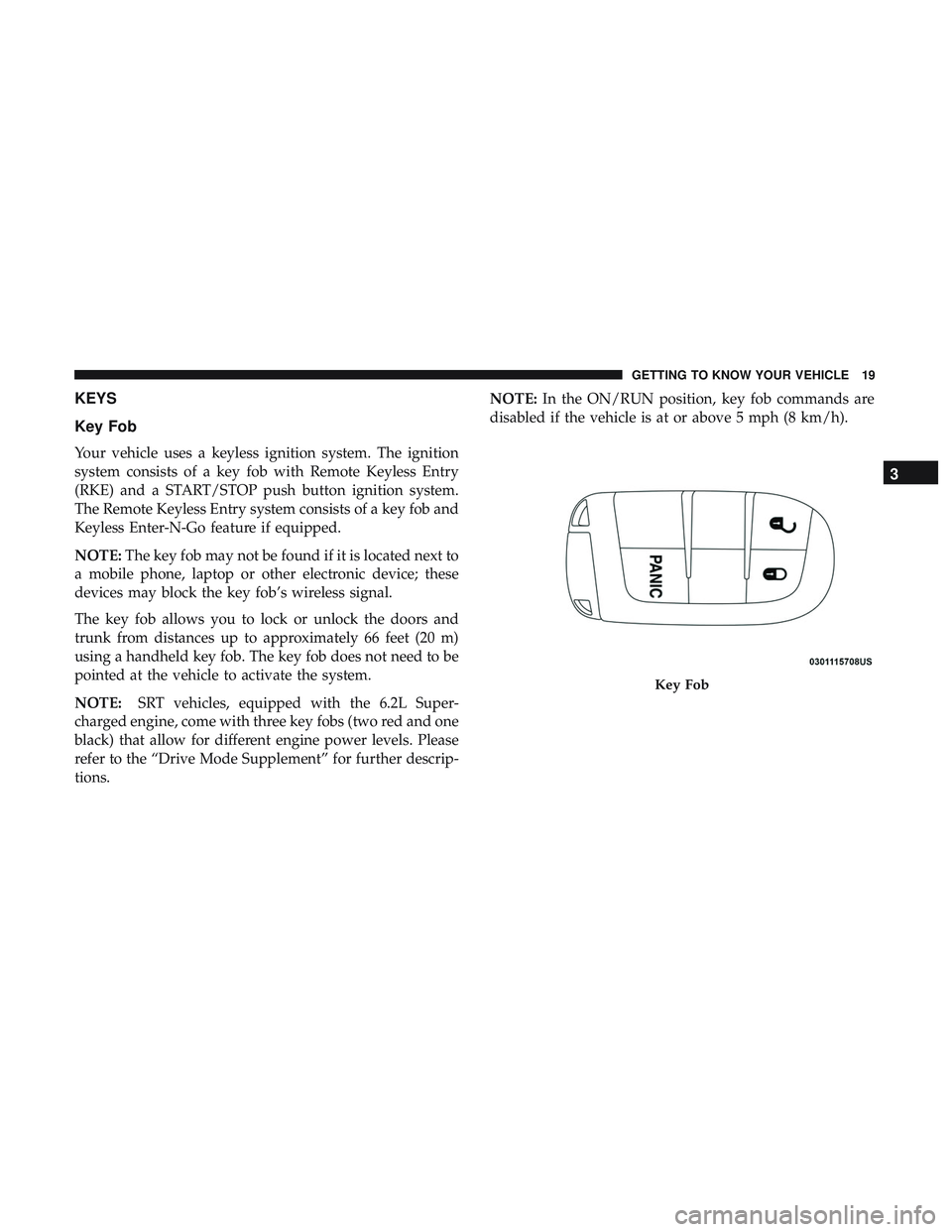

KEYS
Key Fob
Your vehicle uses a keyless ignition system. The ignition
system consists of a key fob with Remote Keyless Entry
(RKE) and a START/STOP push button ignition system.
The Remote Keyless Entry system consists of a key fob and
Keyless Enter-N-Go feature if equipped.
NOTE:The key fob may not be found if it is located next to
a mobile phone, laptop or other electronic device; these
devices may block the key fob’s wireless signal.
The key fob allows you to lock or unlock the doors and
trunk from distances up to approximately 66 feet (20 m)
using a handheld key fob. The key fob does not need to be
pointed at the vehicle to activate the system.
NOTE: SRT vehicles, equipped with the 6.2L Super-
charged engine, come with three key fobs (two red and one
black) that allow for different engine power levels. Please
refer to the “Drive Mode Supplement” for further descrip-
tions. NOTE:
In the ON/RUN position, key fob commands are
disabled if the vehicle is at or above 5 mph (8 km/h).
Key Fob
3
GETTING TO KNOW YOUR VEHICLE 19

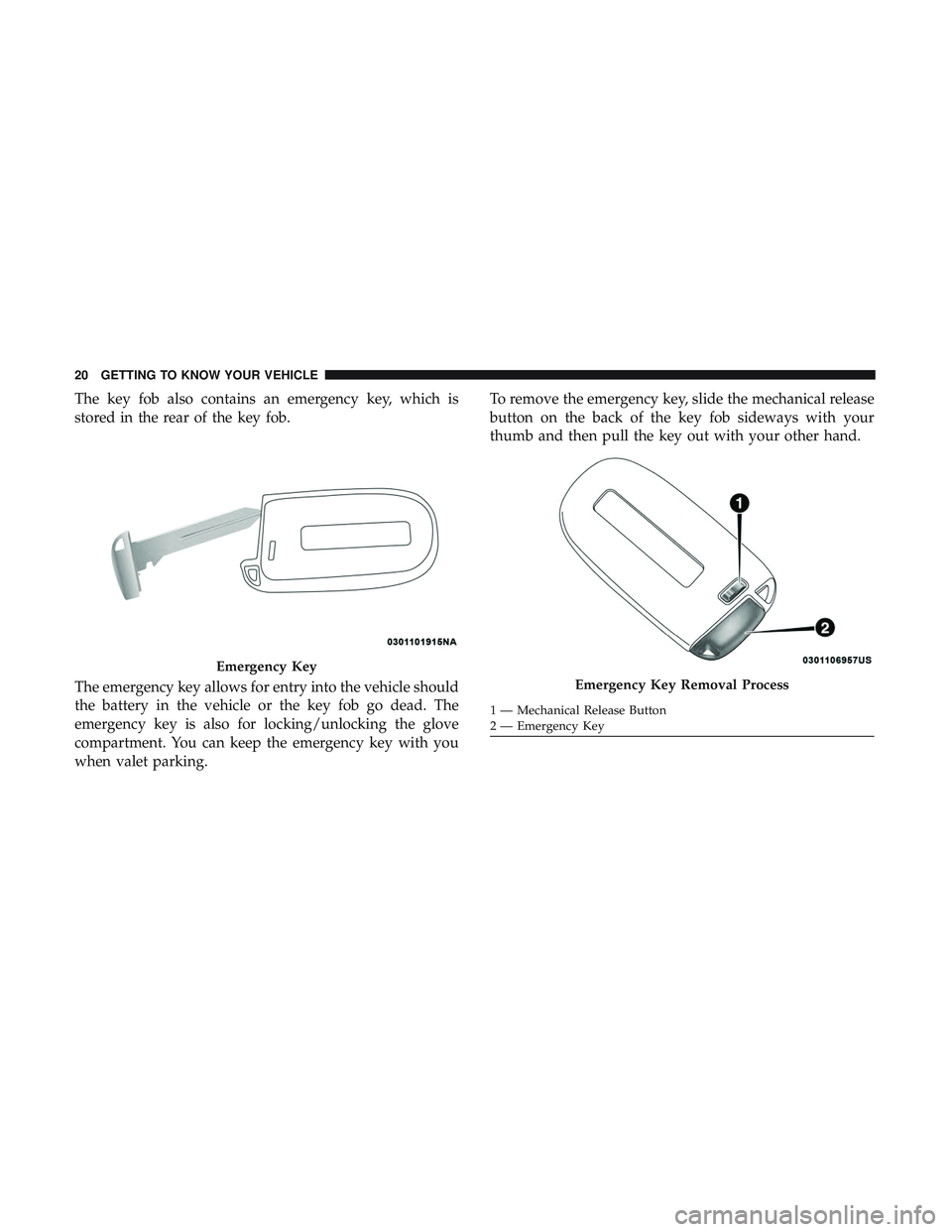

The key fob also contains an emergency key, which is
stored in the rear of the key fob.
The emergency key allows for entry into the vehicle should
the battery in the vehicle or the key fob go dead. The
emergency key is also for locking/unlocking the glove
compartment. You can keep the emergency key with you
when valet parking.To remove the emergency key, slide the mechanical release
button on the back of the key fob sideways with your
thumb and then pull the key out with your other hand.
Emergency Key
Emergency Key Removal Process
1 — Mechanical Release Button
2 — Emergency Key
20 GETTING TO KNOW YOUR VEHICLE

In case the ignition switch does not change with the push
of a button, the key fob may have a low or fully depleted
battery. A low key fob battery can be verified by referring
to the instrument cluster, which will display directions to
follow.
NOTE:In a situation of a low or fully depleted battery, a
backup method can be used to operate the ignition switch.
Put the nose side of the key fob (side opposite of the
Emergency Key) against the ENGINE START/STOP button
and push to operate the ignition switch.
To Unlock The Doors
Push and release the unlock button on the key fob once to
unlock the driver’s door or twice within five seconds to
unlock all doors.
The turn signal lights will flash to acknowledge the unlock
signal. The illuminated entry system will also be activated.
NOTE: All door unlock settings can be programmed to
your convenience through Uconnect Settings. Refer to
“Uconnect Settings” in “Multimedia” for further informa-
tion. •
Unlock the driver door on the first push of the key fob
unlock button.
• Unlock all doors on the first push of the key fob unlock
button.
NOTE: To unlock doors and trunk with passive entry, refer
to “Keyless Enter-N-Go — Passive Entry” located in
“Doors” in “Getting To Know Your Vehicle” for further
information.
NOTE: When you use the key fob to open any door, the
courtesy lights, overhead lights, and approach lighting in
the outside mirrors (if equipped) will turn on. Refer to
“Interior Lights” in “Getting To Know Your Vehicle” for
further information.
1st Press Of Key Fob Unlocks
This feature lets you program the system to unlock either
the driver’s door or all doors on the first push of the unlock
button on the key fob.
To change the current setting, refer to “Uconnect Settings”
in “Multimedia” for further information.
3
GETTING TO KNOW YOUR VEHICLE 21

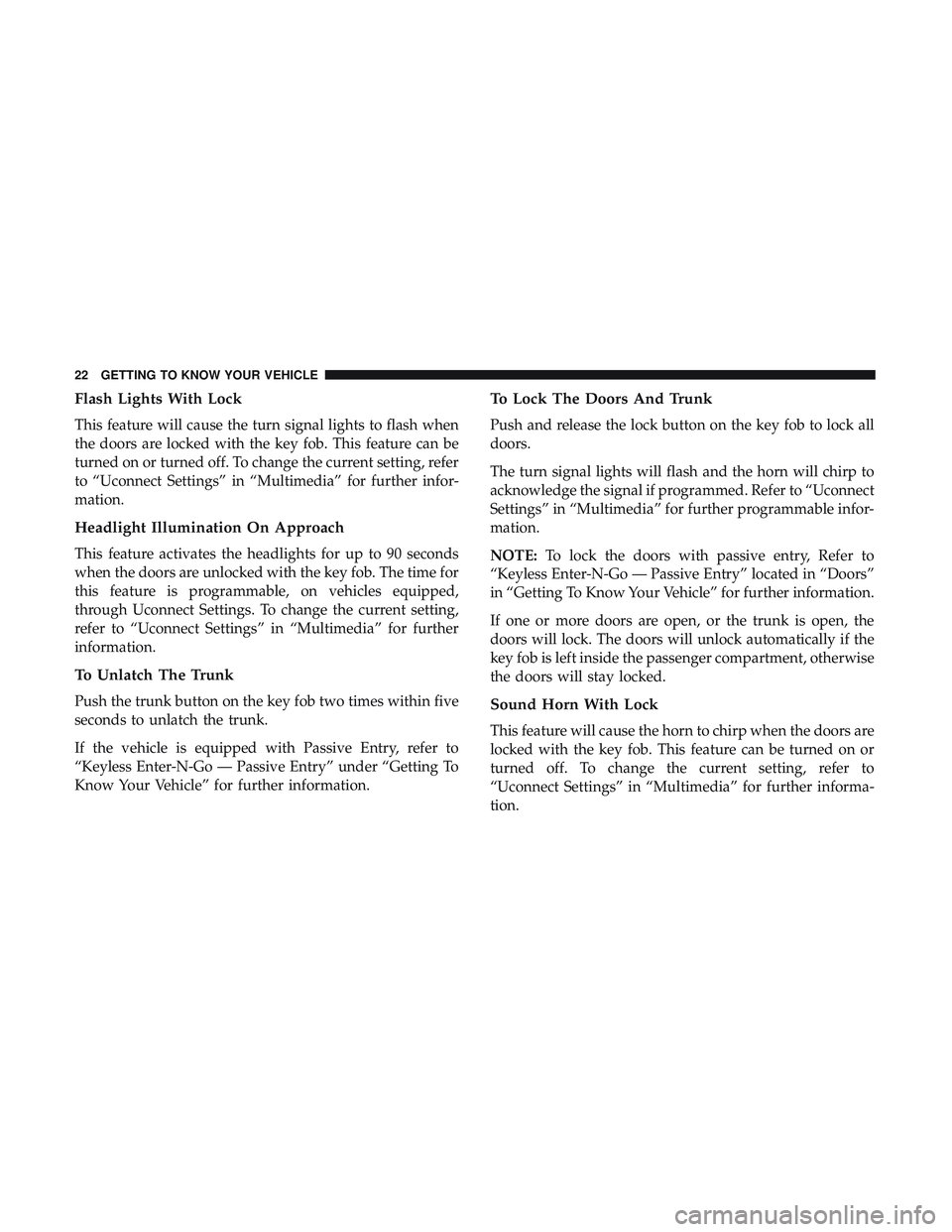

Flash Lights With Lock
This feature will cause the turn signal lights to flash when
the doors are locked with the key fob. This feature can be
turned on or turned off. To change the current setting, refer
to “Uconnect Settings” in “Multimedia” for further infor-
mation.
Headlight Illumination On Approach
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the key fob. The time for
this feature is programmable, on vehicles equipped,
through Uconnect Settings. To change the current setting,
refer to “Uconnect Settings” in “Multimedia” for further
information.
To Unlatch The Trunk
Push the trunk button on the key fob two times within five
seconds to unlatch the trunk.
If the vehicle is equipped with Passive Entry, refer to
“Keyless Enter-N-Go — Passive Entry” under “Getting To
Know Your Vehicle” for further information.
To Lock The Doors And Trunk
Push and release the lock button on the key fob to lock all
doors.
The turn signal lights will flash and the horn will chirp to
acknowledge the signal if programmed. Refer to “Uconnect
Settings” in “Multimedia” for further programmable infor-
mation.
NOTE:To lock the doors with passive entry, Refer to
“Keyless Enter-N-Go — Passive Entry” located in “Doors”
in “Getting To Know Your Vehicle” for further information.
If one or more doors are open, or the trunk is open, the
doors will lock. The doors will unlock automatically if the
key fob is left inside the passenger compartment, otherwise
the doors will stay locked.
Sound Horn With Lock
This feature will cause the horn to chirp when the doors are
locked with the key fob. This feature can be turned on or
turned off. To change the current setting, refer to
“Uconnect Settings” in “Multimedia” for further informa-
tion.
22 GETTING TO KNOW YOUR VEHICLE
