2018 YAMAHA YFZ50 Owners Manual

3-1
3
EBU17681
DESCRIPTION
EBU17691Left view
EBU17701Right view
1. Fuel tank cap
2. Fuel cock
3. Air filter
4. Engine stop switch with cord (lanyard)
5. Rear shock absorber spring preload adjuster
6. Kickstarter lever cap
7. Throttle stop screw
12
4
5
3
6
7
1. Spark arrester
2. Owner’s tool kit
3. Fuse
4. Battery
5. Spark plug
6. Engine oil filler cap
7. Transmission oil filler cap
12
3,4
5
67
UBW461E0.book Page 1 Tuesda y, January 31, 2017 5:13 PM

3-2
3
EBU17714Controls and instrumentsTIPThe ATV you have purchased may differ slightly
from the figures shown in this manual. 1. Rear brake lever
2. Handlebar switches
3. Parking brake lock plate
4. Front brake lever
5. Throttle lever
6. Main switch
7. Starter (choke)
12376 54
UBW461E0.book Page 2 Tuesda
y, January 31, 2017 5:13 PM

4-1
4
EBU17738
INSTRUMENT AND CONTROL FUNCTIONS
EBU33850Main switchThe positions of the main switch are as follows:
ON
All electrical systems are supplied with power, and
the engine can be started. The key cannot be re-
moved.
OFF
All electrical systems are off. The key can be re-
moved.
EBU18066Handlebar switchesEBU18081Engine stop switch “ / ”
Set this switch to “ ” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this
switch to stop the engine in an emergency situa-
tion. The engine will not start or run when this
switch is set to “ ”.
ON
OFF
1. Engine stop switch “ / ”
2. Start switch “ ”
21
UBW461E0.book Page 1 Tuesda y, January 31, 2017 5:13 PM

4-2
4
EBU18102Start switch “ ”
Push this switch to crank the engine with the start-
er. See the starting instructions on page 6-1 prior
to starting the engine.EBU36341Engine stop switch with lanyardThe cap must be attached to the engine stop
switch for the engine to run.
The lanyard should be held by putting your fingers
in the loop as shown.Should the ATV be separated from the parent by a
distance longer than the lanyard length, the lan-
yard will pull out the cap and stop the engine.
For further explanation of this switch and the lan-
yard, see “TEACHING YOUR CHILD TO OPER-
ATE THE ATV” in the “SAFETY INFORMATION”
section.
TIP
The engine cannot be started with the cap re-
moved.
1. Engine stop switch
2. Cap
3. Lanyard12
3
1. Lanyard
1
UBW461E0.book Page 2 Tuesda y, January 31, 2017 5:13 PM

4-3
4

When your child has developed sufficient skill to
no longer need you to follow with the lanyard,
securely tie up the lanyard. However, you must
still closely supervise your child at all times dur-
ing ATV operation.
EBU18283Throttle leverOnce the engine is running, pushing the throttle le-
ver will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine
will return to an idle any time the throttle lever is re-
leased. Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
EBU36330Speed limiterYour ATV was delivered with two speed limiter de-
vices. A vehicle speed limiter adjusting screw and
a removable engine speed limiter plate. Yamaha
recommends that all beginning riders start off with
the vehicle speed limiter adjusting screw fully
turned in and the engine speed limiter plate in-
stalled to limit the amount of speed available while
they learn.1. Throttle lever
1
UBW461E0.book Page 3 Tuesda
y, January 31, 2017 5:13 PM

4-4
4The vehicle speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum. The adjusting screw may
be gradually turned out as the beginner becomes
more familiar with operating the ATV. Parents
should decide when to adjust the ATV for more
power as their youngster’s riding skills improve.
Once the ATV rider can operate with skill at the top
speed permitted by adjusting the vehicle speed
limiter alone, the engine speed limiter plate can be
removed. Since removal of this plate will result in
a significant increase in power, turn the vehicle
speed limiter adjusting screw completely back in
again and adjust it out in stages as done previous-
ly.

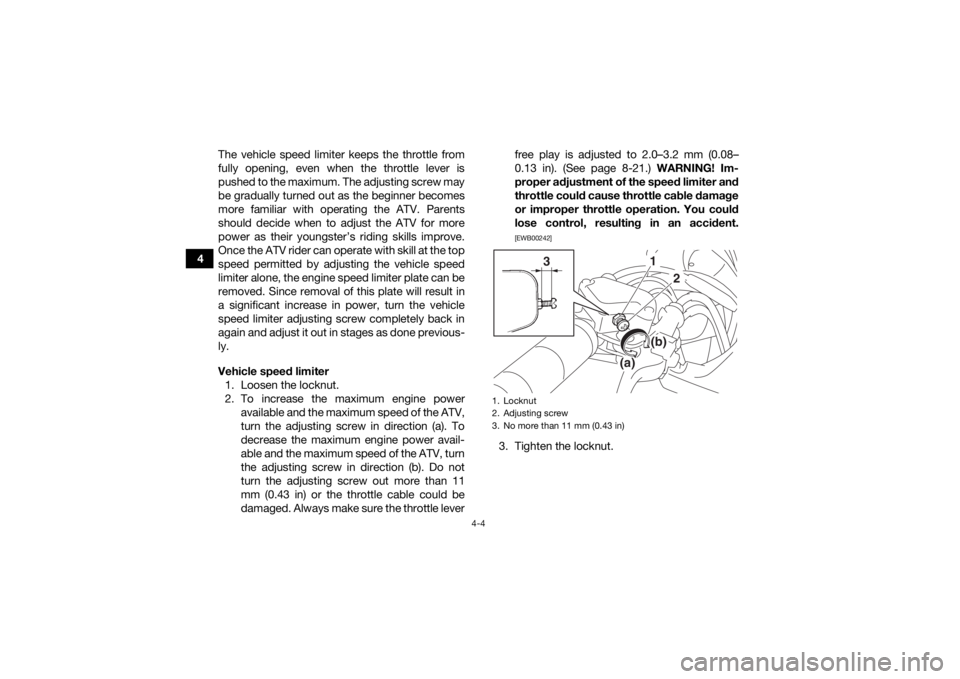

Vehicle speed limiter
1. Loosen the locknut.
2. To increase the maximum engine power available and the maximum speed of the ATV,
turn the adjusting screw in direction (a). To
decrease the maximum engine power avail-
able and the maximum speed of the ATV, turn
the adjusting screw in direction (b). Do not
turn the adjusting screw out more than 11
mm (0.43 in) or the throttle cable could be
damaged. Always make sure the throttle lever free play is adjusted to 2.0–3.2 mm (0.08–
0.13 in). (See page 8-21.) WARNING! Im-
proper adjustment of the speed limiter and
throttle could cause throttle cable damage
or improper throttle operation. You could
lose control, resulting in an accident.
[EWB00242]
3. Tighten the locknut.1. Locknut
2. Adjusting screw
3. No more than 11 mm (0.43 in)
1
3
2
(b)
(a)
UBW461E0.book Page 4 Tuesda y, January 31, 2017 5:13 PM

4-5
4

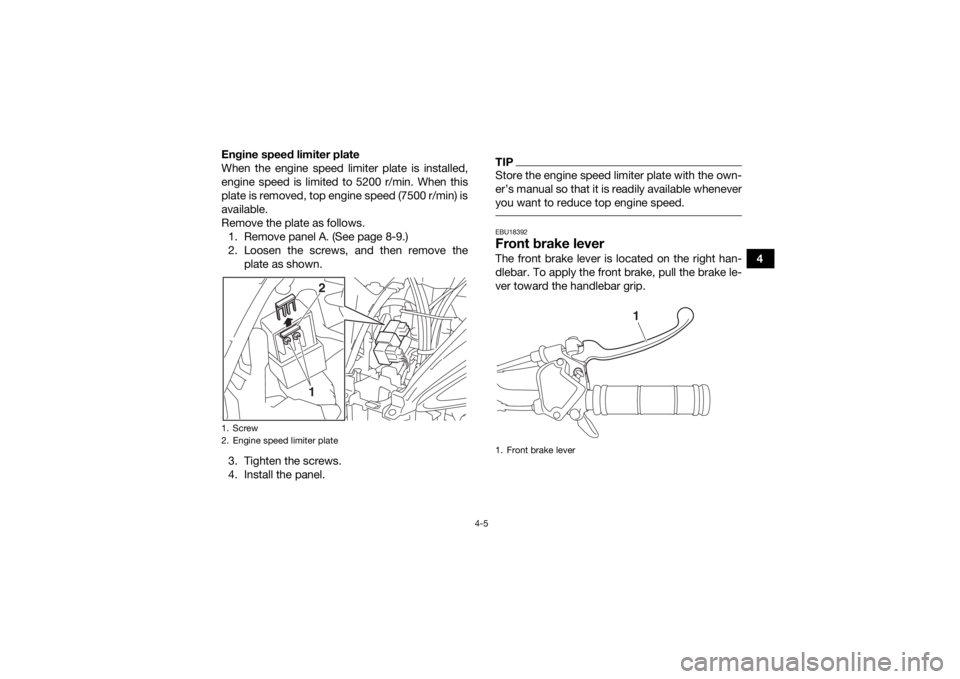

Engine speed limiter plate
When the engine speed limiter plate is installed,
engine speed is limited to 5200 r/min. When this
plate is removed, top engine speed (7500 r/min) is
available.
Remove the plate as follows.
1. Remove panel A. (See page 8-9.)
2. Loosen the screws, and then remove the plate as shown.
3. Tighten the screws.
4. Install the panel.
TIPStore the engine speed limiter plate with the own-
er’s manual so that it is readily available whenever
you want to reduce top engine speed. EBU18392Front brake leverThe front brake lever is located on the right han-
dlebar. To apply the front brake, pull the brake le-
ver toward the handlebar grip.
1. Screw
2. Engine speed limiter plate
21
1. Front brake lever
1
UBW461E0.book Page 5 Tuesda y, January 31, 2017 5:13 PM

4-6
4

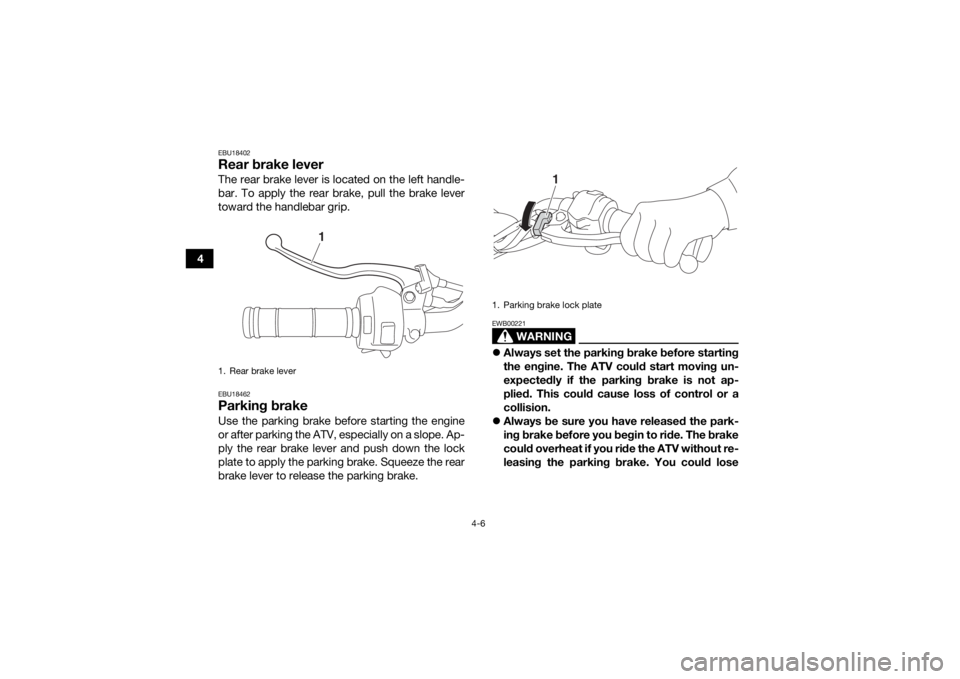

EBU18402Rear brake leverThe rear brake lever is located on the left handle-
bar. To apply the rear brake, pull the brake lever
toward the handlebar grip.EBU18462Parking brakeUse the parking brake before starting the engine
or after parking the ATV, especially on a slope. Ap-
ply the rear brake lever and push down the lock
plate to apply the parking brake. Squeeze the rear
brake lever to release the parking brake.
WARNING
EWB00221Always set the parking brake before starting
the engine. The ATV could start moving un-
expectedly if the parking brake is not ap-
plied. This could cause loss of control or a
collision.
 Always be sure you have released the park-
ing brake before you begin to ride. The brake
could overheat if you ride the ATV without re-
leasing the parking brake. You could lose
1. Rear brake lever
1
1. Parking brake lock plate
1
