2018 YAMAHA YFZ50 Owners Manual

8-7
8
15*Steering system • Check operation and repair or replace if dam-
aged.
• Check toe-in and adjust if necessary. √√√√√
16 Engine oil • Change.
• Check ATV for oil leakage, and correct if neces-
sary. √ √√√
17 Engine oil strainer • Clean. √√√
18 Transmission oil • Change.
• Check ATV for oil leakage, and correct if neces-
sary. √√
19 *Moving parts and
cables
•Lubricate.
√√√√
20 *Throttle lever • Check operation.
• Check throttle lever free play, and adjust if neces-
sary.
• Lubricate cable and lever housing. √√√√√
21 *Brake switch • Check operation and correct if necessary. √√√√√
22 *Switches • Check operation and correct if necessary. √√√√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev- er comes first month136612
km (mi) 240
(150) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320UBW461E0.book Page 7 Tuesda y, January 31, 2017 5:13 PM

8-8
8
EBU23062TIPSome maintenance items need more frequent service if you are riding in unusually wet, dusty, sandy or
muddy areas, or at full-throttle. UBW461E0.book Page 8 Tuesday, January 31, 2017 5:13 PM

8-9
8
EBU23081Removing and installing the panelThe panel shown needs to be removed to perform
some of the maintenance jobs described in this
chapter. Refer to this section each time the panel
needs to be removed and installed.EBU23102Panel A
To remove the panelRemove the bolts, and then take the panel off.To install the panel
Place the panel in the original position and install
the bolts.EBU23214Checking the spark plugThe spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the
spark plug should be removed and checked in ac-
cordance with the periodic maintenance and lubri-
cation chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
1. Panel A
1
1. Panel A
2. Bolt
2
2
1
UBW461E0.book Page 9 Tuesda
y, January 31, 2017 5:13 PM

8-10
8To remove the spark plug
1. Remove the spark plug cap.
2. Remove the spark plug as shown, with the spark plug wrench included in the owner’s
tool kit. To check the spark plug
1. Check that the porcelain insulator around the center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).
TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-
stead, have a Yamaha dealer check the ATV.
1. Spark plug cap
1
1. Spark plug wrench
1
UBW461E0.book Page 10 Tuesday, January 31, 2017 5:13 PM

8-11
8
2. Check the spark plug for electrode erosion
and excessive carbon or other deposits, and
replace it if necessary.
3. Measure the spark plug gap with a wire thick- ness gauge and, if necessary, adjust the gap
to specification. To install the spark plug
1. Clean the surface of the spark plug gasket and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark plug wrench, and then tighten it to the specified
torque.
TIPIf a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the speci-
fied torque as soon as possible. 3. Install the spark plug cap.EBU37000Engine oilThe engine oil level should be checked before
each ride. In addition, the oil must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.
Specified spark plug:
NGK/CR6HSA
1. Spark plug gapSpark plug gap:0.6–0.7 mm (0.024–0.028 in)
Tightening torque:Spark plug:12 N·m (1.2 kgf·m, 8.9 lb·ft)
UBW461E0.book Page 11 Tuesday, January 31, 2017 5:13 PM

8-12
8To check the engine oil level
1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, warm up the engine and then wait at least
ten minutes until the oil settles for an accurate
reading. 3. Remove the engine oil filler cap, and then wipe the engine oil dipstick off with a clean
rag. 4. Insert the dipstick into the filler hole, screw it
in, and then remove it again to check the oil
level.
TIPThe engine oil should be between the minimum
and maximum level marks. 5. If the engine oil is at or below the minimumlevel mark, add sufficient oil of the recom-
mended type to raise it to the correct level.

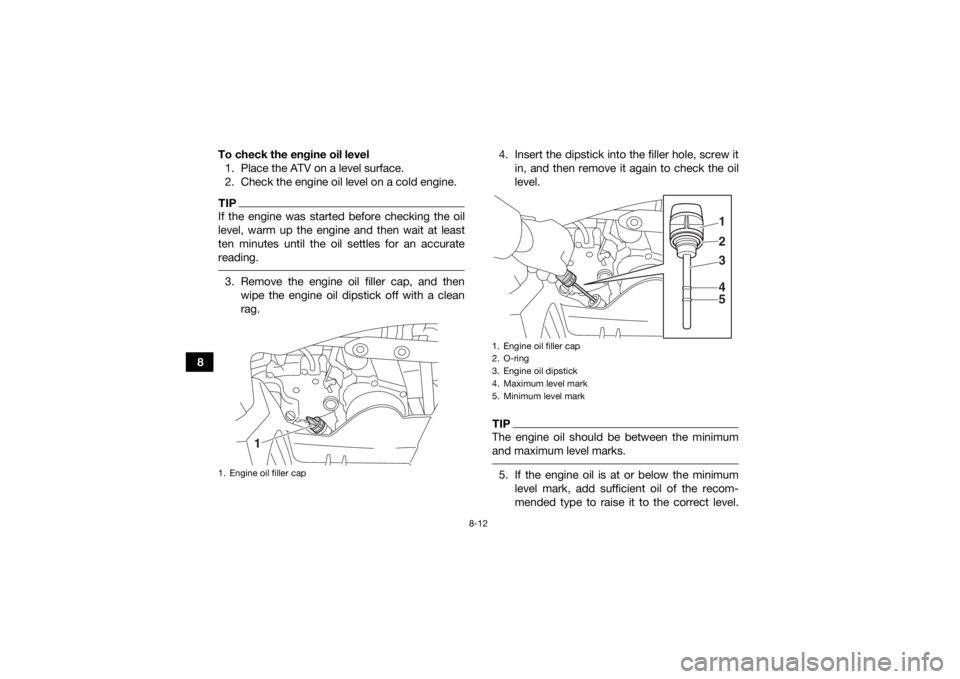

1. Engine oil filler cap
1
1. Engine oil filler cap
2. O-ring
3. Engine oil dipstick
4. Maximum level mark
5. Minimum level mark
14523
UBW461E0.book Page 12 Tuesday, January 31, 2017 5:13 PM

8-13
8
NOTICE:
Be sure the engine oil is at the
correct level, otherwise engine damage
may result.
[ECB00852]
6. Check the O-ring for damage, and then insert the dipstick and tighten the engine oil filler
cap.
To change the engine oil 1. Place the ATV on a level surface.
2. Start the engine, warm it up for several minu- tes, and then turn it off.
3. Place an oil pan under the engine to collect the used oil.
4. Remove the engine oil filler cap, and then re- move the engine oil drain bolt to drain the oil
from the crankcase. NOTICE: When remov-
ing the engine oil drain bolt, the compres-
sion spring, oil strainer and O-ring will fall
out. Take care not to lose these parts.
[ECB00312]
5. Clean the oil strainer with solvent.
6. Discard the old engine oil drain bolt O-ring, and then apply a thin coat of clean engine oil
to the new O-ring.
7. Install the oil strainer, the compression spring, the new O-ring and the engine oil
drain bolt. Tighten the engine oil drain bolt to
the specified torque. NOTICE: Before in-
stalling the engine oil drain bolt, be sure to
install the O-ring, compression spring and
oil strainer.
[ECB00322]
1. Oil strainer
2. Compression spring
3. O-ring
4. Engine oil drain bolt
1234
UBW461E0.book Page 13 Tuesday, January 31, 2017 5:13 PM

8-14
88. Refill with the specified amount of the recom-
mended engine oil.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down. NOTICEECB00331Do not use oils with a diesel specification of
“CD” or oils of a higher quality than speci-
fied. In addition, do not use oils labeled “EN-
ERGY CONSERVING II” or higher.
 Make sure that no foreign material enters the
crankcase.
9. Check the engine oil filler cap O-ring for dam-
age, and then install and tighten the engine oil
filler cap.
10. Start the engine, and then let it idle for several minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
11. Turn the engine off, wait at least ten minutes, and then check the oil level and correct it if
necessary.EBU34472Transmission oilThe transmission case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the transmission oil must be changed
at the intervals specified in the periodic mainte-
nance and lubrication chart.
To change the transmission oil1. Place the ATV on a level surface.
2. Place an oil pan under the transmission case to collect the used oil.
3. Remove the transmission oil filler cap and its O-ring from the transmission case.
Tightening torque:
Engine oil drain bolt:25 N·m (2.5 kgf·m, 18 lb·ft)
Recommended oil: See page 10-1.
Oil quantity: 0.80 L (0.85 US qt, 0.70 Imp.qt)
