2018 TOYOTA YARIS HATCHBACK Owners Manual

4017-3. Do-it-yourself maintenance
7
Maintenance and care
■Front side marker lightsTurn the bulb base counter-
clockwise.
Remove the light bulb
When installing, reve rse the steps listed.
■Front fog lights (if equipped)
Turn the steering wheel and
change the tire direction to
the opposite direction of light
to be exchanged.
Remove the bolt.
1
2
3
1
2

4027-3. Do-it-yourself maintenance
Remove the fender liner
retainer.
Partly remove the fender
liner until the light bulb is visi-
ble.
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise and remove.3
4
5
6

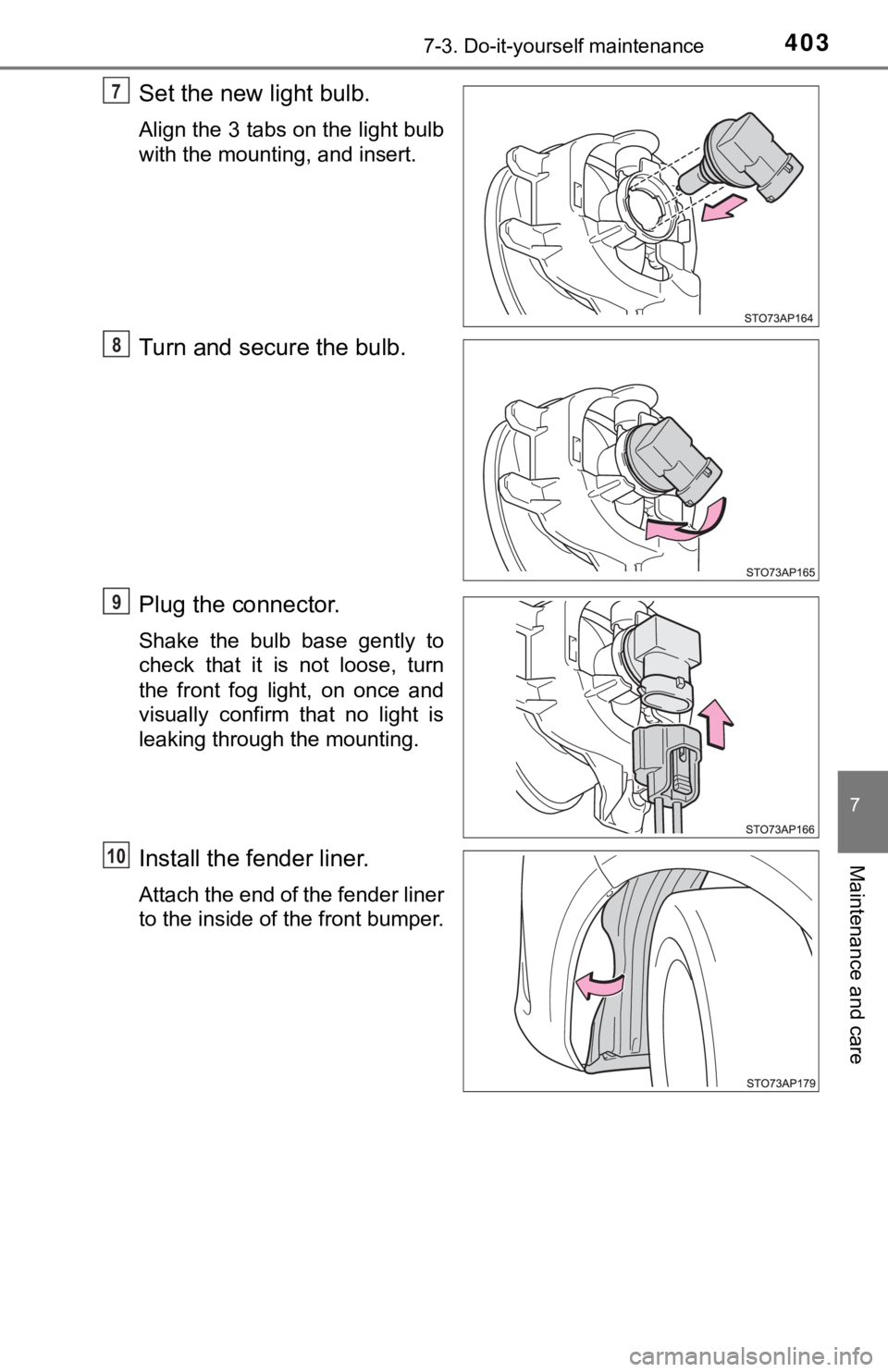

4037-3. Do-it-yourself maintenance
7
Maintenance and care
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb.
Plug the connector.
Shake the bulb base gently to
check that it is not loose, turn
the front fog light, on once and
visually confirm that no light is
leaking through the mounting.
Install the fender liner.
Attach the end of the fender liner
to the inside of the front bumper.
7
78
79
10

4047-3. Do-it-yourself maintenance
Attach the fender liner
retainer.
Install the bolt.
■Stop/tail and rear side marker lights, and rear turn signal lights
Open the back door and
remove the cover.
To prevent damaging the vehi-
cle, wrap the screwdriver with a
tape.
Turn the bulb base counter-
clockwise. Stop/tail and rear side
marker lights
Rear turn signal light
11
12
1
2
1
2

4057-3. Do-it-yourself maintenance
7
Maintenance and care
Remove the light bulb.Stop/tail and rear side
marker lights
Rear turn signal light
Install the new bulb. Stop/tail and rear side
marker lights
Rear turn signal light
Turn and secure the bulb
base. Stop/tail and rear side
marker lights
Rear turn signal light
Install the cover. Align the cover claws with
the notches.
Press the cover until it is
fixed.3
1
2
4
1
2
5
1
2
6
1
2

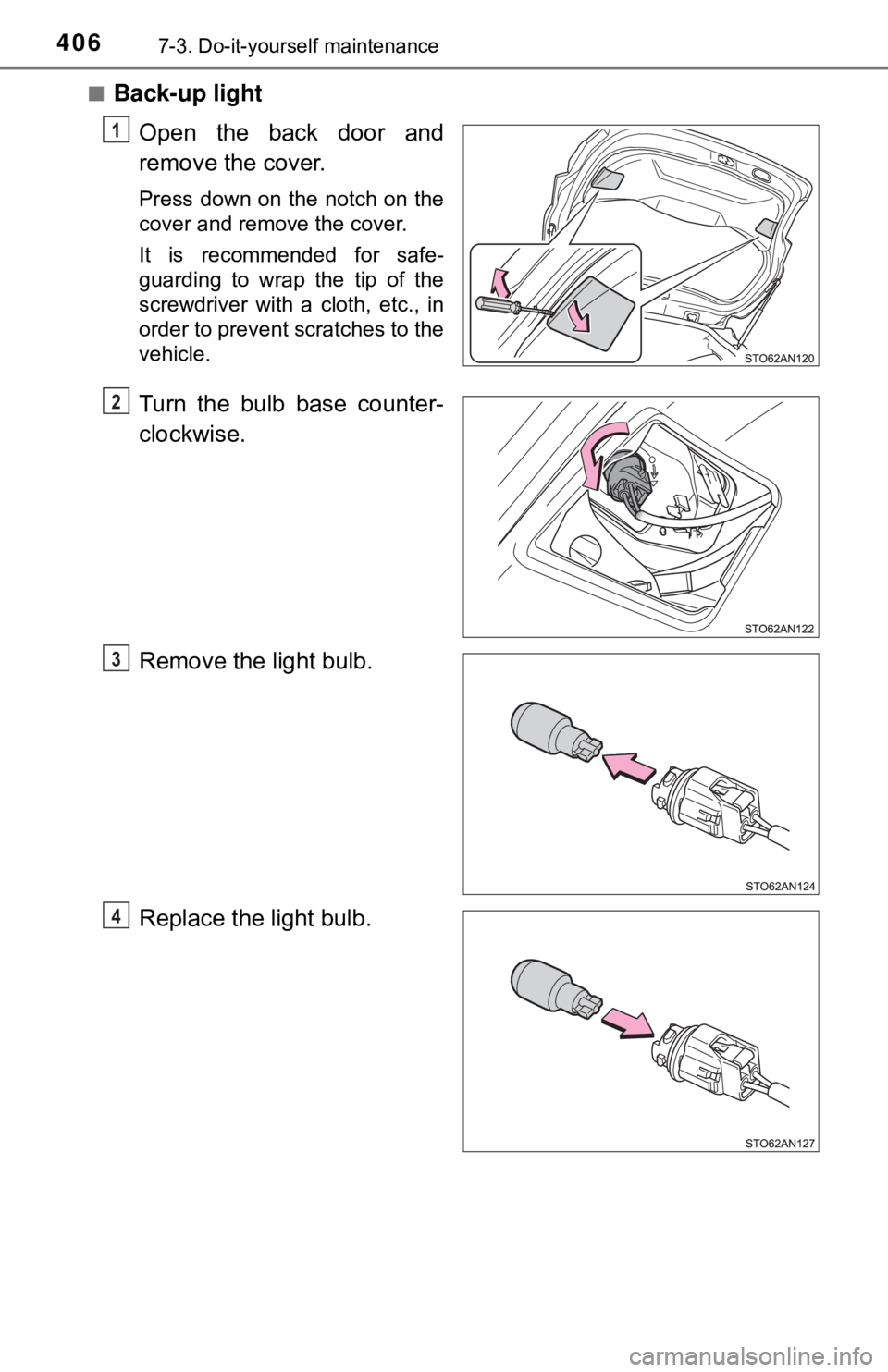

4067-3. Do-it-yourself maintenance
■Back-up lightOpen the back door and
remove the cover.
Press down on the notch on the
cover and remove the cover.
It is recommended for safe-
guarding to wrap the tip of the
screwdriver with a cloth, etc., in
order to prevent scratches to the
vehicle.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
Replace the light bulb.
1
2
3
4

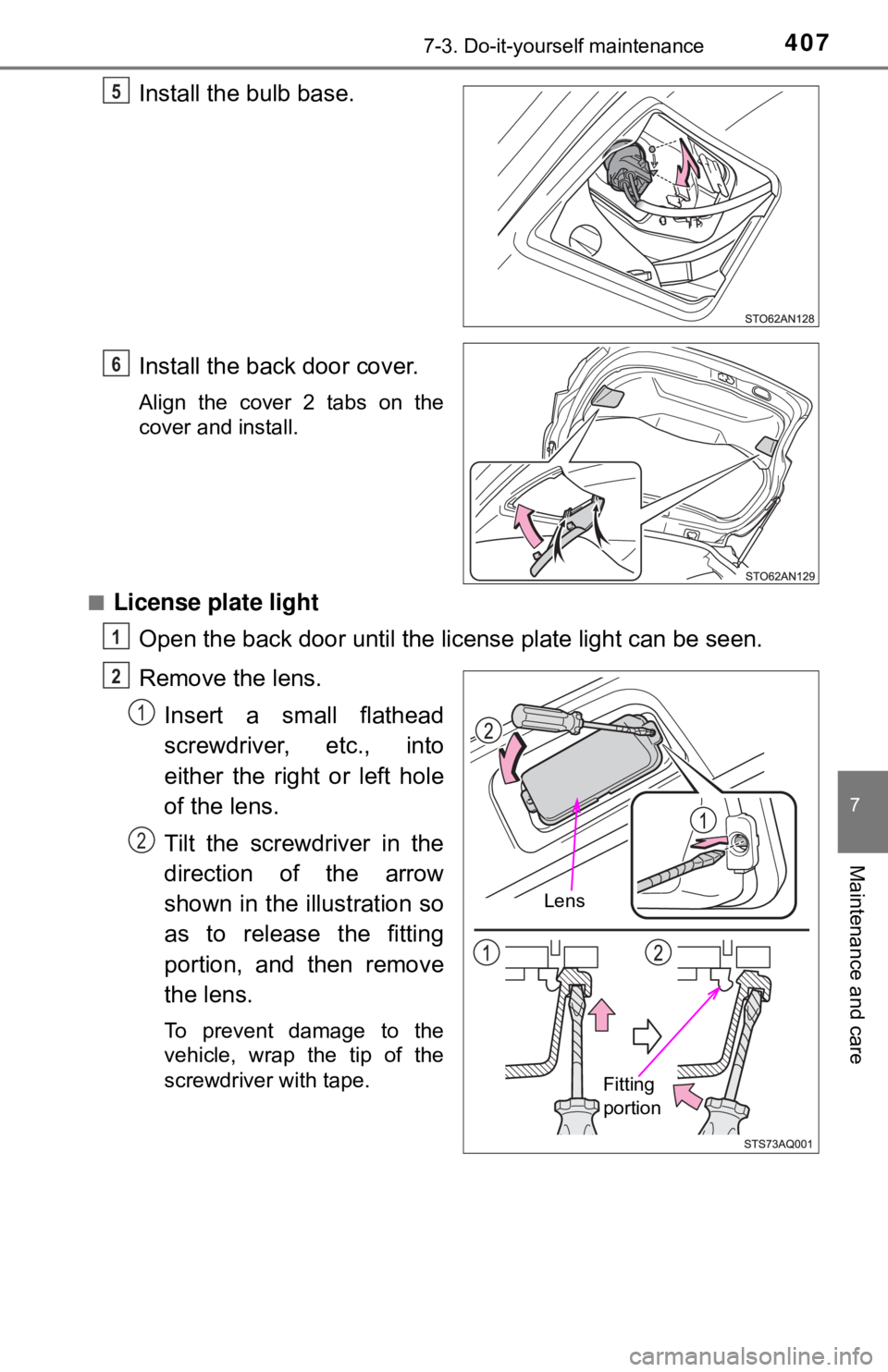

4077-3. Do-it-yourself maintenance
7
Maintenance and care
Install the bulb base.
Install the back door cover.
Align the cover 2 tabs on the
cover and install.
■
License plate light Open the back door until the license plate light can be seen.
Remove the lens.Insert a small flathead
screwdriver, etc., into
either the right or left hole
of the lens.
Tilt the screwdriver in the
direction of the arrow
shown in the illustration so
as to release the fitting
portion, and then remove
the lens.
To prevent damage to the
vehicle, wrap the tip of the
screwdriver with tape.
5
6
1
Fitting
portion
Lens
2
1
2

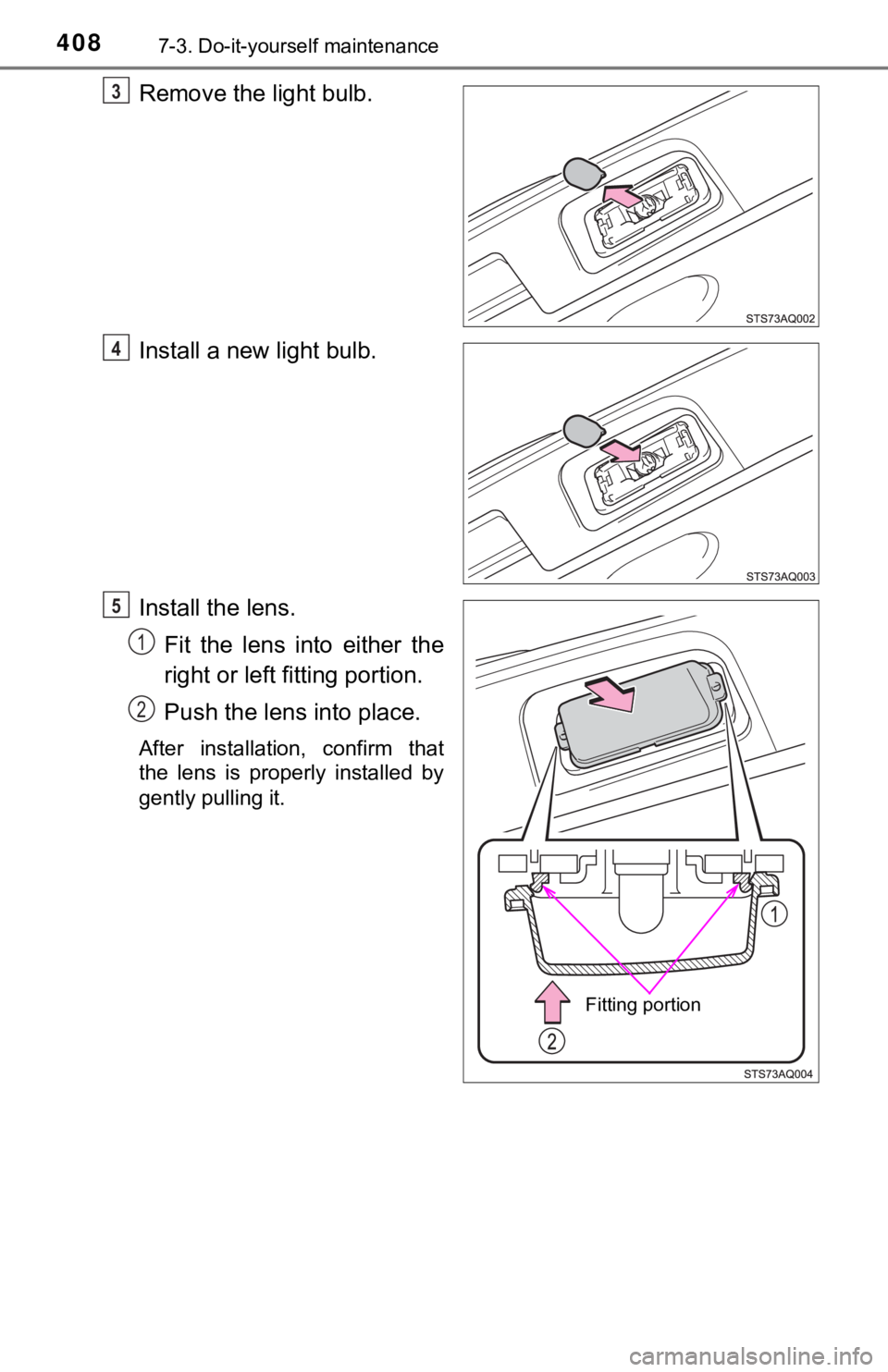

4087-3. Do-it-yourself maintenance
Remove the light bulb.
Install a new light bulb.
Install the lens.Fit the lens into either the
right or left fitting portion.
Push the lens into place.
After installation, confirm that
the lens is properly installed by
gently pulling it.
3
4
Fitting portion
5
1
2
