Page 618 of 660

6189-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
Cooling system
Capacity
(reference)
Gasoline
engine
1ZR-FAE engine
6.3 L (6.7 qt., 5.5 Imp.qt.)
2ZR-FAE and 3ZR-FAE engines
Multidrive: 6.2 L (6.6 qt., 5.5 Imp.qt.)
Manual transmission: 6.3 L (6.7 qt., 5.5 Imp.qt.)
Diesel
engine
With power heater
7.3 L (7.7 qt., 6.4 Imp.qt.)
Without power heater
7.0 L (7.4 qt., 6.2 Imp.qt.)
Coolant
type
Gasoline
engineUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology
Do not use plain water alone.
Diesel
engine
“Toyota Genuine Premium Long Life Coolant 1WW/
2WW” or equivalent.
“Toyota Genuine Premium Long Life Coolant 1WW/
2WW” concentrated product always needs to be
mixed as 50% coolant and 50% deionized water.
Do not use plain water alone.
Contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer, for
usage of any other approved engine coolant of
matching quality.
Page 619 of 660
6199-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
9
Vehicle specifications
Ignition system (gasoline engine)
Spark plug
Make DENSO SC20HR11, SC16HR11
Gap 1.1 mm (0.043 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Page 620 of 660
6209-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
The fluid capacity is the quantity of reference. If replacement is neces-
sary, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Electrical system
Battery
Open voltage at 20 C (68F): 12.6 12.8 V Fully charged
12.2 12.4 V Half charged
11 . 8 12.0 V Discharged
(Voltage is checked 20 minutes after
the engine and all the lights are
turned off.)
Charging rates 5 A max.
Multidrive
Fluid capacity
(reference)
2ZR-FAE engine7.5 L (7.9 qt., 6.6 Imp.qt.)
3ZR-FAE engine7.2 L (7.6 qt., 6.3 Imp.qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
■ Multidrive fluid type
Using transmission fluid other than “Toyota Genuine CVT Fluid FE” may
cause deterioration in shift quality, locking up of your transmission accom-
panied by vibration, and ultimately dam age the transmission of your vehicle.

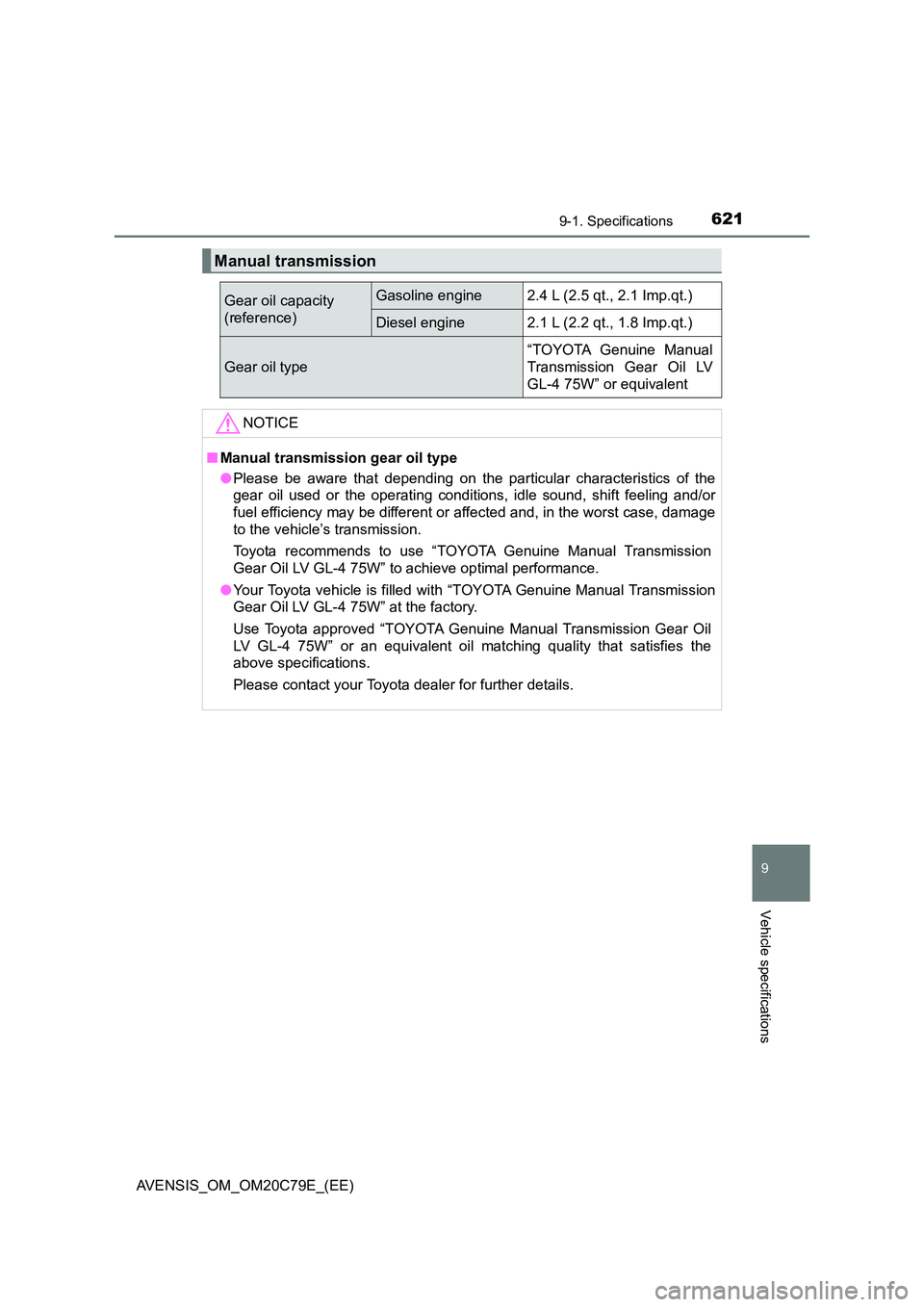

Page 621 of 660

6219-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
9
Vehicle specifications
Manual transmission
Gear oil capacity
(reference)
Gasoline engine2.4 L (2.5 qt., 2.1 Imp.qt.)
Diesel engine2.1 L (2.2 qt., 1.8 Imp.qt.)
Gear oil type
“TOYOTA Genuine Manual
Transmission Gear Oil LV
GL-4 75W” or equivalent
NOTICE
■ Manual transmission gear oil type
● Please be aware that depending on the particular characteristics of the
gear oil used or the operating conditions, idle sound, shift feeling and/or
fuel efficiency may be different or affected and, in the worst case, damage
to the vehicle’s transmission.
Toyota recommends to use “TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” to achieve optimal performance.
● Your Toyota vehicle is filled with “TOYOTA Genuine Manual Transmission
Gear Oil LV GL-4 75W” at the factory.
Use Toyota approved “TOYOTA Genuine Manual Transmission Gear Oil
LV GL-4 75W” or an equivalent oil matching quality that satisfies the
above specifications.
Please contact your Toyota dealer for further details.

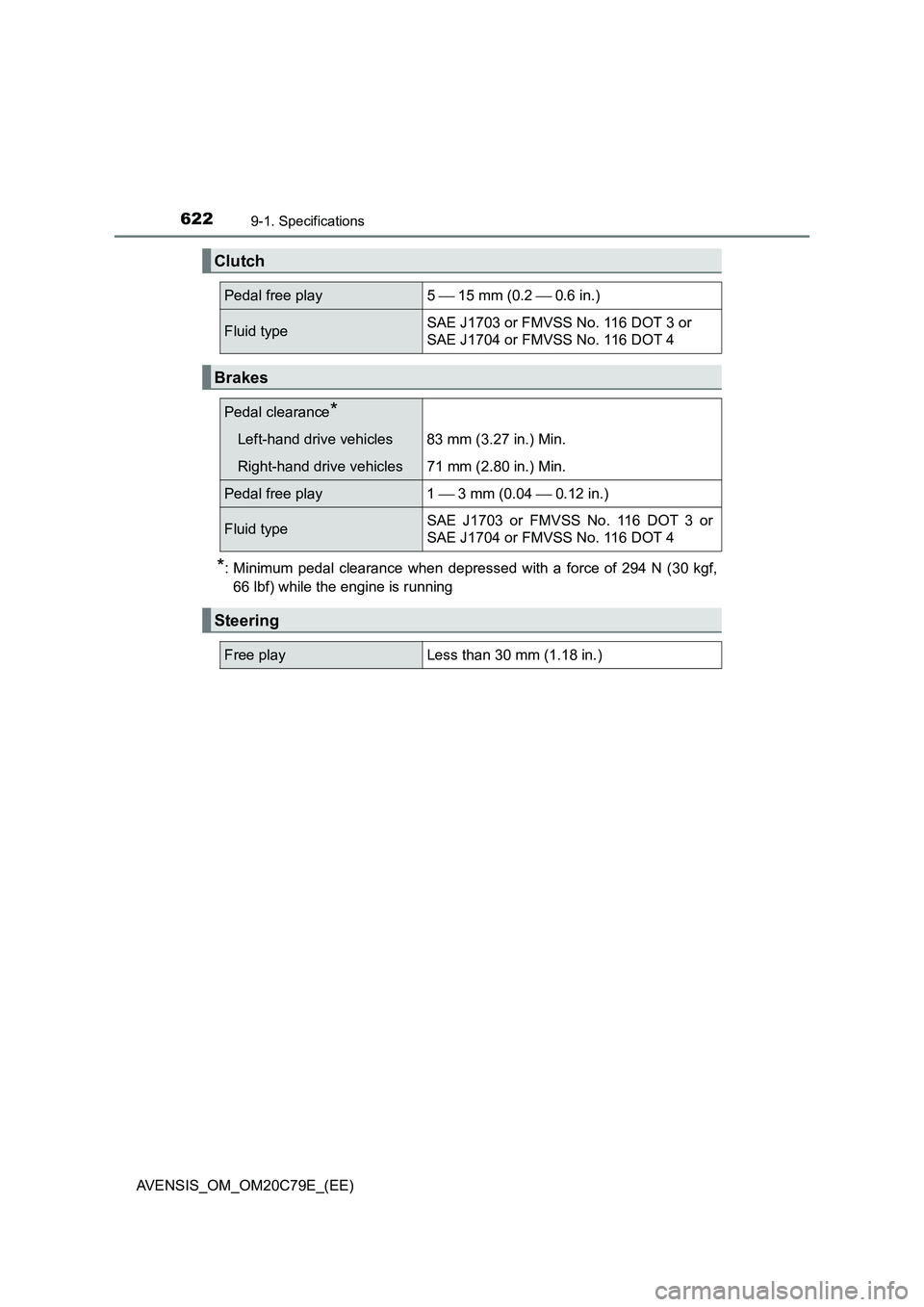

Page 622 of 660
6229-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
*: Minimum pedal clearance when depressed with a force of 294 N (30 kgf,
66 lbf) while the engine is running
Clutch
Pedal free play5 15 mm (0.2 0.6 in.)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Brakes
Pedal clearance*
Left-hand drive vehicles 83 mm (3.27 in.) Min.
Right-hand drive vehicles 71 mm (2.80 in.) Min.
Pedal free play 1 3 mm (0.04 0.12 in.)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3 or
SAE J1704 or FMVSS No. 116 DOT 4
Steering
Free playLess than 30 mm (1.18 in.)

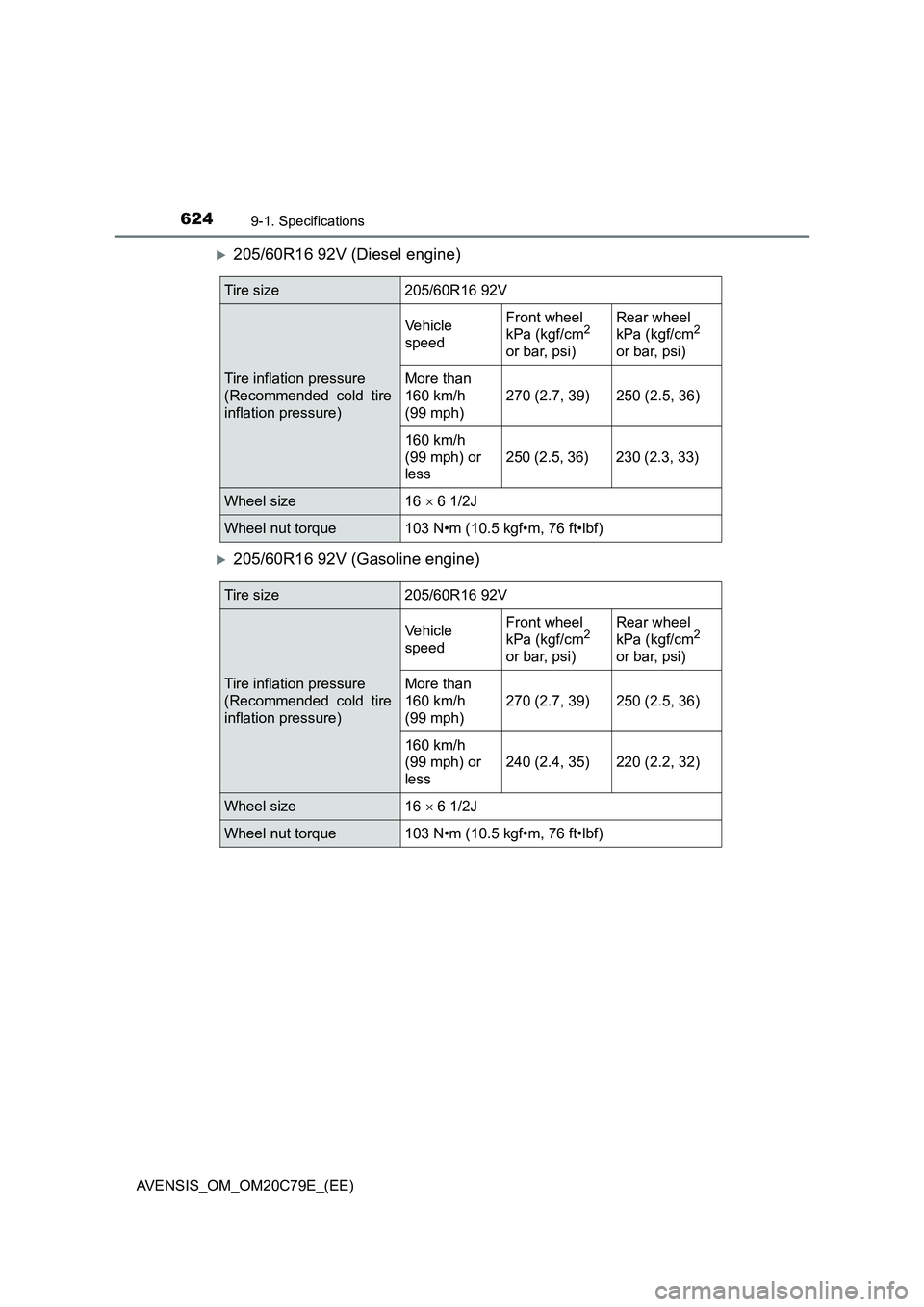

Page 624 of 660
6249-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
205/60R16 92V (Diesel engine)
205/60R16 92V (Gasoline engine)
Tire size 205/60R16 92V
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)270 (2.7, 39) 250 (2.5, 36)
160 km/h
(99 mph) or
less
250 (2.5, 36) 230 (2.3, 33)
Wheel size 16 6 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size 205/60R16 92V
Tire inflation pressure
(Recommended cold tire
inflation pressure)Vehicle
speedFront wheel
kPa (kgf/cm
2
or bar, psi)Rear wheel
kPa (kgf/cm2
or bar, psi)
More than
160 km/h
(99 mph)270 (2.7, 39) 250 (2.5, 36)
160 km/h
(99 mph) or
less240 (2.4, 35) 220 (2.2, 32)
Wheel size 16 6 1/2J
Wheel nut torque 103 N•m (10.5 kgf•m, 76 ft•lbf)

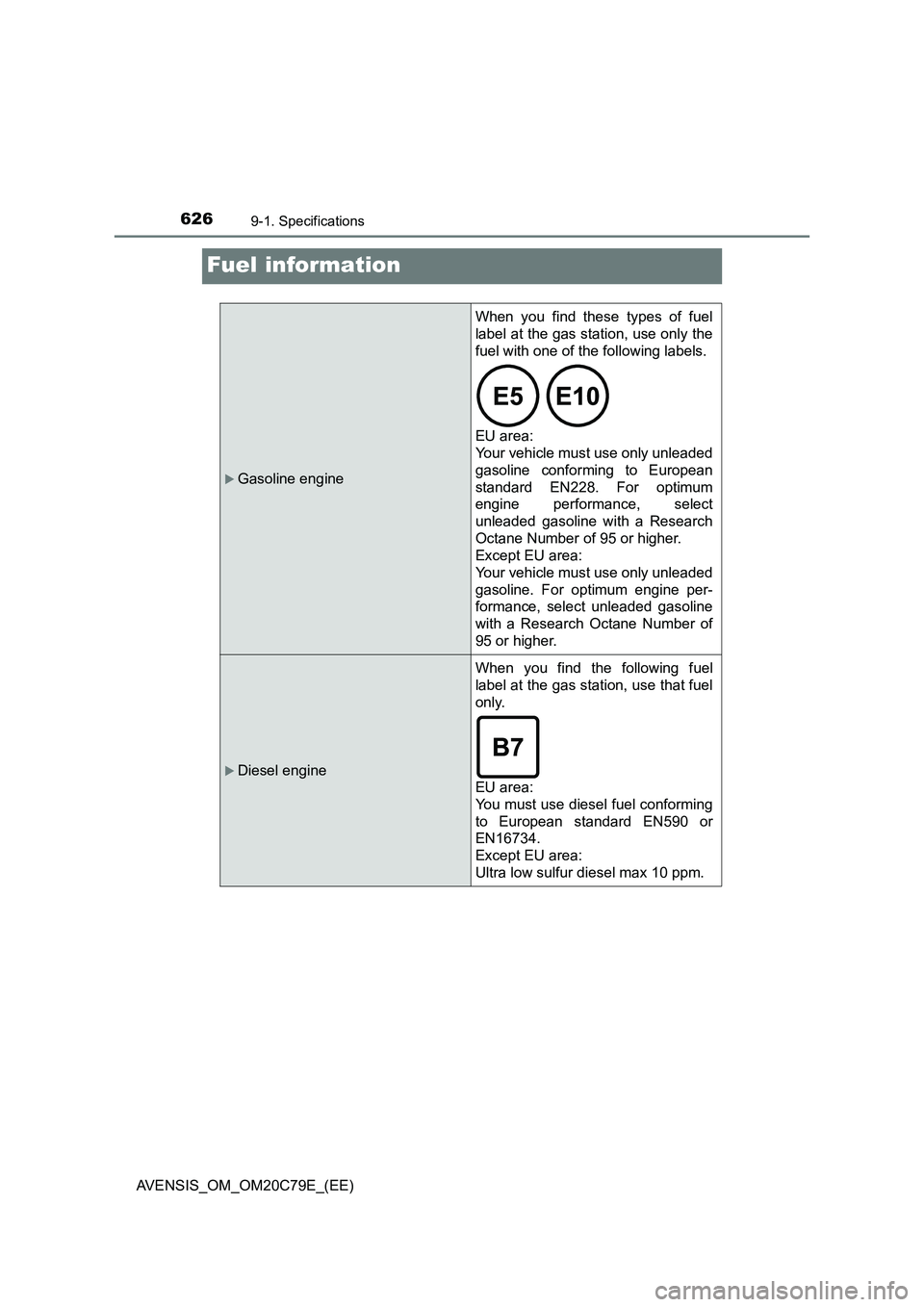

Page 626 of 660
6269-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
Fuel information
Gasoline engine
When you find these types of fuel
label at the gas station, use only the
fuel with one of the following labels.
EU area:
Your vehicle must use only unleaded
gasoline conforming to European
standard EN228. For optimum
engine performance, select
unleaded gasoline with a Research
Octane Number of 95 or higher.
Except EU area:
Your vehicle must use only unleaded
gasoline. For optimum engine per-
formance, select unleaded gasoline
with a Research Octane Number of
95 or higher.
Diesel engine
When you find the following fuel
label at the gas station, use that fuel
only.
EU area:
You must use diesel fuel conforming
to European standard EN590 or
EN16734.
Except EU area:
Ultra low sulfur diesel max 10 ppm.

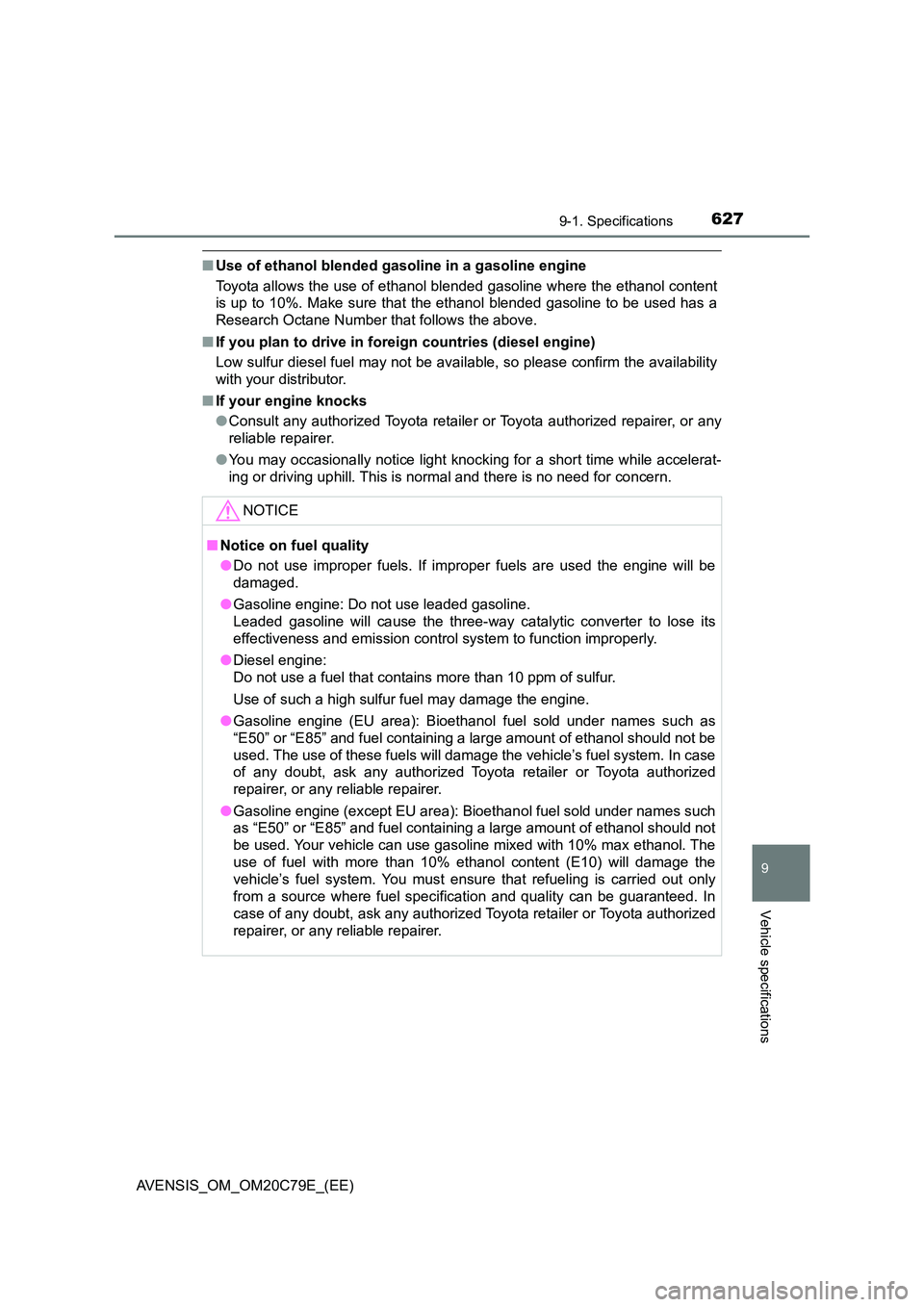

Page 627 of 660

6279-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
9
Vehicle specifications
■Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
■ If you plan to drive in foreign countries (diesel engine)
Low sulfur diesel fuel may not be available, so please confirm the availability
with your distributor.
■ If your engine knocks
● Consult any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
● You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
NOTICE
■ Notice on fuel quality
● Do not use improper fuels. If improper fuels are used the engine will be
damaged.
● Gasoline engine: Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and emission control system to function improperly.
● Diesel engine:
Do not use a fuel that contains more than 10 ppm of sulfur.
Use of such a high sulfur fuel may damage the engine.
● Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle’s fuel system. In case
of any doubt, ask any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
● Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensur e that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
