6099-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
9

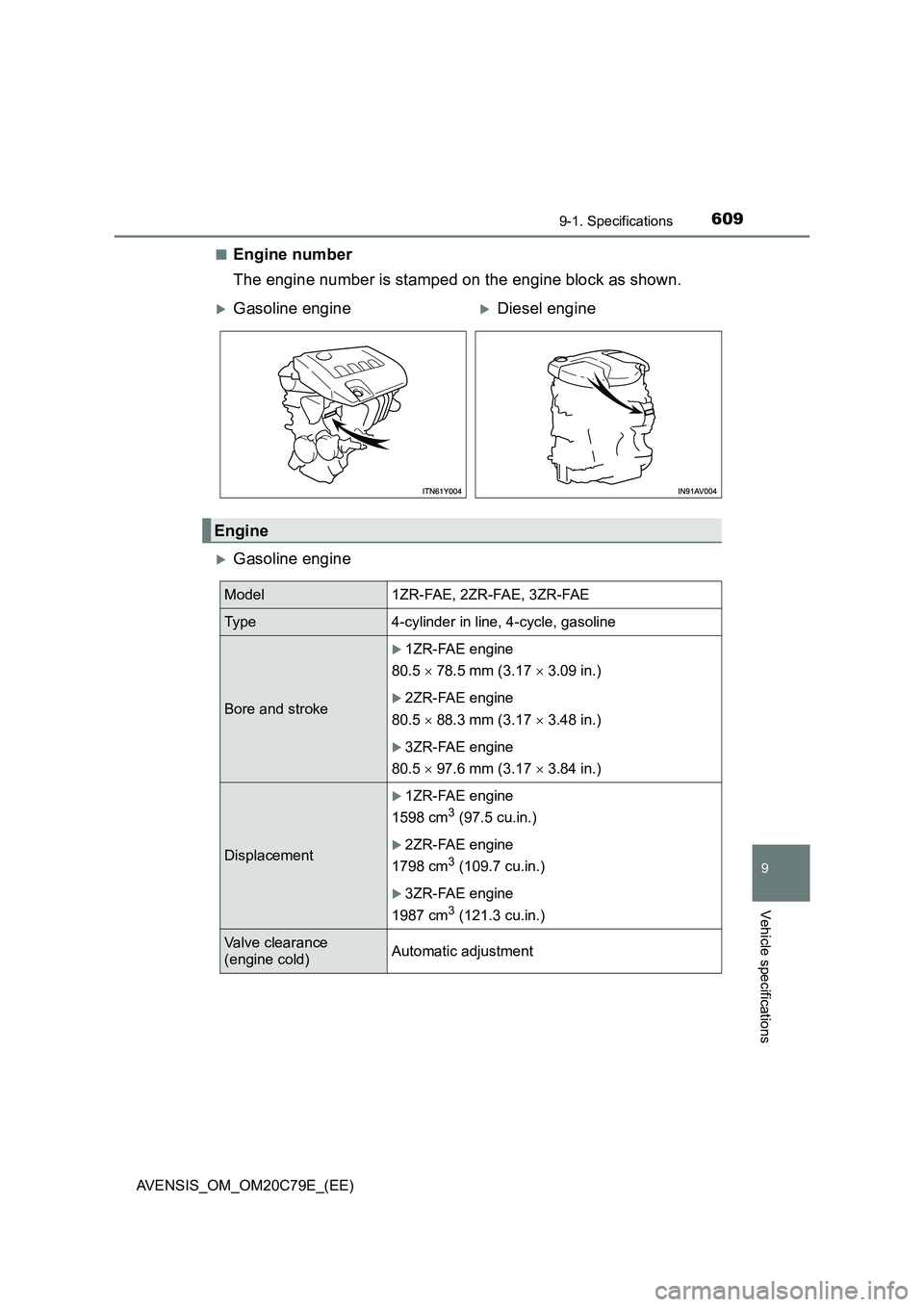

Vehicle specifications
■Engine number
The engine number is stamped on the engine block as shown.
Gasoline engine
Gasoline engineDiesel engine
Engine
Model 1ZR-FAE, 2ZR-FAE, 3ZR-FAE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke
1ZR-FAE engine
80.5 78.5 mm (3.17 3.09 in.)
2ZR-FAE engine
80.5 88.3 mm (3.17 3.48 in.)
3ZR-FAE engine
80.5 97.6 mm (3.17 3.84 in.)
Displacement
1ZR-FAE engine
1598 cm
3 (97.5 cu.in.)
2ZR-FAE engine
1798 cm
3 (109.7 cu.in.)
3ZR-FAE engine
1987 cm
3 (121.3 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Page 610 of 660
6109-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
Diesel engine

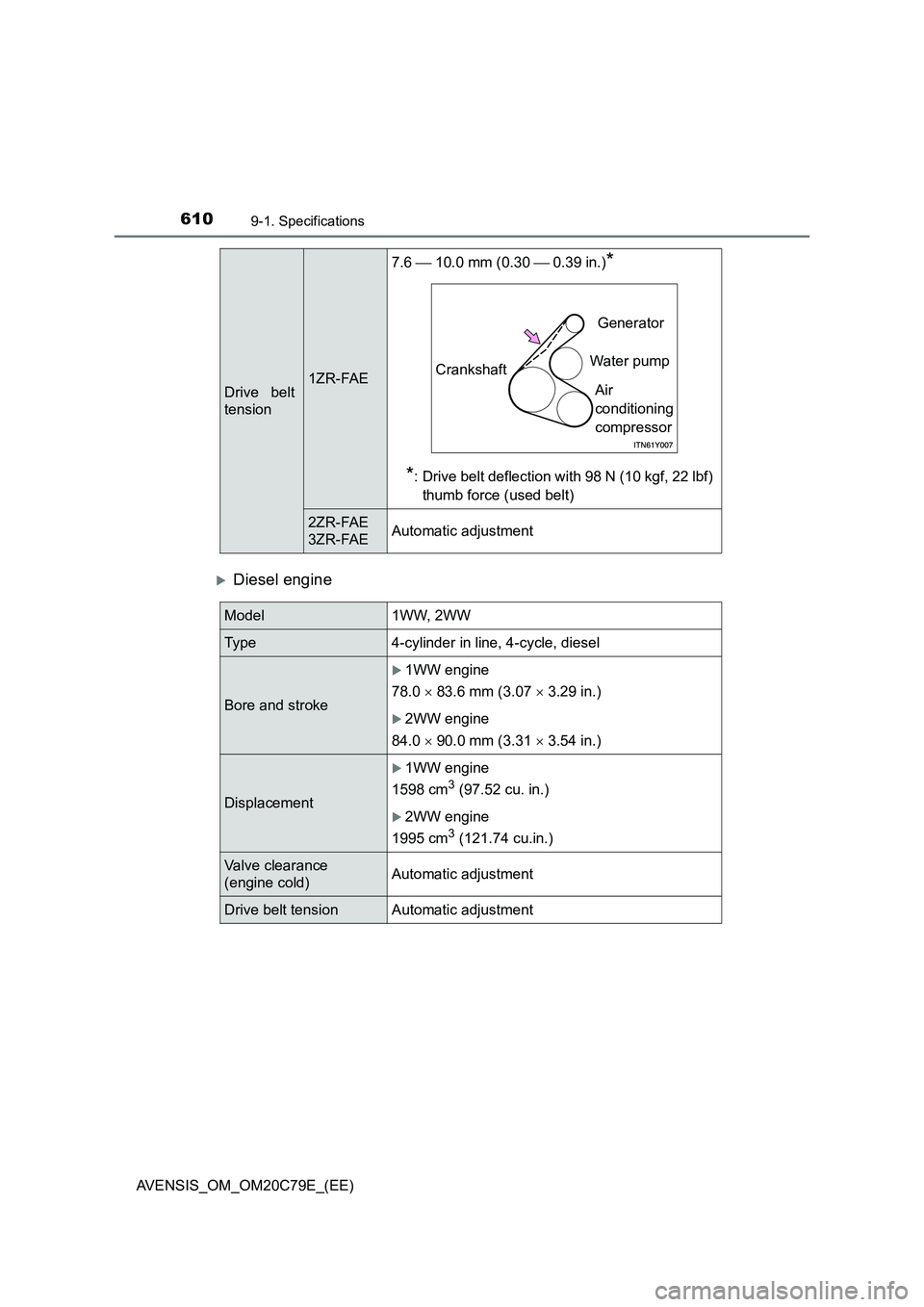

Drive belt
tension1ZR-FAE7.6 10.0 mm (0.30 0.39 in.)
*
*
: Drive belt deflection with 98 N (10 kgf, 22 lbf)
thumb force (used belt)
2ZR-FAE
3ZR-FAEAutomatic adjustment
CrankshaftGenerator
Water pump
Air
conditioning
compressor
Model 1WW, 2WW
Type 4-cylinder in line, 4-cycle, diesel
Bore and stroke
1WW engine
78.0 83.6 mm (3.07 3.29 in.)
2WW engine
84.0 90.0 mm (3.31 3.54 in.)
Displacement
1WW engine
1598 cm
3 (97.52 cu. in.)
2WW engine
1995 cm
3 (121.74 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension Automatic adjustment
Page 611 of 660
6119-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
9
Vehicle specifications
Gasoline engine
Diesel engine

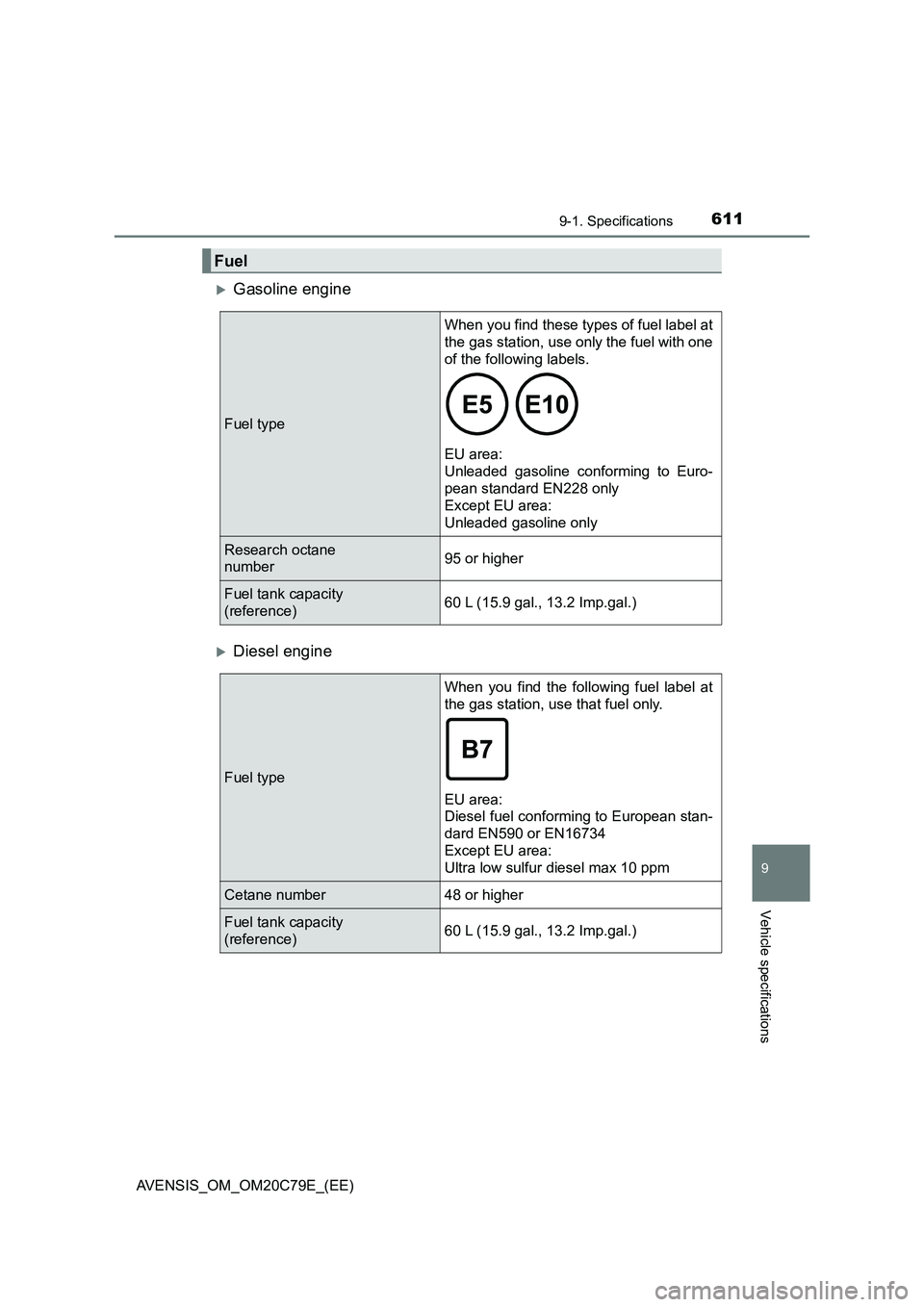

Fuel
Fuel typeWhen you find these types of fuel label at
the gas station, use only the fuel with one
of the following labels.
EU area:
Unleaded gasoline conforming to Euro-
pean standard EN228 only
Except EU area:
Unleaded gasoline only
Research octane
number95 or higher
Fuel tank capacity
(reference)60 L (15.9 gal., 13.2 Imp.gal.)
Fuel typeWhen you find the following fuel label at
the gas station, use that fuel only.
EU area:
Diesel fuel conforming to European stan-
dard EN590 or EN16734
Except EU area:
Ultra low sulfur diesel max 10 ppm
Cetane number 48 or higher
Fuel tank capacity
(reference)60 L (15.9 gal., 13.2 Imp.gal.)
Page 612 of 660

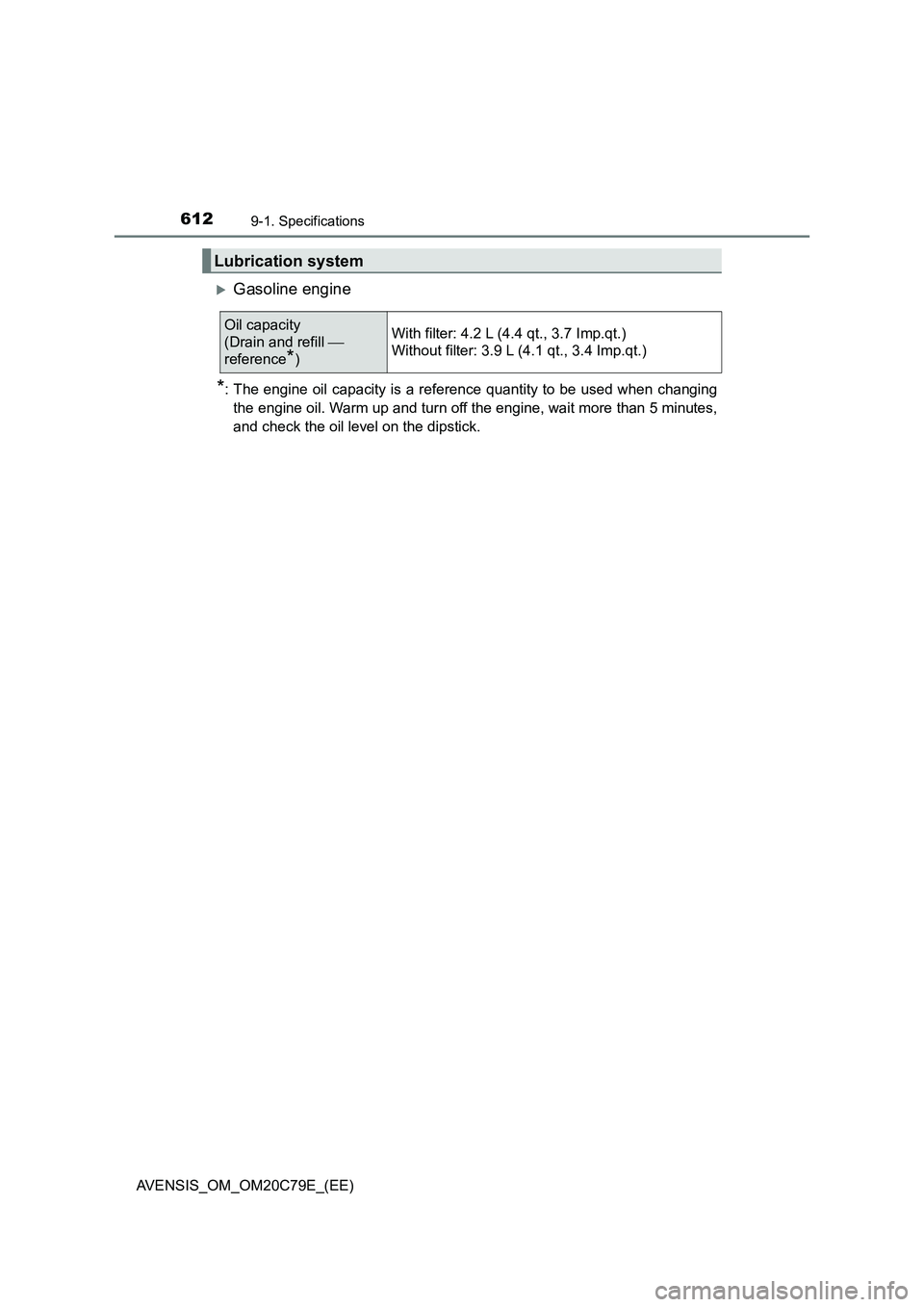

6129-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
Gasoline engine
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Lubrication system
Oil capacity
(Drain and refill
reference
*)With filter: 4.2 L (4.4 qt., 3.7 Imp.qt.)
Without filter: 3.9 L (4.1 qt., 3.4 Imp.qt.)
Page 613 of 660

6139-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
9
Vehicle specifications

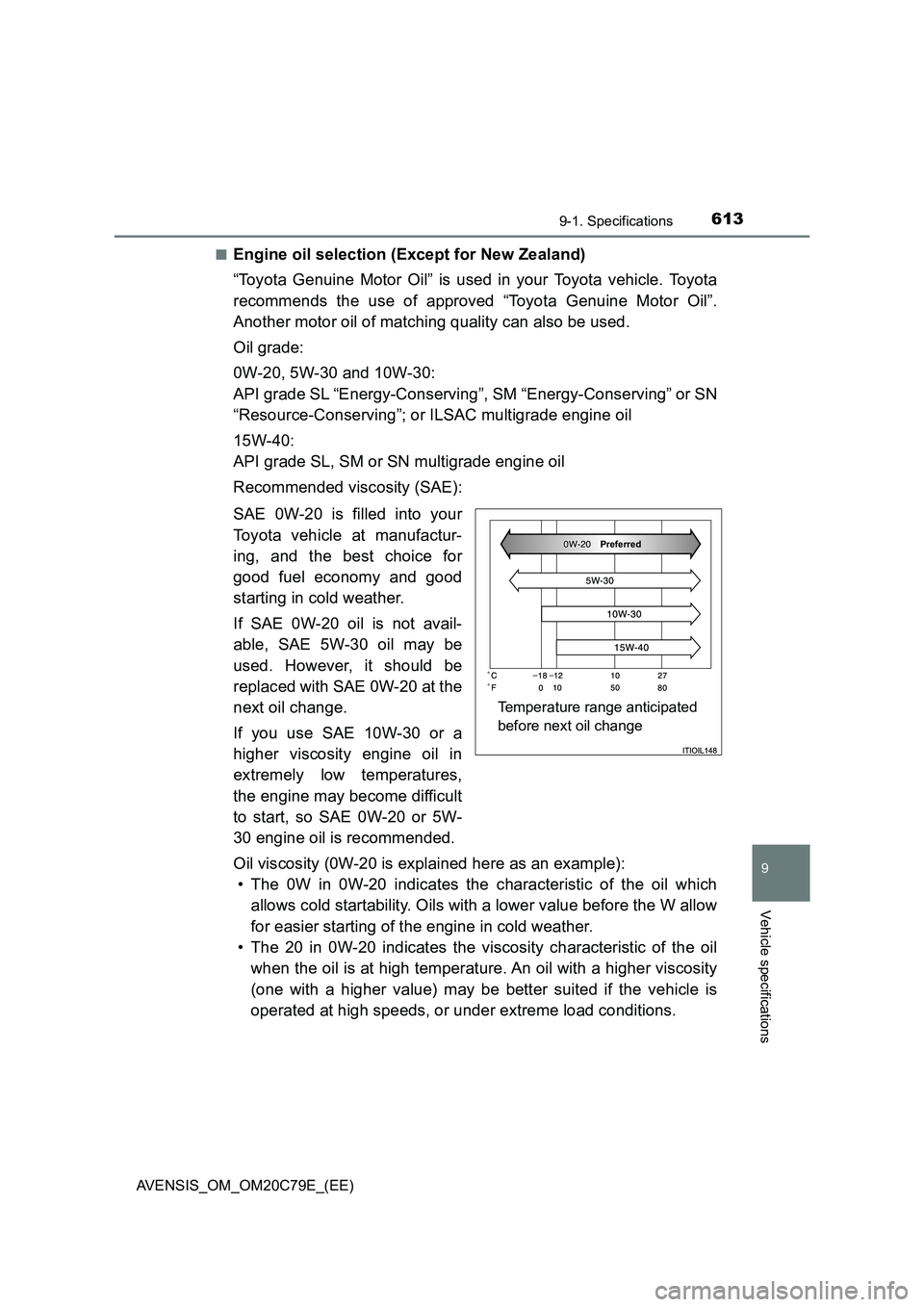

■Engine oil selection (Except for New Zealand)
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 oil is not avail-
able, SAE 5W-30 oil may be
used. However, it should be
replaced with SAE 0W-20 at the
next oil change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20 or 5W-
30 engine oil is recommended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
Preferred
Page 615 of 660

6159-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
9
Vehicle specifications

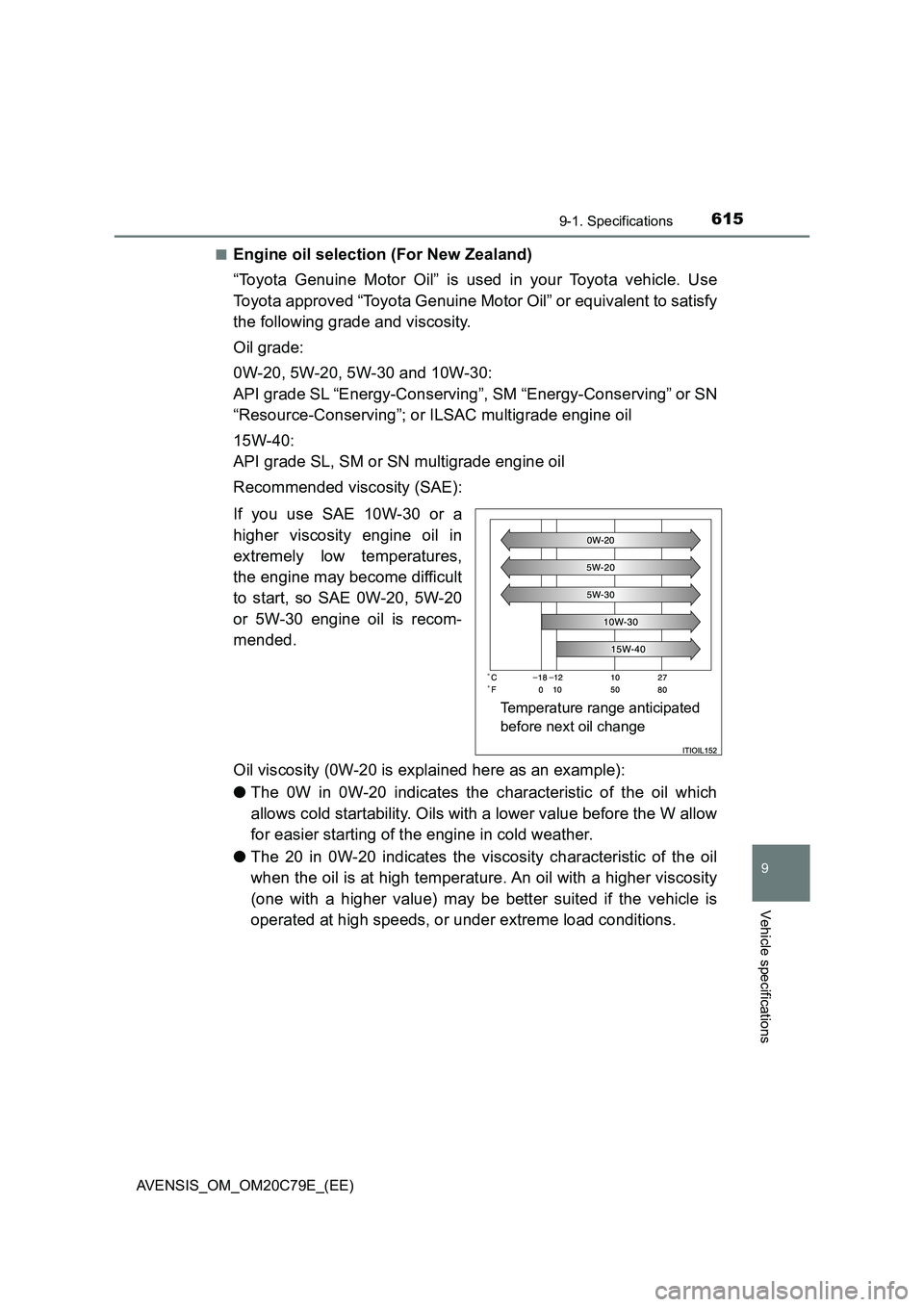

■Engine oil selection (For New Zealand)
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20, 5W-20
or 5W-30 engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
●The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
●The 20 in 0W-20 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Temperature range anticipated
before next oil change
Page 616 of 660
6169-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN”
means the oil quality designa-
tion by American Petroleum Ins-
titute (API).
Center portion: “SAE 0W-20”
means the SAE viscosity grade.
Lower portion: “Resource-Con-
serving” means that the oil has
fuel-saving and environmental
protection capabilities.
ILSAC Certification Mark
The International Lubricant Specification Advisory Committee (ILSAC)
Certification Mark is displayed on the front of the container.
Diesel engine
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
1
2
Oil capacity
(Drain and refill reference
*)
With filter 5.2 L (5.5 qt., 4.6 Imp.qt.)
Page 617 of 660
6179-1. Specifications
AVENSIS_OM_OM20C79E_(EE)
9
Vehicle specifications

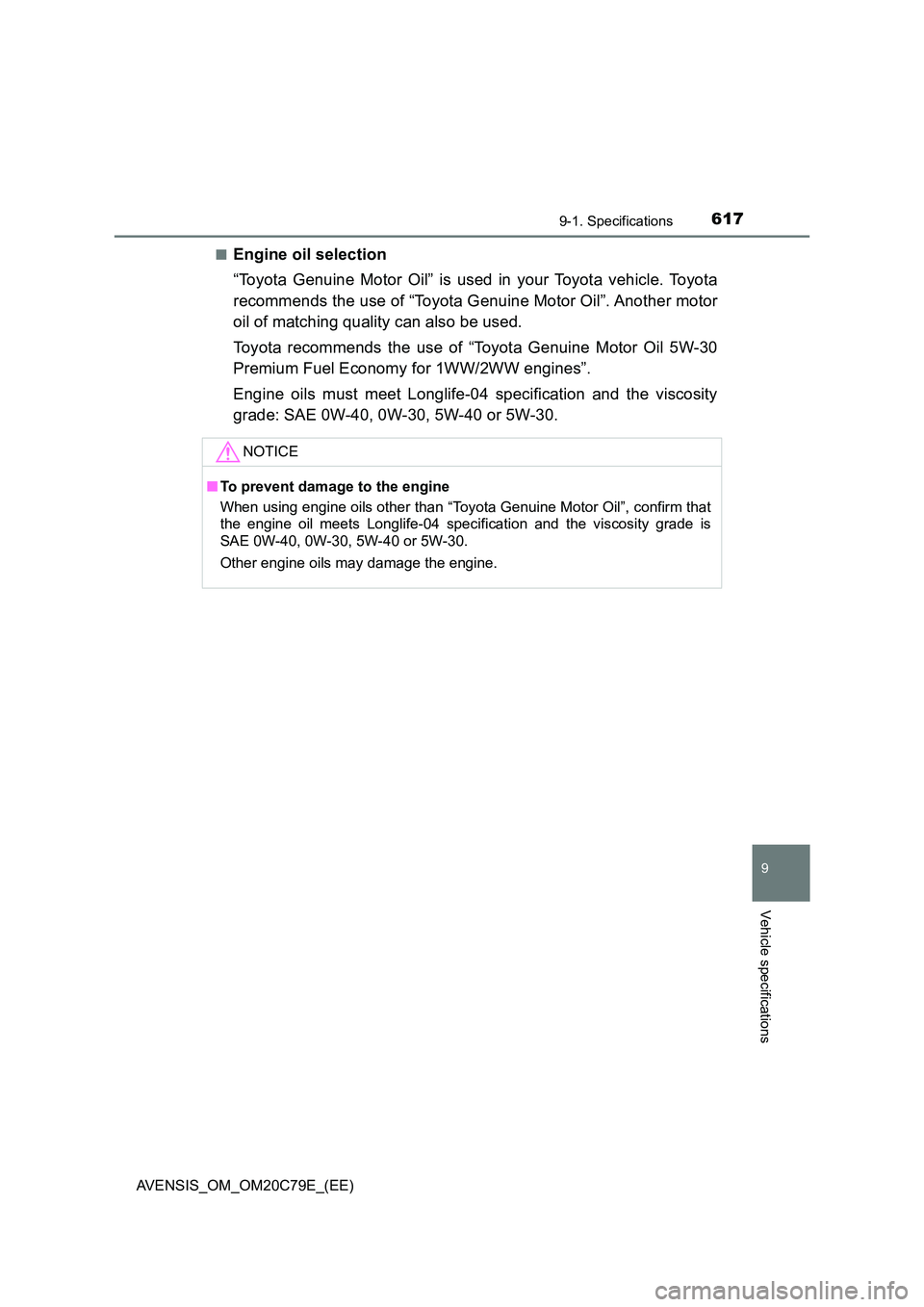

■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of “Toyota Genuine Motor Oil”. Another motor
oil of matching quality can also be used.
Toyota recommends the use of “Toyota Genuine Motor Oil 5W-30
Premium Fuel Economy for 1WW/2WW engines”.
Engine oils must meet Longlife-04 specification and the viscosity
grade: SAE 0W-40, 0W-30, 5W-40 or 5W-30.
NOTICE
■ To prevent damage to the engine
When using engine oils other than “Toyota Genuine Motor Oil”, confirm that
the engine oil meets Longlife-04 specification and the viscosity grade is
SAE 0W-40, 0W-30, 5W-40 or 5W-30.
Other engine oils may damage the engine.
