2018 RENAULT MEGANE Owners Manual

5.17

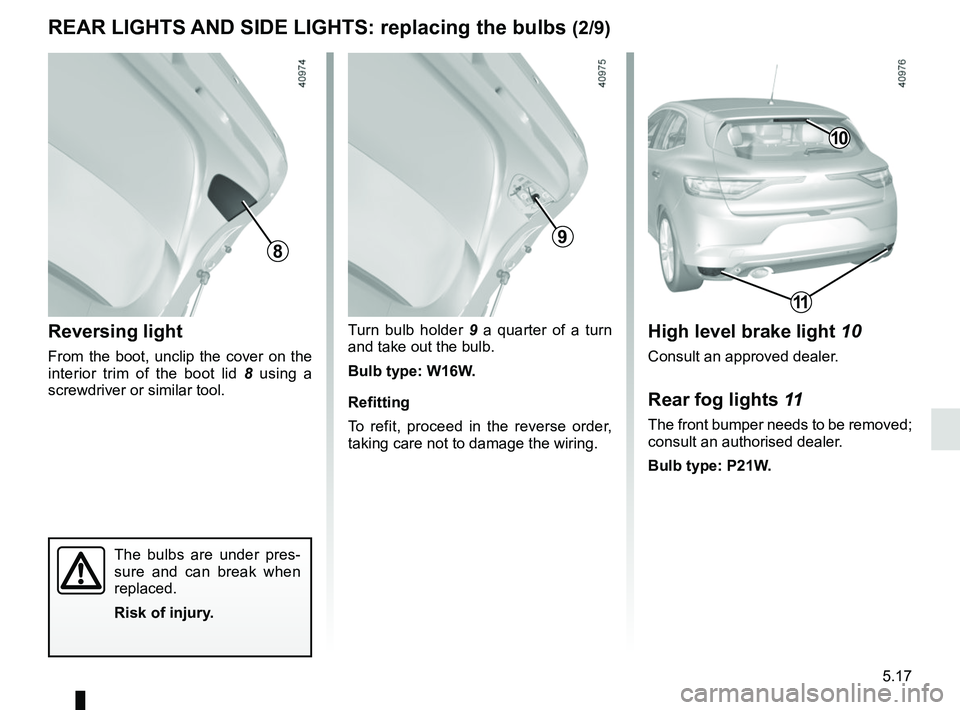

Reversing light
From the boot, unclip the cover on the
interior trim of the boot lid 8 using a
screwdriver or similar tool.
Turn bulb holder 9 a quarter of a turn
and take out the bulb.
Bulb type: W16W.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (2/9)
98
High level brake light 10
Consult an approved dealer.
Rear fog lights 11
The front bumper needs to be removed;
consult an authorised dealer.
Bulb type: P21W.
11
10

5.18

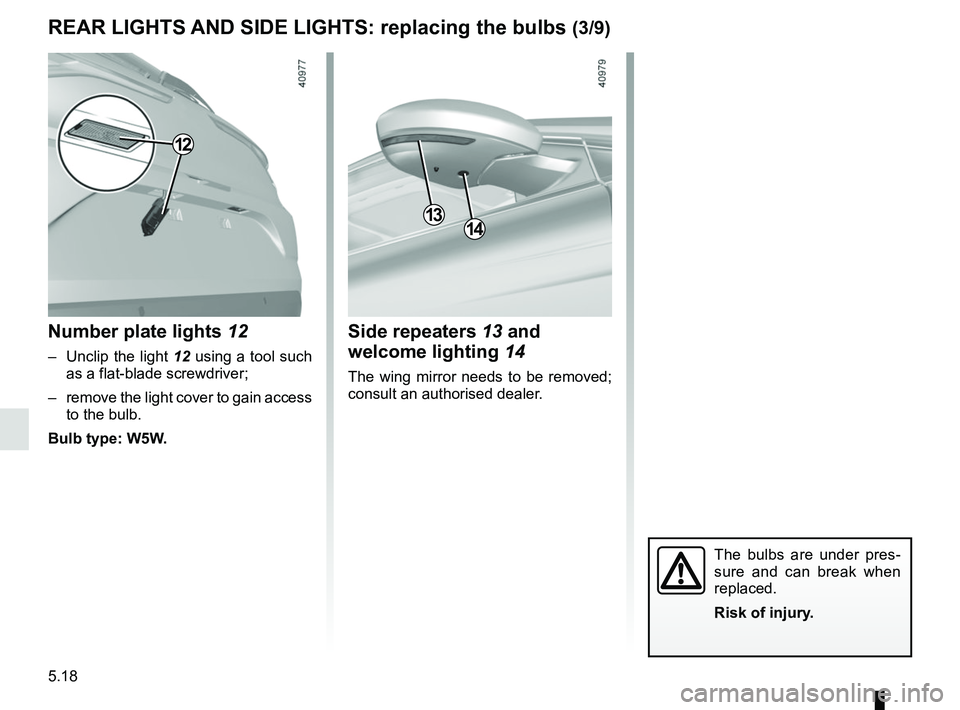

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (3/9)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Side repeaters 13 and welcome lighting 14
The wing mirror needs to be removed;
consult an authorised dealer.
13
Number plate lights 12
– Unclip the light 12 using a tool such
as a flat-blade screwdriver;
– remove the light cover to gain access to the bulb.
Bulb type: W5W.
12
14

5.19

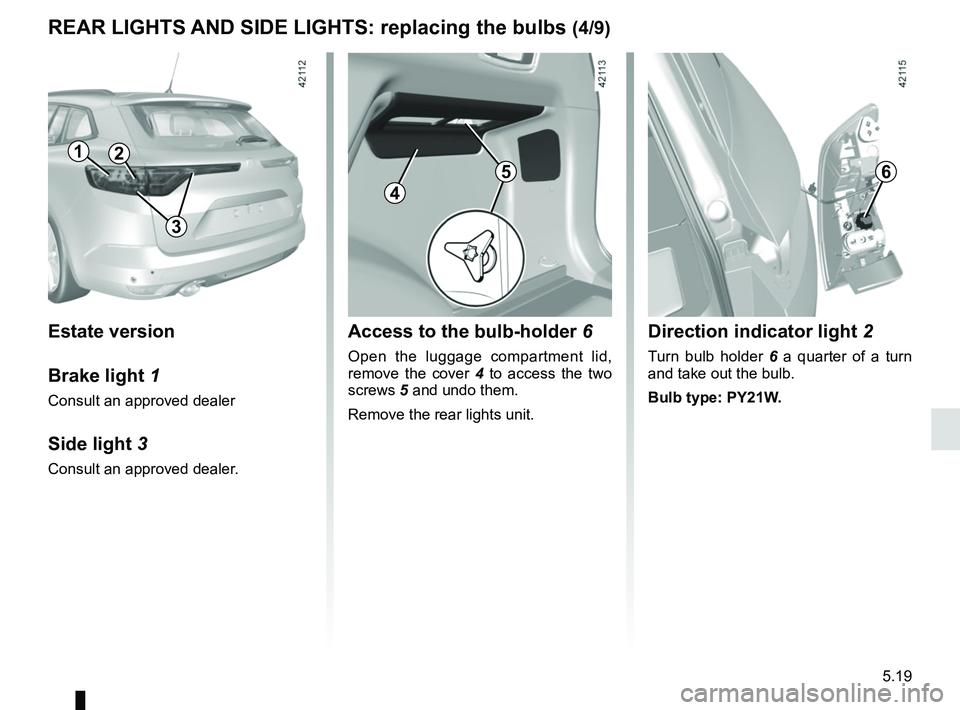

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (4/9)
Estate version
Brake light 1
Consult an approved dealer
Side light 3
Consult an approved dealer.
Access to the bulb-holder 6
Open the luggage compartment lid,
remove the cover 4 to access the two
screws 5 and undo them.
Remove the rear lights unit.
Direction indicator light 2
Turn bulb holder 6 a quarter of a turn
and take out the bulb.
Bulb type: PY21W.
6
4
5
12
3

5.20

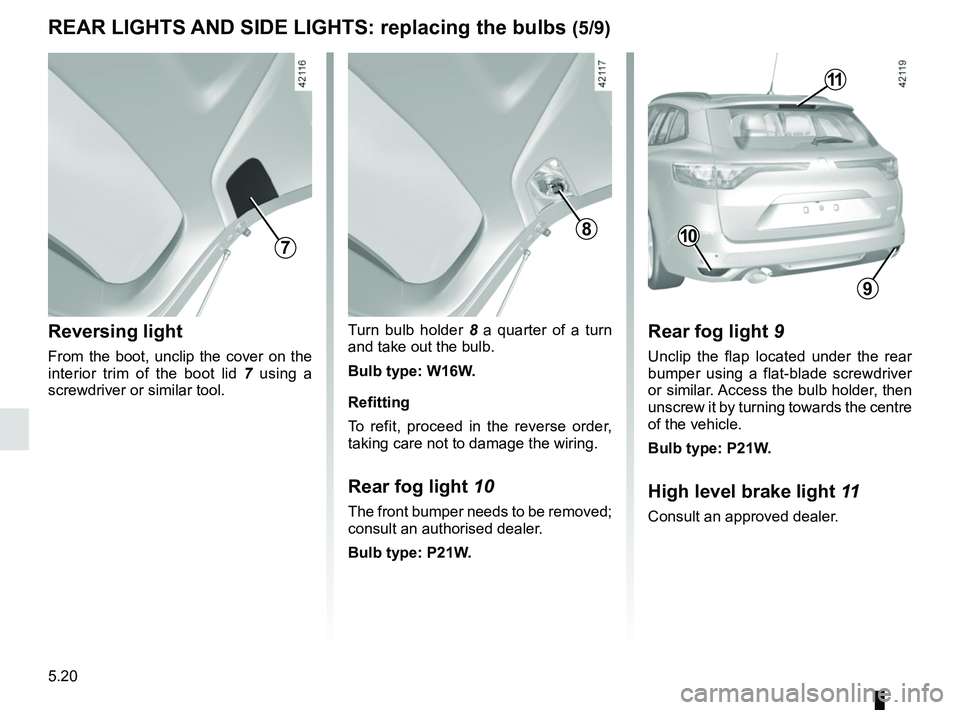

Reversing light
From the boot, unclip the cover on the
interior trim of the boot lid 7 using a
screwdriver or similar tool.
Turn bulb holder 8 a quarter of a turn
and take out the bulb.
Bulb type: W16W.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
Rear fog light 10
The front bumper needs to be removed;
consult an authorised dealer.
Bulb type: P21W.
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (5/9)
8
7
Rear fog light 9
Unclip the flap located under the rear
bumper using a flat-blade screwdriver
or similar. Access the bulb holder, then
unscrew it by turning towards the centre
of the vehicle.
Bulb type: P21W.
High level brake light 11
Consult an approved dealer.
9
10
11

5.21

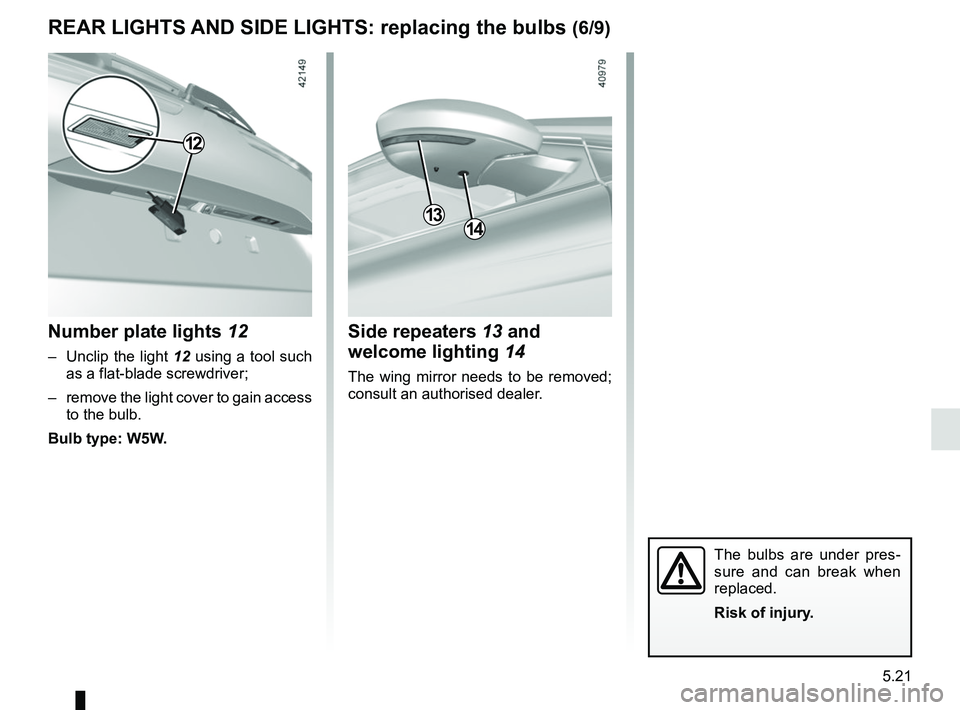

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (6/9)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Side repeaters 13 and welcome lighting 14
The wing mirror needs to be removed;
consult an authorised dealer.
13
Number plate lights 12
– Unclip the light 12 using a tool such
as a flat-blade screwdriver;
– remove the light cover to gain access to the bulb.
Bulb type: W5W.
14
12

5.22

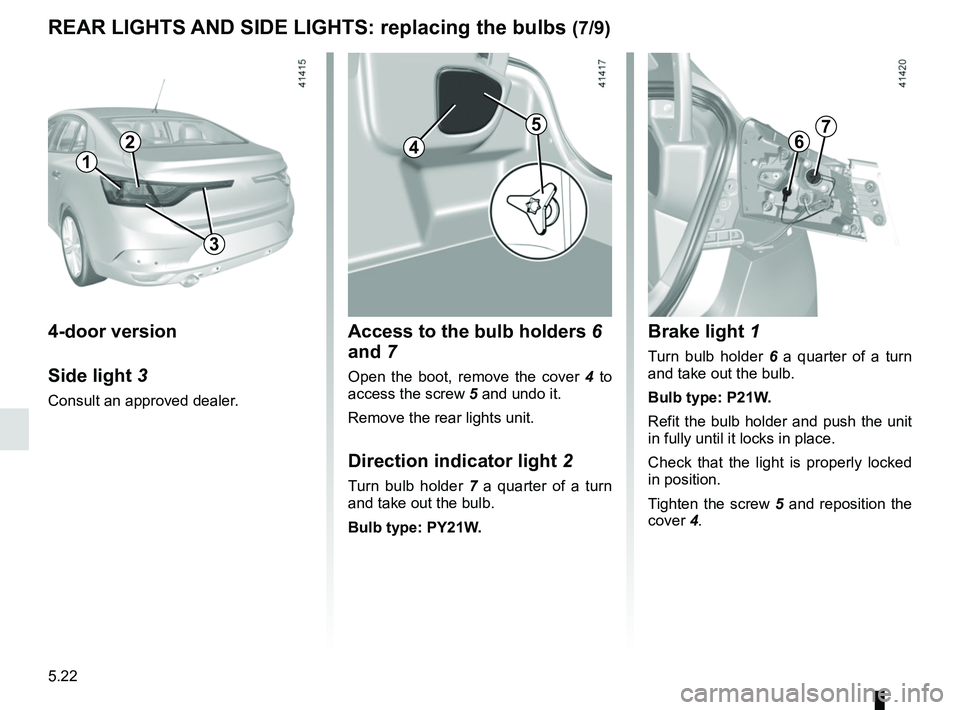

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (7/9)
4-door version
Side light 3
Consult an approved dealer.
Access to the bulb holders 6
and 7
Open the boot, remove the cover 4 to
access the screw 5 and undo it.
Remove the rear lights unit.
Direction indicator light 2
Turn bulb holder 7 a quarter of a turn
and take out the bulb.
Bulb type: PY21W.
4
5
Brake light 1
Turn bulb holder 6 a quarter of a turn
and take out the bulb.
Bulb type: P21W.
Refit the bulb holder and push the unit
in fully until it locks in place.
Check that the light is properly locked
in position.
Tighten the screw 5 and reposition the
cover 4.
67
1
2
3

5.23

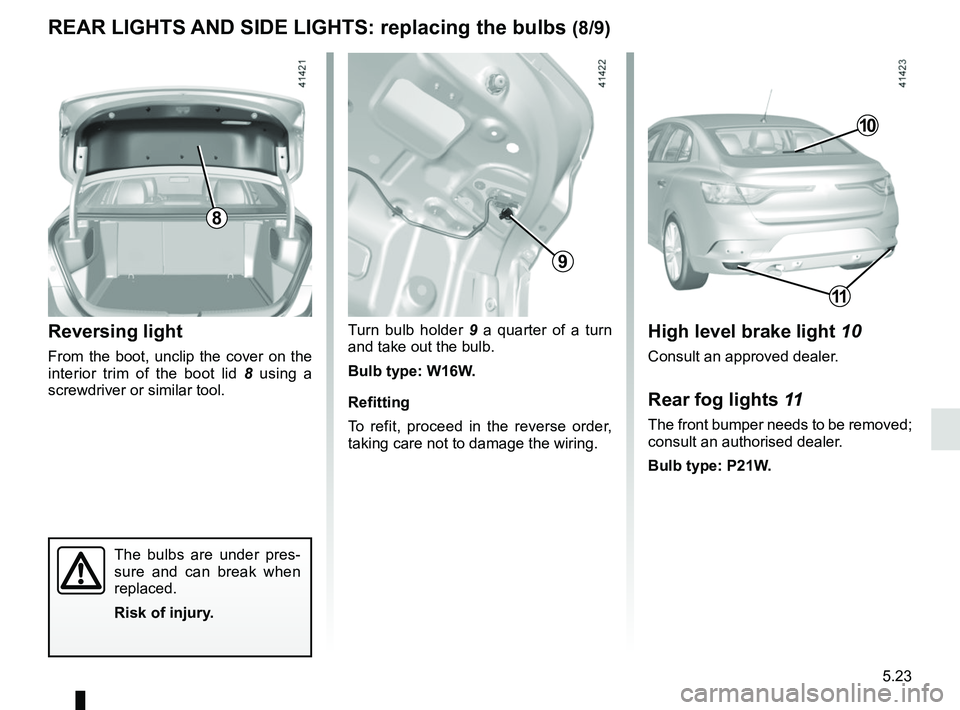

Turn bulb holder 9 a quarter of a turn
and take out the bulb.
Bulb type: W16W.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.Reversing light
From the boot, unclip the cover on the
interior trim of the boot lid 8 using a
screwdriver or similar tool.
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (8/9)
9
8
High level brake light 10
Consult an approved dealer.
Rear fog lights 11
The front bumper needs to be removed;
consult an authorised dealer.
Bulb type: P21W.
11
10
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

5.24

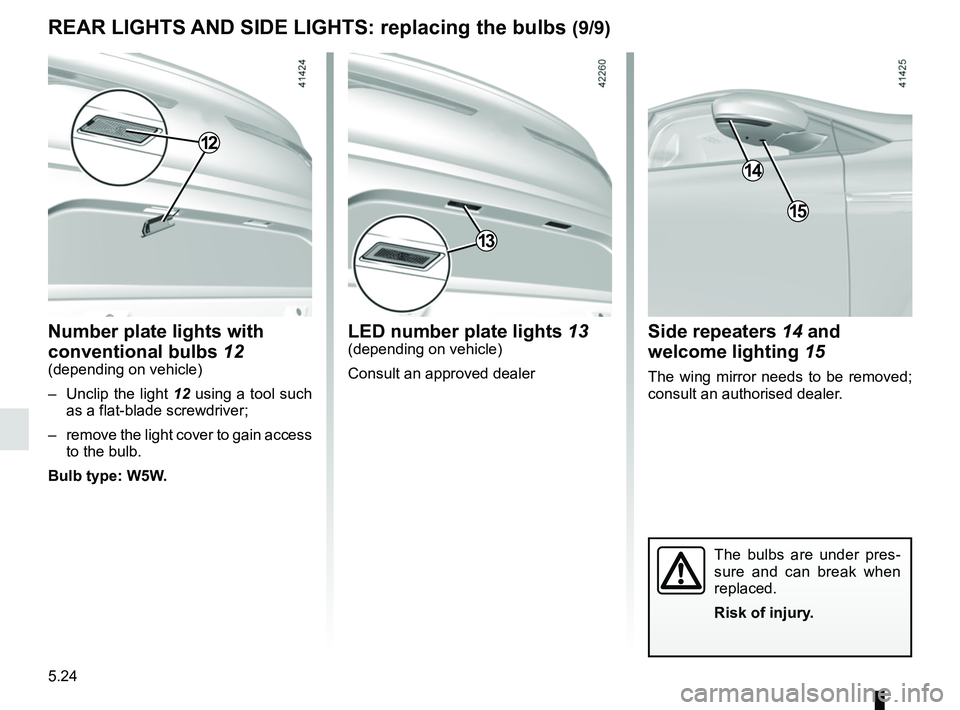

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (9/9)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
Side repeaters 14 and welcome lighting 15
The wing mirror needs to be removed;
consult an authorised dealer.
14
Number plate lights with
conventional bulbs 12
(depending on vehicle)
– Unclip the light 12 using a tool such
as a flat-blade screwdriver;
– remove the light cover to gain access to the bulb.
Bulb type: W5W.
12
15
LED number plate lights 13(depending on vehicle)
Consult an approved dealer
13
