2018 RENAULT MEGANE Owners Manual

3.31
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (2/4)
Central storage
compartment 4
A sliding system 5 holds maintains the
cups.
Central storage
compartment 3 Cup holders
6
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of burning if hot liquid
escapes.
Ensure that no hard, heavy
or pointed objects are
placed in the “open” stor-
age compartments in such
a way that they may fall onto pas-
sengers during sudden turning or
braking.
64
5
3
3
6
3

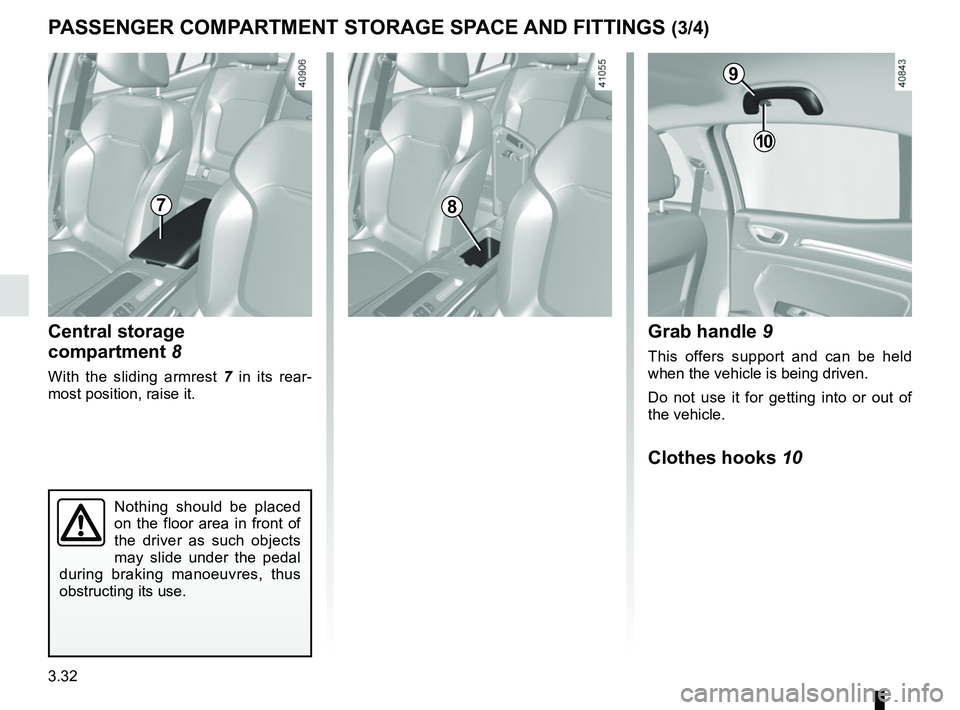

3.32
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (3/4)
Central storage
compartment 8
With the sliding armrest 7 in its rear-
most position, raise it.
78
Grab handle 9
This offers support and can be held
when the vehicle is being driven.
Do not use it for getting into or out of
the vehicle.
Clothes hooks 10
9
10
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.

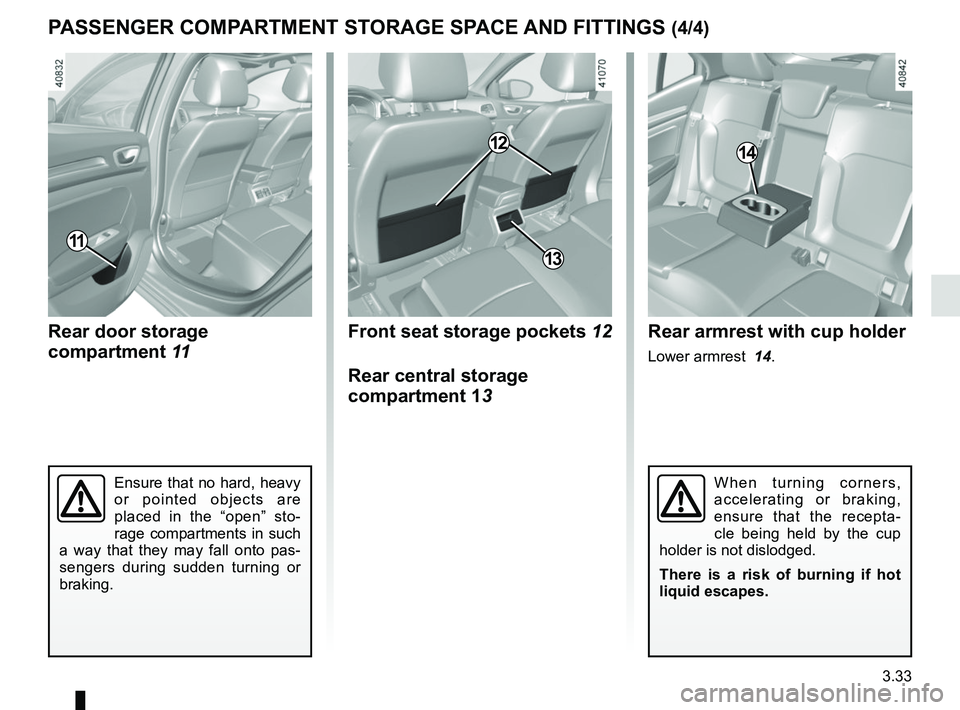

3.33
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (4/4)
Rear door storage
compartment 11
11
Front seat storage pockets 12
Rear central storage
compartment 13
12
Rear armrest with cup holder
Lower armrest 14.
14
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning or
braking.When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of burning if hot
liquid escapes.
13

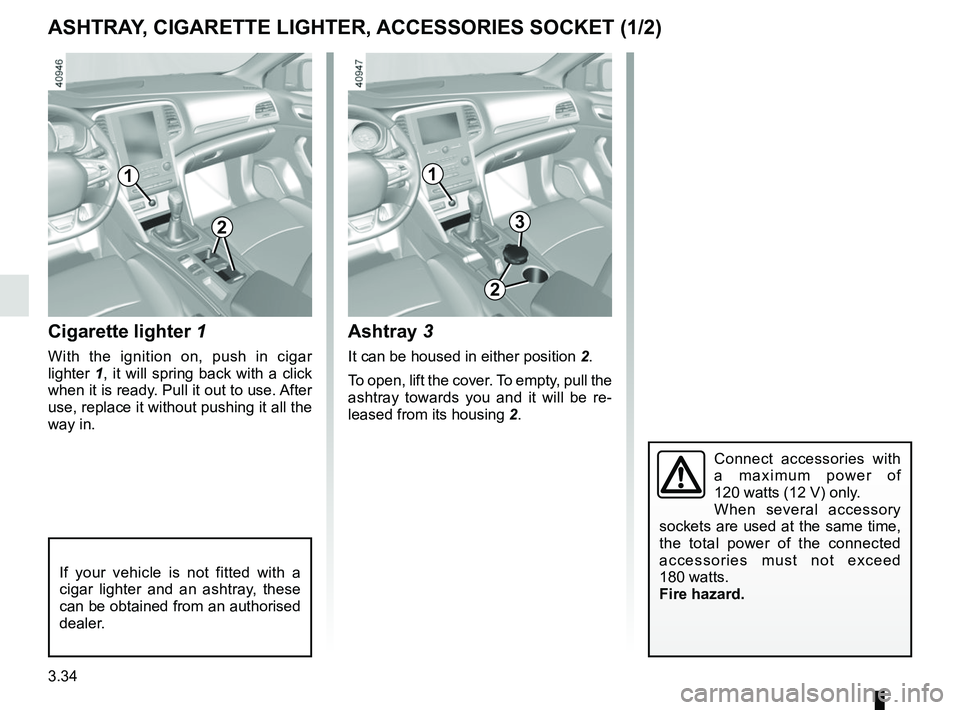

3.34
ASHTRAY, CIGARETTE LIGHTER, ACCESSORIES SOCKET (1/2)
1
Cigarette lighter 1
With the ignition on, push in cigar
lighter 1, it will spring back with a click
when it is ready. Pull it out to use. After
use, replace it without pushing it all the
way in.
Connect accessories with
a maximum power of
120 watts (12 V) only.
When several accessory
sockets are used at the same time,
the total power of the connected
accessories must not exceed
180 watts.
Fire hazard.
23
1
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an authorised
dealer.
Ashtray 3
It can be housed in either position 2.
To open, lift the cover. To empty, pull the
ashtray towards you and it will be re-
leased from its housing 2.
2

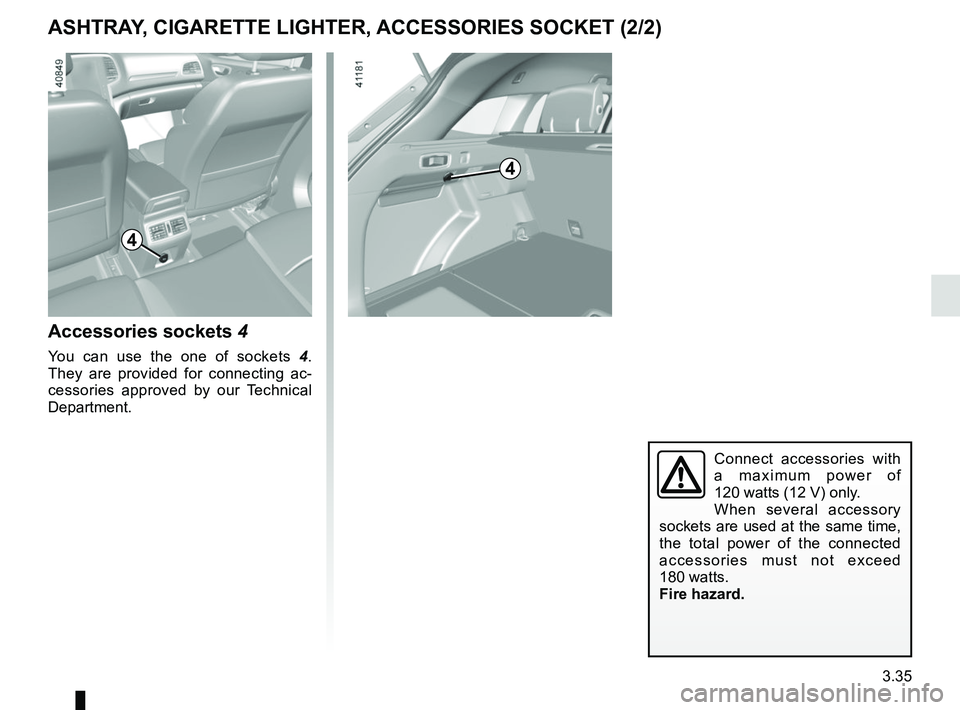

3.35
4
Accessories sockets 4
You can use the one of sockets 4.
They are provided for connecting ac-
cessories approved by our Technical
Department.
Connect accessories with
a maximum power of
120 watts (12 V) only.
When several accessory
sockets are used at the same time,
the total power of the connected
accessories must not exceed
180 watts.
Fire hazard.
ASHTRAY, CIGARETTE LIGHTER, ACCESSORIES SOCKET (2/2)
4

3.36
REAR HEADRESTS (1/2)
Position for using the central
headrest A
Raise the headrest as far as possible to
use it in the high position. Check that it
is correctly locked.
The headrest is a safety
component; check that it is
fitted and in the correct po-
sition. The top of the head-
rest should be as close as possible
to the top of the head.
A
1
Centre seat headrest B
storage position
Press the button 1 and lower the head-
rest completely.
Set the headrest at the lowest po-
sition or tilted forwards for storage
only: do not set it in this position when
the seat is occupied or if the child seat
is fitted.
B
To remove a headrest
Raise the headrest as far as it will go,
then press button 1 and remove the
headrest.
To refit a headrest
Insert the rods in the holes, press the
button 1 and lower the headrest. Check
that the bonnet is correctly locked.

3.37
REAR HEADRESTS (2/2)
Storage position for the side
headrests
Press the button 1 and, depending on
the vehicle:
– fully lower (movement A) the head-
rest 2, or
– lower and tilt (movement B ) the
headrest 3 fully forwards.
1
B
A
2
3
1

3.38
To manually fold down the
seatbacks
Ensure that the front seats are far
enough forward.
Raise the side headrests to the highest
position and lower the central headrest
fully.
Depending on the vehicle, put the seat
belt in the belt guide 2 to avoid damag-
ing it, or buckle it its own unit. This will
prevent the seat belt becoming trapped
when the seat is returned to its position
for use. In all cases, check that the seat
belts are operating correctly.
Pull the control 1 and lower the seat-
back A.
To replace the seatback, proceed in
the reverse order to removal.
Refit the seatback and click it back into
place.
REAR BENCH SEAT (1/2)
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
When moving the rear
seats, ensure that nothing
obstructs the anchorage
points (passenger’s arm or
leg, a pet, gravel, cloth, toys, etc.).
A
1
The configuration of the
two-seat bench with the
small seatback B pulled
down, does not allow the
central seat to be used as it would
be impossible to buckle the seat belt
(belt buckles inaccessible).
When refitting the seat-
back, make sure it is cor-
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
B
2
