Do not use:
- t he jack for any other purpose than
lifting the vehicle,
-
a j
ack other than the one supplied by
the manufacturer.
F
R

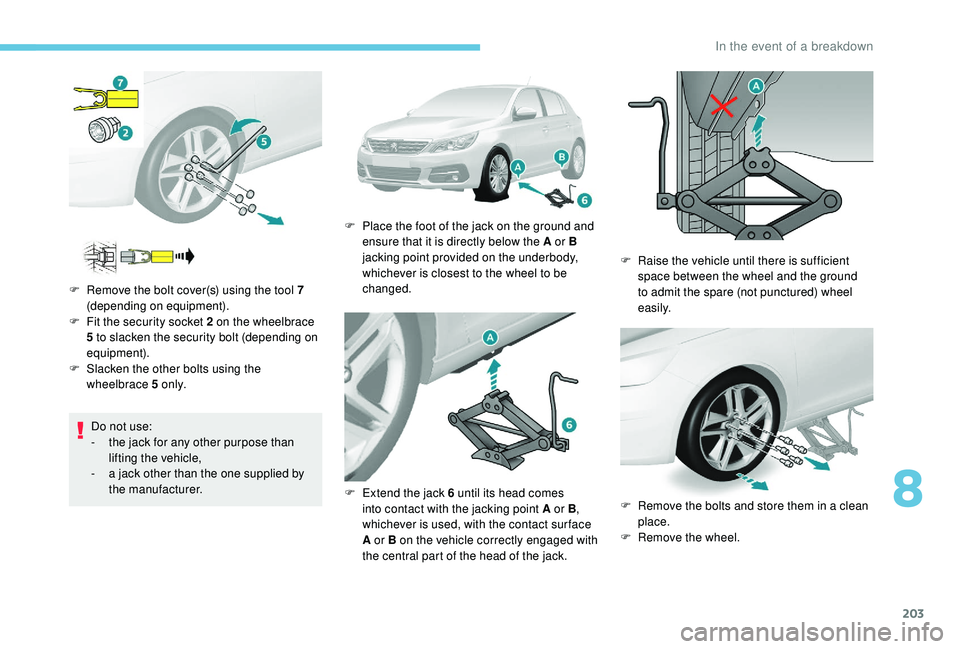

emove the bolt cover(s) using the tool 7
(depending on equipment).
F
F
it the security socket 2 on the wheelbrace
5 to slacken the security bolt (depending on
equipment).
F
S
lacken the other bolts using the
wheelbrace 5 o n l y. F
P
lace the foot of the jack on the ground and
ensure that it is directly below the A or B
jacking point provided on the underbody,
whichever is closest to the wheel to be
changed.
F
E
xtend the jack 6 until its head comes
into contact with the jacking point A or B ,
whichever is used, with the contact sur face
A or B on the vehicle correctly engaged with
the central part of the head of the jack. F
Ra
ise the vehicle until there is sufficient
space between the wheel and the ground
to admit the spare (not punctured) wheel
easily.
F
R
emove the bolts and store them in a clean
place.
F
R
emove the wheel.
8
In the event of a breakdown
204
Ensure that the jack is stable. If the
ground is slippery or loose, the jack may
slip or collapse – Risk of injury!
Take care to place the jack strictly at the
jacking points A or B under the vehicle,
making sure that the contact point on the
vehicle is centred on the head of the jack.
Other wise, there is a risk of damage to the
vehicle and/or the jack collapsing – Risk
of injury!
Fitting a wheel
Fitting the "space-saver " spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it is
normal to notice that the washers do not
come into contact with the "space-saver"
spare wheel. The wheel is secured by the
conical contact of each bolt. F
P
ut the wheel in place on the hub.
F
S
crew in the bolts by hand to the stop.
F
P
re-tighten the security bolt using the
wheelbrace 5 fitted with the security socket
2 (depending on equipment).
F
P
re-tighten the other bolts using the
wheelbrace 5 o n l y.
F
L
ower the vehicle fully.
F
F
old the jack 6 and detach it.F
T
ighten the security bolt using the
wheelbrace 5 fitted with the security socket
2 (depending on equipment).
F
T
ighten the other bolts using the
wheelbrace 5 o n l y.
F
R
efit the bolt cover(s) (depending on
ve r s i o n).
F
S
tore the tools in the box.
