2018 Peugeot 308 engine

13
Warning/indicator lampStateCause Actions/Observations
Malfunction (with
electric parking
brake) Fixed.
The electric parking brake has a fault. Carry out (3) quickly.
+ Fixed, accompanied
by the message
"Parking brake fault".
You can no longer immobilise the
vehicle with the engine running.
If manual application and release are not working, the
electric parking brake control lever is faulty.
The automatic functions must be used at all times and
are automatically reactivated in the event of failure of
the control lever.
Carry out (2).
(1) : You must stop as soon as it is safe to do
so and switch off the ignition. (3)
: Go to a PEUGEOT dealer or a qualified
workshop.
(2): Contact a PEUGEOT dealer or a qualified
workshop.
+


+ Flashing, when the
vehicle is started.
The parking brake has not been
properly released. Carry out (1) and try to completely release the parking
brake using the control lever, with your foot on the
brake pedal.
If the problem persists, carry out (2).
1
Instruments

15
+AdBlue
®
(access via the boot)
AdBlue
® warning lamp flashing
and Ser vice warning lamp fixed,
accompanied by an audible signal
and a message indicating the
remaining driving range. The driving range is less than
375
miles (600 km).Yo u must
top up the AdBlue® to
avoid a breakdown , or carry out
(3).
AdBlue
® warning lamp flashing
and Service warning lamp fixed,
accompanied by an audible signal
and a message indicating that
starting is prevented. The AdBlue® tank is empty: the
starting inhibition system required
by legislation prevents starting of
the engine. To restart the engine, top up the
AdBlue®, or carry out (2).
It is essential to add at least 5
litres
of AdBlue
® to its tank.
AdBlue
®
(access via the fuel
filler flap) On for around 30
seconds when
starting the vehicle, accompanied
by a message indicating the
remaining driving range. The remaining driving range is
between 1,500 and 500
miles
(2,400 and 800 km).Top up the AdBlue
®.
Fixed, on switching on the ignition,
accompanied by an audible signal
and a message indicating the
remaining driving range. The remaining driving range is
between 500 and 62 miles
(800 and 100 km).
Top up the AdBlue
® as soon as
possible , or carry out (3).
Flashing, accompanied by an audible
signal and a message indicating the
remaining driving range.The driving range is less than
62
miles (100 km). Yo u must
top up the AdBlue® to
avoid a breakdown , or carry out
(3).
Flashing, accompanied by an
audible signal and a message
indicating that starting is prevented. The AdBlue
® tank is empty: the
starting prevention system required
by legislation prevents starting of
the engine. To restart the engine, top up the
AdBlue®, or carry out (2).
It is essential to add at least 5
litres
of AdBlue
® to its tank.
Warning/indicator lamp
State CauseActions/Observations
1
Instruments

16
Warning/indicator lampState CauseActions/Observations
+
+ SCR emissions
control system
Fixed when the ignition is switched
on, accompanied by an audible signal
and a message. A fault with the SCR emissions
control system has been detected.
This alert disappears once the
exhaust emissions return to normal
levels.
AdBlue® warning lamp flashing, on
switching on the ignition, associated
with the fixed Ser vice and engine
diagnostic warning lamps, accompanied
by an audible signal and a message
indicating the remaining driving range.Depending on the message
displayed, you can continue driving
for up to 685
miles (1,100 km) before
the engine starting prevention system
is triggered. Carry out (3) as soon as possible to
avoid breaking down
.
AdBlue
® warning lamp flashing,
on switching on the ignition,
associated with the fixed Ser vice and
engine diagnostic warning lamps,
accompanied by an audible signal
and a message. An engine immobiliser prevents
the engine from restarting (over
the authorised driving limit after
confirmation of a fault with the
emissions control system).
To restart the engine, carry out (2).
Distance Alert/
Active Safety
Brake * Fixed, accompanied by a message.
The system has been deactivated via
the vehicle configuration menu.
*

O

nly with display screen 2 .Flashing.
The system is operating.The vehicle brakes briefly so as to
reduce the speed of collision with the
vehicle ahead.
Fixed, accompanied by a message
and an audible signal. The system has a fault.
Carry out (3).
Instruments

17
Diesel engine pre-
heatingTemporarily on.
When switching on the ignition,
if the weather conditions and
the engine temperature make it
necessary. Wait until the warning lamp goes off before starting.
With the
K eyless Entry and Starting system, when the
warning lamp goes off, starting is immediate if you
press and hold:
-

t
he clutch pedal with a manual gearbox,
-

t
he brake pedal with an automatic gearbox.
If the engine does not start, switch the ignition off and
then on, wait until the indicator lamp goes off again,
then start the engine.
Warning/indicator lamp
StateCause Actions/Observations
Anti-lock braking
system (ABS) Fixed.
The anti-lock braking system
has a fault. The vehicle retains conventional braking.
Drive carefully at moderate speed, then carry out (3).
Dynamic stability
control (DSC)
and anti-slip
regulation (ASR) Fixed.
With audio system or GT/GTi
versions:
The DSC/ASR systems have
been disabled by a press of the
disable button.
With touch screen, except GT/
GTi versions:
The ASR system has been
disabled via the Driving
functions menu. These systems reactivate automatically above 31
mph
(50
km/h), except the GT/GTi versions, as well as
when the ignition is switched off.
To reactivate them below 31
mph (50 km/h),
depending on the version, press the button again or go
to the Driving functions menu.
(1) : You must stop as soon as it is safe to do
so and switch off the ignition. (3)
: Go to a PEUGEOT dealer or a qualified
workshop.
(2): Contact a PEUGEOT dealer or a qualified
workshop.
1

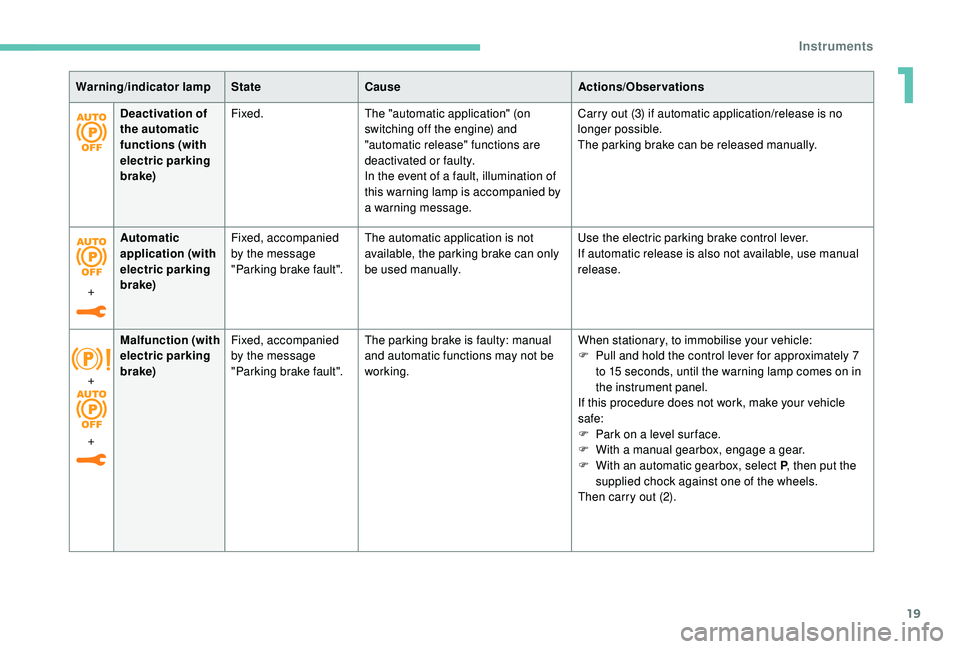

Instruments

19
Deactivation of
the automatic
functions (with
electric parking
brake)Fixed.
The "automatic application" (on
switching off the engine) and
"automatic release" functions are
deactivated or faulty.
In the event of a fault, illumination of
this warning lamp is accompanied by
a warning message. Carry out (3) if automatic application/release is no
longer possible.
The parking brake can be released manually.
+ Automatic
application (with
electric parking
brake)
Fixed, accompanied
by the message
"Parking brake fault".
The automatic application is not
available, the parking brake can only
be used manually. Use the electric parking brake control lever.
If automatic release is also not available, use manual
release.
+
+ Malfunction (with
electric parking
brake)
Fixed, accompanied
by the message
"Parking brake fault". The parking brake is faulty: manual
and automatic functions may not be
working. When stationary, to immobilise your vehicle:
F

P
ull and hold the control lever for approximately 7
to 15
seconds, until the warning lamp comes on in
the instrument panel.
If this procedure does not work, make your vehicle
safe:
F

P
ark on a level sur face.
F

W
ith a manual gearbox, engage a gear.
F

W
ith an automatic gearbox, select P, then put the
supplied chock against one of the wheels.
Then carry out (2).
Warning/indicator lamp
StateCause Actions/Observations
1

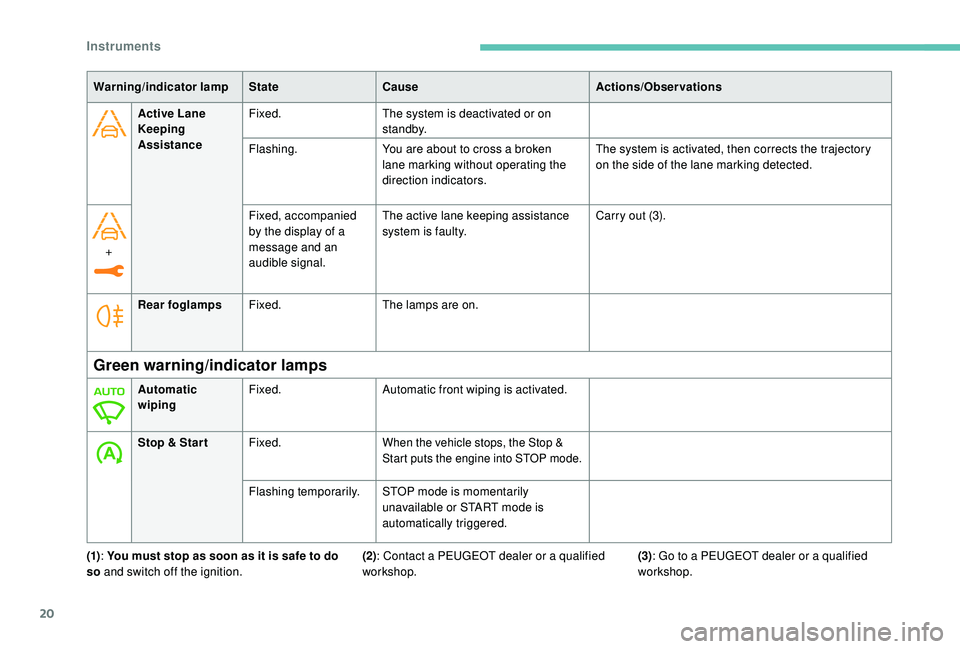

Instruments

20
Active Lane
Keeping
AssistanceFixed.
The system is deactivated or on
st a n d by.
Flashing. You are about to cross a broken
lane marking without operating the
direction indicators. The system is activated, then corrects the trajectory
on the side of the lane marking detected.
+ Fixed, accompanied
by the display of a
message and an
audible signal.The active lane keeping assistance
system is faulty.
Carry out (3).
Rear foglamps Fixed. The lamps are on.
Green warning/indicator lamps
Automatic
wipingFixed.
Automatic front wiping is activated.
Stop & Star t Fixed.
When the vehicle stops, the Stop &
Start puts the engine into STOP mode.
Flashing temporarily. STOP mode is momentarily
unavailable or START mode is
automatically triggered.
Warning/indicator lamp
StateCause Actions/Observations
(1) : You must stop as soon as it is safe to do
so and switch off the ignition. (3)
: Go to a PEUGEOT dealer or a qualified
workshop.
(2): Contact a PEUGEOT dealer or a qualified
workshop.

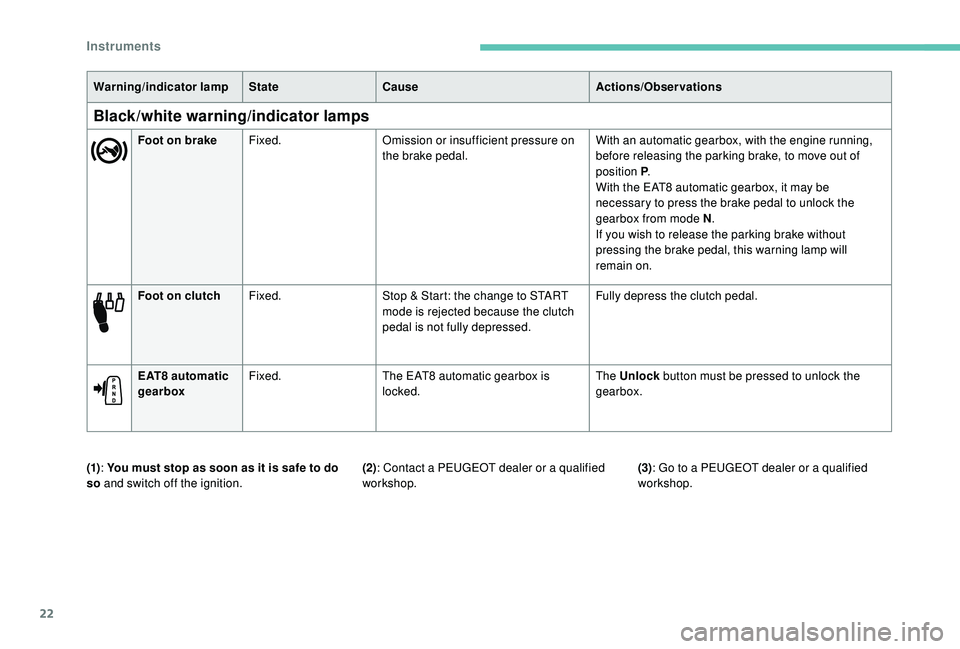

Instruments

22
Foot on clutchFixed. Stop & Start: the change to START
mode is rejected because the clutch
pedal is not fully depressed. Fully depress the clutch pedal.
EAT8 automatic
gearbox Fixed.
The EAT8 automatic gearbox is
locked. The Unlock
button must be pressed to unlock the
gearbox.
Warning/indicator lamp
StateCause Actions/Observations
Black/white warning/indicator lamps
Foot on brakeFixed. Omission or insufficient pressure on
the brake pedal. With an automatic gearbox, with the engine running,
before releasing the parking brake, to move out of
position P
.
With the EAT8 automatic gearbox, it may be
necessary to press the brake pedal to unlock the
gearbox from mode N .
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
(1) : You must stop as soon as it is safe to do
so and switch off the ignition. (2): Contact a PEUGEOT dealer or a qualified
workshop. (3)
: Go to a PEUGEOT dealer or a qualified
workshop.
Instruments

23
Indicators
Service indicator
The ser vice indicator is displayed on the
instrument panel. Depending on the vehicle
version:
-
t
he distance recorder display line indicates
the distance remaining before the next
ser vice is due, or the distance travelled
since it was due preceded by the sign "-". The distance indicated (in miles or
kilometres) is calculated according to the
distance covered and the time elapsed
since the last ser vice.
The alert may also be triggered close to a
due date.
Warning/indicator
lamp State
CauseActions/
Observations
Ser vice
spanner Lights up temporarily
when the ignition is
switched on.
Between 620 and 1,860 miles
( 1,000 and 3,000 km) remain
before the next ser vice is due.
Fixed, when the
ignition is switched on. The ser vice is due in
less than 620
miles
(1,000


km).Have your vehicle
serviced very soon.
+ Ser vice
spanner
flashing
Flashing then fixed,
when the ignition is
switched on.
(With BlueHDi Diesel
engines, associated
with the Ser vice
warning lamp). The servicing interval
has been exceeded.
Have your vehicle
ser viced as soon as
possible.
-

a
n alert message indicates the distance
remaining, as well as the period before the
next ser vice is due or how long it is overdue.
Resetting the service
indicator
The ser vice indicator must be reset after each
service.
If you have carried out the ser vice on your
vehicle yourself:
F

s
witch off the ignition,
F

p
ress and hold the trip distance recorder
reset button,
F

s
witch on the ignition; the distance recorder
display begins a countdown,
F

w
hen the display indicates " =0", release the
button; the spanner disappears.
If you have to disconnect the battery
following this operation, lock the vehicle
and wait at least 5
minutes for the reset to
be registered.
1
Instruments
