22

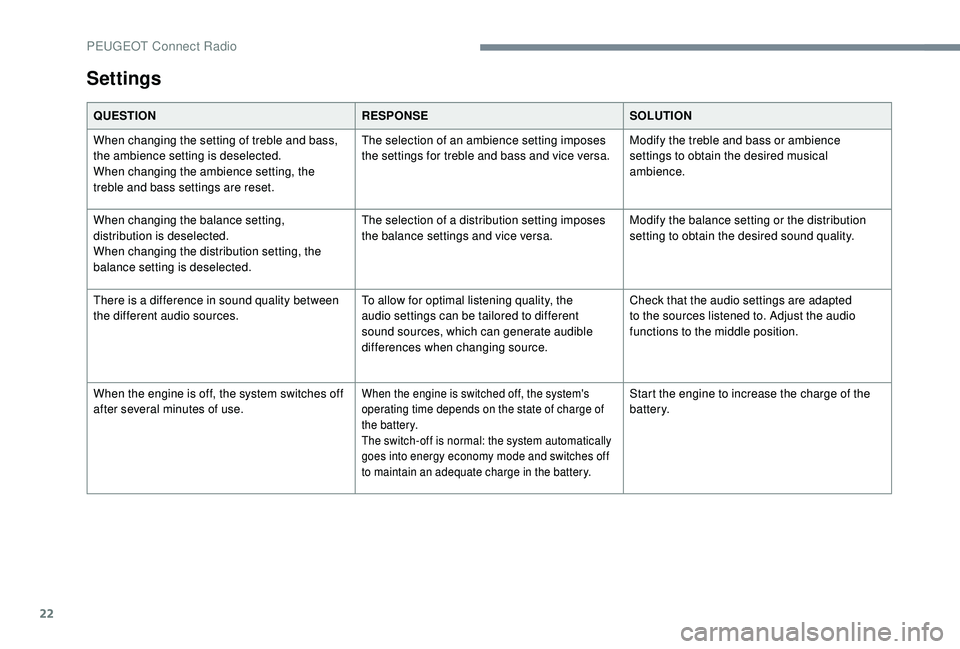

Settings
QUESTIONRESPONSESOLUTION
When changing the setting of treble and bass,
the ambience setting is deselected.
When changing the ambience setting, the
treble and bass settings are reset. The selection of an ambience setting imposes
the settings for treble and bass and vice versa.
Modify the treble and bass or ambience
settings to obtain the desired musical
ambience.
When changing the balance setting,
distribution is deselected.
When changing the distribution setting, the
balance setting is deselected. The selection of a distribution setting imposes
the balance settings and vice versa.
Modify the balance setting or the distribution
setting to obtain the desired sound quality.
There is a difference in sound quality between
the different audio sources. To allow for optimal listening quality, the
audio settings can be tailored to different
sound sources, which can generate audible
differences when changing source.Check that the audio settings are adapted
to the sources listened to. Adjust the audio
functions to the middle position.
When the engine is off, the system switches off
after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system automatically
goes into energy economy mode and switches off
to maintain an adequate charge in the battery.Start the engine to increase the charge of the
battery.
PEUGEOT Connect Radio
2
12:13
18,5 21,5

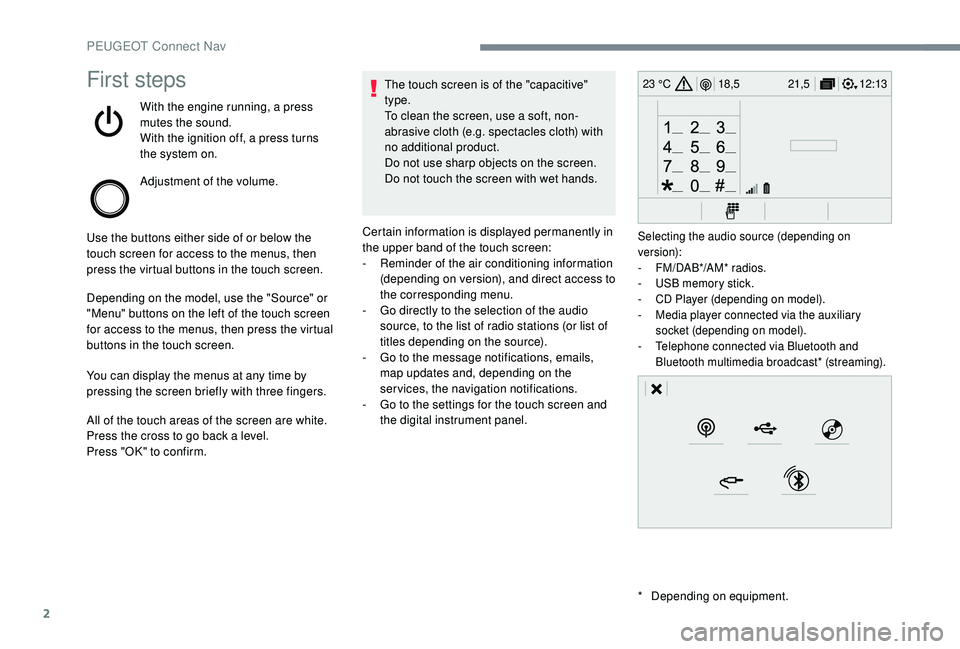

23 °CFirst steps
With the engine running, a press
mutes the sound.
With the ignition off, a press turns
the system on.
Adjustment of the volume.
Use the buttons either side of or below the
touch screen for access to the menus, then
press the virtual buttons in the touch screen.
Depending on the model, use the "Source" or
"Menu" buttons on the left of the touch screen
for access to the menus, then press the virtual
buttons in the touch screen.
You can display the menus at any time by
pressing the screen briefly with three fingers.
All of the touch areas of the screen are white.
Press the cross to go back a level.
Press "OK" to confirm. The touch screen is of the "capacitive"
type.
To clean the screen, use a soft, non-
abrasive cloth (e.g. spectacles cloth) with
no additional product.
Do not use sharp objects on the screen.
Do not touch the screen with wet hands.
*
D
epending on equipment.
Certain information is displayed permanently in
the upper band of the touch screen:
-
R
eminder of the air conditioning information
(depending on version), and direct access to
the corresponding menu.
-
G
o directly to the selection of the audio
source, to the list of radio stations (or list of
titles depending on the source).
-
G
o to the message notifications, emails,
map updates and, depending on the
services, the navigation notifications.
-
G
o to the settings for the touch screen and
the digital instrument panel.
Selecting the audio source (depending on
version):
-
F
M/DAB*/AM* radios.
-
U
SB memory stick.
-
C
D Player (depending on model).
-
M
edia player connected via the auxiliary
socket (depending on model).
-
T
elephone connected via Bluetooth and
Bluetooth multimedia broadcast* (streaming).
PEUGEOT Connect Nav
38

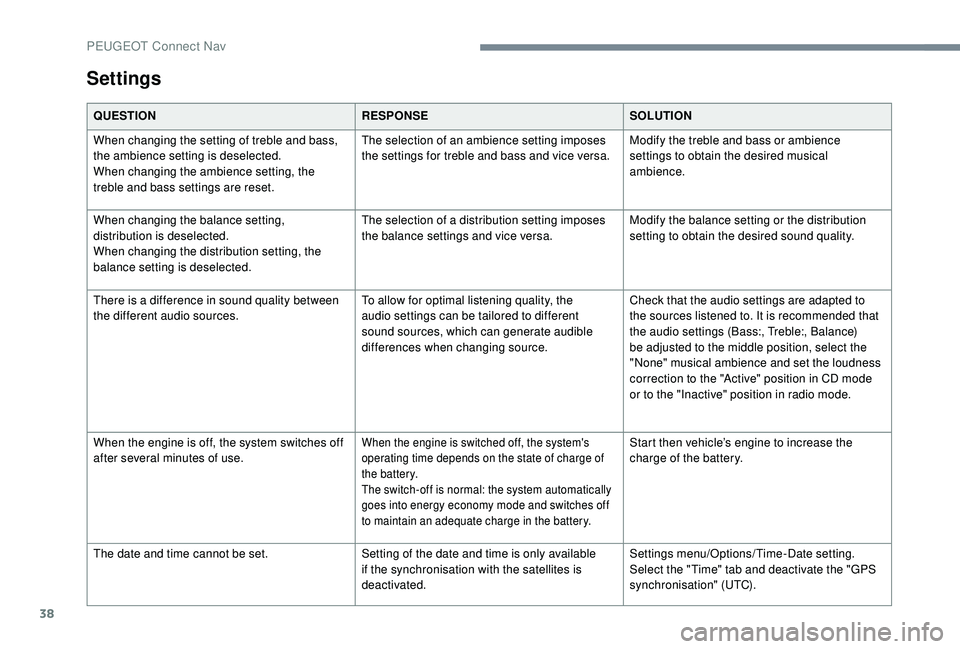

Settings
QUESTIONRESPONSESOLUTION
When changing the setting of treble and bass,
the ambience setting is deselected.
When changing the ambience setting, the
treble and bass settings are reset. The selection of an ambience setting imposes
the settings for treble and bass and vice versa.
Modify the treble and bass or ambience
settings to obtain the desired musical
ambience.
When changing the balance setting,
distribution is deselected.
When changing the distribution setting, the
balance setting is deselected. The selection of a distribution setting imposes
the balance settings and vice versa.
Modify the balance setting or the distribution
setting to obtain the desired sound quality.
There is a difference in sound quality between
the different audio sources. To allow for optimal listening quality, the
audio settings can be tailored to different
sound sources, which can generate audible
differences when changing source.Check that the audio settings are adapted to
the sources listened to. It is recommended that
the audio settings (Bass:, Treble:, Balance)
be adjusted to the middle position, select the
"None" musical ambience and set the loudness
correction to the "Active" position in CD mode
or to the "Inactive" position in radio mode.
When the engine is off, the system switches off
after several minutes of use.
When the engine is switched off, the system's
operating time depends on the state of charge of
the battery.
The switch-off is normal: the system automatically
goes into energy economy mode and switches off
to maintain an adequate charge in the battery.Start then vehicle’s engine to increase the
charge of the battery.
The date and time cannot be set. Setting of the date and time is only available
if the synchronisation with the satellites is
deactivated.Settings menu/Options/Time-Date setting.
Select the "Time" tab and deactivate the "GPS
synchronisation" (UTC).
PEUGEOT Connect Nav
235
AABS .................................................................87
Accessories ...................................... 47, 84, 113
Active lane keeping assistance
......20, 15 0, 15 6
Active Safety Brake......................... 16, 14 6, 148
AdBlue
® ...................................... 1 6, 25, 188,189
Additive, Diesel ........................... 14 -15, 18 6,187
Adjusting headlamps
................................ 79-80
Adjusting head restraints
................................ 51
Adjusting seat
............................................ 51- 5 3
Adjusting the air distribution
.....................67- 6 9
Adjusting the air flow
................................. 6
6-69
Adjusting the date
................... 30 -32, 38, 18, 31
Adjusting the lumbar support
.......................... 52
A
djusting the seat angle
................................. 52
Adjusting the temperature
........................66-69
Adjusting the time
.................... 30 -32, 38, 17, 31
Advice on driving
................................... 109,110
Airbags
...............................
..........18, 92, 94, 99
Airbags, curtain
......................................... 93-94
Airbags, front ....................................... 93 -94, 99
Airbags, lateral
.......................................... 93-94
Air conditioning
............................... 6, 65, 65 - 66
Air conditioning, automatic
.......................67- 6 9
Air conditioning, manual
................ 6
6-67, 69-70
Air vents
.......................................................... 64
Alarm
......................................................... 48-49
Anti-lock braking system (ABS)
................86 - 87
Anti-pinch
.................................................. 5
0, 71
Anti-slip regulation (ASR)
............................... 87
Anti-theft/Immobiliser
..................................... 44
Apple CarPlay connection
........................12, 16
Armrest
................
............................................ 58
Armrest, front
............................................ 59-60
Armrest, rear
...............................
....................61
Assistance, emergency braking
.......86 - 87, 148
Assistance call
...............................
...........85-86
Audio streaming (Bluetooth)
...................9, 9, 24
BBattery ............................. 181, 18 6, 215, 217, 218
Battery, charging .................................... 216,217
Battery, remote control
.............................44-46
Bicycle carrier
...............................
..................47
Blanking screen (snow shield)
...............173 ,175
Blind, panoramic roof
...................................... 71
Blind spot detection
...................................... 15 6
Blind spot sensors
................................. 15 4,15 5
BlueHDi
.......................................... 25, 188, 220
Bluetooth (hands-free)
.......... 9
-10, 13 -14, 25 -2 6
Bluetooth (telephone)
..................... 1
3 -15, 25 -27
Bonnet
........................................................... 183
Boot
........................................................... 40, 47
Boot lamp
........................................................ 62
Brake discs
............................................. 187,188
Brake lamps
...............................
............209,210
Brakes
.............................................. 10, 187,188
Braking, automatic emergency
.......16, 14 6, 148
Braking, dynamic emergency
.................114 ,117
Braking assistance system
.............................86
Brightness
....................................................... 16
Bulbs
............................................................. 205
Bulbs (changing)
....................205,206, 209,210
CCable, audio ................................................ 9, 23
Cable, Jack ................................................. 9, 23
Cap, fuel filler
...............................
...........170,171
Capacity, fuel tank
.................................. 170,171
CD
......................................................... 9, 23 -24
CD, MP3
................................................ 9, 23 -24
Central locking
.................................... 4
0, 42- 43
Changing a bulb
..................... 20
5,206, 209,210
Changing a fuse
..................................... 21
1,214
Changing a wheel
................... 19
3,19 4, 201, 202
Changing a wiper blade
............................ 81
- 82
Changing the remote control battery
........45-46 Checking the engine oil level
....................
24-25
Checking the levels
................................
18 4,18 6
Checking tyre pressures (using the kit)
..............................
19 4, 19 6, 20 0
Checks
...........................................
183, 18 6,188
Checks, routine
......................................
18 6,188
Child lock
.......................................................
107
Children
.........................................................
104
Children (safety)
............................................
107
Child seats
.................... 9
1, 95 - 9 6, 10 0,101, 107
Child seats, conventional
..............................
10 0
Child seats, ISOFIX .......................
102, 104,105
Closing the boot
........................................
4
0, 47
Closing the doors
..........................
40, 42- 43, 46
Commercial version
......................................
233
Configuration, vehicle
......................... 3
0-34, 36
Connection, Bluetooth
....... 1
0, 13 -15, 19, 25 -27
Connection, MirrorLink
........................
11 -12 , 17
Connection, Wi-Fi network
.............................
20
Control, back-up boot release ........................
47
Control, back-up door opening .................
44-45
Control, electric windows
................................
50
Control, heated seats
......................................
53
Controls, steering mounted
...................
12 2,126
Control stalk, lighting
......................................
74
Control stalk, wipers
...........................
8
0 - 81, 8 3
Courtesy lamps ...............................................
72
Cover, load space .....................................
61- 63
Cruise control ....13 0, 132,13 3, 13 5,141, 14 4,14 5
Cruise control, adaptive
................................13 9
Cruise control, adaptive with Stop function
..................132,13 3, 13 8,141, 14 4
Cruise control by speed limit recognition
...............................
............132,13 3
Cup holder
.......................................................58
.
Alphabetical index
236
DDAB (Digital Audio Broadcasting) – Digital radio .............6 -7, 8, 22
Date (setting)
........................... 30 -32, 38, 18, 31
Daytime running lamps
.............74, 76, 206, 208
Deactivating the passenger airbag
...........93, 99
Deactivation of DSC
....................................... 88
Deadlocking
.............................................. 40 - 42
Defrosting
............................................ 6 6 , 70 -71
Demisting
.................................................. 66, 70
Demisting, rear
................................................ 55
Demisting, rear screen
...................................55
Denon (audio system)
..................................... 63
Dimensions
..............................
..............231,232
Dipstick
................
........................24 -25, 18 4,185
Direction indicators
.................79, 206, 208,210
Display screen, instrument panel
.................127
Display screen, multifunction (with audio system)
.................................3
0-32
Distance Alert
.................................. 16, 14 6,147
Doors
............................................................... 46
Driver’s attention warning
.............................149
Driver Sport Pack
................................... 126,127
Driving abroad ................................................. 75
Driving economically ......................................... 6
Driving positions (storing)
...............................53
DSC
................................................................. 87
Dynamic (sport)
...................................... 126,127
Dynamic pack
........................................ 12
6,127
Dynamic stability control (DSC)
..........18, 8 6 - 89
EEarth point, remote ....................................... 18 3
EBA ................................................................. 87
EBFD
................
......................................... 86 - 87
Eco-driving (advice)
.......................................... 6
Economy mode
............................................. 18
1
Electronic brake force distribution (EBFD) ...86 - 87
Electronic stability control (ESC) .................... 86
E lectronic stability control (ESC) ........8
6 - 87, 89
Emergency braking assistance (EBA)
............86
Emergency call
......................................... 85-86
Emergency switching off
...............................113
Emissions control system, SCR
...................188
Energy economy mode
................................. 18
1
Engine, Diesel
..................17, 172, 220, 227,230
Engine, petrol
........................ 1
72, 183, 222,226
Engine compartment
.................................... 18
3
Engines
.................................................. 2 21, 23 0
Environment
................................................ 6, 46
FFatigue detection .......................................... 149
Filling the AdBlue® tank ......................... 19 0,191
Filling the fuel tank ................................. 170,172
Filter, air
................................................. 18 6,187
Filter, Diesel fuel
........................................... 18 4
Filter, oil
................
......................................... 187
Filter, particle
......................................... 18 6,187
Filter, passenger compartment
........65, 18 6,187
Fitting a wheel
............................... 202, 204,205
Fitting roof bars
............................................. 182
Fittings, boot
................................................... 62
Fittings, interior
............................................... 58
F
lap, fuel filler
.......................................... 170,171
Foglamp, rear
............................. 74 -75 , 2 0 9 , 210
Foglamps, front
.................................. 74 -75 , 2 0 7
Foglamps, rear
.......................................... 2
0 , 74
Folding the rear seats
............................... 57- 5 8
Frequency (radio)
....................................... 21-22
Fuel ............................................................ 6 , 172
Fuel consumption
.............................................. 6
Fusebox, engine compartment
..................... 214
Fuses
...................................................... 21
1,214
GGauge, fuel.............................................. 170,171
Gearbox, automatic .............6, 22, 118,129, 187
Gearbox, electronic
.......................................... 6
Gearbox, manual
...............6, 118, 128,130, 187
Gear lever
......................................................... 6
Gear lever, automatic gearbox
......119,123, 125
Gear lever, manual gearbox
.........................11 8
Gear shift indicator ~ Gear efficiency indicator
..................................... 127
Glove box, refrigerated
................................... 58
G
. P. S .
.............................................................. 12
HHazard warning lamps ........................62, 84- 85Hazard warning lamps, automatic operation ...85Headlamp adjustment ...............................79-80
Headlamps, automatic dipping ............21, 76 -78
Headlamps, automatic illumination
....74, 76, 78
Headlamps, dipped beam
................21, 206,207
Headlamps, halogen
.......................79, 205,207
Headlamps, main beam
..................21, 206,208
Headlamp wash
..............................
................81
Head restraints, front
...................................... 51
Head restraints, rear
.................................57- 5 8
Heating
...................................... 6
, 64, 66 - 67, 69
Hill start assist
......................................... 117,11 8
Horn ................................................................. 86
Horn ................................................................. 86
IIdentification, vehicle .................................... 233
Ignition ................ .........................6 9 , 112 ,113 , 2 8
Ignition on ...................................................... 113
Immobiliser, electronic
............................4 4 , 11 0
Indicator, AdBlue
® range ................................. 25
Alphabetical index
237
Indicator, coolant temperature ..................23 -24
Indicator, engine oil level ..........................24-25
Indicator lamps, operation
.............................. 10
In
dicator lamps, status
.................................... 10
I
ndicators, direction
........................................ 79
Inflating tyres
................................................ 188
Inflating tyres (using the kit)
......... 19
4, 19 6, 20 0
Instrument panel
............................................... 8
Intelligent Traction Control
..............................87
Internet browser
.............................................. 16
I
SOFIX
.......................................................... 104
ISOFIX mountings .................................. 102,103
JJack ............................... .......193,194, 201, 9, 23
Jump starting ................................................ 215
KKey ................................................ 39-42, 44-46
Key, electronic ........................................... 41- 4 3
Keyless Entry and Starting
...4
1 - 4 2 , 4 4 , 112 ,113
Key not recognised
....................................... 11
3
Key with remote control
....................4
0, 42, 110
Kit, hands-free
...................... 9
-10, 13 -14, 25 -2 6
Kit, temporary puncture repair
.............................. 62, 193,19 4, 19 6, 20 0
LLabels, identification ..................................... 233
LEDs – Light-emitting diodes ......................... 76
L
evel, brake fluid ........................................... 185
Level, Diesel additive
.............................18 6,187
Level, engine coolant
.................23 -24, 185,18 6
Level, engine oil
..........................24 -25, 18 4,185
Level, headlamp wash
............................81, 18 6
Level, screenwash fluid
..........................8
1, 18 6
Levels and checks
..............................
...183,18 6
Light-emitting diodes – LEDs
......................... 76
L
ighting
............................................................ 73
Lighting, ambient ............................................. 73
Lighting, exterior
............................................. 74
Lighting, guide-me home
..........................40, 78
Lighting, interior
...............................
..........72-73
Lighting, welcome
..................................... 78 -79
Lighting dimmer
.............................................. 28
Loading
..................................................... 6, 182
Load reduction mode
.................................... 181
Locating your vehicle
...................................... 40
Locking
...............................
.............................44
Long objects, transporting
..............................61
Low fuel level
.......................................... 17
0,171
Luggage retaining strap
.................................. 62
Lu
mbar
...................................................... 52, 54
MMaintenance, routine ........................................ 6
Map reading lamps ......................................... 72
M
arkings, identification
.................................233
Massage function
............................................ 54
Mat
.................................................................. 59
Memorising a speed
..................................... 13
0
Menu
............................................................... 12
Menu, main
....................................................... 4
M
enus (audio)
........................................ 4-5, 3-5
Messages
........................................................ 28
Messages, quick .............................................28
M irror, rear view .............................................. 56
Mirrors, door ..................................... 5 5, 15 4,15 5
Misfuel prevention
......................................... 171
Mountings, ISOFIX
...............................102, 103
NNet, high load retaining ...................................64
Number plate lamps ...................................... 2 11
OOil, engine .............................................. 18 4,185
Oil change .............................................. 18
4,185
Oil consumption
..................................... 18 4,185
On-board tools
....................................... 193,19 4
Opening the bonnet
...................................... 183
Opening the boot
................................ 4 0 - 41, 47
Opening the doors
..............................4 0 - 41, 4 6
PPads, brake ............................................ 187,188
Paint colour code .......................................... 233
Panoramic glass roof
...................................... 71
Parcel shelf, rear
....................................... 61- 62
Park Assist
...............................
......161,162, 16 4
Parking brake
.................................. 114, 187,188
Parking brake, electric
...... 1
2 -14 , 1 8 -1 9 , 114 ,117
Parking sensors, front
............................15 6,157
Parking sensors, rear .............................15 6,157
PEUGEOT Connect Nav
...................................1
PEUGEOT Connect Radio
...............................1
P
lates, identification ...................................... 233
.
Alphabetical index
238
Player, Apple® .......................................9 , 10, 24
Player, MP3 CD ............................... ................23
Player, USB
............................................. 7, 9, 23
Port, USB
.................................... 58, 60, 7, 9, 23
Pre-heater, Diesel
........................................... 17
Pressures, tyres
.................... 188, 197, 205, 233
Pre-tensioning seat belts
................................ 91
Priming pump
................................................ 2
20
Priming the fuel system
................................ 220
Profiles
...................................................... 16, 30
Protecting children
...................
93, 95 -96, 99, 101, 102, 104, 105, 107
Puncture
........................................ 19 4, 19 6, 20 0
RRadio ......................................... 4-5, 6, 9, 21, 24
Radio, digital (Digital Audio Broadcasting – DAB)
............................6, 8, 22
Range, AdBlue
.......................................... 25 -26
RDS
................
........................................ 7, 2 1 - 2 2
Rear screen, demisting
..............................70 -71
Recharging the battery
..........................216,217
Recirculation, air
....................................... 67- 6 9
Reduction of electrical load
..........................181
Regeneration of the particle filter
.................187
Reinitialisation of the under- inflation detection system
...........................167
Reinitialising the remote control
............... 45
-46
Reminder, key in ignition
...............................11
2
Remote control
.......................................... 39-44
Removing a wheel
........................202, 204,205
Removing the mat
........................................... 59
Replacing bulbs
..................... 20
5,206, 209,210
Replacing fuses
..................................... 211,213
Replacing the air filter
............................ 18
6,187
Replacing the oil filter
................................... 18
7
Replacing the passenger compartment filter ...............................18 6,187
Reservoir, headlamp wash
........................... 18
6
Reservoir, screenwash
.................................18 6
Resetting the service indicator
.................23 -24
Resetting the trip recorder
.........................27-2 8
Reversing camera
...............................
..........15 8
Reversing lamp
...................................... 209,210
Roof bars
....................................................... 182
Running out of fuel (Diesel)
..........................220
SSafety, children ...3, 95 -96, 99, 101, 104, 105, 107Saturation of the particle filter (Diesel) ......... 18 7
SCR (Selective Catalytic Reduction) ............188
Screen, cold climate
...............................17
3 ,174
Screen, instrument panel
..........................28-29
Screen, monochrome
...............................30-32
Screen, multifunction (with audio system)
...................................... 30 -32, 4
Screen menu map
........................................... 12
Screenwash
.................................................... 81
Screenwash, rear
............................................ 81
Seat, rear bench
....................................... 56-58
Seat belts
..................................... 11, 9 0 - 91, 10 0
Seats, electric
........................................... 52-53
Seats, front
...............................
..................51- 5 3
Seats, heated
.................................................. 53
Seats, rear
................................................. 56-58
Selector, gear
......................................... 12 2,126
Serial number, vehicle
..................................233
Service indicator
............................................. 23
Servicing
..................................................... 6
, 23
Settings, equipment
............................30-34, 36
Settings, system
........................................ 16, 30
Sidelamps
............................... 7
6, 206, 208,210
Side repeater
................................................ 208Ski flap
..............................
..............................
61
Snow chains
..........................................
1 6 7, 17 3
Socket, 12 V accessory .....................
58, 60, 62
Socket, 220 V ..................................................
60
Socket, 230 V
...............................
...................
58
Socket, auxiliary
...................................... 8
, 9, 23
Socket, Jack
......................................
58, 8, 9, 23
Sockets, audio
................................................ 60
Spe
ed limiter
..................................
13
0, 132,13 5
Speed limit recognition
.......................... 13
1,132
Spotlamps, door mirror
...................................
79
Starting a Diesel engine
............................... 17
2
Starting the engine
................................. 11
0 ,111
Starting the vehicle
..................
1
2 -14 , 1 8 -1 9 , 112 ,113 , 11 9 ,12 6
Starting using another battery ..............
113 , 2 15
Station, radio ............................... ......4, 6, 21-22
Stay, bonnet
..................................................183
Steering mounted controls, audio
........ 2
-3, 3, 3
Stop & Start .................................
20, 30, 66, 70, 128, 130, 171, 183, 186, 215, 217
Stopping the vehicle ................
12 -14 , 1 8 -1 9 , 112 ,113 , 11 9 ,12 6
Storage
...................................................... 58-62
Storage wells
.................................................. 62
Storing driving positions
................................. 53
S
towing rings
.................................................. 62
Sunshine sensor
............................................. 65
Switching off the engine
.........................11 0 ,111
Synchronising the remote control
.............45-46
Alphabetical index
239
TTables of engines ................................. 222, 230
Tables of fuses ...................................... 211, 214
Ta n k , f u e l
............................................... 170, 171
Technical data
...................................... 222
, 230
Telephone
....................... 9
-10, 12, 13 -16, 25 -29
Telephone, Bluetooth with voice recognition
.......................................... 13
T
emperature, coolant
................................23 -24
Three flashes (direction indicators)
................ 79
T
ime (setting)
........................... 30 -32, 38, 17, 31
TMC (Traffic info)
............................................ 13
T
o o l s
....................................... 193, 193,19 4, 201
Top tether
...............................
.......................102
Total distance recorder
..............................27-2 8
Touch screen ...................................32, 168, 1, 1
Touch screen .............................................34, 36
Towball, quickly detachable
...................17 5 ,1 8 0
Towed loads
.................................................. 221
Towing another vehicle
..........................218,219
Towing device
........................... 89, 109,110, 174
Towing device with quickly detachable towball
...............................17 5 ,1 8 0
Towing eye
...................................................... 62
Traction control (ASR)
........................18, 8 6 - 89
Traffic information (TA)
.....................................5
Traffic information (TMC)
................................13
Tr a i l e r
...............
.........................89, 109,110, 174
Trailer stability assist (TSA)
............................ 89
T
rajectory control systems
........................8
6 - 87
Triangle, warning ............................................. 62
Trip computer
............................................ 28-30
Trip distance recorder
................................ 2
7-2 8
Ty r e s
.......................................................... 6, 188
Tyre under-inflation detection ...14, 166, 168, 197
UUnder-inflation (detection) ............................166
Unlocking .................................................. 4 0 - 41
Updating the date
................................ 3
8, 18, 31
Updating the time
...............................
.38, 17, 31
USB
.............................................. 60, 7, 9, 23 -24
VVentilation ....................................... 6, 64- 67, 69
Voice commands ......................................... 5 -10
WWarning and indicator lamps ............................9
W arning lamp, airbag ...................................... 18
W
arning lamp, braking system
.......................10
Warning lamp, Diesel engine pre-heater
.......17
Warning lamp, low fuel level
...........................11
Warning lamp, parking brake
..........................10
Warning lamp, Service ....................................12
Warning lamps
............................................. 9 -10
Warnings and indicators
.................................10
Weights
...............
.......................................... 221
Wheel, spare
............. 6
2, 188, 193,194, 201,202
Window controls
............................................. 50
Wiper, rear ....................................................... 81
Wiper blades (changing)
...........................81- 82
Wipers
................................................. 20, 80, 83
Wipers, automatic rain sensitive
...............81, 8 3
.
Alphabetical index
