Page 177 of 263

Heater without air conditioning function (if so equipped) 7-6 Comfort controls
7
N00738301099
Set the mode selection dial to the “ ” posi- tion and set the air sele
ction lever to the out-
side air position. Turn the temperature control dial clockwise or counterclockwise to
the desired tempera-
ture. Select the desire
d blower speed to fit
your needs.
N00738401045
Set the mode selection
dial to the positions
shown in the illustration and set the air selec- tion lever to the outside air position. The air flow will be directed to the leg area and the upper part of the passenger compart-ment. Set the desired blower speed. Warm air flows to the leg area and unheated or slightly warm air (depending upon the position of the temperat
ure control dial) flows
to the upper part of the passenger compart-ment.
N00738501091
Set the mode selection dial (between “ ” and “ ”) to remove frost or mist from the windshield and door window. For ordinary defrosting Use this setting to ke
ep the windshield and
door windows clear of mist, and to keep the leg area heated (when driving in rain or snow). 1. Set the mode select
ion dial to the “ ”
position.
Operating the system
Heating
NOTE
For quick heating, set the blower speed at the 3rd position.
Combination of unheated air and heated air
Defrosting or defogging (wind-shield, door windows)
CAUTION For safety, make sure you have a clear view through all the windows.
BK0249600US.book 6 ページ 2017年4月20日 木曜日 午後1時36分
Page 178 of 263

Manual air conditioning (if so equipped)
Comfort controls 7-7
7
2. Set the air selection le
ver to the outside air
position.3. Select your desired
blower speed by turn-
ing the blower spee
d selection dial.
4. Select your desired
temperature by turn-
ing the temperature control dial.
For quick defrosting 1. Set the mode selection dial to the “ ” position. 2. Set the air selection le
ver to the outside air
position. 3. Set your blower to the maximum speed. 4. Set the temperature to the highest posi-tion.
N00730301400
The air conditioning can only be used whilethe engine is running.
N00730501327
N00736501228
When the ignition switch is in the “ON” posi- tion, select the blower speed by turning the blower speed se
lection dial.
Turning the dial clockwise will increase the blower speed; turning
the dial counterclock-
wise will decrease it. When the dial is set to the “OFF” position, all fan-driven airflow will stop.
NOTE
To defog quickly, direct the air flow from the side vents toward the door windows.
Manual air conditioning
(if so
equipped)
CAUTION The engine speed may increase when the air conditioning is operating. With an increased engine speed, a CVT vehi- cle will creep to a greater degree than with alower engine speed. Fully depress the brake pedal to prevent the vehicle from creeping.
Control panel
1- Temperature control dial 2- Air conditioning switch 3- Blower speed selection dial
4- Electric rear
window defogger
switch
P. 5 - 8 3
5- Mode selection dial6- Air selection leverBlower speed selection dial
BK0249600US.book 7 ページ 2017年4月20日 木曜日 午後1時36分
Page 179 of 263

Manual air conditioning (if so equipped) 7-8 Comfort controls
7
N00736601258
Turn the temperature control dial clockwise to make the air warmer
. Turn it counterclock-
wise to make the air cooler.
N00736701246
To change air flow di
rection, turn the mode
selection dial. Refer to “Changing the mode selection” on page 7-2.
N00736801423
Normally, use the outside air position to keep the windshield and side windows clear and to quickly remove fog or frost from the wind-shield. To change the air selection, use the air selec- tion lever. “ ” Outside air “ ” Recirculated air
If the outside air is dusty or contaminated in some way, use the
recirculat
ion position.
Switch to the outside
air position every now
and then to keep the windows from foggingup.
Temperature control dial
NOTE
While the engine coolant temperature is low, the temperature of the air from the heater will be cool/cold until
the engine warms up,
even if you have selected warm air with the dial.
Mode selection dial
Air selection lever
BK0249600US.book 8 ページ 2017年4月20日 木曜日 午後1時36分

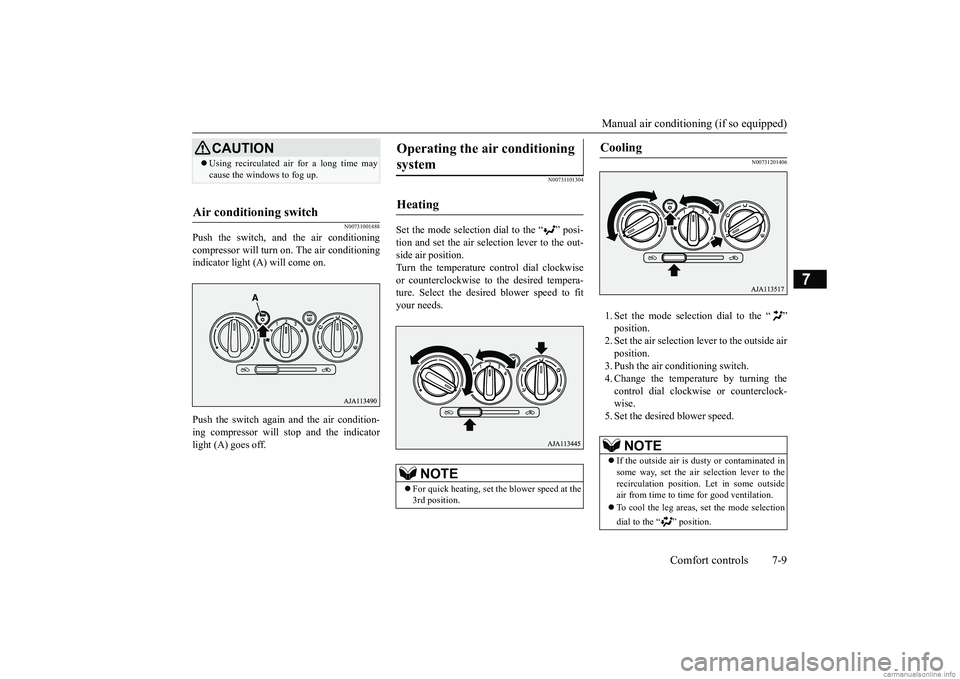

Page 180 of 263

Manual air conditioning (if so equipped)
Comfort controls 7-9
7
N00731001488
Push the switch, and the air conditioning compressor will turn on. The air conditioningindicator light (A) will come on. Push the switch again and the air condition- ing compressor will stop and the indicator light (A) goes off.
N00731101304
Set the mode selection dial to the “ ” posi- tion and set the air sele
ction lever to the out-
side air position. Turn the temperature control dial clockwise or counterclockwise to
the desired tempera-
ture. Select the desire
d blower speed to fit
your needs.
N00731201406
1. Set the mode selection dial to the “ ”position. 2. Set the air selection le
ver to the outside air
position.3. Push the air conditioning switch. 4. Change the temperature by turning the control dial clockwise or counterclock-wise. 5. Set the desired blower speed.
CAUTION Using recirculated ai
r for a long time may
cause the windows to fog up.
Air conditioning switch
Operating the ai
r conditioning
system
Heating
NOTE
For quick heating, set th
e blower speed at the
3rd position.
Cooling
NOTE
If the outside air is dusty or contaminated in some way, set the air selection lever to therecirculation position. Let in some outside air from time to ti
me for good ventilation.
To cool the leg areas,
set the mode selection
dial to the “ ” position.
BK0249600US.book 9 ページ 2017年4月20日 木曜日 午後1時36分
Page 181 of 263

Manual air conditioning (if so equipped) 7-10 Comfort controls
7
N00731301292
Set the mode selection dial to the positions shown in the illustrati
on and set the air selec-
tion lever to the out
side air position.
The air flow will be directed to the leg area and the upper part of the passenger compart-ment. Set the desired blower speed. Warm air flows to the leg area and unheated or slightly warm air (depending upon the position of the temperatur
e control dial) flows
to the upper part of the passenger compart-ment.
N00731401596
Set the mode selection dial (between “ ” and “ ”) to remove frost or mist from the windshield and door window. For ordinary defrosting Use this setting to ke
ep the windshield and
door windows clear of mist, and to keep the leg area heated (when driving in rain or snow). 1. Set the mode selection dial to the “ ” position.
2. Set the air selection lever to the outside air position.3. Select your desired blower speed by turn- ing the blower speed selection dial. 4. Select your desired temperature by turn-ing the temperature control dial. 5. Push the air conditioning switch. For quick defrosting 1. Set the mode selection dial to the “ ” position.2. Set the air selection lever to the outside air position. 3. Set your blower to the maximum speed.4. Set the temperature to the highest posi- tion. 5. Push the air conditioning switch.
Combination of unheated air and heated air
Defrosting or defogging (wind-shield, door windows)
CAUTION For safety, make sure
you have a clear view
through all the windows.
NOTE
To defog quickly, direct the air flow from the side vents toward the door windows.
BK0249600US.book 10 ページ 2017年4月20日 木曜日 午後1時36分
Page 182 of 263
Manual air conditioning (if so equipped)
Comfort controls 7-11
7
When defrosting, do not set the temperature control dial near the
maximum cool position.
This would blow c
ool air on the window
glass and fog it up.NOTE
BK0249600US.book 11 ページ 2017年4月20日 木曜日 午後1時36分
Page 183 of 263

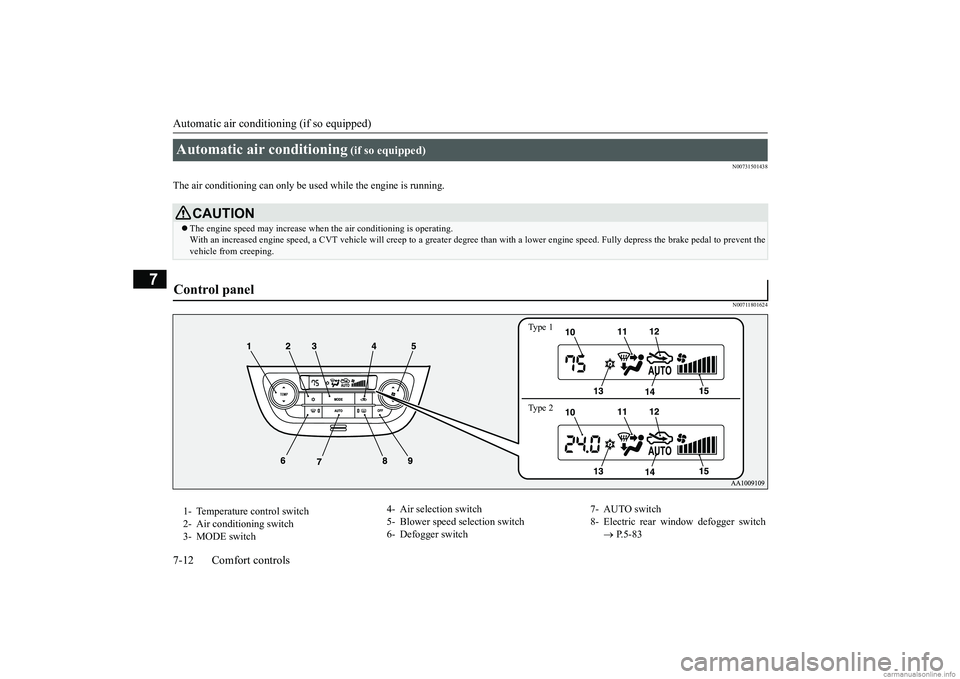

Automatic air conditioning (if so equipped) 7-12 Comfort controls
7
N00731501438
The air conditioning can only be used
while the engine is running.
N00711801624
Automatic air conditioning
(if so equipped)
CAUTIONThe engine speed may increase wh
en the air conditioning is operating.
With an increased engine speed, a CVT vehicle will creep to a gr
eater degree than with a lower
engine speed. Fully depress the
brake pedal to prevent the
vehicle from creeping.
Control panel
Ty p e 1 Ty p e 2
1- Temperature control switch 2- Air conditioning switch 3- MODE switch
4- Air selection switch 5- Blower speed selection switch 6- Defogger switch
7- AUTO switch 8- Electric rear window defogger switch
P.5-83
BK0249600US.book 12 ページ 2017年4月20日 木曜日 午後1時36分
Page 184 of 263

Automatic air conditioning (if so equipped)
Comfort controls 7-13
7
N00736900179
Press of the blower speed selection switch to increase the blower speed. Press of the blower speed selection switch to decrease the blower speed.
The selected blower sp
eed will be shown in
the display (A).
N00737001406
Press or of the temperature controlswitch to the desired temperature. The selected temperature will be shown in the display (A).
9- OFF switch 10- Temperature display 11- Mode selection display12- Air selecti
on indicator
13- Air conditioning indicator 14- AUTO indicator15- Blower speed display
NOTE
There is an interior air temperature sensor (A) in the illustrated position.Never place anything ove
r the sensor, since
doing so will prevent it from functioning properly. A sound will be made every time you push any of the switches.
Blower speed selection switch
1- Increase 2- Decrease
Temperature control switch
NOTE
The temperature value
of air conditioning is
switched in conjunction
with outside temper-
ature display unit of the multi informationdisplay. Refer to “Changing the
temperature unit” on
page 5-73.
