2018 MERCEDES-BENZ SPRINTER windshield wipers

Changing bulbs
Important safety notes
GDANGER
Xenon bulbs carry a high voltage. You can get an electric shock if you remove the cover of
the Xenon bulb and touch the electrical con-
tacts. There is a risk of fatal injury.
Never touch the parts or the electrical con-
tacts of the Xenon bulb. Always have work on
the Xenon bulbs carried out at a qualified spe-
cialist workshop.
GWARNING
Bulbs, lamps and connectors can get very hot
when operating. If you change a bulb, you
could burn yourself on these components.
There is a risk of injury.
Allow these components to cool down before
changing a bulb.
!Make sure the bulbs are always securely
installed.
If your vehicle is equipped with Bi-Xenon bulbs,
you can recognize this by the following: the cone
of light from the Xenon bulbs moves from the
top to the bottom and back again when you start
the engine. For this to be observed, the low-
beam headlamps must be switched on before
starting the engine.
The bulbs and lamps are an essential compo-
nent of vehicle safety. You must therefore make
sure that these function correctly at all times.
Have the headlamp setting checked regularly.
RAlways switch off the vehicle's lighting sys-
tem before changing a bulb.
This will prevent a short circuit.
RDo not touch the glass tube of new bulbs with your bare hands. Always use a clean, lint-free
cloth or only touch the base of the bulb when
installing.
Even minor contamination can burn into the
glass surface and reduce the service life of the
bulbs.
RDo not use a bulb that has been dropped or
that has scratches on its glass tube.
The bulb could explode.
ROnly use bulbs in closed lamps which have
been designed for this purpose.
ROnly use spare bulbs of the same type and
with the prescribed voltage
RProtect the bulbs from moisture when in use.
If the new bulb still does not light up, consult a
qualified specialist workshop.
RHave the LEDs and bulbs of the following
lamps changed at a qualified specialist work-
shop:
-the additional turn signals in the exterior
mirrors
-the high-mounted brake lamp
-LED daytime running lamps (Bi-Xenon
headlamps)
-Bi-Xenon lamps (Bi-Xenon headlamps)
-front fog lamps
If you require assistance changing bulbs, con-
sult a qualified specialist workshop.
Front bulbs
Overview of bulb replacement – bulb
types
The following bulbs can be replaced. Bulb types can be found in the legend.
Vehicle swit hhalogen headlamps
:
Turn signal lamp, parking lamp, side marker
lamp: NAK 3457
;Daytime running lamps: W21W
=Low-beam headlamps: H7 55W
?High-beam headlamps: H7 55W
Changing bulbs89
Lights and windshield wipers
Z

Vehicles with Bi-Xenon headlamps
:
Turn signal lamp, parking lamp, side marker
lamp: NAK 3457
;Cornering light function: H7 55W
Vehicles with additional turn signals in the
exterior mirrors
Additional turn signal lamp: HPC 16WY
Low-beam headlamps and high-beam
headlamps/cornering lamp
Example: halogen headlamps
XSwitch off the lighting system.
XOpen the hood (Ypage 219).
XTurn housing cover :in the direction of the
arrow and remove it.
Example: halogen headlamps
;
Low-beam headlamp bulb holder
=Bulb holder for high-beam headlamp
XTurn the corresponding socket with bulb ;
or = counter-clockwise and pull it out of the
lamp.
XPull the bulb out of the bulb holder.
XInsert the new bulb in such a way that its base
fits into the recess of the bulb holder.
XInsert the bulb holder with the bulb into the
lamp and turn it clockwise to tighten.
The bulb holder engages audibly.
XPlace housing cover :into the opening and
turn in the opposite direction of the arrow.
XClose the hood.
Cornering light function/daytime run-
ning lamps
XSwitch off the lighting system.
XOpen the hood (Ypage 219).
XTurn housing cover :counter-clockwise and
remove.
90Changing bulbs
Lights and windshield wipers

XBi-Xenon headlamps:turn bulb holder with
bulb ;counter-clockwise and remove it.
Halogen headlamps: press the spring
catches of the bulb holder together and
remove the bulb holder with bulb ;.
XPull the bulb out of the bulb holder.
XPress a new bulb into the bulb holder.
XBi-Xenon headlamps:insert bulb holder with
bulb ;into the lamp and turn clockwise.
Halogen headlamps: insert the bulb holder
with bulb ;into the lamp.
The bulb holder with bulb ;engages audibly.
XReplace cap :and turn it clockwise to the
stop.
The cap audibly engages.
XClose the hood (Ypage 220).
Turn signal lamp
XSwitch off the lighting system.
XOpen the hood (Ypage 219).
XTurn bulb holder :counter-clockwise and
remove it.
XApplying light pressure to the bulb, turn it
counter-clockwise and remove it from bulb
holder :.
XPress the new bulb into bulb holder :and
screw it in clockwise.
XInsert bulb holder :into the lamp and turn it
clockwise to tighten.
XClose the hood.
Additional turn signal lamp (all-wheel-
drive vehicles)
Additional turn signals (example: Cargo Van and
Passenger Van)
The additional turn signals are mounted on the
side of the vehicle's front wings.
XSwitch off the lighting system.
XUndo screws :and remove lamp lens ;.
XApplying light pressure to the bulb, turn it
counter-clockwise and remove it from the
bulb holder.
XPress the new bulb into the bulb holder and
screw it in clockwise.
XPosition lamp lens;and tighten screws :.
Changing bulbs91
Lights and windshield wipers
Z

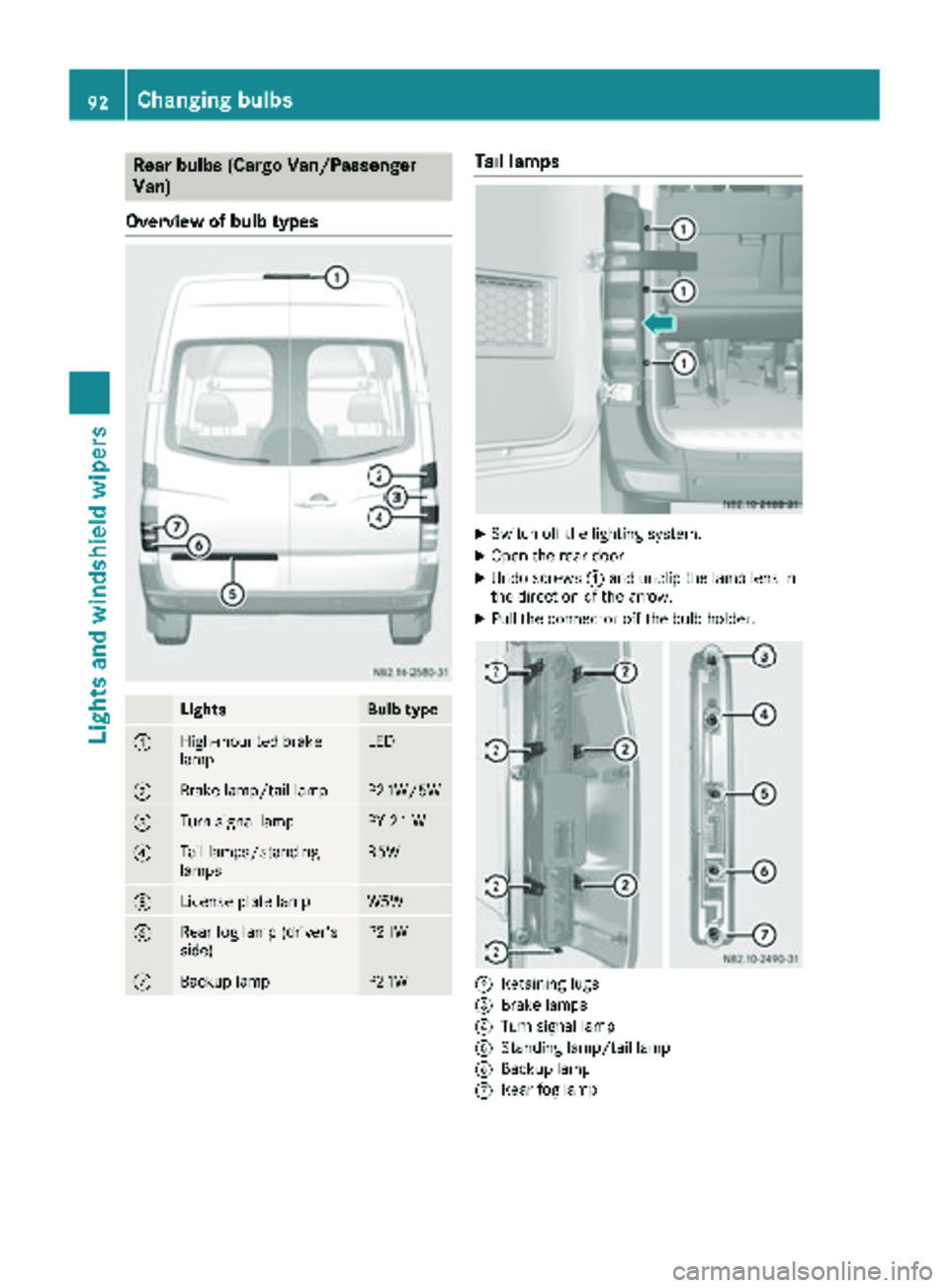

Rear bulbs (Cargo Van/Passenger
Van)
Overview of bulb types
LightsBulb type
:High-mounted brake
lampLED
;Brake lamp/tail lampP21W/5W
=Turn signal lampPY 21 W
?Tail lamps/standing
lampsR5W
ALicense plate lampW5W
BRear fog lamp (driver's
side)P21W
CBackup lampP21W
Tail lamps
XSwitch off the lighting system.
XOpen the rear door.
XUndo screws :and unclip the lamp lens in
the direction of the arrow.
XPull the connector off the bulb holder.
;Retaining lugs
=Brake lamps
?Turn signal lamp
AStanding lamp/tail lamp
BBackup lamp
CRear fog lamp
92Changing bulbs
Lights and windshield wipers

XReleaseretaining lugs ;and tak eth ebulb
holder out of th etai llamp .
XApplyin gligh tpressur eto th ebulb, tur nit
counter-clockwise and remove it from th e
bulb holder.
XPress th ene wbulb int oth ebulb holder and
screw it in clockwise.
XPress th econnecto rint oth ebulb holder.
XInser tth elamp lens.
To do this, cli pth ebulb holder int oth ethree
hole sprovide dat th eside and tighten
screws :.
License plate lamp
XSwitchoff th elighting system.
XInser t ascrewdriver or similar implement int o
recess ;and carefully pry off lamp len s:.
XPull th ebulb out of th ebulb holder.
XInser t anewbulb.
XAlign lamp len s: and cli pit in so that it
engages.
Rear bulbs (Cab Chassis)
Overview of bulb types
Chassis (example: Cab Chassis)
LightsBulb type
:Perimete rlamp/stand-
ing lampR 5 W
;Tail lamp sR 5 W
=Brake lamp sP21 W
?Turn signal lamp sPY 21W
ABackup lamp sP21 W
BRear fog lamp s(driver's
side )P21 W
CLicense plat elampR 5 W
Tail lamps
:Screws
;Lam plen s
=Perimete rlamp/standin glamp
?Turn signal lamp
ABrake lamp s
BTail lamps
Changing bulbs93
Lights and windshield wipers
Z

CRear fog lamp
DLicense platelamp
EBackup lamp
XSwitc hoff th elighting system.
XUndo screws :and remove lamp len s;.
XApplyin gligh tpressur eto th ebulb, tur nit
counter-clockwise and remove it from th e
bulb holder.
XPress th ene wbulb int oth ebulb holder and
screw it in clockwise.
XPosition lamp len s; and tighten screws :.
Additional lamps
Additional turn signal lamp on the roof
Type of lamp : P21 W
XSwitc hoff th elighting system.
XUndo screws :and remove lamp len s;.
XApplyin gligh tpressur eto th ebulb, tur nit
counter-clockwise and remove it from th e
bulb holder.
XPress th ene wbulb int oth ebulb holder and
screw it in clockwise.
XPosition lamp len s; and tighten screws :
again .
Perimeter lamp (Cab Chassis)
Type of lamp : W 5 W
XSwitchoff th elighting system.
XUndo screws :and remove th elamp unit.
XTurn bulb holder ;and remove it .
XRemove thebulb from bulb holder ;.
XPress thene wbulb int obulb holder ;.
XScrew bulb holder ;intoth elamp unit.
XCarefully position th elamp housing and
tighten screws :.
Courtesy lights, rear compartment
Bulb type: W5W
XPress in thelatching spring of courtesy
ligh t: with a suitable implement ,e.g. a
screwdriver.
XPry off courtesy ligh t:.
XDisconnect cable connecto r=.
XUnscrew bulb holder ;.
94Changing bulbs
Lights and windshield wipers

XRemove thebulb from bulb holder ;.
XPress thene wbulb int obulb holder ;.
XScrew bulb holder ;intocourtesy ligh t:.
XConnect cable connecto r=.
The connecto rlockin gspring mus tengage .
XAlign courtesy ligh t: on th eside and
engage .
Interior lighting
General notes
!Hav eth ebulbs in th eoverhead control
panel replace dat aqualified specialist work-
shop. You could otherwise damag eth eover-
head control panel.
Front interior light
Type of lamp : K18 W
XSwitc hoff th einterior lighting .
XPress spring catch ;in th edirection of th e
arrow and lift off interior ligh t:.
XRemove bulb =from th ebulb holder.
XInser tne wbulb =.
XAlign interior ligh t: on th eright-hand side
and engage th espring catch .
Rear interior light
Interior ligh twith switch
Interio rligh twit hswitch
Type of lamp: K15 W
XSwitc hoff th einterior lighting .
XPress in thecatch spring of lamp housing :
wit h a suitable object, and pry off lamp hous -
ing :.
XPress th econtact spring of bulb holder ;
outwards and remove bulb =.
XInsertne wbulb =.
XPosition lamp housing :on th eleft-han d
side and engage .
iVehicles with LED lighting: if an LEDis
faulty, consult aqualified specialist work-
shop.
Interior ligh twithout switch
Interio rligh twithout switch
Type of lamp: K15 W
XSwitc hoff th einterior lighting .
XPress in thecatch spring of lamp housing :
wit h a suitable object, and pry off lamp hous -
ing :.
XOpen protective cover ?.
XPress thecontact spring of bulb holder ;
outwards and remove bulb =.
XInsertne wbulb =.
Changing bulbs95
Lights and windshield wipers
Z

XFold protective cover?back into place.
XPosition lamp housing :on the left-hand
side and engage.
iVehicles with LED lighting: if an LED is
faulty, consult a qualified specialist work-
shop.
Cargo compartment lamp
Type of lamp: W 10 W
XSwitch off the interior lighting.
XUndo screws :and remove the lamp lens.
XPress bulb ;into the bulb holder and
unscrew it counter-clockwise.
XPress new bulb ;into the bulb holder and
screw it in clockwise.
XPosition the lamp lens and tighten screws :.
iVehicles with LED cargo compartment
lamp: if an LED is defective, consult a quali-
fied specialist workshop.
Windshield wipers
Switching the windshield wiper
on/off
!
Do not operate the windshield wipers when
the windshield is dry, as this could damage
the wiper blades. Moreover, dust that has col-
lected on the windshield can scratch the glass
if wiping takes place when the windshield is
dry. If it is necessary to switch on the windshield
wipers in dry weather conditions, always use
washer fluid when operating the windshield
wipers.
!If the windshield wipers leave smears on the
windshield after the vehicle has been washed
in an automatic car wash, wax or other resi-
dues may be the reason for this. Clean the
windshield using washer fluid after washing
the vehicle in an automatic car wash.
!Vehicles with rain/light sensor:
Switch the wipers off in dry weather. Other-
wise, dirt or optical effects may cause unde-
sired windshield wiper sweeps. This could
then damage the windshield wiper blades or
scratch the windshield.
The windshield will no longer be wiped properly
if the wiper blades are worn. Replace the wiper
blades twice a year (
Ypage 97), ideally in
spring and fall.
Combination switch
XTurn the key to position 1or 2in the ignition
lock.
XTurn the combination switch in the direction
of arrow ;to the appropriate setting
depending on the intensity of the rain.
XSingle wipe: push the combination switch
briefly to the pressure point in the direction of arrow :.
XTo wipe with washer fluid: press the com-
bination switch beyond the pressure point in
the direction of arrow :.
The detent positions of the combination switch
correspond to the following wiper speeds:
0W indshield wipers off
II ntermittent wipe
II Normal wipe
III Rapid wipe
96Windshield wipers
Lights and windshield wiper s
