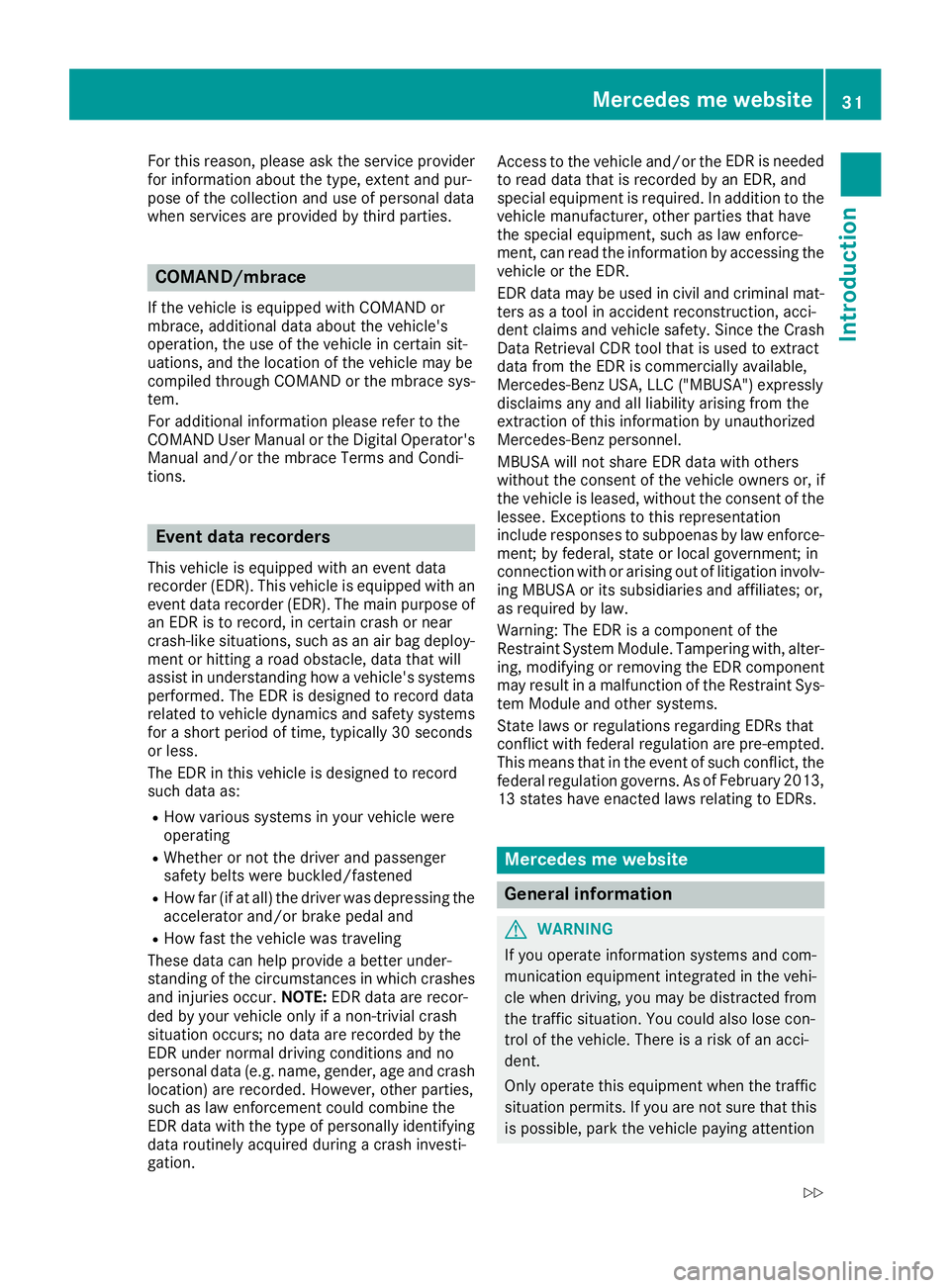

MERCEDES-BENZ AMG GT COUPE 2018 Owners Manual For this reason, please ask the service provider
for information about the type, extent and pur-
pose of the collection and use of personal data
when services are provided by third parties.
COMAND/mbr

For this reason, please ask the service provider
for information about the type, extent and pur-
pose of the collection and use of personal data
when services are provided by third parties.
COMAND/mbrace
If the vehicle is equipped with COMAND or
mbrace, additional data about the vehicle's
operation, the use of the vehicle in certain sit-
uations, and the location of the vehicle may be
compiled through COMAND or the mbrace sys-
tem.
For additional information please refer to the
COMAND User Manual or the Digital Operator'sManual and/or the mbrace Terms and Condi-
tions.
Event data recorders
This vehicle is equipped with an event data
recorder (EDR). This vehicle is equipped with an
event data recorder (EDR). The main purpose of
an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deploy-
ment or hitting a road obstacle, data that will
assist in understanding how a vehicle's systems
performed. The EDR is designed to record data
related to vehicle dynamics and safety systems
for a short period of time, typically 30 seconds
or less.
The EDR in this vehicle is designed to record
such data as:
RHow various systems in your vehicle were
operating
RWhether or not the driver and passenger
safety belts were buckled/fastened
RHow far (if at all) the driver was depressing theaccelerator and/or brake pedal and
RHow fast the vehicle was traveling
These data can help provide a better under-
standing of the circumstances in which crashes and injuries occur. NOTE:EDR data are recor-
ded by your vehicle only if a non-trivial crash
situation occurs; no data are recorded by the
EDR under normal driving conditions and no
personal data (e.g. name, gender, age and crash
location) are recorded. However, other parties,
such as law enforcement could combine the
EDR data with the type of personally identifying
data routinely acquired during a crash investi-
gation. Access to the vehicle and/or the
EDR i
s needed
to read data that is recorded by an EDR, and
special equipment is required. In addition to the
vehicle manufacturer, other parties that have
the special equipment, such as law enforce-
ment, can read the information by accessing the
vehicle or the EDR.
EDR data may be used in civil and criminal mat- ters as a tool in accident reconstruction, acci-
dent claims and vehicle safety. Since the Crash
Data Retrieval CDR tool that is used to extract
data from the EDR is commercially available,
Mercedes-Benz USA, LLC ("MBUSA") expressly
disclaims any and all liability arising from the
extraction of this information by unauthorized
Mercedes-Benz personnel.
MBUSA will not share EDR data with others
without the consent of the vehicle owners or, if
the vehicle is leased, without the consent of the lessee. Exceptions to this representation
include responses to subpoenas by law enforce-
ment; by federal, state or local government; in
connection with or arising out of litigation involv-
ing MBUSA or its subsidiaries and affiliates; or,
as required by law.
Warning: The EDR is a component of the
Restraint System Module. Tampering with, alter-
ing, modifying or removing the EDR component
may result in a malfunction of the Restraint Sys-
tem Module and other systems.
State laws or regulations regarding EDRs that
conflict with federal regulation are pre-empted.
This means that in the event of such conflict, the
federal regulation governs. As of Fe
bruary 2013,
13 states have enacted laws relating to EDRs.
Mercedes me website
General information
GWARNING
If you operate information systems and com-
munication equipment integrated in the vehi-
cle when driving, you may be distracted from
the traffic situation. You could also lose con-
trol of the vehicle. There is a risk of an acci-
dent.
Only operate this equipment when the traffic
situation permits. If you are not sure that this
is possible, park the vehicle paying attention
Mercedes me website31
Introduction
Z

Page 34 of 294

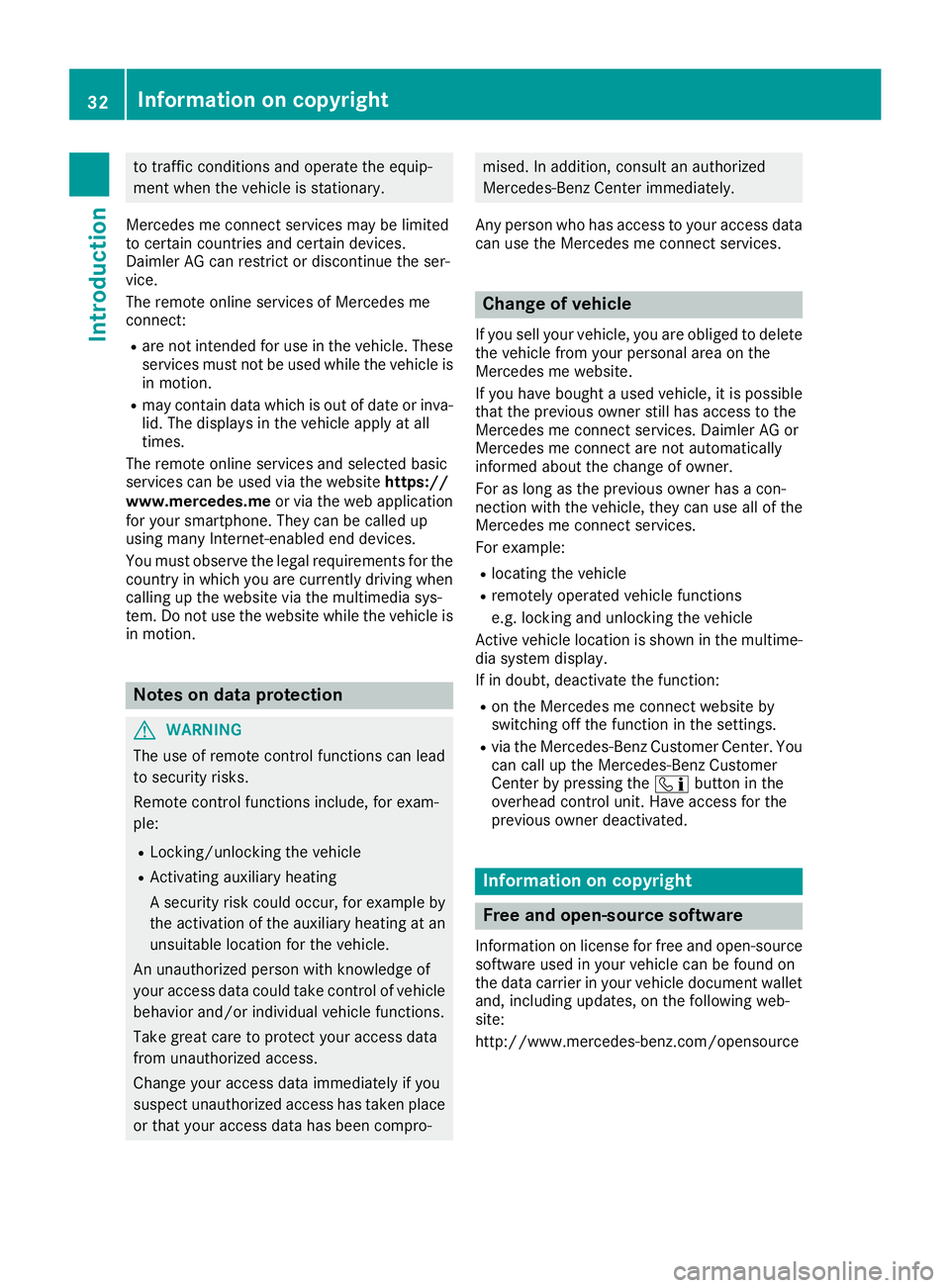

MERCEDES-BENZ AMG GT COUPE 2018 Owners Manual to traffic conditions and operate the equip-
ment when the vehicle is stationary.
Mercedes me connect services may be limited
to certain countries and certain devices.
Daimler AG can restrict or disco

to traffic conditions and operate the equip-
ment when the vehicle is stationary.
Mercedes me connect services may be limited
to certain countries and certain devices.
Daimler AG can restrict or discontinue the ser-
vice.
The remote online services of Mercedes me
connect:
Rare not intended for use in the vehicle. These
services must not be used while the vehicle is in motion.
Rmay contain data which is out of date or inva-
lid. The displays in the vehicle apply at all
times.
The remote online services and selected basic
services can be used via the website https://
www.mercedes.me or via the web application
for your smartphone. They can be called up
using many Internet-enabled end devices.
You must observe the legal requirements for the
country in which you are currently driving when
calling up the website via the multimedia sys-
tem. Do not use the website while the vehicle is
in motion.
Notes on data protection
GWARNING
The use of remote control functions can lead
to security risks.
Remote control functions include, for exam-
ple:
RLocking/unlocking the vehicle
RActivating auxiliary heating
A security risk could occur, for example by
the activation of the auxiliary heating at an
unsuitable location for the vehicle.
An unauthorized person with knowledge of
your access data could take control of vehicle
behavior and/or individual vehicle functions.
Take great care to protect your access data
from unauthorized access.
Change your access data immediately if you
suspect unauthorized access has taken place
or that your access data has been compro-
mised. In addition, consult an authorized
Mercedes-Benz Center immediately.
Any person who has access to your access data
can use the Mercedes me connect services.
Change of vehicle
If you sell your vehicle, you are obliged to delete the vehicle from your personal area on the
Mercedes me website.
If you have bought a used vehicle, it is possible
that the previous owner still has access to the
Mercedes me connect services. Daimler AG or
Mercedes me connect are not automatically
informed about the change of owner.
For as long as the previous owner has a con-
nection with the vehicle, they can use all of the
Mercedes me connect services.
For example:
Rlocating the vehicle
Rremotely operated vehicle functions
e.g. locking and unlocking the vehicle
Active vehicle location is shown in the multime-
dia system display.
If in doubt, deactivate the function:
Ron the Mercedes me connect website by
switching off the function in the settings.
Rvia the Mercedes-Benz Customer Center. You
can call up the Mercedes-Benz Customer
Center by pressing the ïbutton in the
overhead control unit. Have access for the
previous owner deactivated.
Information on copyright
Free and open-source software
Information on license for free and open-source
software used in your vehicle can be found on
the data carrier in your vehicle document wallet and, including updates, on the following web-
site:
http://www.mercedes-benz.com/opensource
32Information on copyright
Introduction

Page 35 of 294

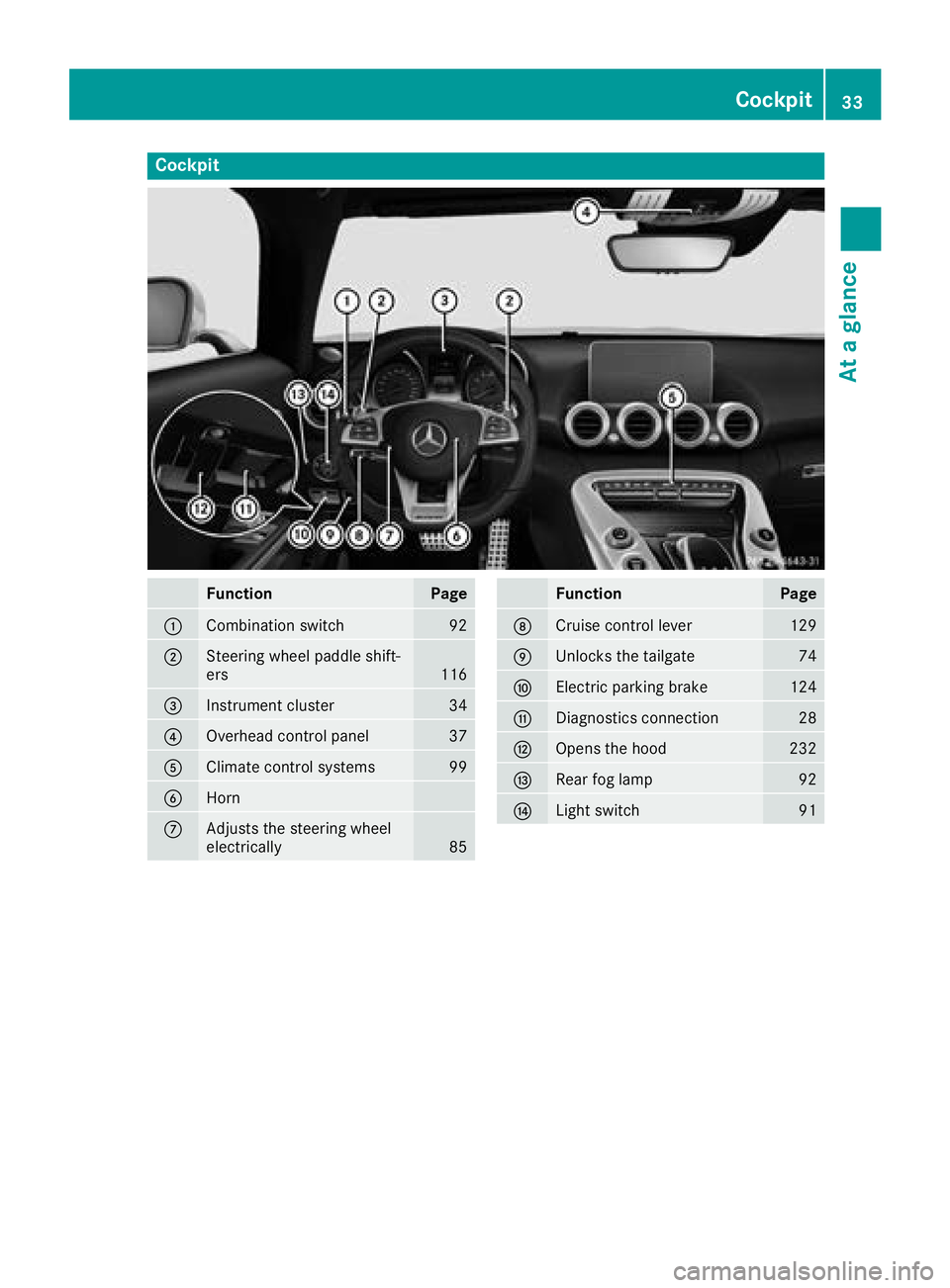

MERCEDES-BENZ AMG GT COUPE 2018 Owners Manual Cockpit
FunctionPage
:Combination switch92
;Steering wheel paddle shift-
ers116
=Instrument cluster34
?Overhead control panel37
AClimate control systems99
BHorn
CAdjusts the steering wheel
electricall

Page 36 of 294

MERCEDES-BENZ AMG GT COUPE 2018 Owners Manual Instrument cluster
FunctionPage
:Speedometer
Speedometer segments154
Warning and indicator lamps:
h Tirepressur emonitor20 2
å ESP®OF F196
÷ ESP®19 6
· Distanc ewarning20 1
Ð Powersteering20 3
6

Page 37 of 294

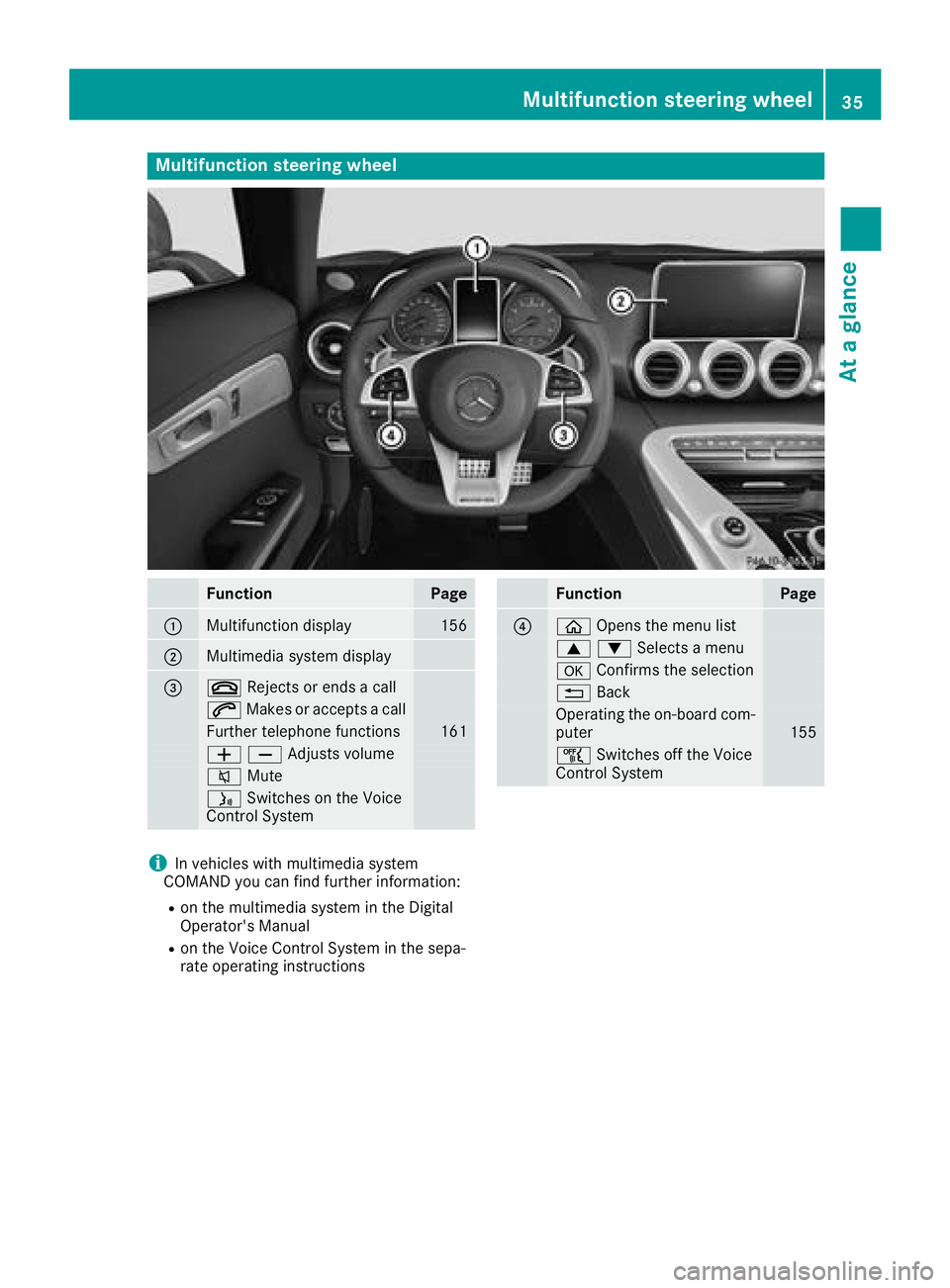

MERCEDES-BENZ AMG GT COUPE 2018 Owners Manual Multifunction steering wheel
FunctionPage
:Multifunction display156
;Multimedia system display
=~Rejects or ends a call
6Makes or accepts a call
Further telephone functions161
WXAdjusts volume
8 Mute

Page 38 of 294

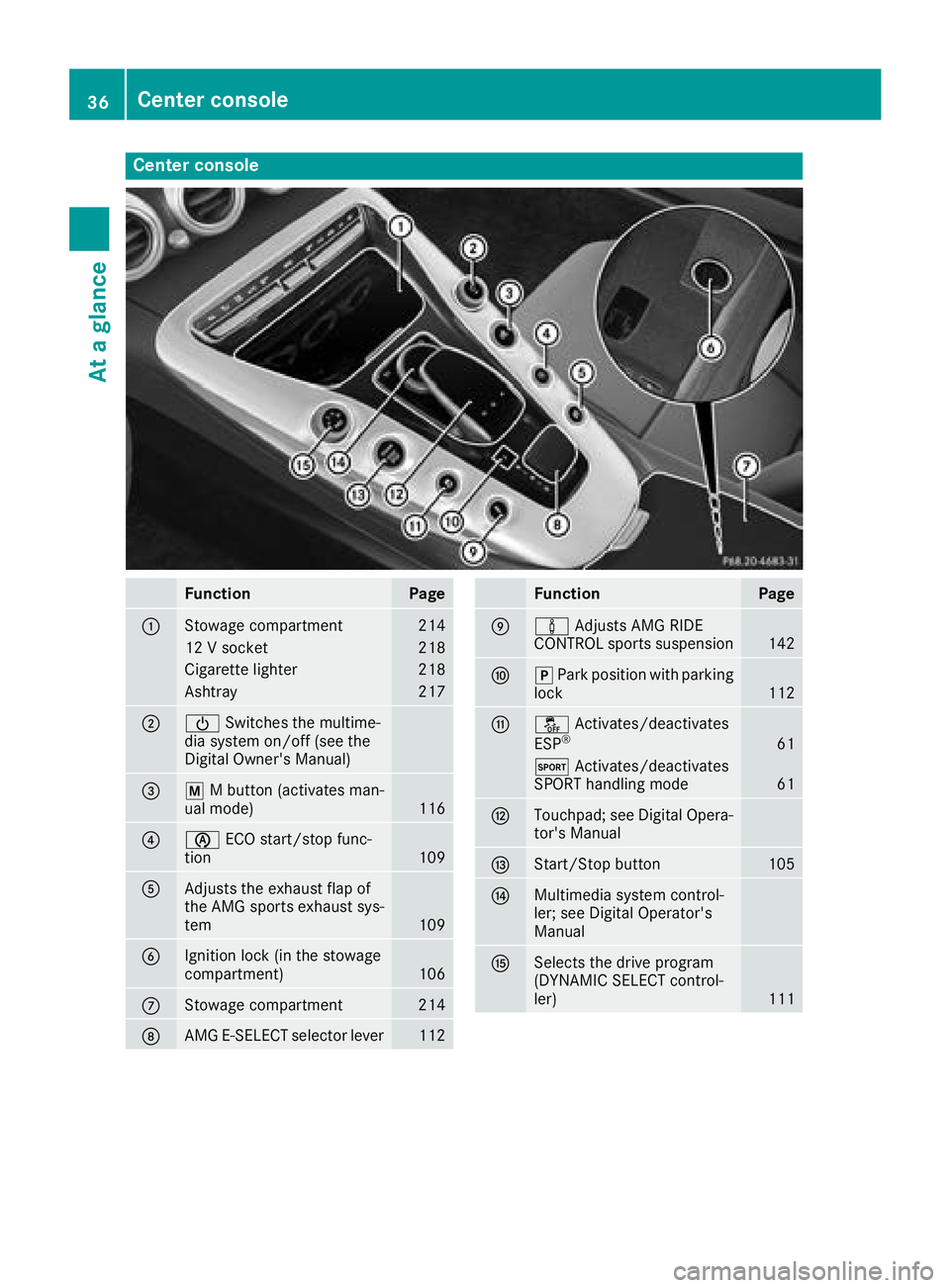

MERCEDES-BENZ AMG GT COUPE 2018 Owners Manual Center console
FunctionPage
:Stowage compartment214
12 V socket218
Cigarette lighter218
Ashtray217
;ÜSwitches the multime-
dia system on/off (see the
Digital Owner's Manual)
=p M button (activate

Page 39 of 294

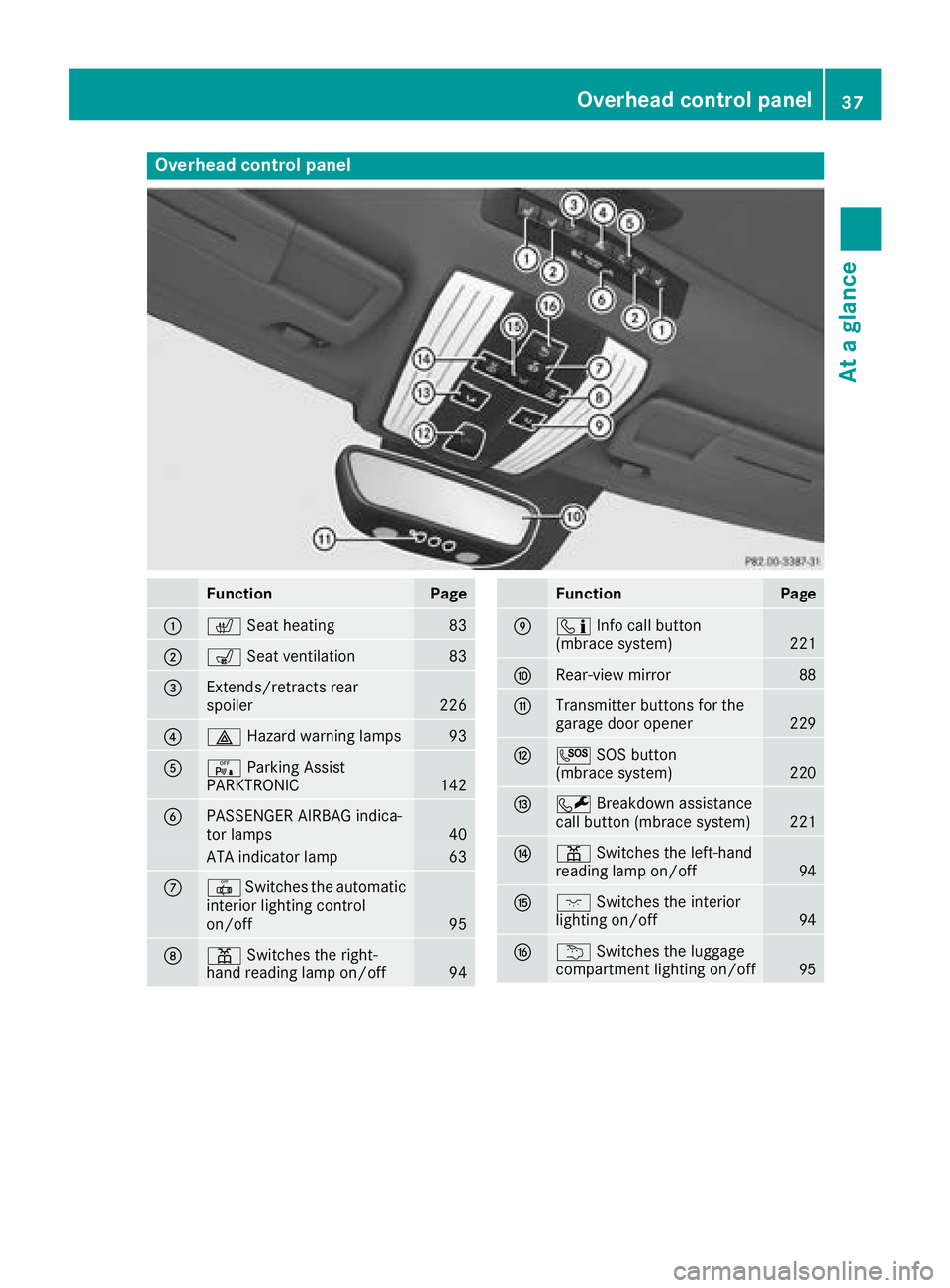

MERCEDES-BENZ AMG GT COUPE 2018 Owners Manual Overhead control panel
FunctionPage
:cSeat heating83
;sSeat ventilation83
=Extends/retracts rear
spoiler226
?£Hazard warning lamps93
AcParking Assist
PARKTRONIC142
BPASSENGER AIRBAG indica-
tor lamps

Page 40 of 294

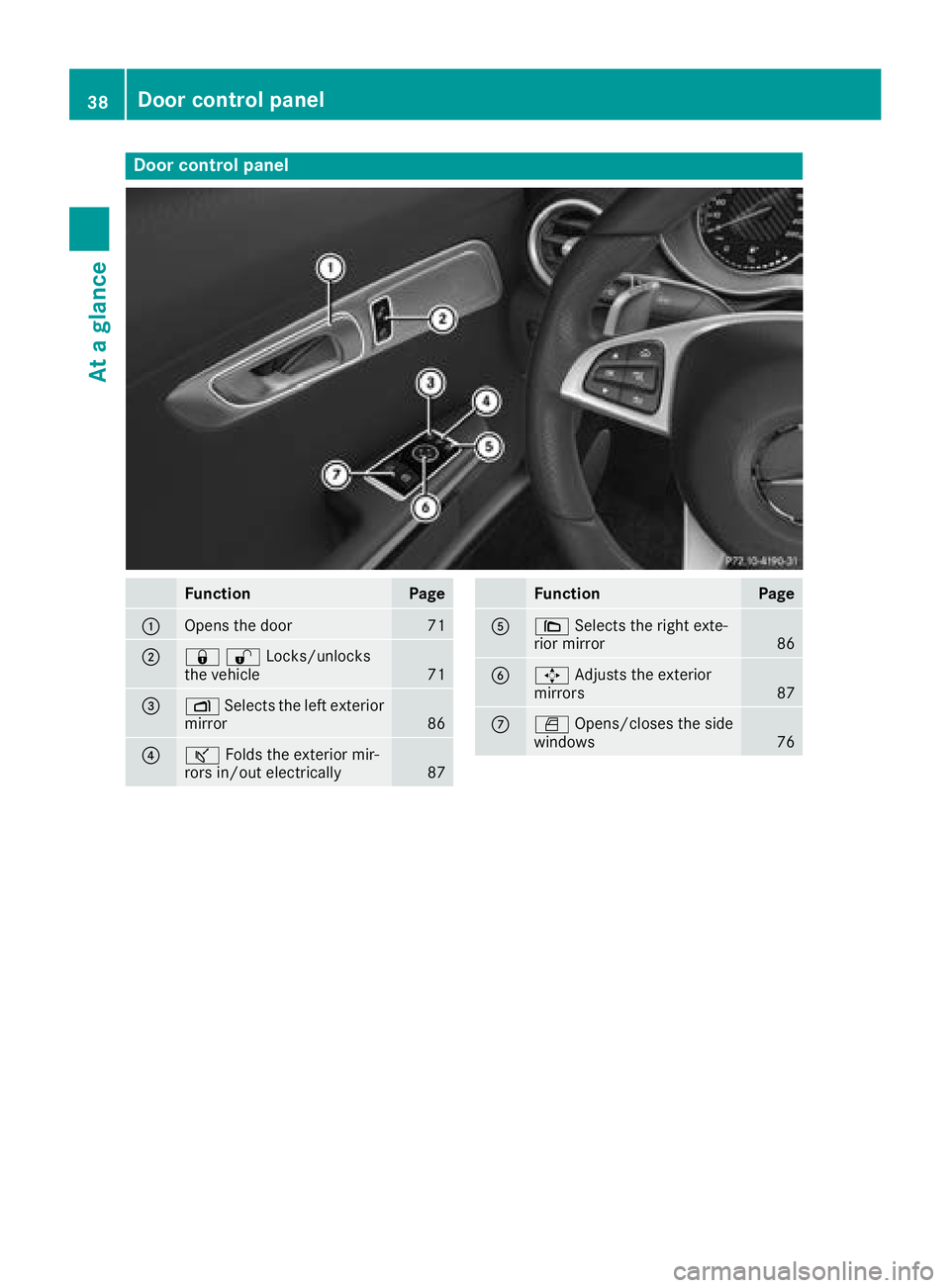

$MERCEDES-BENZ AMG GT COUPE 2018 Owners Manual Door controlpanel FunctionPage :Opens th edoo r71 ;&%Locks/unlocks the vehicle71 =Z Selects the left exterior mirror86 ?ª Folds the exterior mir- rors in/out electrically87 FunctionPage A\ Selects th$
