2018 LINCOLN CONTINENTAL Owners Manual

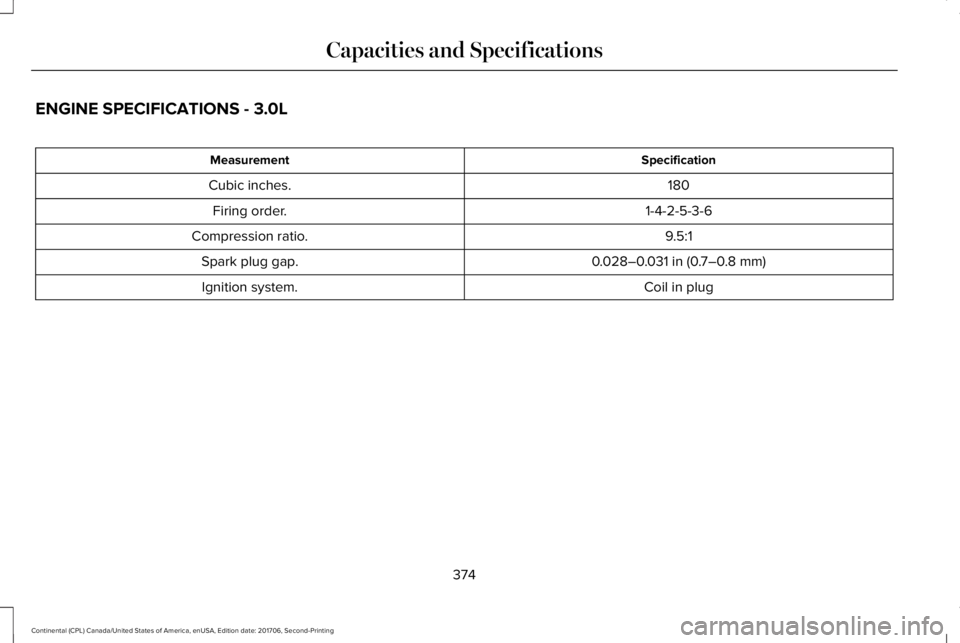

ENGINE SPECIFICATIONS - 3.0L
SpecificationMeasurement
180Cubic inches.
1-4-2-5-3-6Firing order.
9.5:1Compression ratio.
0.028–0.031 in (0.7–0.8 mm)Spark plug gap.
Coil in plugIgnition system.
374
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Capacities and Specifications

Drivebelt Routing
ENGINE SPECIFICATIONS - 3.7L
375
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Capacities and SpecificationsE221312

SpecificationMeasurement
227Cubic inches
1-4-2-5-3-6Firing order
10.5:1Compression ratio
0.049 - 0.053 in (1.25 - 1.35 mm)Spark plug gap
Coil on plugIgnition system
Drivebelt Routing
3.7L Duratec
376
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Capacities and SpecificationsE191904

MOTORCRAFT PARTS - 2.7L
Motorcraft Part numberComponent
FA-1912Air filter element.
FL-2062Oil filter.
BXT-94RH7-730Battery.
SP-542Spark plugs.
FP-80Cabin air filter (combi).
WW-2431 (driver side)Windshield wiper blade.WW-2050 (passenger side)
We recommend Motorcraft® replacementparts available at your authorized dealer orat fordparts.com for scheduled maintenance.The parts engineered for your vehicle meetor exceed our specifications. Use of otherparts may impact vehicle performance,emissions and durability. Your warranty maybe void for any damage related to use ofother parts.
If a Motorcraft® oil filter is not available, usean oil filter that meets industry performancespecification SAE/USCAR-36.
For spark plug replacement, contact anauthorized dealer. Replace the spark plugsat the appropriate intervals. See ScheduledMaintenance (page 523).
377
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Capacities and Specifications

MOTORCRAFT PARTS - 3.0L
Motorcraft Part numberComponent
FA-1912Air filter element.
FL-2062Oil filter.
BXT-94RH7-730Battery.
SP-542Spark plugs.
FG-1083Fuel Filter.
FP-80Cabin air filter (combi).
WW-2431 (driver side)Windshield wiper blade.WW-2050 (passenger side)
We recommend Motorcraft® replacementparts available at your authorized dealer orat fordparts.com for scheduled maintenance.The parts engineered for your vehicle meetor exceed our specifications. Use of otherparts may impact vehicle performance,emissions and durability. Your warranty maybe void for any damage related to use ofother parts.
If a Motorcraft® oil filter is not available, usean oil filter that meets industry performancespecification SAE/USCAR-36.
For spark plug replacement, contact anauthorized dealer. Replace the spark plugsat the appropriate intervals. See ScheduledMaintenance Record (page 535).
378
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Capacities and Specifications

MOTORCRAFT PARTS - 3.7L
Motorcraft Part numberComponent
FA-1912Air filter element.
FL-500-SOil filter.
BXT-48H6-610Battery (non-Livery).
BXT-94RH7-730Battery (Livery).
SP-520Spark plugs.
FP-80Cabin air filter (combi).
WW-2431 (driver side)Windshield wiper blade.WW-2050 (passenger side)
We recommend Motorcraft® replacement parts available at your authorized dealer or at fordparts.com for scheduled maintenance. The partsengineered for your vehicle meet or exceed our specifications. Use of other parts may impact vehicle performance, emissions and durability.Your warranty may be void for any damage related to use of other parts.
If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the appropriate intervals. See Scheduled Maintenance(page 523).
379
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is locatedon the left-hand side of the instrument panel.
Please note that in the graphic, XXXX isrepresentative of your vehicle identificationnumber.
The Vehicle Identification Number containsthe following information:
World manufacturer identifierA
Brake system, Gross VehicleWeight Rating, Restraint Devicesand their locations
B
Make, vehicle line, series, bodytypeC
Engine typeD
Check digitE
Model yearF
Assembly plantG
Production sequence numberH
VEHICLE CERTIFICATION LABEL
The National Highway Traffic SafetyAdministration Regulations require that aSafety Compliance Certification Label beaffixed to a vehicle and prescribe where theSafety Compliance Certification Label maybe located. The Safety ComplianceCertification Label shall be affixed to eitherthe door hinge pillar, the door latch post, orthe edge of the door near the door latch,next to the driver's seating position.
380
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Capacities and SpecificationsE142476 E142477 E167469

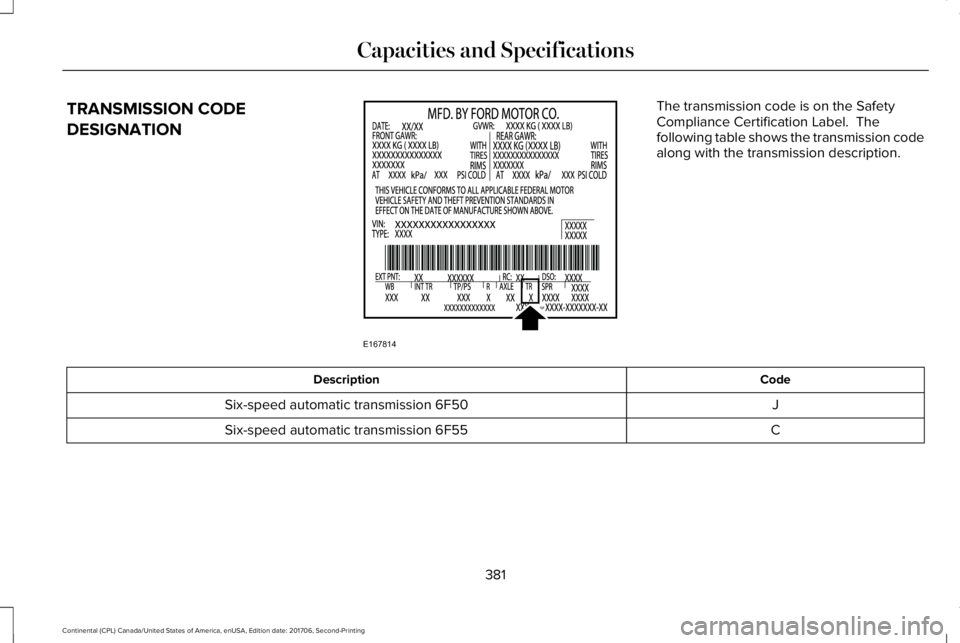

TRANSMISSION CODE
DESIGNATION
The transmission code is on the SafetyCompliance Certification Label. Thefollowing table shows the transmission codealong with the transmission description.
CodeDescription
JSix-speed automatic transmission 6F50
CSix-speed automatic transmission 6F55
381
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Capacities and SpecificationsE167814
