FUSE SPECIFICATION CHART
Power Distribution Box
WARNING: Always disconnect thebattery before servicing high current fuses.
WARNING: To reduce risk of electricalshock, always replace the cover to the powerdistribution box before reconnecting thebattery or refilling fluid reservoirs.
The power distribution box is in the enginecompartment. It has high-current fuses thatprotect your vehicle's main electrical systemsfrom overloads.
If the battery has been disconnected andreconnected, some features will need to bereset. See Changing the 12V Battery (page325).
294
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

295
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing

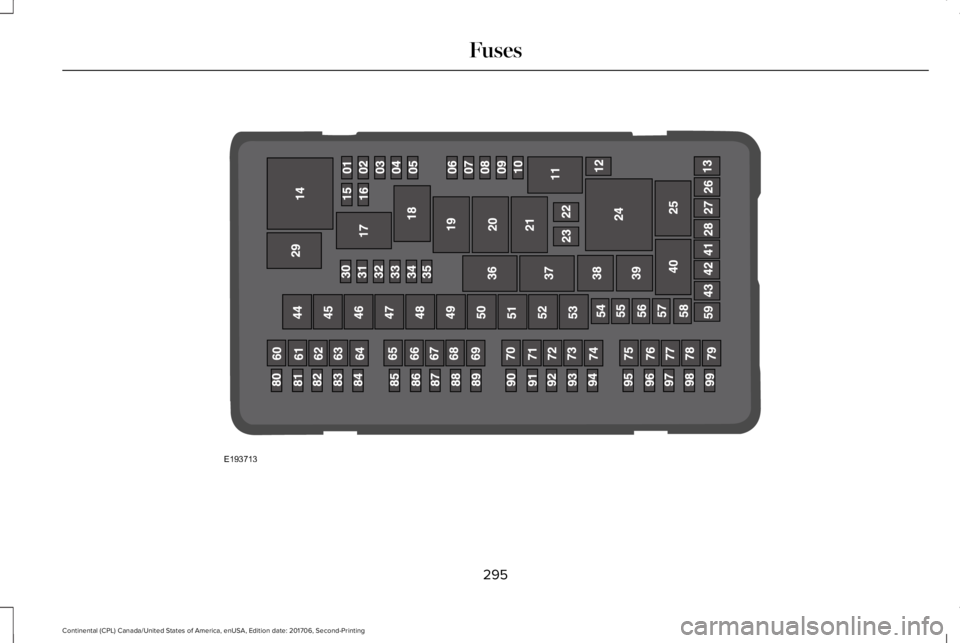

FusesE193713

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Powertrain control module power.20A 11
Engine emissions (MIL).20A 12
A/C clutch control relay coil.20A 13VACC.Active grill shutters.Cooling fan relays.All-wheel drive module (2.7L and 3.7Lengines).
Ignition coils.20A 14
Not used.—5
Fuel injectors (3.7L engine).15A 16
Rear recline relay box.5A 17
Not used.—8
Not used.—9
Not used.—10
Torque vectoring relay (3.0L engine).—11
296
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Not used.—12
Rear seat recline.40A 213
Powertrain control module relay.—14
Horn.20A 115
A/C clutch.10A 116
Not used.—17
Not used.—18
Heated rear window relay.—19
Electric cooling fan relay.—20
Electric cooling fan relay.—21
Electric cooling fan.30A 222
Not used.—23
Not used.—24
Blower motor relay.—25
297
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Anti-lock brake system valves.30A 226
Not used.—27
Rear climate controlled seats.30A 228
Run/Start Relay.—29
Not used.—30
Electric power-assisted steering.10A 131Electric parking brake.
Anti-lock brake system module.10A 132
Powertrain control module.10A 133
Blind spot information system.10A 134Adaptive cruise control.Front view camera.360 degree camera module.Rear camera.Transmission range control module.
Not used.—35
Electric cooling fan relay.—36
298
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Rear seat recline relay.—37
A/C compressor clutch relay.—38
Horn relay.—39
Not used.—40
Not used.—41
Blower motor.40A 242
Not used.—43
Body control module/voltage quality modulebus.50A 344
Not used.—45
Electric cooling fan.50A 346
Electric cooling fan.50A 347
Body control module RP1 bus.50A 348
Torque vectoring (3.0L engine).40A 349
Body control module RP2 bus.50A 350
299
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Not used.—51
Anti-lock brake system pump.60A 352
Adaptive front steering.40A 353
Heated windshield.40A 254
Heated rear window.40A 255
Power inverter.40A 256
Power deck lid module.30A 257Manual deck lid latch.
Not used.—58
Not used.—59
Fuel pump.30A 260
Not used.—61
Power point 2A.20A 262
Power seat control module.30A 263Front heated seats.
300
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Not used.—64
Fuel pump 2.30A 265
Passenger power seat.30A 266
Power point 1B.20A 267
Auxiliary blower.15A 268
Power point 1A.20A 269
Not used.—70
Not used.—71
Driver power seat module.30A 272
Not used.—73
Wiper motor.25A 274
Not used.—75
Not used (spare).20A 276
Not used.—77
301
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
