Closing the hood
1. Before closing the hood, check thefollowing:• All filler caps in engine compart‐ ment must be correctly installed.
• Gloves, rags or any other com‐ bustible material must be re‐
moved from the engine compart‐ment.
2. Return the support rod to its clip to prevent it from rattling.
3. Lower the hood until it is about 30 cm above the closed position and
let it drop. Make sure that it locks
into place.
4. Check that the hood has engaged properly. If the hood can be raised
slightly, it is not properly engaged.
Open it again and close it with a lit‐
tle more force.WARNING
•Before closing the hood, ensurethat all obstructions are removedfrom the hood opening. Closing thehood with an obstruction presentin the hood opening may result inproperty damage or severe per‐sonal injury.
•Do not leave gloves, rags or anyother combustible material in theengine compartment. Doing somay cause a heat-induced fire.
WARNING
•Always double check to be surethat the hood is firmly latched be‐fore driving away. If it is not latch‐ed, the hood could fly open whilethe vehicle is being driven, causinga total loss of visibility, whichmight result in an accident.
(Continued)
(Continued)
•The support rod must be insertedcompletely into the hole providedin the hood whenever you inspectthe engine compartment. This willprevent the hood from falling andpossibly injuring you.
•Do not move the vehicle with thehood raised. The view will beblocked and the hood could fall orbe damaged.

4-29
4
Features of your vehicle

FUEL FILLER LID
Opening the fuel filler lid
0:##
The fuel-filler lid must be opened from
inside the vehicle by pulling up on the fuel-filler lid opener located on the
front floor area on the driver’s seat.
NOTICE
If the fuel filler lid will not open be‐
cause ice has formed around it, tap
lightly or push on the lid to break the
ice and release the lid. Do not pry on
the lid. If necessary, spray around
the lid with an approved de-icer fluid
(do not use radiator anti-freeze) or
move the vehicle to a warm place
and allow the ice to melt.
0:#%
1. Stop the engine. 2. To open the fuel filler lid, pull up the
fuel filler lid opener.
3. Pull the fuel filler lid (1) out to fully open.
4. To remove the cap, turn the fuel tank cap (2) counterclockwise.
5. Refuel as needed.
Closing the fuel filler lid
1. To install the cap, turn it clockwise until it L

(Continued)
•Do not use cellular phones whilerefueling. Electric current and/orelectronic interference from cellu‐lar phones can potentially ignitefuel vapors causing a fire.
•When refueling, always shut theengine off. Sparks produced byelectrical components related tothe engine can ignite fuel vaporscausing a fire. Once refueling iscomplete, check to make sure thefiller cap and filler door are secure‐ly closed, before starting the en‐gine.
•DO NOT use matches or a lighterand DO NOT SMOKE or leave a litcigarette in your vehicle while at agas station especially during refu‐eling. Automotive fuel is highlyflammable and can, when ignited,result in fire.
•If a fire breaks out during refuel‐ing, leave the vicinity of the vehi‐cle, and immediately contact themanager of the gas station andthen contact the local fire depart‐ment. Follow any safety instruc‐tions they provide.
CAUTION
•Make sure to refuel your vehicleaccording to the L

STEERING WHEEL
Electric power steering
Power steering uses the motor to as‐sist you in steering the vehicle. If the
engine is off or if the power steering
system becomes inoperative, the vehi‐ cle may still be steered, but it will re‐
quire increased steering effort.
The motor driven power steering is
controlled by the power steering con‐ trol unit which senses the steering
wheel torque, steering wheel position
and vehicle speed to command the mo‐ tor.
The steering wheel becomes heavier as
the vehicle’s speed increases and be‐
comes lighter as the vehicle’s speed de‐ creases for better control of the steer‐
ing wheel.
Should you notice any change in the ef‐
fort required to steer during normal ve‐ hicle operation, have the system
checked by a professional workshop.
Kia recommends to visit an authorized Kia dealer/service partner.NOTICE
The following symptoms may occur
during normal vehicle operation:
•The EPS warning light does not il‐
luminate.
•The steering effort is high imme‐
diately after turning the ignition
switch on. This happens as the
system performs the EPS system
diagnostics. When the diagnostics
is completed, the steering wheel
will return to its normal condition.
•A click noise may be heard from
the EPS relay after the ignition
switch is turned to the ON or LOCK
position.
•Motor noise may be heard when
the vehicle is at a stop or at a low
driving speed.
(Continued)
(Continued)
•If the Electric Power Steering Sys‐
tem does not operate normally,
the warning light will illuminate on
the instrument cluster. The steer‐
ing wheel may become difficult to
control or operate abnormally. In
this case, have the system inspec‐
ted by a professional workshop.
Kia recommends to visit an au‐
thorized Kia dealer/service part‐
ner.
•The steering effort increases if
the steering wheel is rotated con‐
tinuously when the vehicle is not
in motion. However, after a few
minutes, it will return to its normal
conditions.
•When you operate the steering
wheel in low temperature, abnor‐
mal noise could occur. If tempera‐
ture rises, the noise will disappear.
This is a normal condition.
(Continued)

4-37
4
Features of your vehicle

Electrochromic mirror (ECM) (if
equipped)
The electric rearview mirror automati‐
cally controls the glare from the head‐ lights of the vehicles behind you in
nighttime or low light driving condi‐
tions. The sensor (3) mounted in the mirror senses the light level around the
vehicle, and automatically controls the
headlight glare from the vehicles be‐ hind you.
When the engine is running, the glare is
automatically controlled by the sensor
mounted in the rearview mirror. Whenever the shift lever is shifted into
reverse (R), the mirror will automatical‐
ly go to the brightest setting in order
to improve the drivers view behind the vehicle.
CAUTION
When cleaning the mirror, use a pa‐per towel or similar material damp‐ened with glass cleaner. Do notspray glass cleaner directly on themirror. It may cause the liquid clean‐er to enter the mirror housing.
To operate the electric rearview mirror:
• The mirror defaults to the ON posi‐ tion whenever the ignition switch is
turned on.
• Press the ON/OFF button (1) to turn the automatic dimming function off.
The mirror indicator light (2) will turn
off.
Press the ON/OFF button (1) to turn
the automatic dimming function on.
The mirror indicator light (2) will illu‐ minate.
Outside rearview mirror
Be sure to adjust mirror angles before
driving. Your vehicle is equipped with both left-
hand and right-hand outside rearview
mirrors. The mirrors can be adjusted
remotely with the remote switch. The mirror heads can be folded back to pre‐
vent damage during an automatic car
wash or when passing in a narrow street.
WARNING
nRearview mirrors
•The outside rearview mirror isconvex. Objects seen in the mirrorare closer than they appear.
•Use your interior rearview mirroror direct observation to determinethe actual distance of followingvehicles when changing lanes.
CAUTION
Do not scrape ice off the mirror face;this may damage the surface of theglass. If ice should restrict move‐ment of the mirror, do not force themirror for adjustment. To remove
(Continued)
Features of your vehicle
4-42

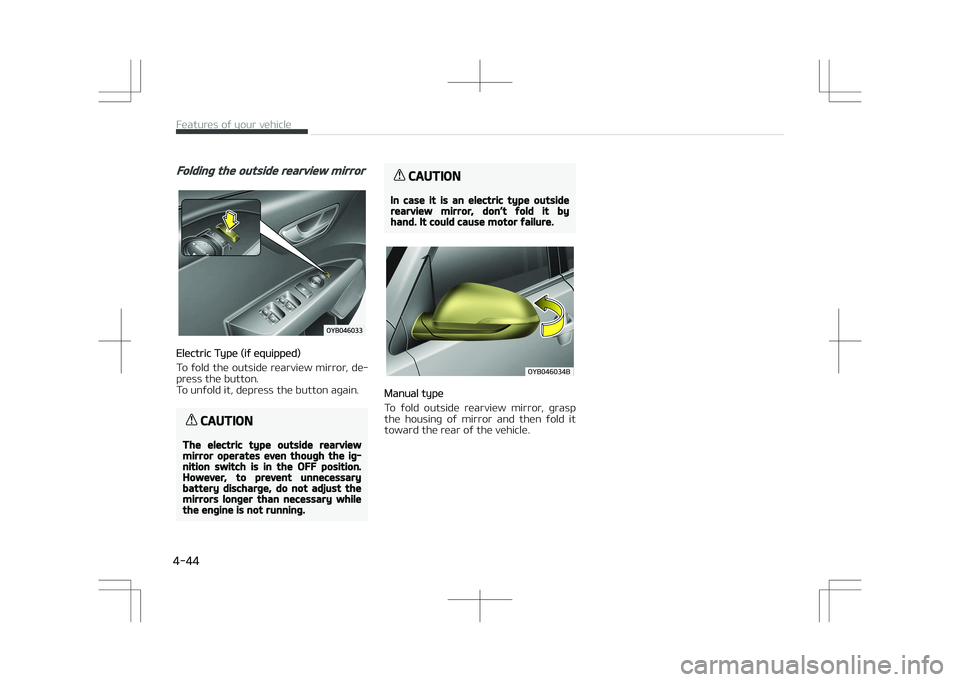

Folding the outside rearview mirror
Electric Type (if equipped)
To fold the outside rearview mirror, de‐
press the button.
To unfold it, depress the button again.
CAUTION
The electric type outside rearviewmirror operates even though the ig‐nition switch is in the OFF position.However, to prevent unnecessarybattery discharge, do not adjust themirrors longer than necessary whilethe engine is not running.
CAUTION
In case it is an electric type outsiderearview mirror, don’t fold it byhand. It could cause motor failure.
0:##
Manual type
To fold outside rearview mirror, grasp
the housing of mirror and then fold it toward the rear of the vehicle.
Features of your vehicle
4-44

INSTRUMENT CLUSTER
0:#0:#$
5ZQF
"
5ZQF
#
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. Warning and indicator lights
6. LCD display
❈ The actual cluster in the vehicle
may differ from the illustration.
For more details, refer to L

0:#0:#
5ZQF
$
5ZQF
%
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. Warning and indicator lights
6. LCD display
❈ The actual cluster in the vehicle
may differ from the illustration.
For more details, refer to L
