2018 KIA STONIC light

FUEL REQUIREMENTS
Gasoline engine
Unleaded
For Europe
For the optimal vehicle performance,
we recommend you to use unleaded gasoline with an octane rating of RON
(Research Octane Number) 95 / AKI
(Anti Knock Index) 91 or higher.
You may use unleaded gasoline with an octane rating of RON 91~94 / AKI 87~90
but it may result in slight performance
reduction of the vehicle. (Do not use methanol blended fuels.)
Except Europe
Your new Kia vehicle is designed to use
only unleaded fuel having an Octane
Rating of RON (Research Octane Num‐ ber) 91 / AKI (Anti-Knock Index) 87 or
higher. (Do not use methanol blended
fuels.)
Your new vehicle is designed to obtain maximum performance with UNLEA‐
DED FUEL, as well as minimize exhaust
emissions and spark plug fouling.
CAUTION
NEVER USE LEADED FUEL. The useof leaded fuel is detrimental to thecatalytic converter and will damagethe engine control system’s oxygensensor and affect emission control.Never add any fuel system cleaningagents to the fuel tank other thanwhat has been specified. (Kia recom‐mends to consult an authorized Kiadealer/service partner for details.)
WARNING
•Do not "top off" after the nozzleautomatically shuts off when re‐fueling.
•Always check that the fuel cap isinstalled securely to prevent fuelspillage in the event of an acci‐dent.
Leaded (if equipped)
For some countries, your vehicle is de‐
signed to use leaded gasoline. When you are going to use leaded gasoline,
Kia recommends to visit an authorized
Kia dealer/service partner and ask whether leaded gasoline in your vehicle
is available or not.
Octane Rating of leaded gasoline is
same with unleaded one.
Gasoline containing alcohol andmethanol
Gasohol, a mixture of gasoline and
ethanol (also known as grain alcohol),
and gasoline or gasohol containing methanol (also known as wood alcohol)
are being marketed along with or in‐
stead of leaded or unleaded gasoline.
Do not use gasohol containing more than 10% ethanol, and do not use gas‐
oline or gasohol containing any metha‐
nol. Either of these fuels may cause drivability problems and damage to the
fuel system, engine control system and
emission control system.
Discontinue using gasohol of any kind if drivability problems occur.
Vehicle damage or drivability problems
may not be covered by the manufac‐
turer’s warranty if they result from the use of:

1-03
1
Introduction

INTERIOR OVERVIEW
0:#
1. Inside door handle.......................... .......................... p. 4-17
2. Inner fuse panel............................ ............................ p. 8-77
3. Power window switches..................... ..................... p. 4-23
4. Power window lock button................... ................... p. 4-26
5. Outside rearview mirror control switch........ ........ p. 4-42
6. Outside rearview mirror folding switch........ ........ p. 4-44
7. Hood release lever.......................... .......................... p. 4-28
8. Fuel filler lid release lever.................... .................... p. 4-30
9. Steering wheel............................. ............................. p. 4-37
10. Steering wheel tilt control................... ................... p. 4-38
11. Headlight leveling device..................... ..................... p. 4-87
12. Instrument panel illumination control switch... ... p. 4-46
13. BCW ON/OFF button........................ ........................ p. 6-71
14. LDW ON/OFF button........................ ........................ p. 6-62
15. ESC OFF button............................. ............................. p. 6-36
16. TPMS SET switch........................... ........................... p. 7-08
17. Brake pedal................................ ................................ p. 6-30
18. Accelerator pedal
Your vehicle at a glance
2-04

INSTRUMENT PANEL OVERVIEW
0:#
1. Instrument cluster.......................... .......................... p. 4-45
2. Horn...................................... ...................................... p. 4-39
3. Driver’s front air bag........................ ........................ p. 3-46
4. Light control............................... ............................... p. 4-81Turn signals................................ ................................ p. 4-84
5. Wiper/Washer.............................. .............................. p. 4-90
6. Ignition switch.............................. .............................. p. 6-06 ENGINE START/STOP button................. ................. p. 6-10
7. Hazard warning flasher switch............... ............... p. 7-02
8. Audio
9. Central door lock switch..................... ..................... p. 4-18
10. Climate control system............... ............... p. 4-99, 4-108
11. AUX-USB port.............................. .............................. p. 5-03
12. Shift lever............................ ............................ p. 6-20, 6-24
13. Parking brake lever.................................................... p. 6-31
14. Passenger’s front air bag.................... .................... p. 3-46
15. Power outlet.............................. .............................. p. 4-129
16. Glove box................................. ................................. p. 4-122
17. Steering wheel audio remote control
18. Cigarette lighter........................... ........................... p. 4-126
19. Seat warmer.............................. .............................. p. 4-128
20. Heated steering wheel switch................ ................ p. 4-39
21. Idle Stop and Go system OFF button.......... .......... p. 6-16
22. USB charger.............................................................. p. 4-130

2-05
2
Your vehicle at a glance

Seats............................................................................................3-02Front seat adjustment......................................................... 3-05
Headrest................................................................................. 3-06
Seatback pocket ................................................................... 3-08
Rear seat adjustment.......................................................... 3-09
Seat belts....................................................................................3-13 Seat belt restraint system.................................................. 3-13
Pre-tensioner seat belt ...................................................... 3-20
Seat belt precautions........................................................... 3-23
Care of seat belts.................................................................. 3-25
Child Restraint System (CRS).................................................. 3-26 Selecting a Child Restraint System (CRS)......................... 3-26
Installing a Child Restraint System (CRS)......................... 3-28ISOFIX anchorage and top-tether anchorage
(ISOFIX anchorage system) for children............................3-29
Air bag - supplemental restraint system ............................ 3-38 How does the air bag system operate.............................. 3-39
Air bag warning light............................................................ 3-42
SRS components and functions.......................................... 3-43
Driver's and passenger's front air bag ............................. 3-46
Side air bag ............................................................................3-51
Curtain air bag ...................................................................... 3-53
SRS care.................................................................................. 3-60
Additional safety precautions............................................. 3-60Adding equipment to or modifying your air bag-
equipped vehicle.................................................................... 3-61
Air bag warning label ........................................................... 3-62
Safety features of your vehicle

3

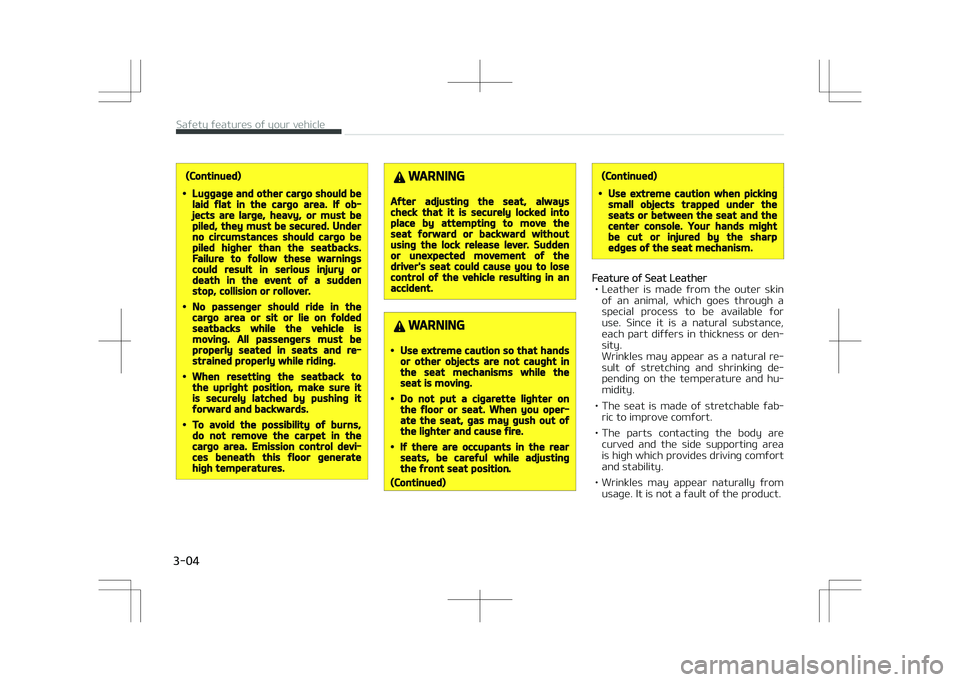

(Continued)
•Luggage and other cargo should belaid flat in the cargo area. If ob‐jects are large, heavy, or must bepiled, they must be secured. Underno circumstances should cargo bepiled higher than the seatbacks.Failure to follow these warningscould result in serious injury ordeath in the event of a suddenstop, collision or rollover.
•No passenger should ride in thecargo area or sit or lie on foldedseatbacks while the vehicle ismoving. All passengers must beproperly seated in seats and re‐strained properly while riding.
•When resetting the seatback tothe upright position, make sure itis securely latched by pushing itforward and backwards.
•To avoid the possibility of burns,do not remove the carpet in thecargo area. Emission control devi‐ces beneath this floor generatehigh temperatures.
WARNING
After adjusting the seat, alwayscheck that it is securely locked intoplace by attempting to move theseat forward or backward withoutusing the lock release lever. Suddenor unexpected movement of thedriver's seat could cause you to losecontrol of the vehicle resulting in anaccident.
WARNING
•Use extreme caution so that handsor other objects are not caught inthe seat mechanisms while theseat is moving.
•Do not put a cigarette lighter onthe floor or seat. When you oper‐ate the seat, gas may gush out ofthe lighter and cause fire.
•If there are occupants in the rearseats, be careful while adjustingthe front seat position.
(Continued)
(Continued)
•Use extreme caution when pickingsmall objects trapped under theseats or between the seat and thecenter console. Your hands mightbe cut or injured by the sharpedges of the seat mechanism.
Feature of Seat Leather
• Leather is made from the outer skin of an animal, which goes through a
special process to be available for use. Since it is a natural substance,
each part differs in thickness or den‐
sity.
Wrinkles may appear as a natural re‐
sult of stretching and shrinking de‐
pending on the temperature and hu‐ midity.
• The seat is made of stretchable fab‐ ric to improve comfort.
• The parts contacting the body are curved and the side supporting area
is high which provides driving comfort
and stability.
• Wrinkles may appear naturally from usage. It is not a fault of the product.
Safety features of your vehicle
3-04

CAUTION
•Wrinkles or abrasions which ap‐pear naturally from usage are notcovered by warranty.
•Belts with metallic accessories,zippers or keys inside the backpocket may damage the seat fab‐ric.
•Make sure not to wet the seat. Itmay change the nature of naturalleather.
•Jeans or clothes which couldbleach may contaminate the sur‐face of the seat covering fabric.
Front seat adjustment
Forward and backward
To move the seat forward or backward:1. Pull the seat slide adjustment lever up and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and make sure the seat is locked securely
by trying to move forward and rear‐
ward without using the lever. If the seat moves, it is not locked properly.
Seatback angle
To recline the seatback: 1. Lean forward slightly and lift up on the seatback recline lever.
2. Carefully lean back on the seat and adjust the seatback of the seat to
the position you desire.
3. Release the lever and make sure the seatback is locked in place. (The
lever MUST return to its original
position for the seatback to lock.)

3-05
3
Safety features of your vehicle

WARNING
•No modifications or additionsshould be made by the user whichwill either prevent the seat beltadjusting devices from operatingto remove slack, or prevent theseat belt assembly from being ad‐justed to remove slack.
•When you fasten the seat belt, becareful not to latch the seat belt inbuckles of other seat. It's verydangerous and you may not beprotected by the seat belt proper‐ly.
•Do not unfasten the seat belt anddo not fasten and unfasten theseat belt repeatedly while driving.This could result in loss of control,and an accident causing death, se‐rious injury, or property damage.
•When fastening the seat belt,make sure that the seat belt doesnot pass over objects that are hardor can break easily.
•Make sure there is nothing in thebuckle. The seat belt may not befastened securely.
Front seat belt warning (if
equipped)
(2"
As a reminder to the front seat belt,
the front seat belt warning lights will il‐ luminate for approximately 6 seconds
each time you turn the ignition switch
ON regardless of belt fastening.
If the front seat belt is not fastened when the ignition switch is turned ON
or if it is disconnected after the ignition
switch is turned ON, the corresponding seat belt warning light will illuminate
until the belt is fastened.
If you continue not to fasten the seat
belt and you drive over 9km/h, the illu‐ minated warning light will start to blink. If you continue not to fasten the seat
belt and you drive over 20km/h the
seat belt warning chime will sound for approximately 100 seconds and the
corresponding warning light will blink.
If you unfasten the seat belt while driv‐
ing under 20km/h the seat belt warning light will illuminate until the seat belt is
fastened.
WARNING
Riding in an improper position ad‐versely affects the front seat beltwarning system. It is important forthe driver to instruct the passengerto properly be seated as instructedin this manual.
NOTICE
•You can find the front passenger’s
seat belt warning light on the cen‐
ter fascia panel.
(Continued)
Safety features of your vehicle
3-14

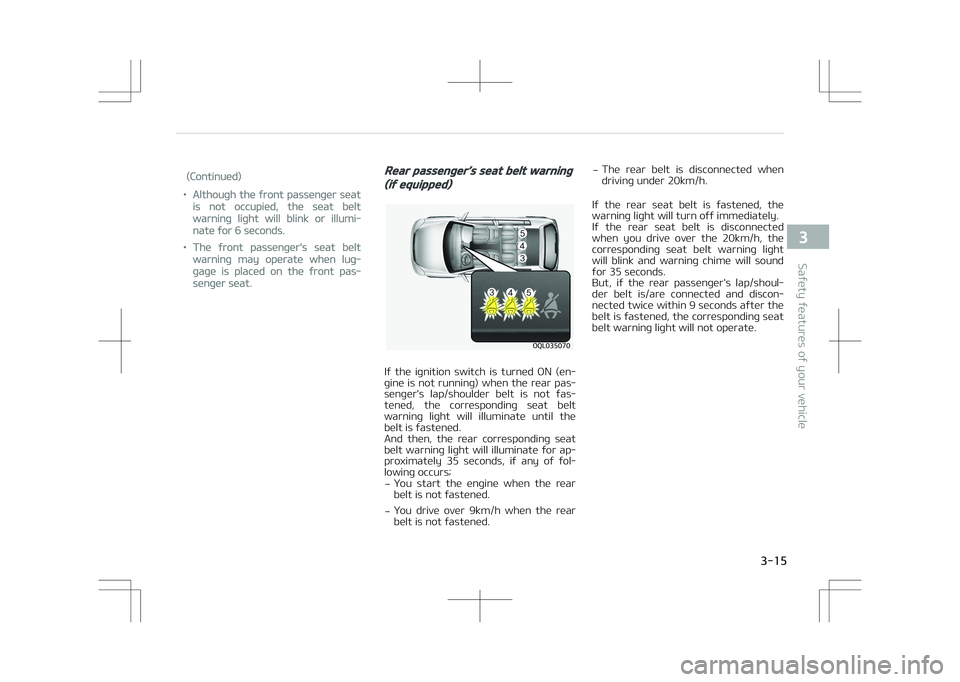

(Continued)
•Although the front passenger seat
is not occupied, the seat belt
warning light will blink or illumi‐
nate for 6 seconds.
•The front passenger's seat belt
warning may operate when lug‐
gage is placed on the front pas‐
senger seat.
Rear passenger’s seat belt warning
(if equipped)
02-
If the ignition switch is turned ON (en‐
gine is not running) when the rear pas‐ senger's lap/shoulder belt is not fas‐
tened, the corresponding seat belt
warning light will illuminate until the belt is fastened.
And then, the rear corresponding seat
belt warning light will illuminate for ap‐
proximately 35 seconds, if any of fol‐ lowing occurs;
- You start the engine when the rear
belt is not fastened.
- You drive over 9km/h when the rear
belt is not fastened. -
The rear belt is disconnected when
driving under 20km/h.
If the rear seat belt is fastened, the
warning light will turn off immediately.
If the rear seat belt is disconnected
when you drive over the 20km/h, the corresponding seat belt warning light
will blink and warning chime will sound
for 35 seconds.
But, if the rear passenger's lap/shoul‐ der belt is/are connected and discon‐
nected twice within 9 seconds after the
belt is fastened, the corresponding seat
belt warning light will not operate.

3-15
3
Safety features of your vehicle
