TIRE PRESSURE MONITORING SYSTEM (TPMS) (IF EQUIPPED)
0:##
0:#
Low tire pressure telltale (1) / TPMS
SET switch (2)
System Overview
The tire pressure monitoring system (TPMS) senses change in radius of the
tire. If the tire pressure decreases be‐
low the recommended pressure, the system warning light will be illumina‐
ted.
For the system to function properly, it
is the driver’s responsibility to set the system by following accurate proce‐
dure and set current tire pressure.
The warning light will illuminate on the
cluster when one or more of your tires is under-inflated after the TPMS is set.
The warning light will also illuminate to
warn the driver of system malfunction.
Please refer to the above image (1) for
further information.
TPMS Setting
The driver can set the TPMS by follow‐
ing procedures below: 1. Inflate all tires to the recommen‐ ded pressure.
2. Start the engine, make sure the ve‐ hicle is not moving, and press the
TPMS switch (2) left side on the
driver’s seat for over 3 seconds.
3. Check if the (
) warning indicator
blinks for 4 seconds.
4. Check if following message appears on the cluster (if equipped).
❈ If the warning light does not blink
or the message does not pop up,
perform the process again from 2.
For recommended tire pressure of this
vehicle, refer to L

• If the low pressure light is illumina‐ted.
• If the suspension or ABS has been re‐ placed.
CAUTION
If the system is set without adjust‐ing tire pressure, false alarm couldoccur or the telltale will not be dis‐played even though the vehicle issignificantly under-inflated.Make sure all tires are properly ad‐justed to the recommended pressurewhen setting.If the system is not set even in re‐quired situations, false alarm couldoccur or the telltale will not be dis‐played even though the vehicle issignificantly under-inflated.The system will not be set if youpress the SET switch (2) while driv‐ing. Make sure to stop the vehicleand press the switch (2) for over 3seconds.•Be sure the tire is cold before in‐flating the pressure.A cold tire means the vehicle hasbeen sitting for 3 hours or drivenwithin 1.6km (1mile).
Indication of Low Tire Pressure
0:#-
The () warning light will illuminate
when an under-inflated tire is indica‐ ted. In certain types, the above mes‐
sage might be displayed on the cluster.
If the warning light illuminates, reduce
your speed, avoid hard cornering and rapid braking. Have your vehicle inspec‐
ted by a professional workshop. Kia
recommends to visit an authorized Kia dealer/service partner.
Check the pressure of all tires and in‐
flate to the proper pressure according
to procedures, and if required, replace or repair the tires. If you cannot reach a close service sta‐
tion, stop the vehicle at a safe place,
check all tires and operate the TPMS setting procedure. If you are unable to
adjust the tire pressure, use the repair
tools to repair or change to spare tire and contact a professional workshop.
Kia recommends to call an authorized
Kia dealer/service partner.
You may not be able to identify low tire
pressure visually. Use precise tools to measure and adjust tire pressure.
Please note that a tire that is hot due
to prolonged driving, therefore will have high pressure. We recommend you to
measure and adjust the tire pressure
after the vehicle has driven for less than 1.6 km (1 mile) within 3 hours.
CAUTION
•The indicator may remain illumina‐ted after changing to a spare tire,because radius of spare tire is dif‐ferent. Be sure to change to a reg‐ular tire.
(Continued)

7-09
7
What to do in an emergency

(Continued)
•For safe driving, please note thatthe TPMS is not a substitute forproper tire maintenance. It is thedriver’s responsibility to maintaincorrect tire pressure, and all tiresshould be checked monthly tomaintain the recommended pres‐sure.
•The warning light may illuminate ifthe system is not set in requiredsituations.
•In cold weather, the low tire pres‐sure warning light may illuminateeven if the tire was adjusted tothe proper pressure. It does notmean your TPMS is malfunctioningbecause the decreased tempera‐ture leads to a lowering of tirepressure. Check the tires and ad‐just to the recommended pressure.
•System performance may reducein the following situations.-Improper system setting
-Using tires on the market (Origi‐nal tire recommended)
-Driving on snowy, slippery, orunpaved roads
(Continued)
(Continued)
-Hard cornering, rapid accelerat‐ing and braking repeatedly
-Driving too slow or fast
-If the vehicle is overloaded
-If a spare tire or snow chain isinstalled
•When filling tires with more air,conditions to turn off the low tirepressure telltale may not be met.This is because a tire inflator has amargin of error in performance.The low tire pressure telltale willbe turned off if the tire pressure isabove the recommended tire infla‐tion pressure.
WARNING
•Driving with an under-inflated tirecauses the tire to overheat andlead to tire failure. It also reducestire tread life, handling of the vehi‐cle, braking ability, and fuel effi‐ciency, causing instability of thevehicle. In this case, contact pro‐fessional workshop to maintainproper tire pressure. Kia recom‐mends to contact an authorizedKia dealer/service partner.
•Sudden damage to the tire causedby external factors may not be in‐dicated immediately. If the vehicleis unstable, immediately removeyour foot off the accelerator ped‐al, move the vehicle to a safe posi‐tion for inspection.
Tire Pressure Monitoring
System malfunction
The TPMS malfunction indicator will il‐
luminate () after it blinks for approx‐
imately 1 minute when there is a prob‐ lem with the Tire Pressure Monitoring
System. This sequence will continue upon subsequent vehicle start-ups as
long as the malfunction exists.
What to do in an emergency
7-10

If the indicator remains illuminated or
illuminates even after TPMS setting, have the system checked by a profes‐
sional workshop. Kia recommends to
visit an authorized Kia dealer/service partner.
WARNING
•If there is a malfunction with theTPMS, low tire pressure will not beindicated. In this case, have thesystem serviced by a professionalworkshop. Kia recommends to visitan authorized Kia dealer/servicepartner.
•If the system does not work dueto TPMS removal or installation ofrelated parts with different speci‐fication, it might be a problemwhen the vehicle is being regularlyinspected.
•When repairing TPMS relatedparts, be sure to replace them toparts with original specification orthose which satisfy the TPMS reg‐ulation.-TPMS related parts : tire, wheel,ABS unit, suspension
WARNING
nFOR EUROPE
Do not modify the vehicle. It may in‐terfere with the TPMS function.❈ All vehicles sold in the EUROPEmarket during below period must beequipped with TPMS.-New model vehicle : Nov. 1, 2012 ~
-Current model vehicle : Nov. 1,2014~(Based on vehicle registra‐tions)

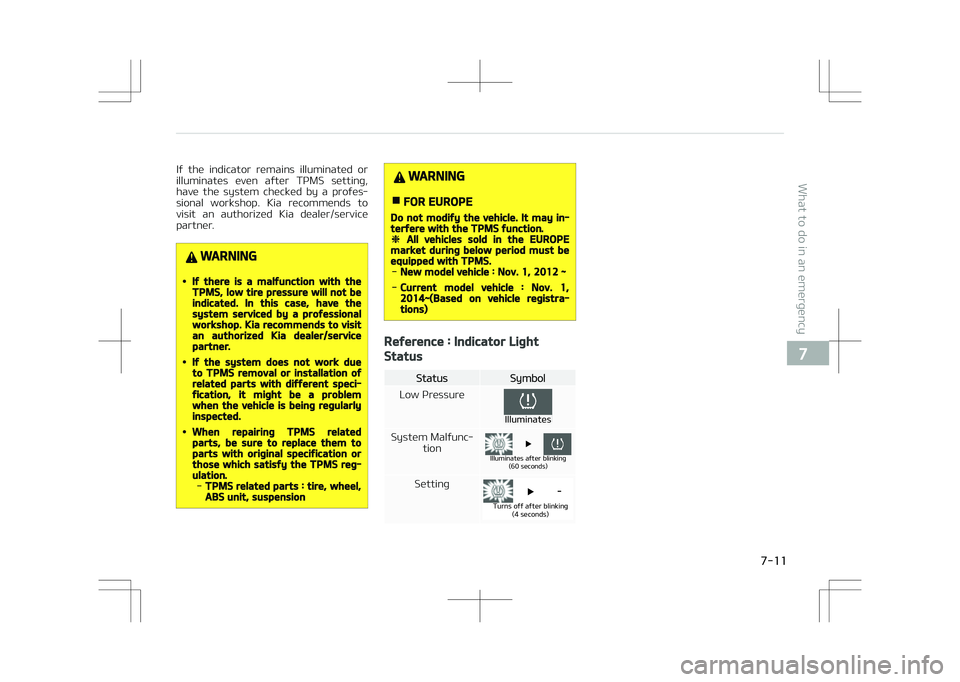

Reference : Indicator Light
Status
StatusSymbol
Low Pressure
*MMVNJOBUFT
System Malfunc‐ tion
*MMVNJOBUFT
BGUFS
CMJOLJOH

TFDPOET

Setting
5VSOT
PGG
BGUFS
CMJOLJOH


TFDPOET
