2018 KIA STONIC dashboard

• The color of the lane marking fromthe road is difficult to distinguish.
• Driving on a steep grade or a curve.
• Light reflects from the water on the road.
• The lens or windshield is stained with foreign matter.
• The sensor can not detect the lane because of fog, heavy rain or heavy
snow.
• The surrounding temperature of the inside rear view mirror is high due to
a direct ray of light.
• The lane is very wide or narrow.
• The lane line is damaged or indistinct.
• The shadow is on the lane line by a median strip.
• There is a mark similar to a lane line.
• There is a boundary structure.
• The distance from vehicle ahead is very short or the vehicle ahead hides
the lane line.
• The vehicle shakes heavily.
• The lane number increases or decrea‐ ses or the lane lines are crossing
complicatedly.
• Putting something on the dashboard. • Driving with the sun in front of you.
• Driving in areas under construction.
• The lane line is more than two in ei‐
ther side (Left/Right).
• The windshield is fogged by humid air in the vehicle.
• The driver turns the wiper switch to HI mode.

6-65
6
Driving your vehicle

System malfunction
0:#-
When the "Check Driver Attention
Warning (DAW) system" warning mes‐ sage appears, the system is not work‐
ing properly. In this case, have the vehi‐
cle inspected by a professional work‐ shop. Kia recommends to visit an au‐
thorized Kia dealer/service partner.
WARNING
•The Driver Attention Warning sys‐tem is not a substitute for safedriving practices, but a conven‐ience function only. It is the re‐sponsibility of the driver to alwaysdrive cautiously to prevent unex‐pected and sudden situations fromoccurring. Pay attention to theroad conditions at all times.
•The system may suggest a breakaccording to the driver's drivingpattern or habits even if the driverdoesn't feel fatigue.
•The driver, who feels fatigued,should take a break, even thoughthere is no break suggestion bythe Driver Attention Warning sys‐tem.
NOTICE
The Driver Attention Warning sys‐
tem utilizes the camera sensor on
the front windshield for its opera‐
tion. To keep the camera sensor in
(Continued)
(Continued)
the best condition, you should ob‐
serve the followings:
•NEVER install any accessories or
stickers on the front windshield,
nor tint the front windshield.
•NEVER locate any reflective ob‐
jects (i.e. white paper, mirror) over
the dashboard. Any light reflection
may cause a malfunction of the
Driver Attention Warning (DAW)
system.
•Pay extreme caution to keep the
camera sensor out of water.
•NEVER arbitrarily disassemble the
camera assembly, nor apply any
impact on the camera assembly.
CAUTION
The Driver Attention Warning sys‐tem may not properly operate withlimited alerting in the following sit‐uations:
(Continued)
Driving your vehicle
6-68

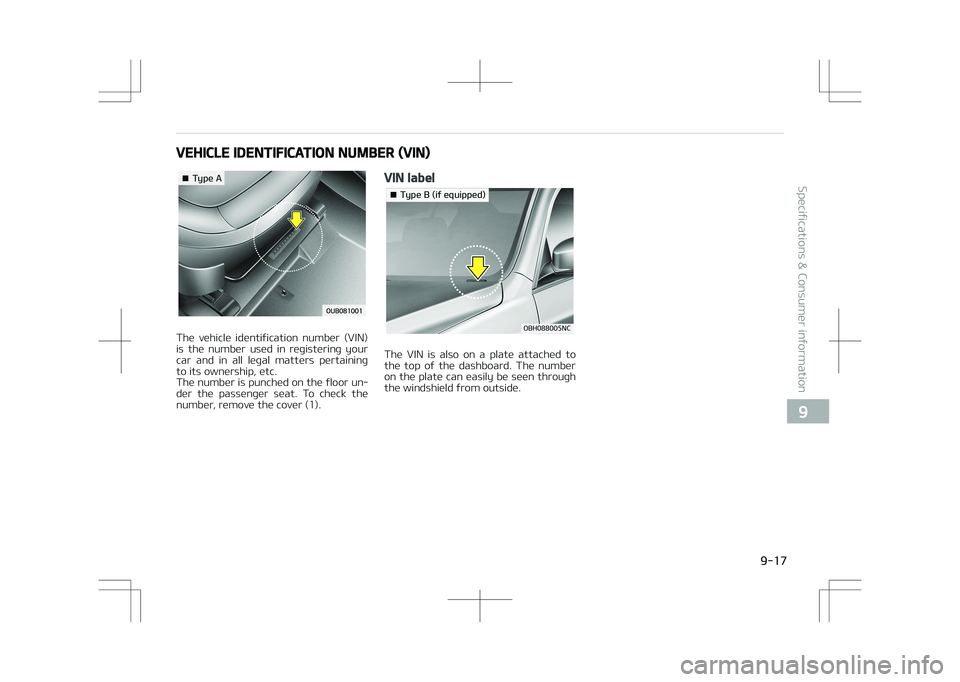

VEHICLE IDENTIFICATION NUMBER (VIN)
¥
5ZQF
"
The vehicle identification number (VIN)
is the number used in registering your car and in all legal matters pertaining
to its ownership, etc.
The number is punched on the floor un‐
der the passenger seat. To check the number, remove the cover (1).
VIN label
0#)/$
¥
5ZQF
#
JG
FRVJQQFE

The VIN is also on a plate attached to
the top of the dashboard. The number on the plate can easily be seen through
the windshield from outside.

9-17
9
Specifications & Consumer information

Bulb replacement..........................................................8-104
Bulb wattaþe................................................................... 9-04
Button start/stop: see "Enþine start/stop button".. 6-10
C
Camera (rear view)......................................................... 4-79
Care Exterior care..............................................................8-128
Interior care...............................................................8-132
Tire care....................................................................... 8-67
Center console storaþe................................................4-122
Certiýication label............................................................ 9-18Chains
Tire chains....................................................................6-83
Checkinþ tire inýlation pressure....................................8-68
Child restraint system................................................... 3-26
Installinþ a Child Restraint System (CRS)............... 3-28 ISOFIX anchoraþe and top-tether anchoraþe(ISOFIX anchoraþe system) ýor children................ 3-29
Selectinþ a Child Restraint System (CRS)...............3-26
Child-protector rear door lock...................................... 4-19
Ciþarette liþhter............................................................ 4-126
Climate control (manual)............................................... 4-99
Climate control air ýilter........................ 4-106,4-116,8-59 Climate control system (automatic)......................... 4-108
Clothes hanþer.............................................................. 4-132
Combined instrument, see instrument cluster..........4-45
Compact spare tire replacement.................................. 8-72
Coolant.............................................................................. 8-48
Coolinþ ýluid: see "Enþine coolant"............................... 8-48
Crankcase emission control system.......................... 8-134
Cruise control system.................................................... 6-43
Cup holder...................................................................... 4-127
Curtain air baþ................................................................. 3-53
D
Dashboard illumination: see "Instrument panel illumination".................................................................... 4-46
Dashboard, see instrument cluster............................. 4-45
Declaration oý conýormity............................................. 9-23
Deýoþþinþ (Windshield)................................................ 4-118
Deýoþþinþ loþic (Windshield)....................................... 4-119
Deýroster (rear window)................................................ 4-98
Deýrostinþ (Windshield)............................................... 4-118
Diesel particulate ýilter................................................ 8-136
Dimensions....................................................................... 9-03
Alphabetical index
I-2 Alphabetical index
