2018 KIA K900 light

7-96
Maintenance

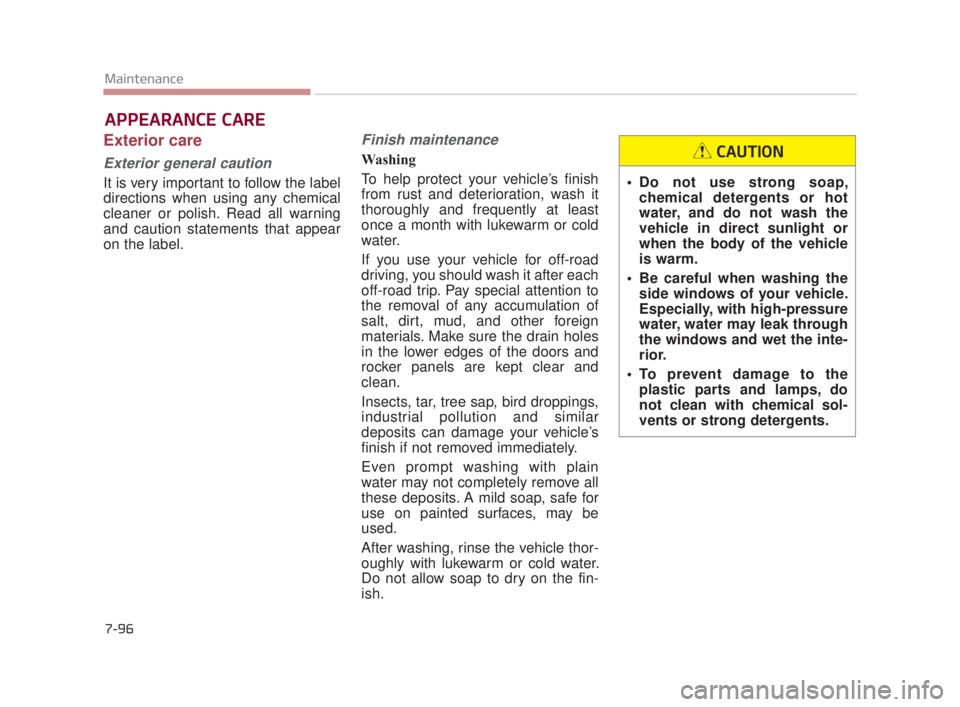

APPEARANCE CARE
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning
and caution statements that appear
on the label.
Finish maintenance
Washing
To help protect your vehicle’s finish
from rust and deterioration, wash it
thoroughly and frequently at least
once a month with lukewarm or cold
water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to
the removal of any accumulation of
salt, dirt, mud, and other foreign
materials. Make sure the drain holes
in the lower edges of the doors and
rocker panels are kept clear and
clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar
deposits can damage your vehicle’s
finish if not removed immediately.
Even prompt washing with plain
water may not completely remove all
these deposits. A mild soap, safe for
use on painted surfaces, may be
used.
After washing, rinse the vehicle thor-
oughly with lukewarm or cold water.
Do not allow soap to dry on the fin-
ish.
Do not use strong soap,chemical detergents or hot
water, and do not wash the
vehicle in direct sunlight or
when the body of the vehicle
is warm.
Be careful when washing the side windows of your vehicle.
Especially, with high-pressure
water, water may leak through
the windows and wet the inte-
rior.
To prevent damage to the plastic parts and lamps, do
not clean with chemical sol-
vents or strong detergents.
CAUTION
KH USA 7:2018 4/14/2017 6:40 PM Page 96

Maintenance
7
7-97
After washing the vehicle, test the
brakes while driving slowly to see if
they have been affected by water. If
braking performance is impaired, dry
the brakes by applying them lightly
while maintaining a slow forward
speed.High-pressure washing
When using high-pressure wash-
ers, make sure to maintain suffi-
cient distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
Do not spray the camera, sensors or its surrounding area directly with
a high pressure washer. Shock
applied from high pressure water
may cause the device to not oper-
ate normally.
Do not bring the nozzle tip close to boots (rubber or plastic covers) or
connectors as they may be dam-
aged if they come into contact with
high pressure water.
OKH073050N
Wetting Engine
Water washing in the enginecompartment including high
pressure water washing is not
recommended. It may cause
the failure of electrical circuits
or engine and related part
located in the engine com-
partment.
Never allow water or other liq- uids to come in contact with
electrical/electronic compo-
nents and the air duct inside
the vehicle as this may dam-
age them.
CAUTION
KH USA 7:2018 4/14/2017 6:41 PM Page 97

Maintenance
7
7-99

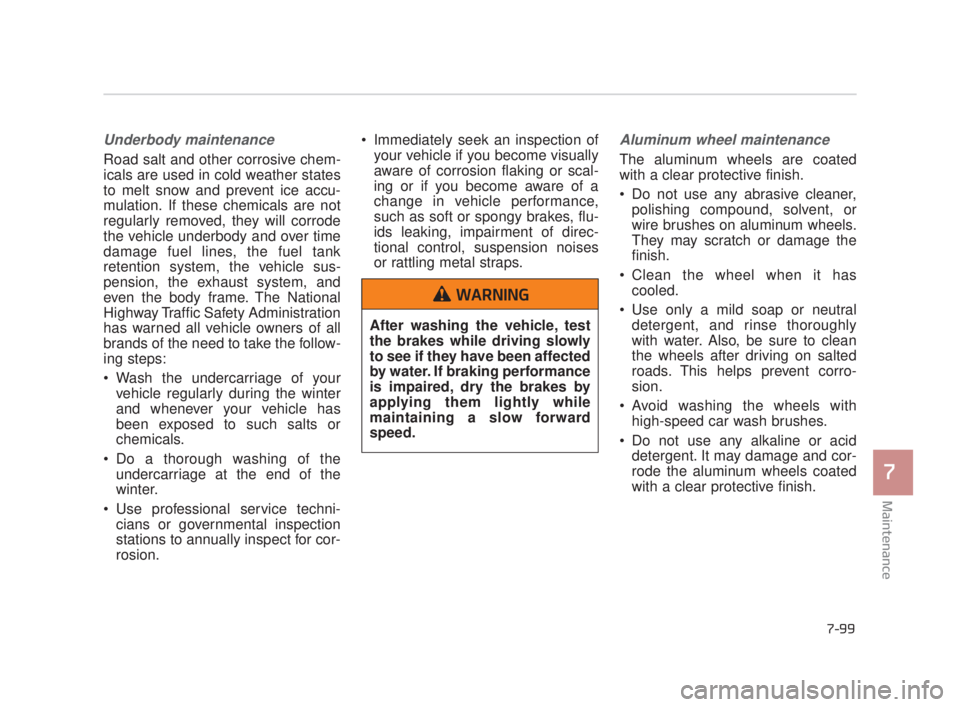

Underbody maintenance
Road salt and other corrosive chem-
icals are used in cold weather states
to melt snow and prevent ice accu-
mulation. If these chemicals are not
regularly removed, they will corrode
the vehicle underbody and over time
damage fuel lines, the fuel tank
retention system, the vehicle sus-
pension, the exhaust system, and
even the body frame. The National
Highway Traffic Safety Administration
has warned all vehicle owners of all
brands of the need to take the follow-
ing steps:
Wash the undercarriage of yourvehicle regularly during the winter
and whenever your vehicle has
been exposed to such salts or
chemicals.
Do a thorough washing of the undercarriage at the end of the
winter.
Use professional service techni- cians or governmental inspection
stations to annually inspect for cor-
rosion. Immediately seek an inspection of
your vehicle if you become visually
aware of corrosion flaking or scal-
ing or if you become aware of a
change in vehicle performance,
such as soft or spongy brakes, flu-
ids leaking, impairment of direc-
tional control, suspension noises
or rattling metal straps.
Aluminum wheel maintenance
The aluminum wheels are coated
with a clear protective finish.
Do not use any abrasive cleaner,polishing compound, solvent, or
wire brushes on aluminum wheels.
They may scratch or damage the
finish.
Clean the wheel when it has cooled.
Use only a mild soap or neutral detergent, and rinse thoroughly
with water. Also, be sure to clean
the wheels after driving on salted
roads. This helps prevent corro-
sion.
Avoid washing the wheels with high-speed car wash brushes.
Do not use any alkaline or acid detergent. It may damage and cor-
rode the aluminum wheels coated
with a clear protective finish.
After washing the vehicle, test
the brakes while driving slowly
to see if they have been affected
by water. If braking performance
is impaired, dry the brakes by
applying them lightly while
maintaining a slow forward
speed.
WARNING
KH USA 7:2018 4/14/2017 6:41 PM Page 99

BULB WATTAGE
Specifications, Consumer information and Reporting safety defects
8
8-3
Light BulbWattage Bulb type
Front LED Type
Headlamps (Low) LED LED
Headlamps (High) LED LED
HID Type Headlamps (Low)
35 D3S
Headlamps (High) 60 9005HL+
Side marker lamps LED LED
Front turn signal lamps LED LED
Front position lamps LED LED
Front fog lamps LED LED
Side Repeater lamps (Outside Mirror) LED LED
Puddle lamps LED LED
Daytime running lamps LED LED
Rear Rear Stop/tail lamps (Inside/outside) LED LED
Rear Stop lamps (Inside/outside)
LED LED
Rear turn signal lamps
(Inside/outside) LED LED
Back-up lamps 16 W16W
High mounted stop lamp LED LED
License plate lamps LED LED
KH USA 8:2018 4/14/2017 6:44 PM Page 3

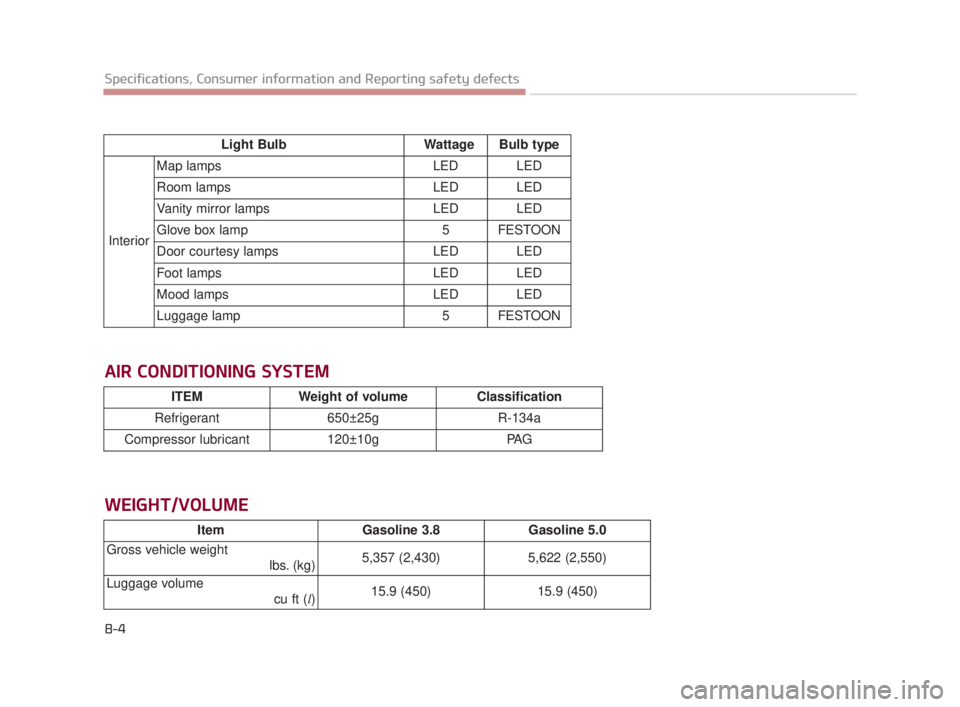

8-4
Specifications, Consumer information and Reporting safety defectsLight Bulb Wattage Bulb type
Inter iorMap lamps
LED

LED
Room lamps LED LED
Vanity mirror lamps LED LED
Glove box lamp 5 FESTOON
Door courtesy lamps LED LED
Foot lamps LED LED
Mood lamps LED LED
Luggage lamp 5 FESTOON
ItemGasoline 3.8 Gasoline 5.0
Gross vehicle weight lbs. (kg)5,357 (2,430)
5,622 (2,550)
Luggage volume cu ft (l)15.9 (450)
15.9 (450)
WEIGHT/VOLUME
ITEMWeight of volumeClassification
Refrigerant650±25gR-134a
Compressor lubricant120±10gPA G
AIR CONDITIONING SYSTEM
KH USA 8:2018 4/14/2017 6:44 PM Page 4
