2018 KIA K900 light

Maintenance
7
7-77
Fuse NameFuse rastingCircuit Protected
AUDIO 210AA/V & Navigation Head Unit, TMU
MODULE 310AA/C Control Module, Electro Chromic Mirror, Rear Seat Console Switch, Driver Haptic Control Module, Rear
CCS Control Module LH/RH, Driver/Passenger IMS Control Module, Driver Power Seat Module, Rear Seat
Warmer Control Module LH/RH, Rear Smart Junction Box (IPS Control Module)
MODULE 210ASteering Tilt & Telescopic Module, LDWS Camera Module, Crash Pad Switch, Stop Lamp Switch, A/T Console
Switch, Electric Parking Brake Switch, Console Switch, Smart Cruse Control Radar, Air Sus, TPMS, PAS
SPARE10ASpare
WIPER10AAuto Light & Rain Sensor
MODULE 110ABCM, Trunk Lid Main Switch, Low Panel Switch
MEMORY 210AExternal Buzzer, Driver Smart Connector, Passenger Smart Connector
DRV HEAT15ADriver Haptic Control Module, Driver CCS Module
PASS HEAT15APassenger CCS Module
WINDOW LH30ARear Power Window Module LH, Rear Power Window Module LH
HEADREST15AActive Headrest Sensor
BCM10ABCM, Multifunction Switch, Driver/Passenger Power Seat Switch, Rear Door Module LH/RH
EPB 215AElectric Parking Brake Module
P/HANDLE15ASteering Tilt & Telescopic Module
KH USA 7:2018 4/14/2017 6:39 PM Page 77

Maintenance
7
7-79
Fuse NameFuse rastingCircuit Protected
MODULE 610ASmart Key Control Module, BCM
A/BAG15ADriver Seat Belt Pretensioner, Passenger Seat Belt Pretensioner, SRS Control Module
A/BAG IND10AInstrument Cluster
IGN 120AE/R Fuse & Relay Box LH (FUSE : F20, F21, F23, F25, F26, F27)
MEMORY 110APassenger IMS Control Module, Driver/Passenger Door Module, Driver/Passenger Power Seat Switch, Rear
Door Module LH/RH, Power Trunk Module, Instrument Cluster, BCM, Security Sensor, Analogue Clock, A/C
Control Module, Head-Up Display
MULTI MEDIA10AKeyboard, A/V Navigation Head Unit, Front Monitor, TMU
ROOM LAMP10ARear Seat Foot Lamp LH/RH, Trunk Room Lamp LH/RH, Driver/Passenger Foot Lamp, Room Lamp, Overhead
Console Lamp, Front Vanity Lamp Switch LH/RH, Rear Vanity Lamp Switch LH/RH, Garnish Lamp LH/RH,
Garnish Center Lamp, Glove Box Lamp
MEMORY 310ARF Receiver
EPB 115AElectric Parking Brake Module
SPARE15ASpare
IGN 220AE/R Fuse & Relay Box LH (Fuse : F29, F30)
A/CON 110AA/C Control Module, Ionizer, Metal Core Block (PCB #2) (Blower Relay)
AFLS15AAdaptive Front Lighting Module, HEAD LAMP LH/RH
SPARE10ASpare
P/OUTLET FR20AFront Cigarette Lighter
KH USA 7:2018 4/14/2017 6:39 PM Page 79

7-90
Maintenance
LIGHT BULBS
Use only the bulbs of the specifiedwattage.
If you don’t have necessary tools, the correct bulbs and the expertise,
consult an authorized K900 Kia
dealer. In many cases, it is difficult
to replace vehicle light bulbs
because other parts of the vehicle
must be removed before you can
get to the bulb. This is especially
true if you have to remove the
headlight assembly to get to the
bulb(s).
Removing/installing the headlight
assembly can result in damage to
the vehicle.
Do not install additional bulb or LED. If you install that, the lamp
may not be operated properly and
fuse box or electric wiring system
may have problem.✽ NOTICE
After heavy, driving rain or wash-
ing, headlight and taillight lenses
could appear frosty. This condition
is caused by the temperature differ-
ence between the lamp inside and
outside. This is similar to the con-
densation on your windows inside
your vehicle during the rain and
doesn’t indicate a problem with
your vehicle. If the water leaks into
the lamp bulb circuitry, have the
vehicle checked by an authorized
K900 Kia dealer.
Working on the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that Engine Start/Stop
button is in the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.
WARNING
Light Replacement
Be sure to replace the burned-
out bulb with one of the same
wattage rating. Otherwise, it
may cause damage to the fuse
or electric wiring system.
CAUTION
KH USA 7:2018 4/14/2017 6:40 PM Page 90

Maintenance
7
7-91
Headlight, front position light,
front turn signal light, front fog
light bulb replacement(1) Headlight (High)
(2) Headlight (Low)
(3) Front turn signal light
(4) Front position light
(5) Front side marker light
(6) Daytime running light
(7) Front fog light Headlight bulb
OKH075044N
■Type A (LED)
OKH073044N
■Type B (HID)
OKH073081N
Halogen bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pressur-
ized gas that will produce frag-
ment of glass if broken.
WARNING
KH USA 7:2018 4/14/2017 6:40 PM Page 91

7-92
Maintenance
Always handle them carefully, andavoid scratches and abrasions. If
the bulbs are lit, avoid contact with
liquids.
Never touch the glass with bare hands. Residual oil may cause the
bulb to overheat and burst when lit.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.Headlamp (HID/ LED type), front
position lamp, front turn signallamp, front fog lamp
If the light bulb is not operating, have
the vehicle checked by an authorized
K900 Kia dealer.
✽ NOTICE
If your vehicle is equipped with
High Intensity Discharge (HID)
headlights, these headlights contain
mercury. So if you need to have your
vehicle disposed, you should remove
the HID Headlights before disposal.
The removed HID headlights should
be recycled, re-used or disposed as
hazardous waste.
HID Headlight low beam
Do not attempt to replace or
inspect the low beam (XENON
bulb) due to electric shock dan-
ger. If the low beam (XENON
bulb) is not working, have your
vehicle checked by an author-
ized K900 Kia dealer.
WARNING
KH USA 7:2018 4/14/2017 6:40 PM Page 92

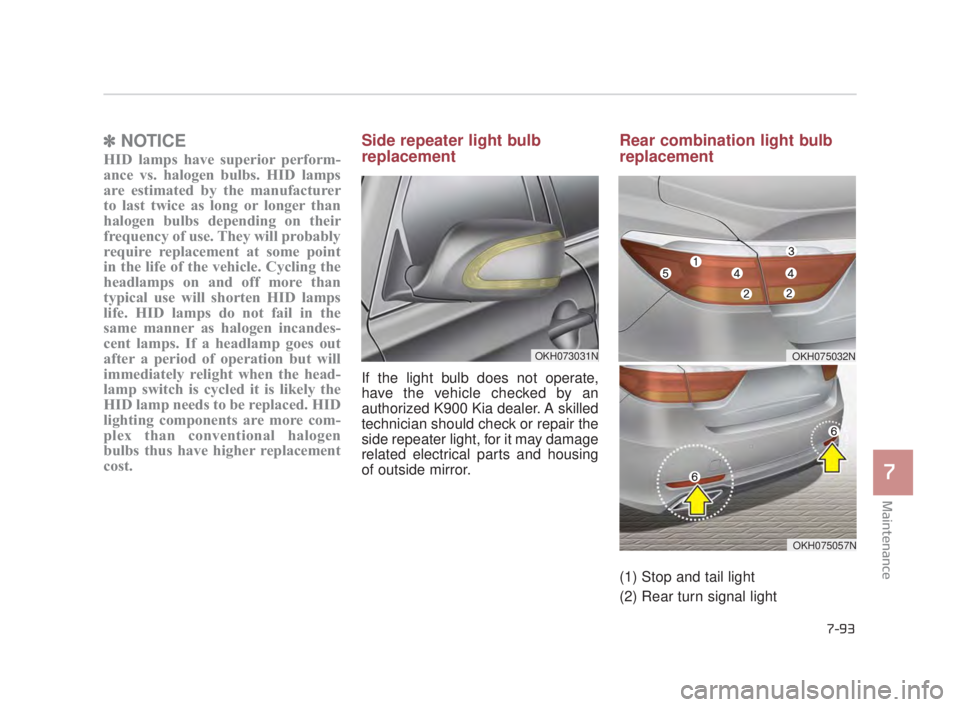

Maintenance
7
7-93
✽NOTICE
HID lamps have superior perform-
ance vs. halogen bulbs. HID lamps
are estimated by the manufacturer
to last twice as long or longer than
halogen bulbs depending on their
frequency of use. They will probably
require replacement at some point
in the life of the vehicle. Cycling the
headlamps on and off more than
typical use will shorten HID lamps
life. HID lamps do not fail in the
same manner as halogen incandes-
cent lamps. If a headlamp goes out
after a period of operation but will
immediately relight when the head-
lamp switch is cycled it is likely the
HID lamp needs to be replaced. HID
lighting components are more com-
plex than conventional halogen
bulbs thus have higher replacement
cost.
Side repeater light bulb
replacement
If the light bulb does not operate,
have the vehicle checked by an
authorized K900 Kia dealer. A skilled
technician should check or repair the
side repeater light, for it may damage
related electrical parts and housing
of outside mirror.
Rear combination light bulb
replacement
(1) Stop and tail light
(2) Rear turn signal light
OKH073031NOKH075032N
OKH075057N
KH USA 7:2018 4/14/2017 6:40 PM Page 93

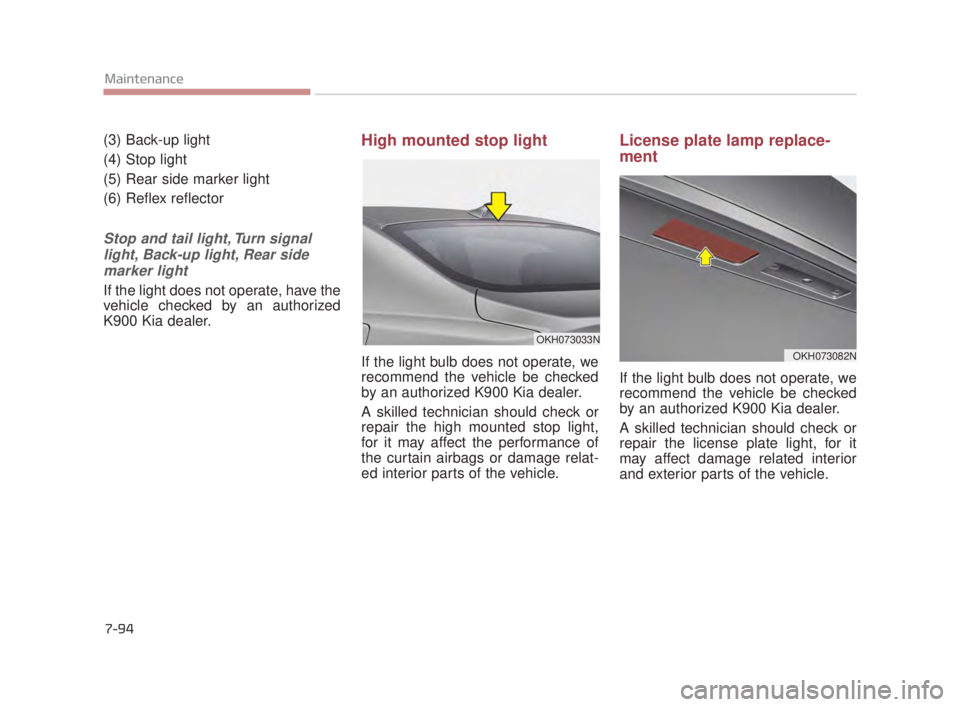

7-94
Maintenance
(3) Back-up light
(4) Stop light
(5) Rear side marker light
(6) Reflex reflector
Stop and tail light, Turn signallight, Back-up light, Rear sidemarker light
If the light does not operate, have the
vehicle checked by an authorized
K900 Kia dealer.
High mounted stop light
If the light bulb does not operate, we
recommend the vehicle be checked
by an authorized K900 Kia dealer.
A skilled technician should check or
repair the high mounted stop light,
for it may affect the performance of
the curtain airbags or damage relat-
ed interior parts of the vehicle.
License plate lamp replace-
ment
If the light bulb does not operate, we
recommend the vehicle be checked
by an authorized K900 Kia dealer.
A skilled technician should check or
repair the license plate light, for it
may affect damage related interior
and exterior parts of the vehicle.
OKH073033N
OKH073082N
KH USA 7:2018 4/14/2017 6:40 PM Page 94

Maintenance
7
7-95
Interior light bulb replacement1.Using a flat-blade screwdriver,gently pry the lens from the interior
light housing.
2.Remove the bulb by pulling it straight out. 3.Install a new bulb in the socket.
4.Align the lens tabs with the interior
light housing notches and snap the
lens into place.
5.If the map lamp and room lamp are not operating, have the vehicle
checked by an authorized K900
Kia dealer.
OKH073036N
OKH075035N
■ Glove box lamp
■Trunk lamp
Interior Lights
Prior to working on the Interior
Lights, ensure that the “OFF”
button is depressed to avoid
burning your fingers or receiv-
ing an electric shock.
WARNING
Use care not to dirty or damage
lens, lens tab, and plastic hous-
ings.
CAUTION
