2018 KIA K900 battery replacement

Features of your vehicle
4
4-9
Pursuant to Code of Federal
Regulations, Title 47, Part 15
("FCC Rules")
Operation is subject to the following
two conditions:
1.This device may not cause harmfulinterference, and
2.This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.
✽ NOTICE
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment. If the keyless entry
system is inoperative due to changes
or modifications not expressly
approved by the party responsible
for compliance, it will not be cov-
ered by your manufacturer’s vehicle
warranty.
Battery replacement
Conventional smart key
A battery should last for several
years, but if the smart key is not work-
ing properly, try replacing the battery
with a new one. If you are unsure how
to use or replace the battery, contact
an authorized K900 Kia dealer.
1.Pry open the smart key center cover.
2.Replace the battery with a newbattery (CR2032). When replacing
the battery, make sure the battery
position.
3.Install the battery in the reverse order of removal.
OKH043006N
KH USA 4:2018 4/18/2017 5:55 PM Page 9

7-52
Maintenance

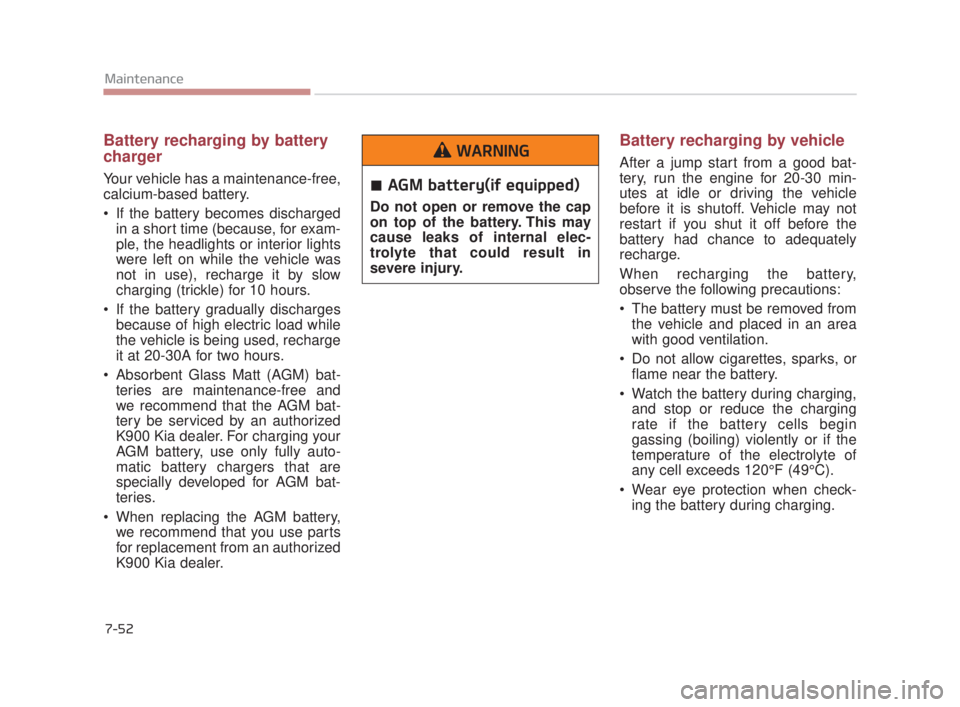

Battery recharging by battery
charger
Your vehicle has a maintenance-free,
calcium-based battery.
If the battery becomes dischargedin a short time (because, for exam-
ple, the headlights or interior lights
were left on while the vehicle was
not in use), recharge it by slow
charging (trickle) for 10 hours.
If the battery gradually discharges because of high electric load while
the vehicle is being used, recharge
it at 20-30A for two hours.
Absorbent Glass Matt (AGM) bat- teries are maintenance-free and
we recommend that the AGM bat-
tery be serviced by an authorized
K900 Kia dealer. For charging your
AGM battery, use only fully auto-
matic battery chargers that are
specially developed for AGM bat-
teries.
When replacing the AGM battery, we recommend that you use parts
for replacement from an authorized
K900 Kia dealer.
Battery recharging by vehicle
After a jump start from a good bat-
tery, run the engine for 20-30 min-
utes at idle or driving the vehicle
before it is shutoff. Vehicle may not
restart if you shut it off before the
battery had chance to adequately
recharge.
When recharging the battery,
observe the following precautions:
The battery must be removed fromthe vehicle and placed in an area
with good ventilation.
Do not allow cigarettes, sparks, or flame near the battery.
Watch the battery during charging, and stop or reduce the charging
rate if the battery cells begin
gassing (boiling) violently or if the
temperature of the electrolyte of
any cell exceeds 120°F (49°C).
Wear eye protection when check- ing the battery during charging.
AGM battery(if equipped)
Do not open or remove the cap
on top of the battery. This may
cause leaks of internal elec-
trolyte that could result in
severe injury.
WARNING
KH USA 7:2018 4/14/2017 6:38 PM Page 52

7-70
Maintenance

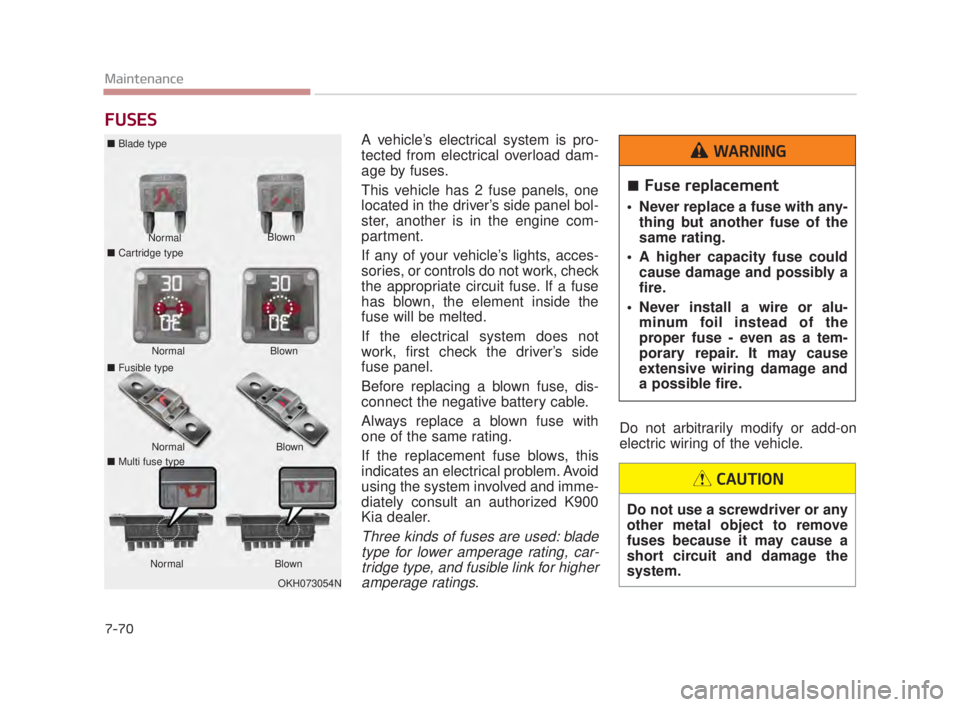

FUSES
A vehicle’s electrical system is pro-
tected from electrical overload dam-
age by fuses.
This vehicle has 2 fuse panels, one
located in the driver’s side panel bol-
ster, another is in the engine com-
partment.
If any of your vehicle’s lights, acces-
sories, or controls do not work, check
the appropriate circuit fuse. If a fuse
has blown, the element inside the
fuse will be melted.
If the electrical system does not
work, first check the driver’s side
fuse panel.
Before replacing a blown fuse, dis-
connect the negative battery cable.
Always replace a blown fuse with
one of the same rating.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved and imme-
diately consult an authorized K900
Kia dealer.
Three kinds of fuses are used: bladetype for lower amperage rating, car-tridge type, and fusible link for higheramperage ratings.
Do not arbitrarily modify or add-on
electric wiring of the vehicle.
OKH073054N
Normal
Normal
■
Blade type
■ Cartridge type
■ Fusible type
■ Multi fuse type Blown
Blown
Normal Blown
Normal Blown
Fuse replacement
Never replace a fuse with any-
thing but another fuse of the
same rating.
A higher capacity fuse could cause damage and possibly a
fire.
Never install a wire or alu- minum foil instead of the
proper fuse - even as a tem-
porary repair. It may cause
extensive wiring damage and
a possible fire.
WARNING
Do not use a screwdriver or any
other metal object to remove
fuses because it may cause a
short circuit and damage the
system.
CAUTION
KH USA 7:2018 4/14/2017 6:39 PM Page 70

Maintenance
7
7-73
Fuse switch
Always put the transportation fuse
switch at the ON position.
If you move the switch to the OFF
position, some items such as the
audio and digital clock must be reset
and the smart key may not work
properly.
✽NOTICE
If you need to park your vehicle for
prolonged periods more than 1
month, move the transportation fuse
switch to the OFF position to pre-
vent the battery being discharged.
Engine compartment fuse
replacement
1.Turn the Engine Start/Stop button
and all other switches off.
OKH073021NOKH075022N
OKH075023N
Always place the transporta-tion fuse switch in the ON
position while driving the vehi-
cle.
Do not move the transporta- tion fuse switch repeatedly as
this may cause damage to the
fuse switch.
CAUTION
KH USA 7:2018 4/14/2017 6:39 PM Page 73

Battery........................................................................\
....7-49
Battery replacement (for smart key) ................................4-9
Battery saver function ..................................................4-129
Before driving ..................................................................5-4
Blind Spot Detection System(BSD) ..............................5-86BSD (Blind Spot Detection) /LCA (Lane Change Assist) .....................................5-87
RCTA (Rear cross traffic alert) .................................5-90
Bluetooth
®Wireless Technology hands-free ...............4-182
Brake system..................................................................5-27 Autonomous emergency braking (AEB)...................5-49
Anti-lock brake system (ABS) ..................................5-41
Auto Hold ..................................................................5-37
Electric parking brake (EPB) ....................................5-31
Electronic stability control (ESC) .............................5-43
Hill-start assist control (HAC) ..................................5-47
Power brakes .............................................................5-27
Brakes fluid....................................................................7-38\
Bulb replacement ...........................................................7-89
Bulb wattage ....................................................................8-3
Button start/stop, see engine start/stop button .................5-6
Camera see the Rear-Camera Display .........................4-122
Capacities (Lubricants) ....................................................8-6
Care Exterior care ..............................................................7-96 Interior care .............................................................7-102
Tire care.....................................................................7-5\
4
Center console storage .................................................4-164
Central door lock switch................................................4-19
Certification label ........................................................5-108
Chains - Tire ................................................................5-101
Checking tire inflation pressure.....................................7-55
Child restraint system ....................................................3-32 Lower anchor system ................................................3-37
Seat belt .....................................................................3-3\
3
Child-protector rear door lock .......................................4-20
Climate control additional features .............................4-163 Cluster ionizer .........................................................4-163
Smart ventilation .....................................................4-163
Climate control air filter ................................................7-44
Clock ........................................................................\
....4-174
Clothes hanger .............................................................4-175
Combined instrument, see instrument cluster ...............4-67
Compact spare tire .........................................................6-24
Compact spare tire replacement ....................................7-59
Consumer assistance(U.S. only) ....................................8-11
Coolant ........................................................................\
...7-34
Cooling fluid, see engine coolant ..................................7-34
Crankcase emission control system .............................7-102
Cruise control system ....................................................5-62 To set cruise control speed ........................................5-63
Cup holder ...................................................................4-168\
Curtain air bag ...............................................................3-56
Index
I-3
I
C
KH USA Index:2018 4/18/2017 10:39 AM Page 3

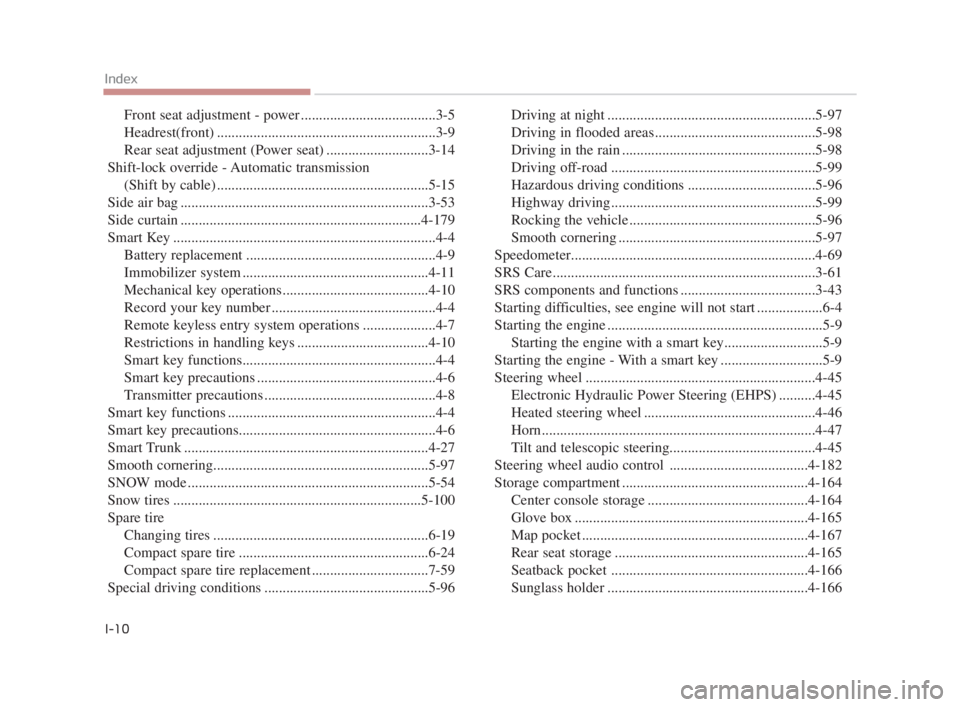

Front seat adjustment - power .....................................3-5
Headrest(front) ............................................................3-9
Rear seat adjustment (Power seat) ............................3-14
Shift-lock override - Automatic transmission (Shift by cable) ..........................................................5-15
Side air bag ....................................................................3-53\
Side curtain ..................................................................4-179
Smart Key ........................................................................\
4-4 Battery replacement ....................................................4-9
Immobilizer system ...................................................4-11
Mechanical key operations........................................4-10
Record your key number .............................................4-4
Remote keyless entry system operations ....................4-7
Restrictions in handling keys ....................................4-10
Smart key functions.....................................................4-4
Smart key precautions .................................................4-6
Transmitter precautions ...............................................4-8
Smart key functions .........................................................4-4
Smart key precautions......................................................4-6
Smart Trunk ...................................................................4-27
Smooth cornering...........................................................5-97
SNOW mode ..................................................................5-54
Snow tires ....................................................................5-10\
0
Spare tire Changing tires ...........................................................6-19
Compact spare tire ....................................................6-24
Compact spare tire replacement ................................7-59
Special driving conditions .............................................5-96 Driving at night .........................................................5-97
Driving in flooded areas............................................5-98
Driving in the rain .....................................................5-98
Driving off-road ........................................................5-99
Hazardous driving conditions ...................................5-96
Highway driving ........................................................5-99
Rocking the vehicle ...................................................5-96
Smooth cornering ......................................................5-97
Speedometer...................................................................4-69
SRS Care........................................................................\
3-61
SRS components and functions .....................................3-43
Starting difficulties, see engine will not start ..................6-4
Starting the engine ...........................................................5-9 Starting the engine with a smart key...........................5-9
Starting the engine - With a smart key ............................5-9
Steering wheel ...............................................................4-45 Electronic Hydraulic Power Steering (EHPS) ..........4-45
Heated steering wheel ...............................................4-46
Horn........................................................................\
...4-47
Tilt and telescopic steering........................................4-45
Steering wheel audio control ......................................4-182
Storage compartment ...................................................4-164 Center console storage ............................................4-164
Glove box ................................................................4-165
Map pocket ..............................................................4-167
Rear seat storage .....................................................4-165
Seatback pocket ......................................................4-166
Sunglass holder .......................................................4-166
I-10
Index
KH USA Index:2018 4/18/2017 10:39 AM Page 10
