Seat and safety features of your vehicle
3
3-47
Main components of occupantdetection system
A detection device located within the front passenger seat track.
Electronic system to determine whether passenger air bag sys-
tems should be activated or deac-
tivated.
An indicator light located on the instrument panel which illuminates
the words PASSENGER AIR BAG
“OFF” indicating the front passen-
ger air bag system is deactivated.
The instrument panel air bag warn- ing light is interconnected with the
occupant detection system. If the front passenger seat is occu-
pied by a person that the system
determines to be of adult size, and
he/she sits properly (sitting upright
with the seatback in an upright posi-
tion, centered on the seat cushion
with their seat belt on, legs comfort-
ably extended and their feet on the
floor), the PASSENGER AIR BAG
“OFF” indicator will turn off and the
front passenger's air bag will be able
to inflate, if necessary, in frontal
crashes.
You will find the PASSENGER AIR
BAG “OFF” indicator on the center
facia panel. This system detects the
conditions 1~4 in the following table
and activates or deactivates the front
passenger air bag based on these
conditions.
Always be sure that you and all vehi-
cle occupants are seated and
restrained properly (sitting upright
with the seat in an upright position,
centered on the seat cushion, with
the person’s legs comfortably
extended, feet on the floor, and wear-
ing the safety belt properly) for the
most effective protection by the air
bag and the safety belt. The ODS (Occupant Detection
System) may not function properly if
the passenger takes actions which
can defeat the detection system.
These include:
(1) Failing to sit in an upright position.
(2) Leaning against the door or cen- ter console.
(3) Sitting towards the sides or the front of the seat.
(4) Putting legs on the dashboard or resting them on other locations
which reduce the passenger
weight on the front seat.
(5) Improperly wearing the safety belt.
(6) Reclining the seat back.
(7) Wearing a thick cloth like ski wear or hip protection wear.
(8) Put on the seat an additional thick cushion.
KH USA 3:2018 4/18/2017 9:36 AM Page 47

Seat and safety features of your vehicle
3
3-49
ODS system
Riding in an improper position adversely affects the occupant detection system (ODS) and may result in
the deactivation of front passenger air bag. It is important for the driver to instruct the passenger as to the
proper seating instructions as contained in this manual.
OKH033126N
OKH033125N
OKH033123N
OKH033107N
OKH033124N
OKH033127N
Never put a heavy load inthe front passenger seat.
Never place the feet on the front passenger seat-
back.
Never sit with the hips shifted towards the front
of the seat. Never excessively recline
the front passenger seat-
back.
Never place the feet on the dashboard.
Never lean on the door or center console.
Never sit on one side of the front passenger seat.
WARNING
KH USA 3:2018 4/18/2017 9:36 AM Page 49

5-56
Driving your vehicle

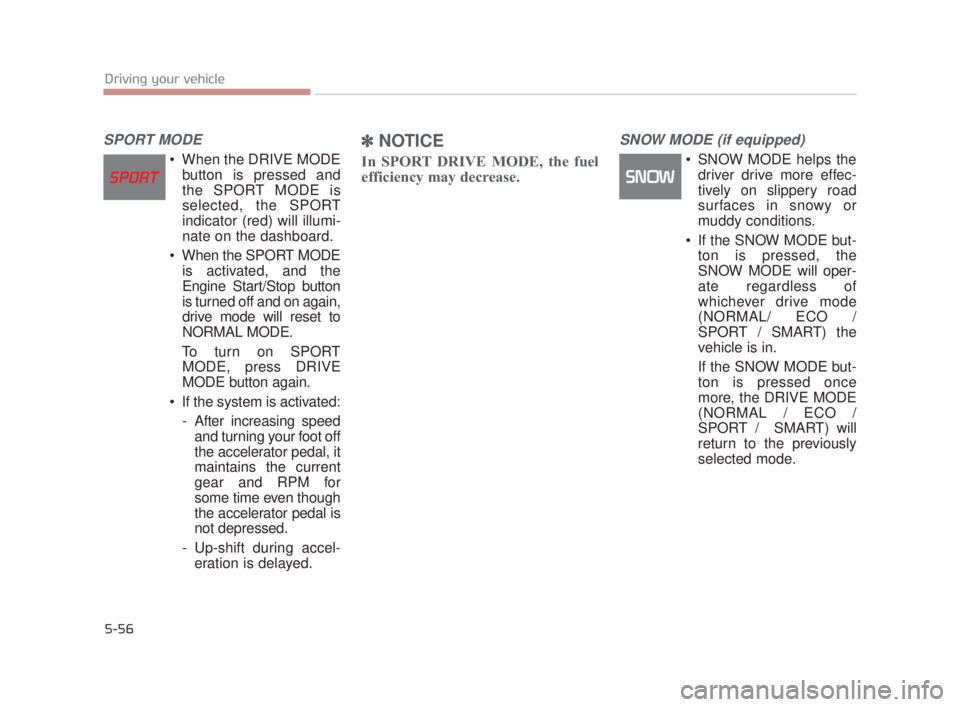

SPORT MODE
When the DRIVE MODEbutton is pressed and
the SPORT MODE is
selected, the SPORT
indicator (red) will illumi-
nate on the dashboard.
When the SPORT MODE is activated, and the
Engine Start/Stop button
is turned off and on again,
drive mode will reset to
NORMAL MODE.
To turn on SPORT MODE, press DRIVE
MODE button again.
If the system is activated: - After increasing speedand turning your foot off
the accelerator pedal, it
maintains the current
gear and RPM for
some time even though
the accelerator pedal is
not depressed.
- Up-shift during accel- eration is delayed.
✽ NOTICE
In SPORT DRIVE MODE, the fuel
efficiency may decrease.
SNOW MODE (if equipped)
SNOW MODE helps the
driver drive more effec-
tively on slippery road
surfaces in snowy or
muddy conditions.
If the SNOW MODE but- ton is pressed, the
SNOW MODE will oper-
ate regardless of
whichever drive mode
(NORMAL/ ECO /
SPORT / SMART) the
vehicle is in.
If the SNOW MODE but- ton is pressed once
more, the DRIVE MODE
(NORMAL / ECO /
SPORT / SMART) will
return to the previously
selected mode.
KH USA 5:2018 4/12/2017 10:00 AM Page 56

Driving your vehicle
5
5-57

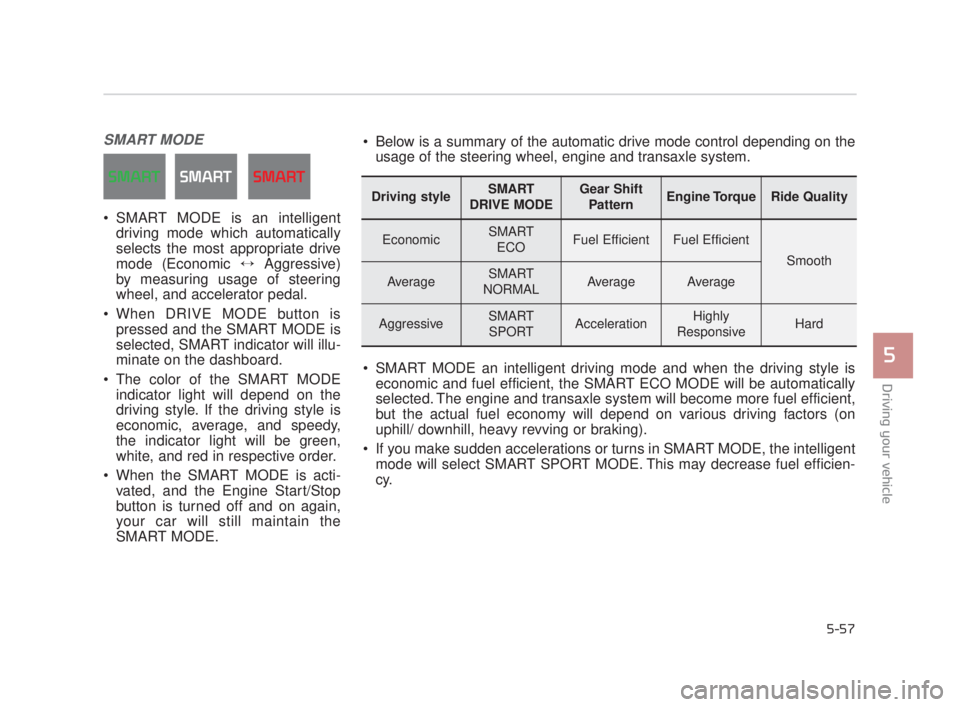

SMART MODE
SMART MODE is an intelligentdriving mode which automatically
selects the most appropriate drive
mode (Economic ↔ Aggressive)
by measuring usage of steering
wheel, and accelerator pedal.
When DRIVE MODE button is pressed and the SMART MODE is
selected, SMART indicator will illu-
minate on the dashboard.
The color of the SMART MODE indicator light will depend on the
driving style. If the driving style is
economic, average, and speedy,
the indicator light will be green,
white, and red in respective order.
When the SMART MODE is acti- vated, and the Engine Start/Stop
button is turned off and on again,
your car will still maintain the
SMART MODE.
Driving styleSMART
DRIVE MODEGear Shift PatternEngine TorqueRide Quality
EconomicSMART ECOFuel EfficientFuel Efficient
Smooth
AverageSMART
NORMALAverageAverage
AggressiveSMART SPORTAccelerationHighly
ResponsiveHard
Below is a summary of the automatic drive mode control depending on the usage of the steering wheel, engine and transaxle system.
SMART MODE an intelligent driving mode and when the driving style is economic and fuel efficient, the SMART ECO MODE will be automatically
selected. The engine and transaxle system will become more fuel efficient,
but the actual fuel economy will depend on various driving factors (on
uphill/ downhill, heavy revving or braking).
If you make sudden accelerations or turns in SMART MODE, the intelligent mode will select SMART SPORT MODE. This may decrease fuel efficien-
cy.
KH USA 5:2018 4/12/2017 10:00 AM Page 57

Specifications, Consumer information and Reporting safety defects
8
8-9

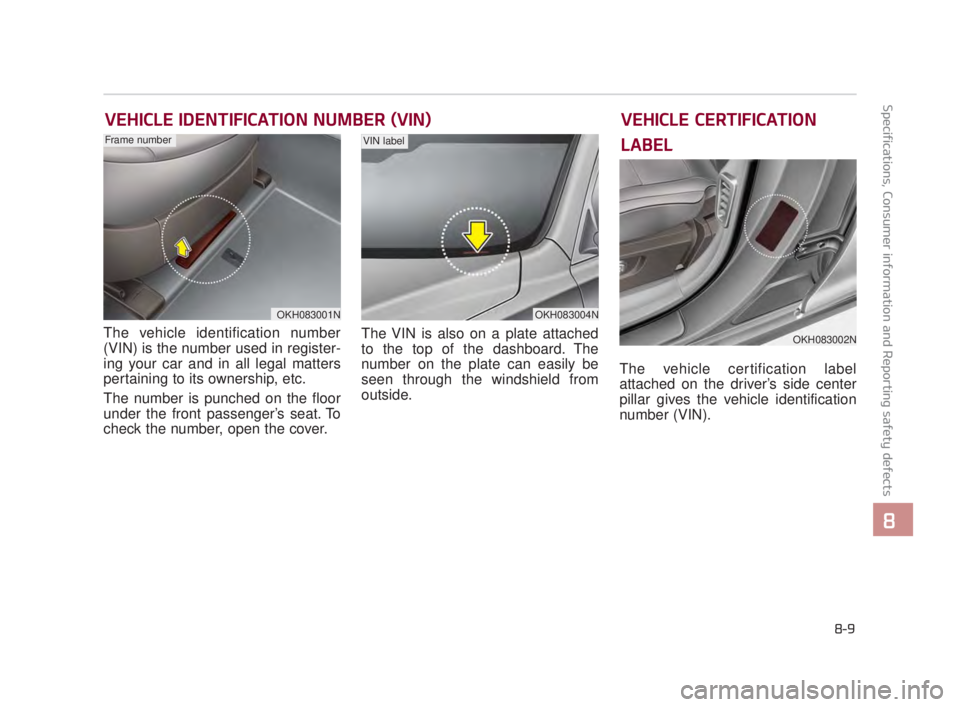

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the floor
under the front passenger’s seat. To
check the number, open the cover.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
OKH083004N
VIN label
VEHICLE CERTIFICATION
LABEL
OKH083001N
Frame number
OKH083002N
KH USA 8:2018 4/14/2017 6:44 PM Page 9

Dashboard illumination, see instrument panelillumination ...............................................................4-68
Dashboard, see instrument cluster .................................4-67
Daytime running light .................................................4-130
Defogging (Windshield) ..............................................4-158
Defogging logic ...........................................................4-159
Defroster ......................................................................4-\
143 Outside rearview mirror defroster ..........................4-143
Rear window defroster ............................................4-143
Wiper deicer ............................................................4-143
Defrosting (Windshield) ..............................................4-158
Dimensions ......................................................................8-\
2
Display illumination, see instrument panel illumination ....4-68
Displays, see instrument cluster ....................................4-67
Door courtesy lamp .....................................................4-141
Door locks......................................................................4-\
16 Auto door lock/unlock feature ..................................4-19
Central door lock switch ...........................................4-18
Child-protector rear door lock ..................................4-20
Impact sensing door unlock system ..........................4-19
Power Door Latch .....................................................4-17
Rear door lock button................................................4-18
DRIVE mode .................................................................5-54 Conditions that limit active ECO MODE .................5-55
DRIVE MODE indicator screen ...............................5-58
ECO MODE driving .................................................5-55 Drive mode integrated control system ...........................5-54
DRIVE mode / SNOW mode ....................................5-54
Driver Information System (DIS) ................................4-180
Driver position memory system.......................................3-8
Driver's and passenger's front air bag ............................3-52
Driving at night ..............................................................5-97
Driving in flooded areas ................................................5-98
Driving in the rain..........................................................5-98
Driving off-road .............................................................5-99
Economical operation ....................................................5-94
Electric chromic mirror (ECM) .....................................4-48
Electric parking brake (EPB).........................................5-31
Electrical equipment(U.S. only) ....................................8-14
Electronic stability control (ESC) .................................5-43
Emergency starting ..........................................................6-5 Jump starting ...............................................................6-5
Emergency while driving .................................................6-3
Emission control system ..............................................7-104 Crankcase emission control system ........................7-104
Evaporative emission control System .....................7-104
Exhaust emission control system ............................7-105
Engine ........................................................................\
......8-2
Engine compartment ........................................................2-7
Engine coolant ...............................................................7-34
Engine Coolant Temperature guage ..............................4-70
I-4
Index
E
D
KH USA Index:2018 4/18/2017 10:39 AM Page 4
