Maintenance
78
8
SymbolRelay NameType
COOLING FAN LOW RELAYH/C MICRO
COOLING FAN HIGH RELAY3725
BLOWER RELAYH/C MICRO
RR
HTDREAR DEFOGGER RELAYH/C MICRO
(IG1)
3B/START (IG1) RELAYH/C MICRO
(IG2)
4B/START (IG2) RELAYH/C MICRO
1START RELAYH/C MICRO
(ACC)2B/START (ACC) RELAYH/C MICRO
DEICER RLYISO MICRO
F/PUMP RLYH/C MICRO
H/LP WASHER RLYISO MICRO
POWER
OUTLET2P/OUTLET2 RLYISO MICRO
Fuse ratingSymbolFuse NameRelay Name
15AB/A HORNB/ALARM HORN RLY
15AECU3ECU
15AHORNHorn
10AINJECTORINJECTORINJECTOR, ECU,
FUEL PUMP RELAY
10AECU2ECU
20AIGN
COILIGN COILIgnition Coil #1/#2/#3/#4, Condenser
10ASENSOR2E/R Fuse & Relay Box
(COOLING LOW RELAY),
Oil Control Valve #1/#2
20AECU1ECU
10ASENSOR1Oxygen Sensor (UP/DOWN),
Variable Intake Solenoid Valve,
Purge Control Solenoid Valve
10ASPARESPARE
15ASPARESPARE
20ASPARESPARE

879
Maintenance
Engine compartment main fuse panel (for diesel engine)
Fuse Fuse ratingSymbolFuse NameProtected component
MULTIFUSE
80A1MDPSMDPS Unit
60A1IP_B+1Inner Fuse Panel, S/Heater RR, Smart Key 1, 2, P/WDW LH/RH, IPS-1/Arisu-1 (H/Lamp
Low RH, H/Lamp Hi RH, Turn FR/RR) IPS-2 (Int Tail Lamp), IPS-4 (Drl Lamp LH/RH),
IPS-3 (Frt Fog Lamp LH/RH)
40A1ABS_1ESC Control Module, ABS Control Module
40A2ABS_2ESC Control Module, ABS Control Module, Multipurpose Check Connector
40AIG2IGN_2W/O Smart Key : Ignition Switch, START RELAY, Starter Fuse No - 26
With Smart Key : IG2 RELAY, START RELAY, IG2 Fuse No - 11/12/18/20/35
60A2IP_B+2Inner Fuse Panel, P/seat DRV, Spare3, Fog Lamp RR, IPS-5/Arisu-2 (H/Lamp Low LH,
H/Lamp Hi LH, Turn FL/RL), IPS-6 (EXT Tail Lamp LH/RH), IPS-7 (Static Bending Lamp LH), IPS-8 (Static Bending Lamp RH)
40ARR HTDRR HTD RELAY RR HTD, MIRR HTD
40ABLOWERBLOWER RLY, BLOWER MOTOR
40AIG1IG1W/O Smart Key : Ignition Switch
With Smart Key : IG1 RELAY, ACC RELAY, INNER FUSE PANEL (ACC Fuse No - 6/10 IG1 Fuse No - 8/17/19/23/24/31/33/36/37)
30A1EPB_1Electronic Parking Brake Module
30A2EPB_2Electronic Parking Brake Module
50AC/FANC/FAN LO RELAY, C/FAN HI RELAY, C/FAN MOTOR
15ADEICERDEICER RELAY

Maintenance
80
8

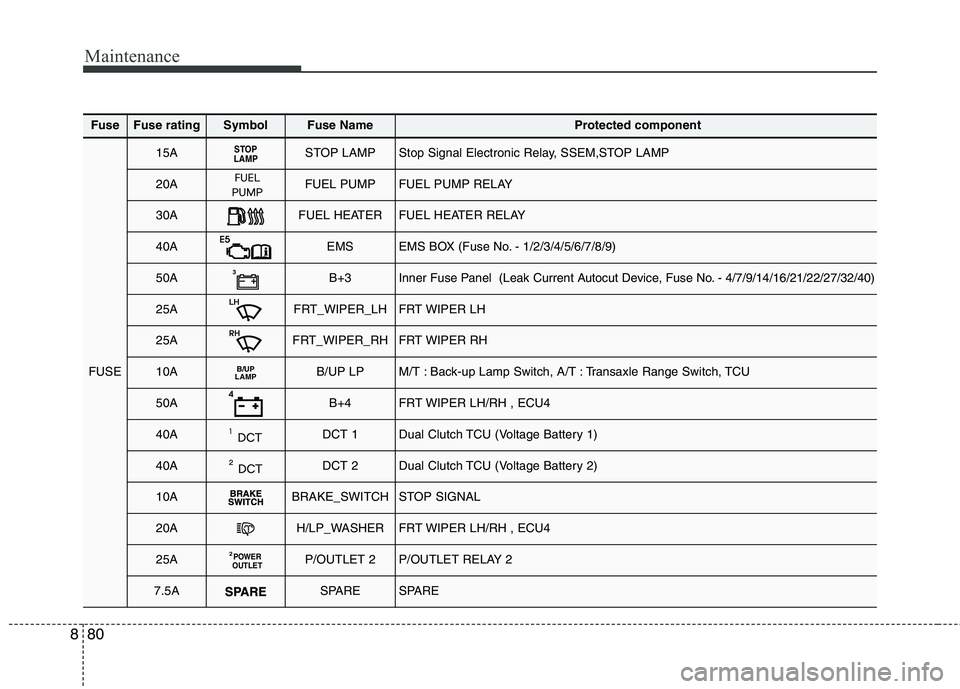

FuseFuse ratingSymbolFuse NameProtected component
FUSE
15ASTOP
LAMPSTOP LAMPStop Signal Electronic Relay, SSEM,STOP LAMP
20AFUEL PUMPFUEL PUMP RELAY
30AFUEL HEATERFUEL HEATER RELAY
40AEMSEMS BOX (Fuse No. - 1/2/3/4/5/6/7/8/9)
50A3B+3Inner Fuse Panel (Leak Current Autocut Device, Fuse No. - 4/7/9/14/16/21/22/27/32/40)
25AFRT_WIPER_LHFRT WIPER LH
25AFRT_WIPER_RHFRT WIPER RH
10AB/UP
LAMPB/UP LPM/T : Back-up Lamp Switch, A/T : Transaxle Range Switch, TCU
50AB+4FRT WIPER LH/RH , ECU4
40ADCT 1Dual Clutch TCU (Voltage Battery 1)
40ADCT 2Dual Clutch TCU (Voltage Battery 2)
10ABRAKE_SWITCHSTOP SIGNAL
20AH/LP_WASHERFRT WIPER LH/RH , ECU4
25APOWER
OUTLET2P/OUTLET 2P/OUTLET RELAY 2
7.5ASPARESPARE

881
Maintenance
SymbolRelay NameType
COOLING FAN LOW RELAYH/C MICRO
COOLING FAN HIGH RELAY3725
BLOWER RELAYH/C MICRO
REAR DEFOGGER RELAYH/C MICRO
(IG1)
3B/START (IG2) RELAYH/C MICRO
(IG2)
4B/START (IG1) RELAYH/C MICRO
1START RELAYH/C MICRO
(ACC)2B/START (ACC) RELAYH/C MICRO
FUEL HEATER RELAY /
FUEL PUMP RELAYH/C MICRO
DEICERISO MICRO
H/LP WASHER RLYISO MICRO
POWER
OUTLET2P/OUTLET2 RLYISO MICRO
Fuse ratingSymbolFuse NameRelay Name
15ASPARESPARE
15AHORNHORN RELAY
20ASPARESPARE
10ASENSOR2
E/R Fuse & Relay Box
(COOLING FAN LOW RELAY),Lambda Sensor (D4FB), Stop Lamp Switch
20AECU1ECU
10ASENSOR1
DSL Box (PTC1 RELAY,
GLOW RELAY), VGT Control
Sensor, Camshaft Position
Sensor, Electrical EGR Valve
15AB/A_HORNB/ALARM HORN RLY
10ASPARESPARE
15ADCT3ECU
10ASPARESPARE
10ASPARESPARE
20ASPARESPARE

Maintenance
82
8
Engine compartment fuse panel
(Diesel engine only)
✽✽ NOTICE
The actual fuse/relay panel label
may differ from equipped items.
OGD071024
ORP076008

883
Maintenance
SymbolFuse rating RELAYNameFuse Name
FUEL HEATER RLYFUEL HEATER RLY
PTC_HTR_1 RLYPTC_HTR_1 RLY
PTC_HTR_2 RLYPTC_HTR_2 RLY
PTC_HTR_3 RLYPTC_HTR_3 RLY
80GLOW
50PTC_HTR_1
50PTC_HTR_2
50PTC_HTR_3

Maintenance
84
8
LIGHT BULBS
Use only the bulbs of the specified
wattage.
✽✽ NOTICE
After driving in heavy rain or wash-
ing the vehicle, headlight and tail-
light lenses could appear foggy. This
condition is caused by the tempera-
ture difference between the lamp
inside and outside. This is similar to
the condensation on your windows
inside your vehicle during rain and
does not indicate a problem with
your vehicle. If the water leaks into
the lamp bulb circuitry, have the
vehicle checked by a professional
workshop. Kia recommends to visit
an authorised Kia dealer/service
partner.WARNING - Working on
the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the “LOCK” position
(smart key: turn off the engine)
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
getting an electric shock.
CAUTION
Be sure to replace the burned- out bulb with one of the samewattage rating. Otherwise, it may cause damage to the fuseor electric wiring system.
CAUTION
If you don’t have necessarytools, the correct bulbs and theexpertise, consult a profession- al workshop. Kia recommendsto consult an authorised Kiadealer/service partner.
In many cases, it is difficult toreplace vehicle light bulbs because other parts of the vehi-cle must be removed before youcan get to the bulb. This is espe-cially true if you have to remove the headlight assembly to get tothe bulb(s).
Removing/installing the head-light assembly can result indamage to the vehicle.

885
Maintenance
Front light replacement (1) Headlight (High) (2) Static bending light
(3) Headlight (Low)
(4) Position light/Daytime runninglight (DRL, LED Type) (if equipped)
(5) Front turn signal light
(6) Front fog light (if equipped) 1. Turn off the engine and open the
bonnet.
2. Disconnect the power connector front the back of the headlight
assembly.Static bending light
Follow the steps 1 to 2 from the pre-
vious chapter.
3. Remove the headlight bulb coverby turning it counterclockwise.
4. Disconnect the headlight bulb socket-connector.
5. Unsnap the headlight bulb retain- ing wire by depressing the end
and pushing it upward.
6. Remove the bulb from the head- light assembly.
ORP072057ORP076026L
