Driving your vehicle
70
6
The speed limit indicator light will illu-
minate. 2.Move the lever down (to SET-).
3.Move the lever up (to RES+) or
down (to SET-), and release it at
the desired speed. Move the lever
up (to RES+) or down (to SET-)
and hold it. The speed will increase
or decrease by 5 km/h (3 mph).
Move the lever up (to RES+) or
down (SET-) and release it immedi-
ately. The speed will increase or
decrease by 1 km/h.
The set speed limit will display on
the instrument cluster. The set speed limit will be displayed.
ORP056040LORP046341LORP046340L

671
Driving your vehicle
To drive over the preset speed limit
you must depress hard on the accel-
erator pedal (more than approxi-
mately 80%) until the kick down
mechanism works with a clicking
noise. Then the set speed limit will
blink and chime will sound until you
return the vehicle speed within thespeed limit.
✽✽NOTICE
 Depressing the accelerator pedal less than approximately 50%, the
vehicle will not speed over the pre-
set speed limit but maintain the
vehicle speed within the speed
limit.
 A clicking noise heard from the kick down mechanism by depress-
ing the accelerator pedal fully is a
normal condition.
To turn off the speed limit con-
trol, do one of the following:
Press the speed limit switchonce again.
Press the cruise switch (If you press cruise switch, the cruise sys-
tem will turn on).
Turn the ignition off.
If you press the CANCEL switch
once, the set speed limit will cancel,
but it will not turn the system off. If
you wish to reset the speed limit,
move the lever up (to RES+) or down
(to SET-) to the desired speed.
CAUTION
The “---” indicator will blink if there is a problem with speedlimit control system.
If this occurs, have the systemchecked by a professional work- shop.
Kia recommends to visit anauthorised Kia dealer/servicepartner.ORP056041L
ORP046340L

Driving your vehicle
72
6
The system displays the information
of speed limit and no passing restric-
tion to the driver in both the instru-
ment cluster and navigation screen.
SLIF detects traffic signs with cam-
era system attached on the top of thewindscreen.
The SLIF also utilizes the navigation
information to display the speed limit
information. SPEED LIMIT INFORMATION FUNCTION (SLIF) (IF EQUIPPED)
WARNING
Speed Limit Information Function is only an aid and is
not always able to correctly
display speed limits and over-taking restrictions.
The driver always keeps the responsibility not to exceed
the maximum allowed speed
Do not place any accessories, stickers or tint the windscreen
near the rearview mirror.
The system detects traffic signs and displays speed limit
information by a camera
therefore, if traffic signs are
hard to detect, the system
may not work properly.
Please refer to "Driver's Attention".
Do not remove any LKAS parts or apply impact.
(Continued)(Continued)
Do not place objects on thedashboard that reflects light
such as mirrors, white paper,
etc. The system may malfunc-tion if the sunlight is reflected.
The system is not available in all countries.
ORP052042

673
Driving your vehicle
SLIF activation / deactivation
SLIF Setting method :Cluster User Settings Driving
Assist SLIF (Speed Limit
Information Function)
The information of speed limit and no passing restriction will appear
on the cluster using a symbol if you
have activated SLIF in User
Settings of cluster.
If SLIF is activated in navigation setting, the information also dis-
played in navigation screen. Operation
If a traffic sign that is relevant to
your vehicle is passed, the system
displays the information of thespeed limits and no passing
restrictions to the driver.
When the driver turn on the igni- tion, the system displays stored
information of the speed limit
before turn off the ignition. Sometimes different speed limits
are displayed for the same road.
The information displayed depend-
ing on the situation. Because, traf-
fic signs with additional sign (e.g
rainy, arrow...) are also detected
and compared with vehicle interior
data(e.g wiper operation, turn sig-nal...).
The system can update the speed limit information without visible
speed limit signs in the following
situations.
- When you change your drivingdirection with right or left or U
turning.
- When vehicle changes roads. (e.g. from highway to countryroad…)
- When you enter or exit into town or village.
ORP046370L

Driving your vehicle
74
6
✽✽
NOTICE
If speed limit value has the differ-
ence between cluster and navigation,
check the speed unit setting in navi-
gation.Display
If the system doesn’t have a reli- able speed limit information, the
following symbol is displayed in
both the instrument cluster and
navigation screen. If the system detect no passing
sign, no passing is displayed in
both the instrument cluster and
navigation screen.
WUM-203
■
No reliable speed limit information
WUM-206/WUM-204
■
No passing information

675
Driving your vehicle
After passing "end of speed limita-tion“ sign SLIF provides informa-
tion from navigation to inform driv-
er of perhaps afterwards applica-
ble speed limit. For some areas on highways in
germany there's no speed limit
applicable. In that case SLIF
shows "end of limitation" traffic
sign as long as you don't passanother speed limit sign.
Warning message
The message will appear when cam-
era’s field of view is covered by some
objects. The system stops until the
field of view is normal.
Check the windscreen around the
camera view area.
If the system does not work normally
even though camera’s field of view is
cleared, have the system checked by
a professional workshop. Kia recom-
mends to visit an authorised Kia
dealer/service partner.
OJF055233L
WUM-205
■
Unlimited speed (only in Germany)WUM-207/WUM-208
■
End of a speed limit

Driving your vehicle
76
6
When SLIF is not working properly,
the warning message will come on
for a few second. After the message
disappears, the master warning light
will illuminate.
In this case, have the system
checked by a professional workshop. Kia recommends to visit an autho-
rised Kia dealer/service partner. The system may not fully operate
and provide correct information in
the following situations.
Traffic signs are positioned on
sharp curve.
Poorly positioned traffic sign. (eg. Rotated, shaded by any object, damaged…)
Concealed traffic signs by other vehicle.
Broken LED traffic signs.
Poor weather like snow, rain, fog
Reflected glare around and/or on the traffic sign.
There is insufficient illumination of the traffic signs in the night.
There is bright lights around traffic signs.
There is dirt, ice or frost on the windscreen in the area of the cam-
era. When camera field of view is cov-
ered by objects such as a sticker,
paper, leaf fall.
When driving very close to the vehicle in front of you.
When navigation system has mal- function.
When bus or trucks attached with a speed sticker are passing you.
When you are at a certain location not covered by the navigation sys-tem.
When the navigation system is not updated to the latest map version.
OJF055234L

677
Driving your vehicle

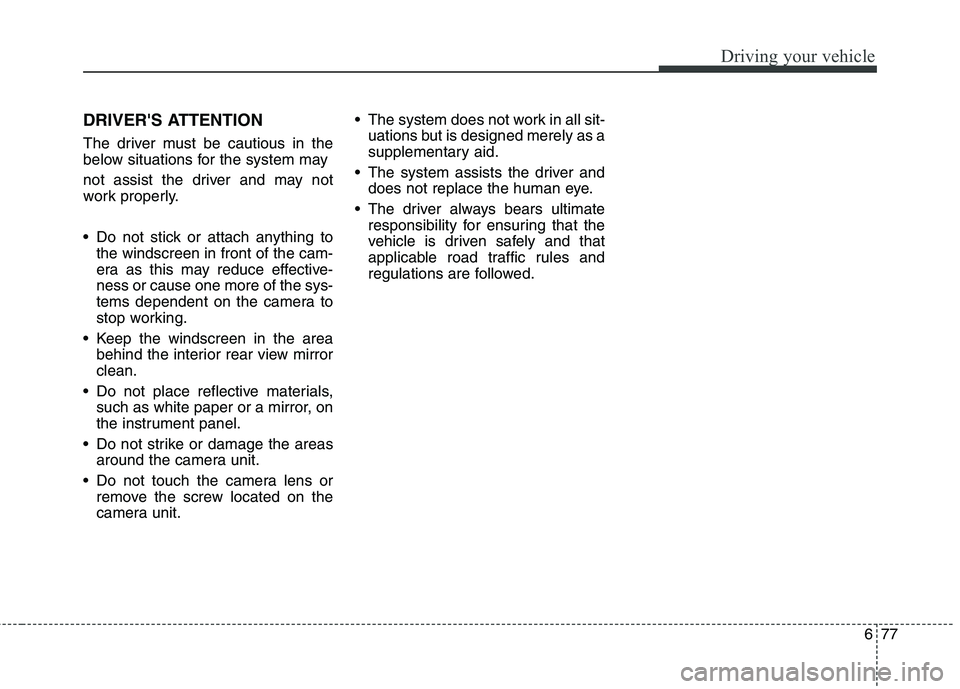

DRIVER'S ATTENTION
The driver must be cautious in the
below situations for the system may
not assist the driver and may not
work properly.
Do not stick or attach anything tothe windscreen in front of the cam-
era as this may reduce effective-ness or cause one more of the sys-
tems dependent on the camera to
stop working.
Keep the windscreen in the area behind the interior rear view mirrorclean.
Do not place reflective materials, such as white paper or a mirror, on
the instrument panel.
Do not strike or damage the areas around the camera unit.
Do not touch the camera lens or remove the screw located on the
camera unit. The system does not work in all sit-
uations but is designed merely as a
supplementary aid.
The system assists the driver and does not replace the human eye.
The driver always bears ultimate responsibility for ensuring that the
vehicle is driven safely and that
applicable road traffic rules and
regulations are followed.
