5. Remove any dust on the charging
connector and charging inlet.
6. Hold the charging connector han- dle. Then, insert it into the charg-
ing inlet, until you hear a click
sound. If it is not fully connected, a
bad connection between the
charging connector and the charg-
ing terminals may cause a fire. 7. Check if the charging cable con-
nection indicator of the high volt-
age battery in the instrument clus-
ter is turned ON.
Charging does not occur when the
indicator is OFF. When the charg-
ing connector is not connected
properly, reconnect the charging
cable to charge.
Information
• The charging is in progress only with the shift lever is in P (Park).
Charging the battery with the
Engine Start/Stop button in the
ACC position is possible. However,
it may discharge the 12-V battery.
Thus, if possible, charge the battery
with the Engine Start/Stop button in
the OFF position.
• Moving the shift lever from P (Park) to R (Reverse)/N(Neutral)/D (Drive)
stops the charging process.
To restart the charging process,
move the shift lever to P (Park),
press the Engine Start/Stop button
to the OFF position, and disconnect
the charging cable. Then, connect
the charging cable.
i
OLFP0Q5015KOLFP046575N

H11

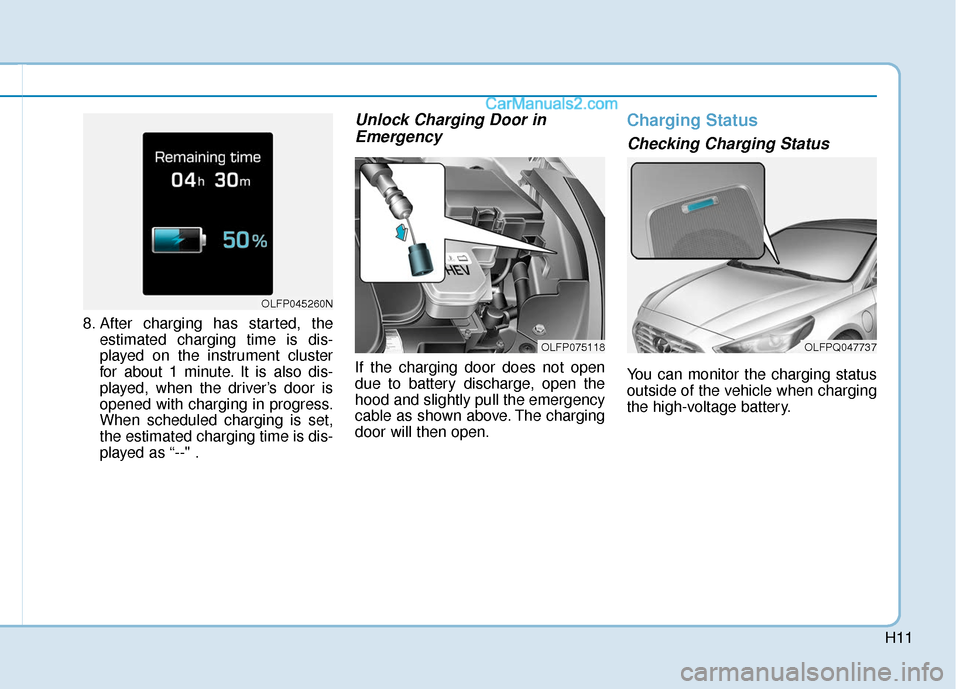

8. After charging has started, theestimated charging time is dis-
played on the instrument cluster
for about 1 minute. It is also dis-
played, when the driver’s door is
opened with charging in progress.
When scheduled charging is set,
the estimated charging time is dis-
played as “--" .
Unlock Charging Door inEmergency
If the charging door does not open
due to battery discharge, open the
hood and slightly pull the emergency
cable as shown above. The charging
door will then open.
Charging Status
Checking Charging Status
You can monitor the charging status
outside of the vehicle when charging
the high-voltage battery.
OLFP075118
OLFP045260N
OLFPQ047737

H12
C
CH
H A
AR
RG
G I
IN
N G
G
T
T H
H E
E
P
P L
LU
U G
G-
-I
IN
N
H
H Y
Y B
BR
RI
ID
D
V
V E
EH
H I
IC
C L
LE
E
(
( C
C O
O N
NT
T.
.)
)

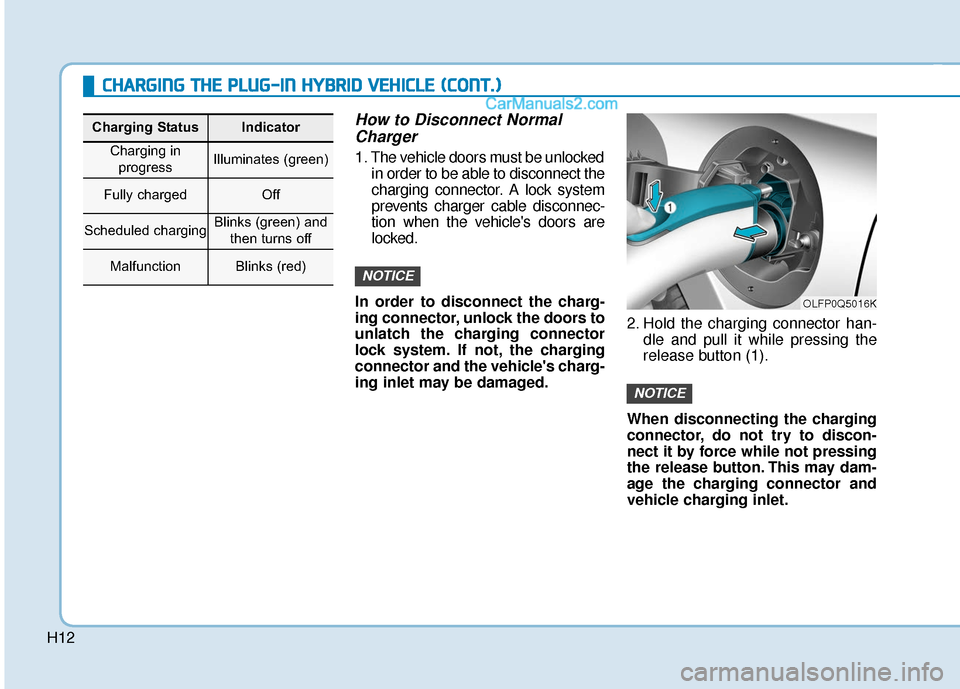

How to Disconnect Normal
Charger
1. The vehicle doors must be unlocked
in order to be able to disconnect the
charging connector. A lock system
prevents charger cable disconnec-
tion when the vehicle's doors are
locked.
In order to disconnect the charg-
ing connector, unlock the doors to
unlatch the charging connector
lock system. If not, the charging
connector and the vehicle's charg-
ing inlet may be damaged. 2. Hold the charging connector han-
dle and pull it while pressing the
release button (1).
When disconnecting the charging
connector, do not try to discon-
nect it by force while not pressing
the release button. This may dam-
age the charging connector and
vehicle charging inlet.
NOTICE
NOTICE
OLFP0Q5016K
Charging StatusIndicator
Charging in progressIlluminates (green)
Fully chargedOff
Scheduled chargingBlinks (green) and then turns off
MalfunctionBlinks (red)

H13
3. Make sure to securely close thecharging inlet cover.
4. Make sure to securely close the charging door. Do not modify or disassemble
the charging cable components.
It may cause a fire or an electric
shock with personal injury.
Keep the charging connector and the charging plug clean and
dry. The charging cable should
be also kept dry.
Use an air gun to blow any for- eign substances from the charg-
ing connector and the charging
plug.
Trickle Charger (Stage-1 type)
Trickle charger Stage-1 type can be
used if Normal Charger stage-2 type
is unavailable.
NOTICE
OLFP0Q5019K
Charging Connector
Charging Cable
Control Box
Cord and Plug
(cord set)
OLFP0Q5017K

H14
C
CH
H A
AR
RG
G I
IN
N G
G
T
T H
H E
E
P
P L
LU
U G
G-
-I
IN
N
H
H Y
Y B
BR
RI
ID
D
V
V E
EH
H I
IC
C L
LE
E
(
( C
C O
O N
NT
T.
.)
)

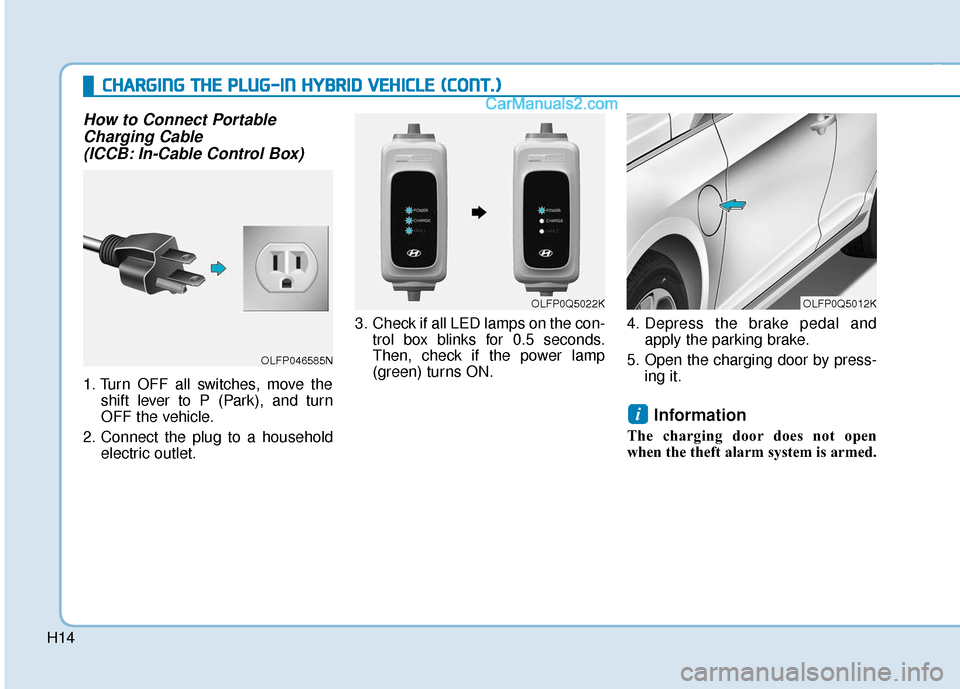

How to Connect Portable
Charging Cable (ICCB: In-Cable Control Box)
1. Turn OFF all switches, move the
shift lever to P (Park), and turn
OFF the vehicle.
2. Connect the plug to a household electric outlet. 3. Check if all LED lamps on the con-
trol box blinks for 0.5 seconds.
Then, check if the power lamp
(green) turns ON. 4. Depress the brake pedal and
apply the parking brake.
5. Open the charging door by press- ing it.
Information
The charging door does not open
when the theft alarm system is armed.
i
OLFP0Q5022KOLFP0Q5012K
OLFP046585N

H15

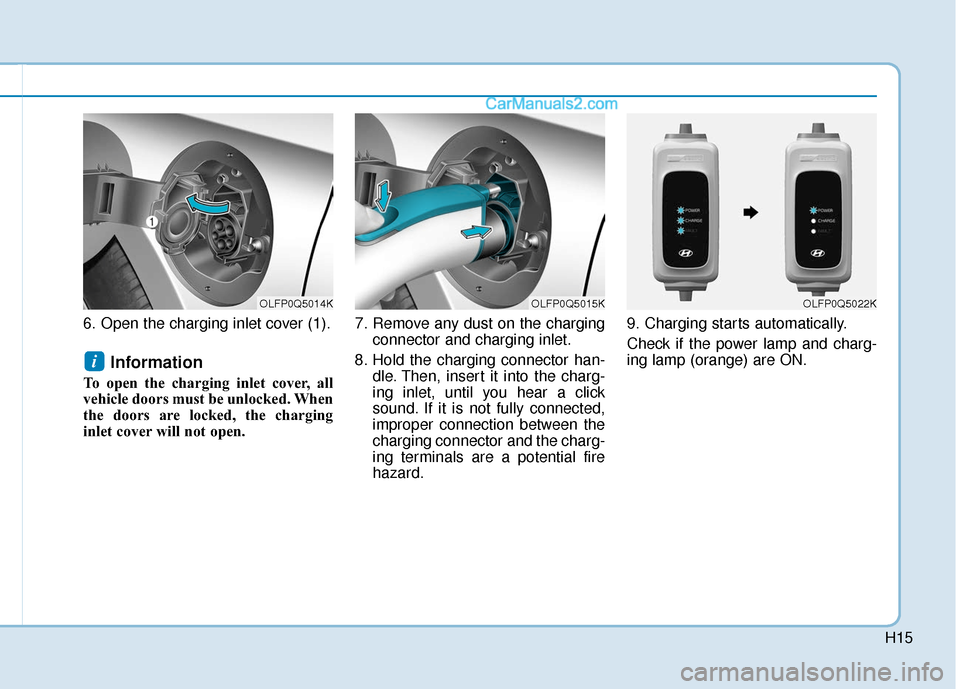

6. Open the charging inlet cover (1).
Information
To open the charging inlet cover, all
vehicle doors must be unlocked. When
the doors are locked, the charging
inlet cover will not open. 7. Remove any dust on the charging
connector and charging inlet.
8. Hold the charging connector han- dle. Then, insert it into the charg-
ing inlet, until you hear a click
sound. If it is not fully connected,
improper connection between the
charging connector and the charg-
ing terminals are a potential fire
hazard. 9. Charging starts automatically.
Check if the power lamp and charg-
ing lamp (orange) are ON.
i
OLFP0Q5015KOLFP0Q5022KOLFP0Q5014K

H16
C
CH
H A
AR
RG
G I
IN
N G
G
T
T H
H E
E
P
P L
LU
U G
G-
-I
IN
N
H
H Y
Y B
BR
RI
ID
D
V
V E
EH
H I
IC
C L
LE
E
(
( C
C O
O N
NT
T.
.)
)
10. Check if the charging cable con-
nection indicator of the high volt-
age battery in the instrument
cluster is turned ON.
Charging does not occur when
the indicator is OFF. When the
charging connector is not con-
nected properly, reconnect the
charging cable to charge.
Information
• The charging is in progress only with the shift lever is in P (Park).
Charging the battery with the
Engine Start/Stop button in the
ACC position is possible. However,
it may discharge the 12-V battery.
Thus, if possible, charge the battery
with the Engine Start/Stop button in
the OFF position.
• Moving the shift lever from P (Park) to R (Reverse)/N(Neutral)/D (Drive)
stops the charging process.
To restart the charging process,
move the shift lever to P (Park),
press the Engine Start/Stop button
to the OFF position, and disconnect
the charging cable. Then, connect
the charging cable and restart the
vehicle again. 11. After charging has started, the
estimated charging time is dis-
played on the instrument cluster
for about 1 minute. It is also dis-
played, when the driver’s door is
opened with charging in progress.
When scheduled charging is set,
the estimated charging time is dis-
played as "--".
i
OLFP045260NOLFP046575N

H17

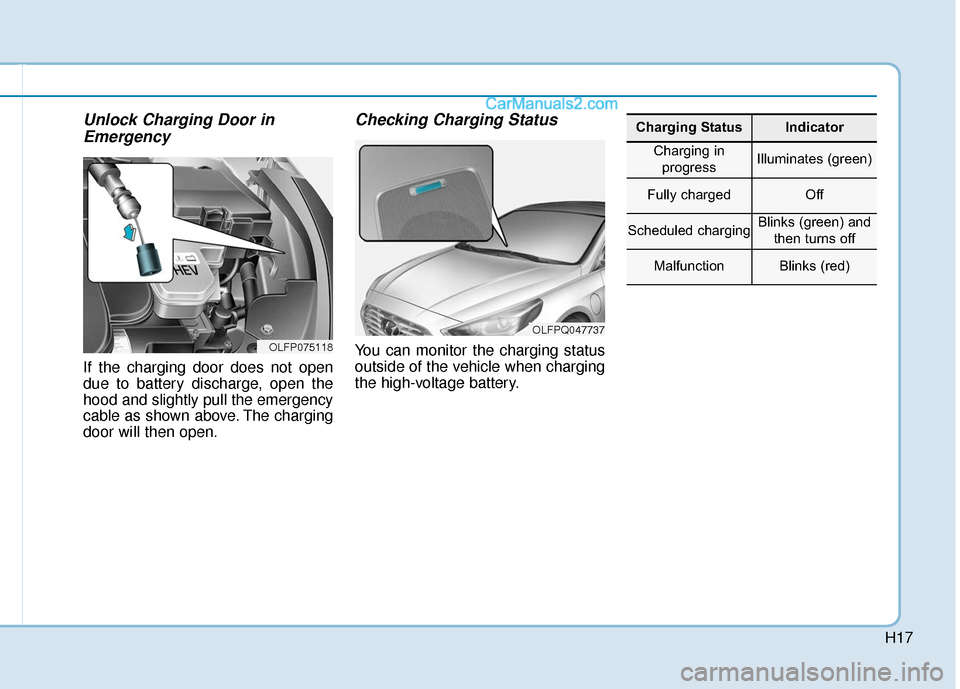

Unlock Charging Door inEmergency
If the charging door does not open
due to battery discharge, open the
hood and slightly pull the emergency
cable as shown above. The charging
door will then open.
Checking Charging Status
You can monitor the charging status
outside of the vehicle when charging
the high-voltage battery.OLFP075118
OLFPQ047737
Charging StatusIndicator
Charging in
progressIlluminates (green)
Fully chargedOff
Scheduled chargingBlinks (green) and then turns off
MalfunctionBlinks (red)
