2018 Hyundai Sonata Plug-in Hybrid Owner's Manual

7-54
Maintenance
Fuse/relay panel description
Instrument panel fuse (Hybrid)
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
i
OLFH077131N
OLF074027

7-55
7
Maintenance
Fuse NameFuse ratingCircuit Protected
SAFETY POWERWINDOW LH 25ADriver Safety Power Window Module
P/SEATPASS 30APassenger Seat Manual Switch
P/WDW LH 20APower Window Main Switch, Rear Power Window Module LH
P/WDW RH 25APower Window Main Switch, Rear Power Window Module RH,
Passenger Door Module, Passenger Power Window Switch
DR LOCK 20ADoor Lock Relay, Door Unlock Relay
S/HEATER FRT25AFront Air Ventilation Seat Module, Front Seat Warmer Module
BRAKE
SWITCH 10AStop Lamp Switch, Smart Key Control Module
MODULE 8 7.5ABCM, Smart Key Control Module
SAFETY POWER WINDOW RH 25APassenger Safety Power Window Module
BATTERY
MANAGEMENT10ABMS Control Module
SMART KEY15ASmart Key Control Module
TRUNK 10ATrunk Lid Relay, Fuel Filler Door & Trunk Lid Switch
Driver's side fuse panel

Maintenance
Fuse NameFuse ratingCircuit Protected
MODULE 7 10ADriver/Passenger Door Module, Electric Parking Brake Module, AMP, Digital Clock, Blind Spot
Detection Rader LH/RH, Rear Parking Assist Sensor LH/RH/(Center),
Rear Parking Assist Sensor LH/RH
INTERIOR LAMP10AGlove Box Lamp, Driver/Passenger Door Lamp, Front Vanity Lamp Switch LH/RH,
Overhead Console Lamp, Room Lamp, Rear Personal Lamp LH/RH, Trunk Room Lamp
MEMORY 27.5AElectro Chromic Mirror
P/SEATDRV 30ADriver Seat Manual Switch, Driver IMS Module
CURTAIN 10ARear Curtain Module
CLUSTER 10AInstrument Cluster
MODULE 4 10ASmart Key Control Module
MULTI
MEDIA15AAudio, A/V & Navigation Head Unit
MEMORY 1 10A
Driver/passenger Door Module, Instrument Cluster, Digital Clock,
Driver IMS Module, Auto Light & Photo Sensor, A/C Control Module,
Rear Curtain Module, Data Link Connector, BCM,
Tire Pressure Monitoring Module, Wireless Charger
S/HEATER RR 25ARear Seat Warmer Module
SUN ROOF 2 20APanorama Sunroof Motor
Driver's side fuse panel
7-56

7-57
7
Maintenance
Fuse NameFuse ratingCircuit Protected
MODULE 9 7.5AFront Air Ventilation Seat Module, Front Seat Warmer Module,
Rear Seat Warmer Module, Rear Curtain Module
MDPS 7.5AMDPS Unit
MODULE 3 10ABCM, Sport Mode Switch, Stop Lamp Switch, Head Lamp LH/RH,
DBL Control Module
MODULE 1 7.5ANatural Vacuum Leak Detection, Driver/Passenger Door Module, Driver/Passenger Sma\
rt Key Outside
Handle, IGPM (Gateway), Driver/Passenger Power Outside Mirror, Active Air Flap Unit
SUN ROOF 1 20APanorama Sunroof Motor
A/CON 7.5AA/C Control Module, E/R Junction Block (Blower Relay),
Electric A/C Compressor
MODULE 2 10AAMP, Power Outside Mirror Switch, Digital Clock, Audio, A/V & Navigation Head Unit,
Smart Key Control Module, BCM, Wireless Charger, USB Charge
E/R Junction Block (Power Outlet Relay)
A/BAG IND 7.5AInstrument Cluster
MODULE 610A
Multipurpose Check Connector, A/C Control Module, Audio, A/V & Navigation Head Unit, Electro
Chromic Mirror, VESS Unit, Front Air Ventilation Seat Module,
Front Seat Warmer Module, Rear Seat Warmer Module, Head Lamp LH/RH, A/T Shift Lever IND,
Auto Head Lamp Leveling Device Module, E/R Junction Block (Battery C/Fa\
n Relay)
AMP25AAMP (JBL or INFINITY/ESTECH/DIMENSION)
HTD STRG 15ABCM
Driver's side fuse panel

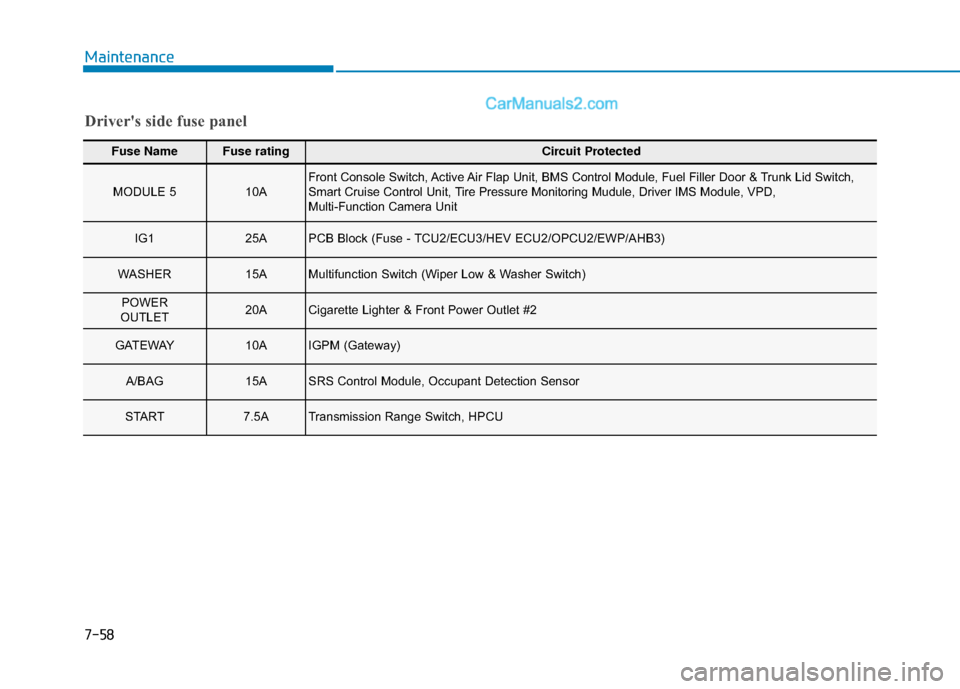

7-58
Maintenance
Fuse NameFuse ratingCircuit Protected
MODULE 510AFront Console Switch, Active Air Flap Unit, BMS Control Module, Fuel Filler Door & Trunk Lid Switch,
Smart Cruise Control Unit, Tire Pressure Monitoring Mudule, Driver IMS Module, VPD,
Multi-Function Camera Unit
IG1 25APCB Block (Fuse - TCU2/ECU3/HEV ECU2/OPCU2/EWP/AHB3)
WASHER 15AMultifunction Switch (Wiper Low & Washer Switch)
POWER
OUTLET20ACigarette Lighter & Front Power Outlet #2
GATEWAY10AIGPM (Gateway)
A/BAG 15ASRS Control Module, Occupant Detection Sensor
START7.5ATransmission Range Switch, HPCU
Driver's side fuse panel

7-59
7
Maintenance
Instrument panel fuse (Plug-in hybrid)
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse box on your vehicle, refer to
the fuse box label.
i
OLF074027
OLFP077120N

7-60
Maintenance
Engine compartment fuse panel(Hybrid)
Inside the fuse/relay box cover, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle; the information is accurate at
the time of printing. When you inspect
the fuse panel in your vehicle, refer to
the fuse panel label.
i
OLFH077132N
OLFH074016

7-61
7
Maintenance
Engine compartment main fuse panel
Fuse No.Fuse NameFuse RatingCircuit Protected
MULTI FUSE(TYPE A)
IG230APCB Block (IG2 Relay)
BLOWER40ABlower Relay
2AHB40AIntegrated Brake Actuation Unit, Multipurpose Check Connector
1AHB40AIntegrated Brake Actuation Unit, Multipurpose Check Connector
REAR HEATED50ARear Heated Relay
3B+50AIGPM (IPS2 (4CH), IPS3 (4CH), Fuse - STOP LAMP/MODULE 1)
5B+50APCM Block
(Fuse - WIPER1/HORN/BATTERY C/FAN/AMS/TCU1/ECU2/Engine Control Relay)
EEWP60AElectric Water Pump
MDPS 180AMDPS Unit
MULTI FUSE(TYPE B)
IG140APCB Block (IG1Relay)
3POWER
OUTLET40APower Outlet Relay
