2018 Hyundai Sonata Plug-in Hybrid Owner's Manual

2-8
Seat belts must be snug against your
hips and chest to work properly.
When the backseat is reclined, the
shoulder belt is not as effective
because it will not be snug against
your chest. Instead, it will be in front
of you. During an accident, you could
be thrown into the seat belt, causing
neck or other injuries.
The more the backseat is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or
the passenger’s neck will strike the
shoulder belt.
Seat cushion height
To change the height of the seat
cushion:
Push down on the lever severaltimes, to lower the seat cushion.
Pull up on the lever several times, to raise the seat cushion.
Power adjustment
The front seat can be adjusted by
using the control switches located on
the outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily control
the steering wheel, foot pedals and
controls on the instrument panel.
Safety system of your vehicle
OLF034004NNEVER allow children in the
vehicle unattended. The power
seats are operable when the
engine is turned off.
WARNING

2-9
Safety system of your vehicle
2
To prevent damage to the seats:
Always stop adjusting the seatswhen the seat has been adjust-
ed as far forward or rearward as
possible.
Do not adjust the seats longer than necessary when the engine
is turned off. This may result in
unnecessary battery drain.
Do not operate two or more seats at the same time. This may
result in an electrical malfunc-
tion.
Forward and rearward adjustment
To move the seat forward or rearward:
1. Push the control switch forward or rearward.
2. Release the switch once the seat reaches the desired position.
Backseat angle
To recline the backseat:
1. Push the control switch forward orrearward.
2. Release the switch once the back- seat reaches the desired position.
NOTICE
OLF034005NOLF034006N

2-10
Reclining backseat
Sitting in a reclined position when
the vehicle is in motion can be dan-
gerous. Even when buckled up, the
protections of your restraint system
(seat belts and air bags) is greatly
reduced by reclining your backseat.Seat belts must be snug against your
hips and chest to work properly.
When the backseat is reclined, the
shoulder belt cannot do its job
because it will not be snug against
your chest. Instead, it will be in front
of you. During an accident, you could
be thrown into the seat belt, causing
neck or other injuries.
The more the backseat is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or
the passenger’s neck will strike the
shoulder belt.
Seat cushion height
To change the height of the seat
cushion:
1. Pull the front portion of the control
switch up to raise or push down to
lower the front part of the seat
cushion. Pull the rear portion of the
control switch up to raise or push
down to lower the seat cushion.
2. Release the switch once the seat reaches the desired position.
Safety system of your vehicle
NEVER ride with a reclined back-
seat when the vehicle is moving.
Riding with a reclined backseat
increases your chance of serious
or fatal injuries in the event of a
collision or sudden stop.
Driver and passengers should
ALWAYS sit well back in their
seats, properly belted, and with
the backseats upright.
WARNING
OLF034007N

2-11
Safety system of your vehicle
2

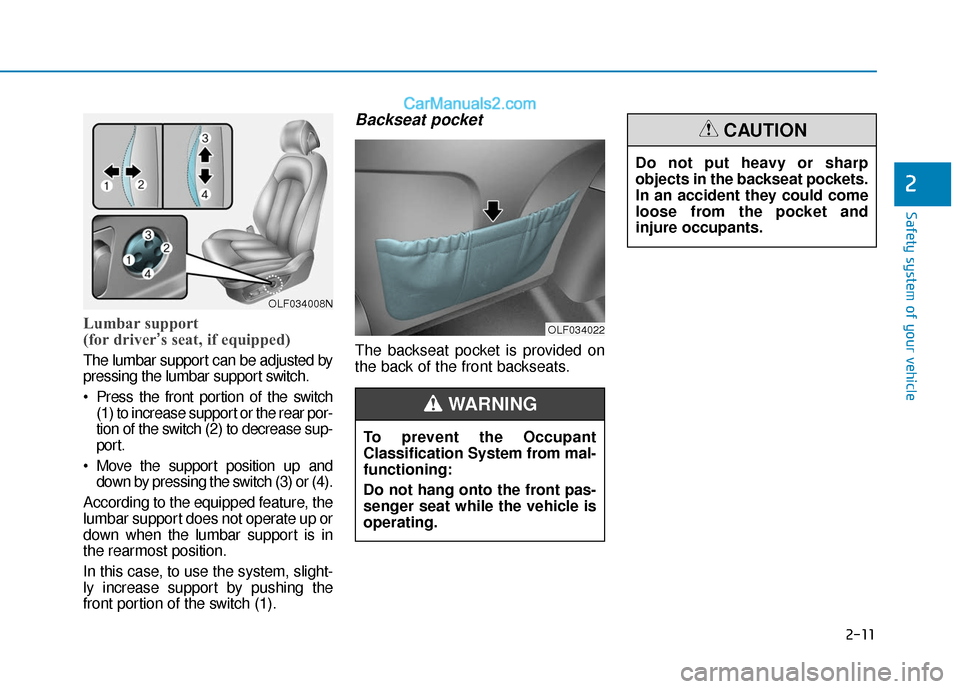

Lumbar support
(for driver’s seat, if equipped)
The lumbar support can be adjusted by
pressing the lumbar support switch.
Press the front portion of the switch
(1) to increase support or the rear por-
tion of the switch (2) to decrease sup-
port.
Move the support position up and down by pressing the switch (3) or (4).
According to the equipped feature, the
lumbar support does not operate up or
down when the lumbar support is in
the rearmost position.
In this case, to use the system, slight-
ly increase support by pushing the
front portion of the switch (1).
Backseat pocket
The backseat pocket is provided on
the back of the front backseats.
OLF034008N
OLF034022
To prevent the Occupant
Classification System from mal-
functioning:
Do not hang onto the front pas-
senger seat while the vehicle is
operating.
WARNING
Do not put heavy or sharp
objects in the backseat pockets.
In an accident they could come
loose from the pocket and
injure occupants.
CAUTION

2-12
Safety system of your vehicle
Rear Seats
Folding the rear seat (if equipped)
The rear backseats can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.To fold down the rear backseat:
1. Set the front backseat to theupright position and if necessary,
slide the front seat forward.
2. Lower the rear head restraints to the lowest position.
Never allow passengers to sit
on top of the folded down
backseat while the vehicle is
moving. This is not a proper
seating position and no seat
belts are available for use.
This could result in serious
injury or death in case of an
accident or sudden stop.
Objects carried on the folded
down backseat should not
extend higher than the top of
the front backseats. This
could allow cargo to slide for-
ward and cause injury or dam-
age during sudden stops.
(Continued)
WARNING
(Continued)

Do not put objects in the cen-
ter lower part of rear seats.
This could block the battery
cooling duct causing battery
degradation.
Do not put objects on the left
side of rear seat. This could
block the battery cooling duct
causing battery degradation.OLF034025OLFHQ014006K
■Hybrid
OLP035100
■Plug-in hybrid

2-13
Safety system of your vehicle
3. Pull on the backseat folding lever(1) located in the trunk. 4. Fold the backseat toward the front
of the vehicle.
5. To use the rear seat, lift and pull the backseat rearward. Pull the
backseat firmly until it clicks into
place. Make sure the backseat is
locked in place.
When you return the backseat to its upright position, always be sure
it has locked into position by push-
ing on the top of the backseat.
2
OLF034024OLF034027
When returning the rear back-
seat from a folded to an upright
position, hold the backseat and
return it slowly. Ensure that the
backseat is completely locked
into its upright position by
pushing on the top of the back-
seat. In an accident or sudden
stop, the unlocked backseat-
could allow cargo to move for-
ward with great force and enter
the passenger compartment,
which could result in serious
injury or death.
WARNING
Do not place objects in the rear
seats, since they cannot be
properly secured and may hit
vehicle occupants in a collision
causing serious injury or death.
WARNING

2-14
Safety system of your vehicle
Armrest
The armrest is located in the center
of the rear seat. Pull the armrest
down from the backseat to use it.
Cup holder
To use the center cup holder, pull
down the armrest.
Make sure the engine is off, the
shift lever is in P (Park), and the
parking brake is securely applied
whenever loading or unloading
cargo. Failure to take these steps
may allow the vehicle to move if
the shift lever is inadvertently
moved to another position.
WARNING
OLF034065
OLF044266

2-15
Safety system of your vehicle
Carrying long/narrow cargo (if equipped)
Additional cargo space is provided to
accommodate long/narrow cargo
(skis, poles, etc.) not able to fit prop-
erly in the trunk when closed.
1. Pull the armrest down.
2. Pull the cover down while pushing
the release lever down.
2
Cargo should always be
secured to prevent it from being
thrown about the vehicle in a
collision and causing injury to
the vehicle occupants. Do not
place objects in the rear seats,
since they cannot be properly
secured and may hit the front
seat occupants in a collision.
WARNING
Be careful when loading
cargo through the rear pas-
senger seats to prevent dam-
age to the vehicle interior.
When cargo is loaded through
the rear passenger seats,
ensure the cargo is properly
secured to prevent it from
moving while driving.
CAUTION
OLF034066
Cargo loading
Make sure the engine is off, the
automatic transmission is in P
(Park) and the parking brake is
securely applied whenever load-
ing or unloading cargo.
Failure to take these steps may
allow the vehicle to move if the
shift lever is inadvertently moved
to another position.
WARNING
