Maintenance
4. With the headlamp and battery innormal condition, aim the head-
lamps so the brightest portion falls
on the horizontal and vertical
lines.
5. To aim the low beam left or right, turn the driver clockwise or coun-
terclockwise. To aim the low beam
up or down, turn the driver clock-
wise or counterclockwise.
To aim the high beam up or down,turn the driver clockwise or coun-
terclockwise.Front fog lamp aiming
The front fog lamp can be aimed asthe same manner of the headlamps
aiming. With the front fog lamps and
battery in normal condition, aim the
front fog lamps. To aim the front fog
lamp up or down, turn the driver
clockwise or counterclockwise.
OOS077062L

7-70
Maintenance

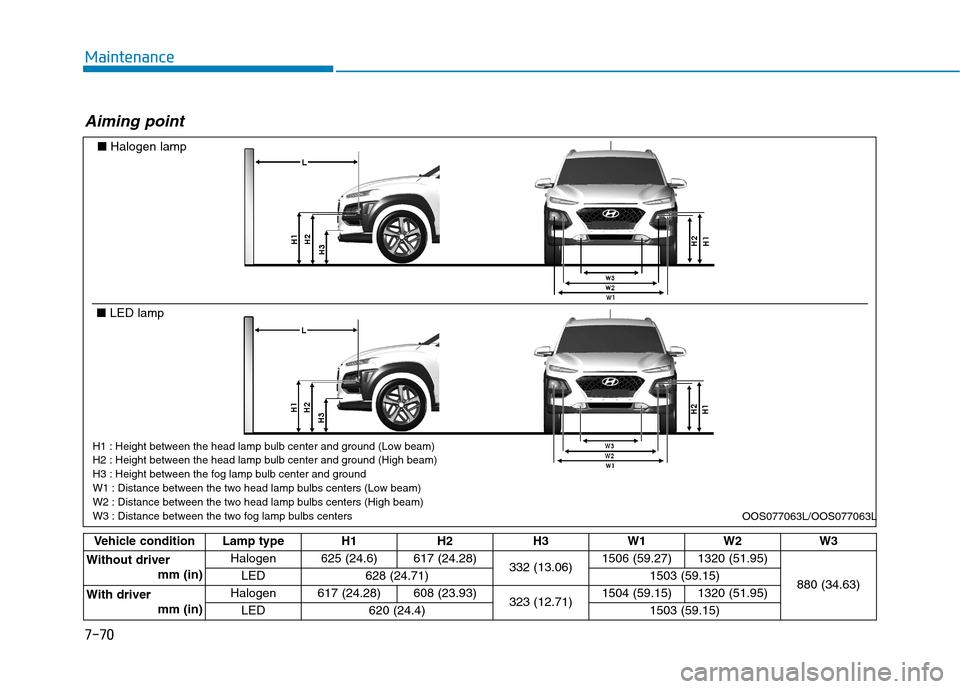

Aiming point
Vehicle condition Lamp type H1 H2 H3 W1 W2 W3
Without driver mm (in) Halogen 625 (24.6) 617 (24.28)
332 (13.06)1506 (59.27) 1320 (51.95)
880 (34.63)
LED 628 (24.71)
1503 (59.15)
With driver mm (in) Halogen 617 (24.28) 608 (23.93)
323 (12.71)1504 (59.15) 1320 (51.95)
LED 620 (24.4) 1503 (59.15)
■Halogen lamp
■ LED lamp
OOS077063L/OOS077063L
H1 : Height between the head lamp bulb center and ground (Low beam) H2 : Height between the head lamp bulb center and ground (High beam)H3 : Height between the fog lamp bulb center and groundW1 : Distance between the two head lamp bulbs centers (Low beam)W2 : Distance between the two head lamp bulbs centers (High beam)W3 : Distance between the two fog lamp bulbs centers

7-71
7
Maintenance
Headlamp low beam (LHD side)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If headlamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
OOS077065L
■
Based on 10m screen
1 : Vertical line of the left fog lamp bulb center
2 : Horizontal line of fog lamp bulb center
3 : Cut-off line
4 : Car axis
5 : W3 (Front fog)
6 : Vertical line of the right fog lamp bulb center
7 : H3 (Front fog)
8 : GROUND

7-72
Maintenance
Headlamp low beam (RHD side)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If headlamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
:&DUD[LV
9HUWLFDOOLQHRIOHIW KHDGODPSEXOEFHQWHU
&XWRIIOLQH
9HUWLFDOOLQHRIULJKW KHDGODPSEXOEFHQWHU +RUL]RQWDOOLQHRIKHDGODPSEXOEFHQWHU
*5281'
+
/RZEHDP
/RZEHDP

OPDE076083
■
Based on 10m screen

7-73
7
Maintenance

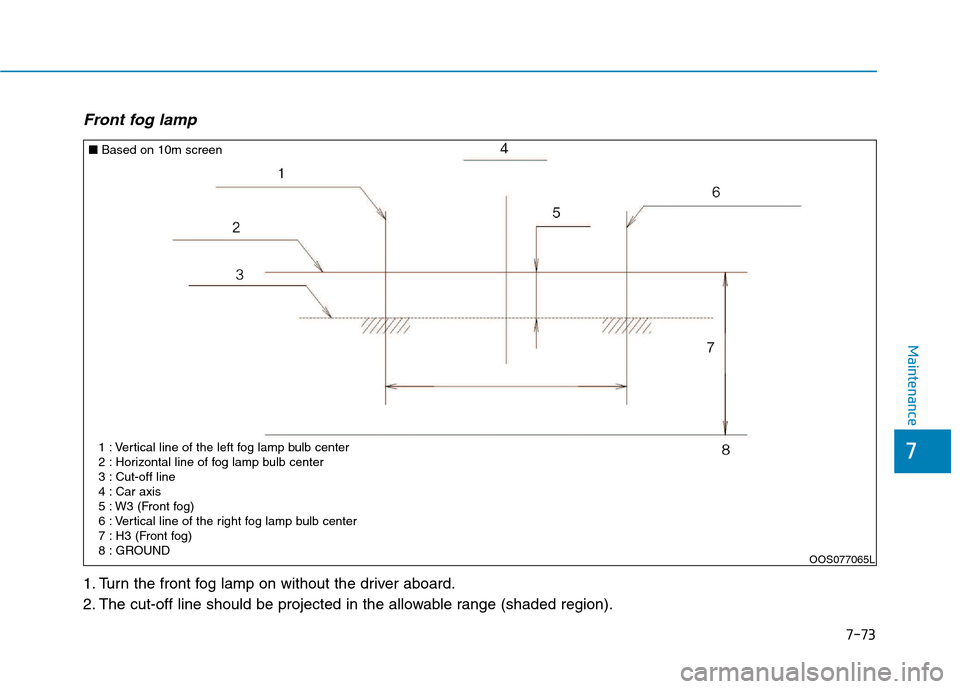

Front fog lamp
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded region).
OOS077065L
■
Based on 10m screen
1 : Vertical line of the left fog lamp bulb center
2 : Horizontal line of fog lamp bulb center
3 : Cut-off line
4 : Car axis
5 : W3 (Front fog)
6 : Vertical line of the right fog lamp bulb center
7 : H3 (Front fog)
8 : GROUND

7-74
Maintenance
Side repeater lamp replace- ment
If the light bulb does not operate, we
recommend that you have the vehicle
checked by an authorized HYUNDAI
dealer.

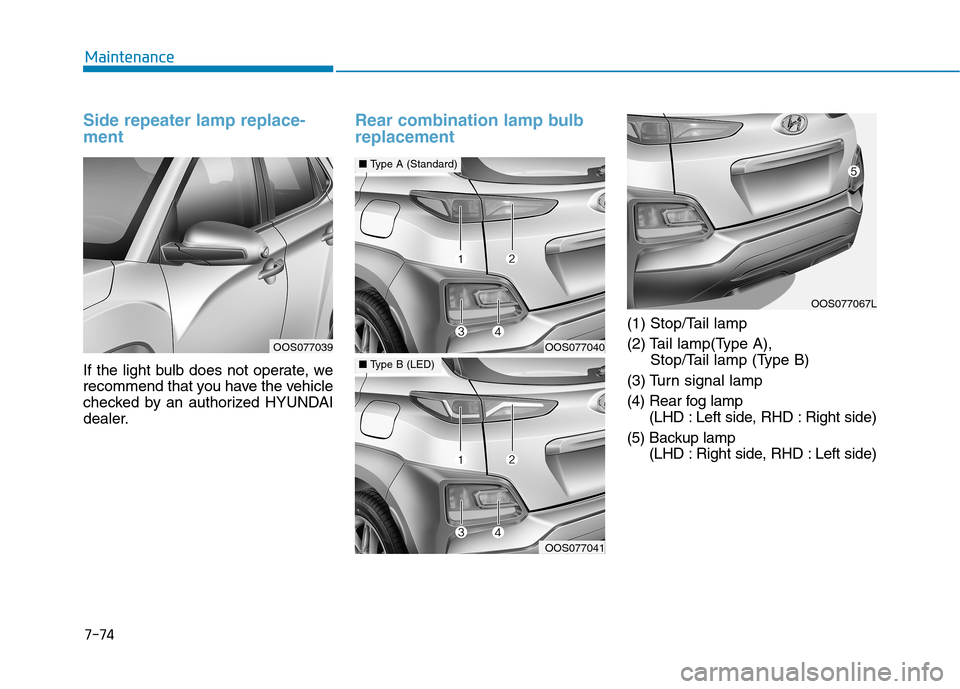

Rear combination lamp bulb replacement
(1) Stop/Tail lamp
(2) Tail lamp(Type A), Stop/Tail lamp (Type B)
(3) Turn signal lamp
(4) Rear fog lamp (LHD : Left side, RHD : Right side)
(5) Backup lamp (LHD : Right side, RHD : Left side)
OOS077039OOS077040
■Type A (Standard)
OOS077041
■Type B (LED)
OOS077067L

7-75
7
Maintenance

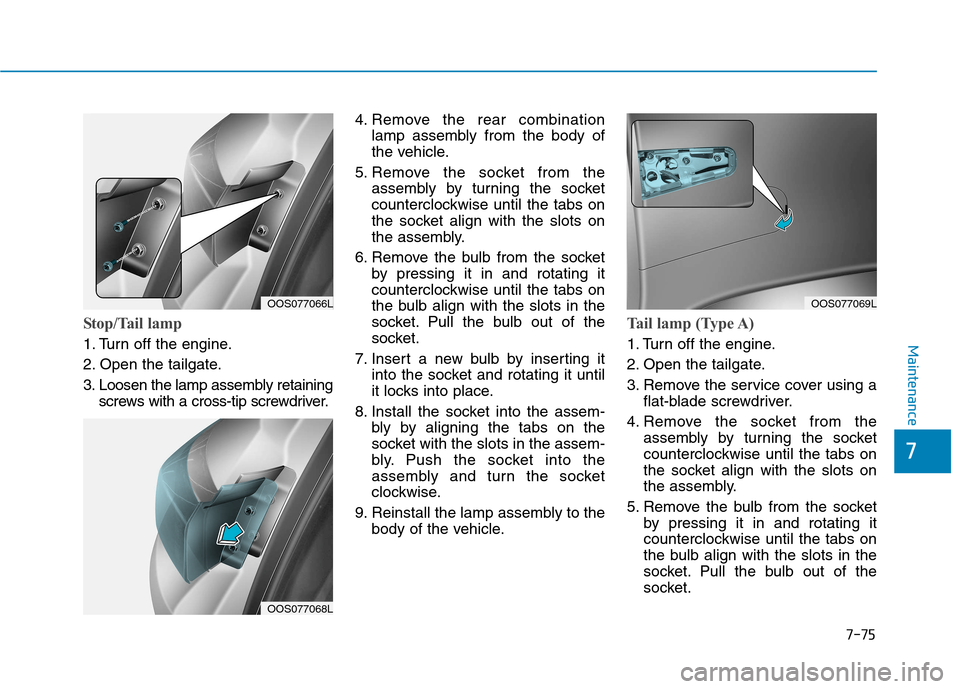

Stop/Tail lamp
1. Turn off the engine.
2. Open the tailgate.
3. Loosen the lamp assembly retainingscrews with a cross-tip screwdriver. 4. Remove the rear combination
lamp assembly from the body of
the vehicle.
5. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
6. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
7. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
8. Install the socket into the assem- bly by aligning the tabs on the
socket with the slots in the assem-
bly. Push the socket into the
assembly and turn the socket
clockwise.
9. Reinstall the lamp assembly to the body of the vehicle.
Tail lamp (Type A)
1. Turn off the engine.
2. Open the tailgate.
3. Remove the service cover using aflat-blade screwdriver.
4. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
OOS077068L
OOS077069LOOS077066L

7-76
Maintenance
6. Insert a new bulb by inserting itinto the socket and rotating it until
it locks into place.
7. Install the socket into the assem- bly by aligning the tabs on the
socket with the slots in the assem-
bly. Push the socket into the
assembly and turn the socket
clockwise.
8. Reinstall the lamp assembly to the body of the vehicle.
Tail / Stop lamp (Type B)
If the LED lamp does not operate, we
recommend you to have the vehicle
checked by an authorized HYUNDAI
dealer.
Turn signal lamp / Back up lamp /
Rear fog lamp
If these lamps do not operate, we
recommend you to have the vehicle
checked by an authorized HYUNDAI
dealer.

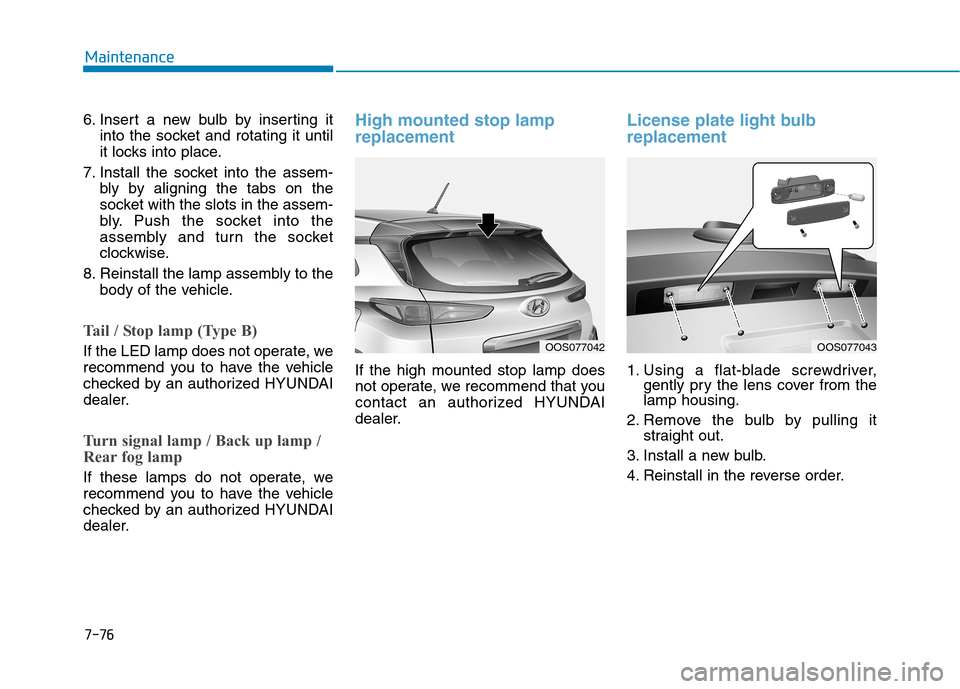

High mounted stop lamp replacement
If the high mounted stop lamp does
not operate, we recommend that you
contact an authorized HYUNDAI
dealer.
License plate light bulb replacement
1. Using a flat-blade screwdriver,gently pry the lens cover from the lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb.
4. Reinstall in the reverse order.
