2018 FIAT TIPO 5DOORS STATION WAGON Owner handbook (in English)

TIPO STATION WAGON version
Versions Urban Extra-urban Combined
1.4 16V 95 HP E67.7 4.5 5.7
1.4 16V 95 HP E47.6 4.4 5.6
1.4 T-jet 120 HP7.7 5.0 6.0
1.4 T-jet 120 HP LPG
11.4
(**)/ 8.2(***)6.5(**)/ 5.2(***)8.3(**)/ 6.3(***)
1.6 E.TorQ E69.2 4.6 6.3
1.6 E.TorQ E49.0 4.5 6.2
1.3 MultiJet 95 HP4.5 3.3 3.7
1.6 MultiJet 120 HP
4.4 / 4.5
(****)3.3 / 3.5(****)3.7 / 3.9(****)
1.6 Multijet 120 HP ECO(*)4.0 / 4.1(****)3.0 / 3.2(****)3.4 / 3.5(****)
1.6 Multijet 115 HP(*****)4.4 / 4.5(****)3.3 / 3.5(****)3.7 / 3.9(****)
1.6 Multijet 115 HP ECO(*) (*****)4.0 / 4.1(****)3.0 / 3.2(****)3.4 / 3.5(****)
231
(**) Running on LPG
(***) Running on Petrol
(****) Version with dual clutch automatic transmission (*) If using tyre pressures or types different from the values prescribed, the indicated emission and consumption levels are not guaranteed.
(*****) Version for specific markets

CO2 EMISSIONS
The CO2emission levels given in the following table refer to combined consumption.
TIPO 5DOOR version
VersionsCO2EMISSIONS
ACCORDING TO THE EUROPEAN DIRECTIVE IN FORCE
(g/km)
1.4 16V 95 HP E6132
1.4 16V 95 HP E4132
1.4 T-jet 120 HP139
1.4 T-jet 120 HP LPG
135
(**)/ 146(***)
1.6 E.TorQ E6146
1.6 E.TorQ E4146
1.3 MultiJet 95 HP99
1.6 MultiJet 120 HP
98/99
(****)
1.6 Multijet 120 HP ECO(*)89/90(****)
1.6 Multijet 115 HP(*****)98/99(****)
1.6 Multijet 115 HP ECO(*) (*****)89/90(****)
232
TECHNICAL DATA
(**) Running on LPG
(***) Running on Petrol
(****) Version with dual-clutch automatic transmission (*) If using tyre pressures or types different from the values prescribed, the indicated emission and consumption levels are not guaranteed.
(*****) Version for specific markets

TIPO STATION WAGON version

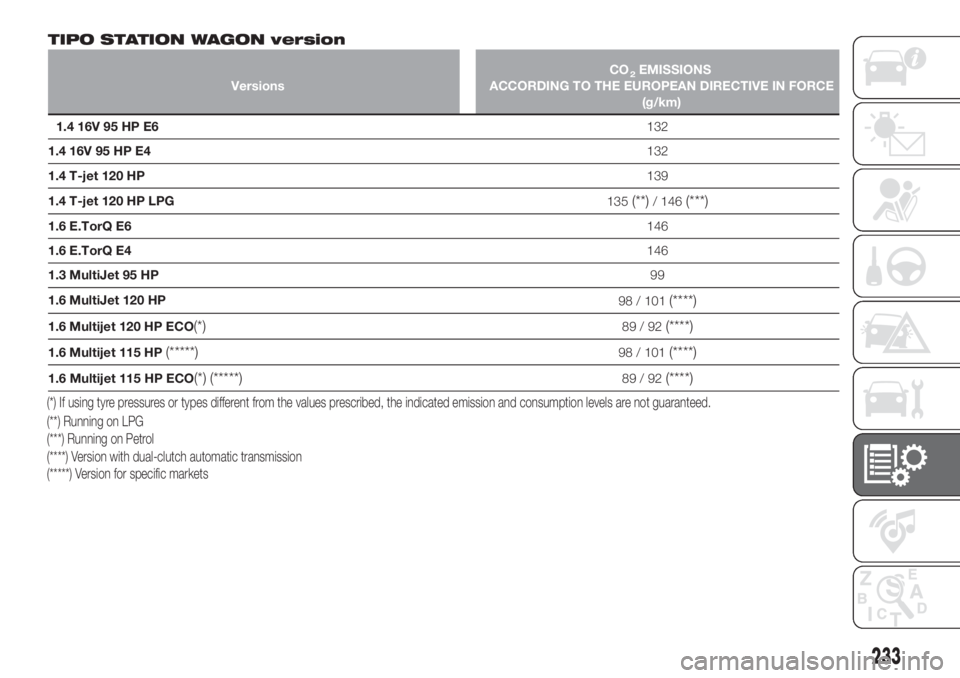

VersionsCO2EMISSIONS
ACCORDING TO THE EUROPEAN DIRECTIVE IN FORCE
(g/km)
1.4 16V 95 HP E6132
1.4 16V 95 HP E4132
1.4 T-jet 120 HP139
1.4 T-jet 120 HP LPG
135
(**)/ 146(***)
1.6 E.TorQ E6146
1.6 E.TorQ E4146
1.3 MultiJet 95 HP99
1.6 MultiJet 120 HP
98 / 101
(****)
1.6 Multijet 120 HP ECO(*)89/92(****)
1.6 Multijet 115 HP(*****)98 / 101(****)
1.6 Multijet 115 HP ECO(*) (*****)89/92(****)
233
(**) Running on LPG
(***) Running on Petrol
(****) Version with dual-clutch automatic transmission (*) If using tyre pressures or types different from the values prescribed, the indicated emission and consumption levels are not guaranteed.
(*****) Version for specific markets

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS
LIFE
(for versions/markets, where provided)
FCA has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly "eco-compatible". To grant customers the best possible service in
terms of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of
their life, FCA is offering its customers the chance to hand over their car at the end of its life without incurring any additional
costs. The European Directive sets out that when the vehicle is handed over, the last keeper or owner should not incur any
expenses as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you are purchasing another
vehicle or an FCA-authorised collection and scrapping centre. These centres have been carefully chosen to offer high quality
service for the collection, treatment and recycling of vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA dealership or by calling the
number in the Warranty Booklet or by consulting the websites of the various FCA brands.
234
TECHNICAL DATA

MULTIMEDIA
This chapter describes the main
functions of theUconnect™Radio,
Uconnect™5" LIVE,Uconnect™5"
Nav LIVE,Uconnect™7" HD LIVE,
Uconnect™7" HD Nav LIVE
infotainment systems that can be fitted
on the vehicle.
TIPS, CONTROLS AND GENERAL
INFORMATION..............236
Uconnect™ Radio...........238
Uconnect™ 5" LIVE -
Uconnect™ 5" Nav LIVE.......248
Uconnect™ 7" HD LIVE -
Uconnect™ 7" HD Nav LIVE.....260
OFFICIAL TYPE APPROVALS. . . .275
235

TIPS, CONTROLS
AND GENERAL
INFORMATION
ROAD SAFETY
Learn how to use the various system
functions before setting off.
Read the instructions for the system
carefully before setting off.
190) 191)
RECEPTION CONDITIONS
Reception conditions change
constantly while driving. Reception may
be interfered with by the presence of
mountains, buildings or bridges,
especially when you are far away from
the broadcaster.
IMPORTANT The volume may be
increased when receiving traffic
information and news.
CARE AND
MAINTENANCE
Observe the following precautions to
ensure the system is fully operational:
the display lens should not come into
contact with pointed or rigid objects
which could damage its surface; use a
soft, dry anti-static cloth to clean and
do not press.
never use alcohol, petrols and
derivatives to clean the display lens.
prevent any liquid from entering the
system: this could damage it beyond
repair.
91) 92)
ANTITHEFT PROTECTION
The system is equipped with an
anti-theft protection system based on
the exchange of information with the
electronic control unit (Body Computer)
on the vehicle.
This guarantees maximum safety and
prevents the secret code from being
entered after the power supply has
been disconnected.
If the check has a positive outcome, the
system will start to operate, whereas if
the comparison codes are not the same
or if the electronic control unit (Body
Computer) is replaced, the system will
ask the user to enter the secret code
according to the procedure described
in the paragraph below.
Entering the secret code
When the system is switched on, if the
code is requested, the display will show
"Please enter Anti-Theft Code" followed
by the screen showing a keypad to
enter the secret code.
The secret code is made up of four
digits from 0 to 9.Uconnect™ Radio:
To enter the first digit of the code,
turn the "BROWSE/ENTER" right knob
and press to confirm.
After inserting the fourth digit, move
the cursor to "OK" and press the
"BROWSE ENTER" right knob: the
system will start to operate.
Uconnect™ 5" and 7" HD:
Use the graphic buttons on the
display to enter the code digits.
If an incorrect code is entered, the
system displays "Incorrect Code" to
notify the user of the need to enter the
correct code.
After the 3 available attempts to enter
the code, the system displays
"Incorrect Code. Radio locked. Wait for
30 minutes". After the text has
disappeared it is possible to start the
code entering procedure again.
Vehicle radio passport
This document certifies ownership of
the system. The vehicle radio passport
shows the system model, serial number
and secret code.
In case of loss of the car radio
passport, contact the Fiat Dealership,
taking an ID document and the car
ownership documents.
236
MULTIMEDIA

IMPORTANT Keep the vehicle radio
passport in a safe place so that you
can give the information to the relevant
authorities if the system is stolen.
IMPORTANT NOTES
Look at the screen only and when it is
necessary and safe. If you need to look
at the screen for a long time, pull over
to a safe place so as not to be
distracted while driving.
Immediately stop using the system in
the event of a fault. Otherwise the
system might be damaged. Contact a
Fiat Dealership as soon as possible to
have the system repaired.
WARNING
190)Follow the safety rules here below:
otherwise serious injuries may occur to the
occupants or the system may be
damaged.
191)If the volume is too loud this can be
dangerous. Adjust the volume so that you
can still hear background noises (e.g.
horns, ambulances, police vehicles, etc.).
IMPORTANT
91)Only clean the front panel and the
display lens with a soft, clean, dry,
anti-static cloth. Cleaning and polishing
products may damage the surface. Never
use alcohol, petrols and derivatives.
92)Do not use the display as a base for
supports with suction pads or adhesives for
external navigators or smartphones or
similar devices.
237
