2018 FIAT TIPO 5DOORS STATION WAGON Owner handbook (in English)

PERIODIC CHECKS
Every1,000km or before long trips
check and, if necessary, top up:
engine coolant level;
brake fluid level;
windscreen washer fluid level;
tyre inflation pressure and condition;
operation of lighting system
(headlights, direction indicators, hazard
warning lights, etc.);
operation of screen washing/wiping
system and positioning/wear of wiper
blades.
Every3,000km, check and top up if
required: engine oil level.
DEMANDING USE OF THE
CAR
If the vehicle is used mainly under one
of the following conditions:
dusty roads;
short, repeated journeys (less than
7-8 km) at sub-zero outside
temperatures;
engine often idling or driving long
distances at low speeds or long periods
of inactivity;
the following checks must be carried
out more often than indicated in the
Scheduled Servicing Plan:
check front disc brake pad condition
and wear;
check cleanliness of bonnet and
luggage compartment locks,cleanliness and lubrication of linkage;
visually inspect conditions of: engine,
gearbox, transmission, pipes and hoses
(exhaust/fuel system/brakes) and
rubber elements (gaiters/sleeves/
bushes, etc.);
check battery charge and battery
fluid level (electrolyte);
visually inspect conditions of the
accessory drive belts;
check and, if necessary, change
engine oil and replace oil filter;
check and, if necessary, replace
pollen filter;
check and, if necessary, replace air
cleaner.
183

ENGINE COMPARTMENT
CHECKING LEVELS
163) 164)
71)
1.4 16V 95 HP E6 version
20509026J0001EM
184
SERVICING AND CARE
1. Brake fluid 2. Battery 3. Windscreen/rear window washer fluid 4. Engine coolant 5. Engine oil dipstick
6. Engine oil cap/filler

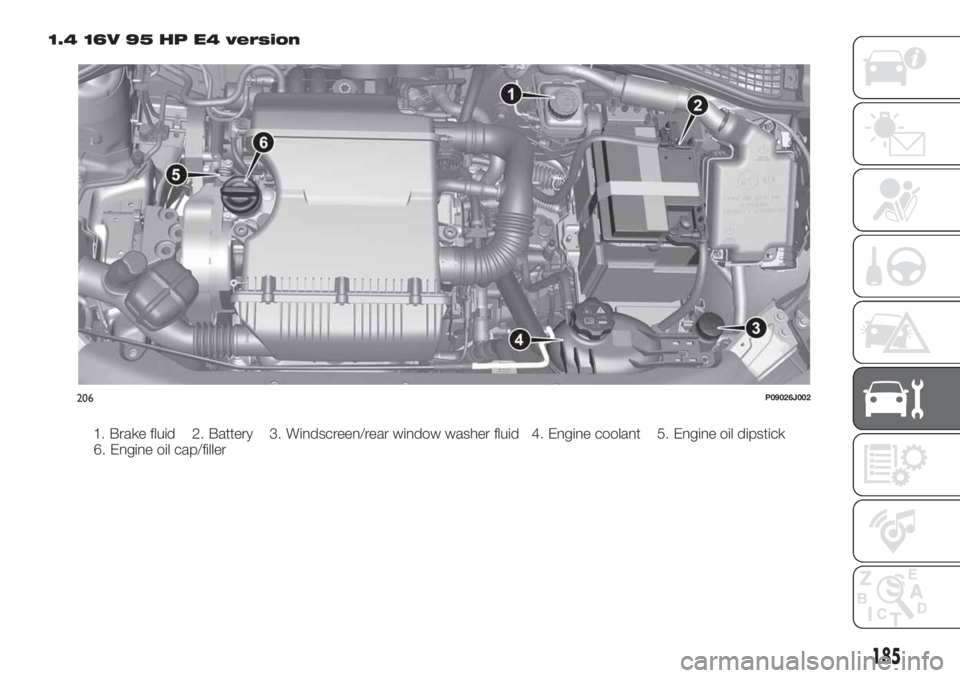

1.4 16V 95 HP E4 version
206P09026J002
185
1. Brake fluid 2. Battery 3. Windscreen/rear window washer fluid 4. Engine coolant 5. Engine oil dipstick
6. Engine oil cap/filler

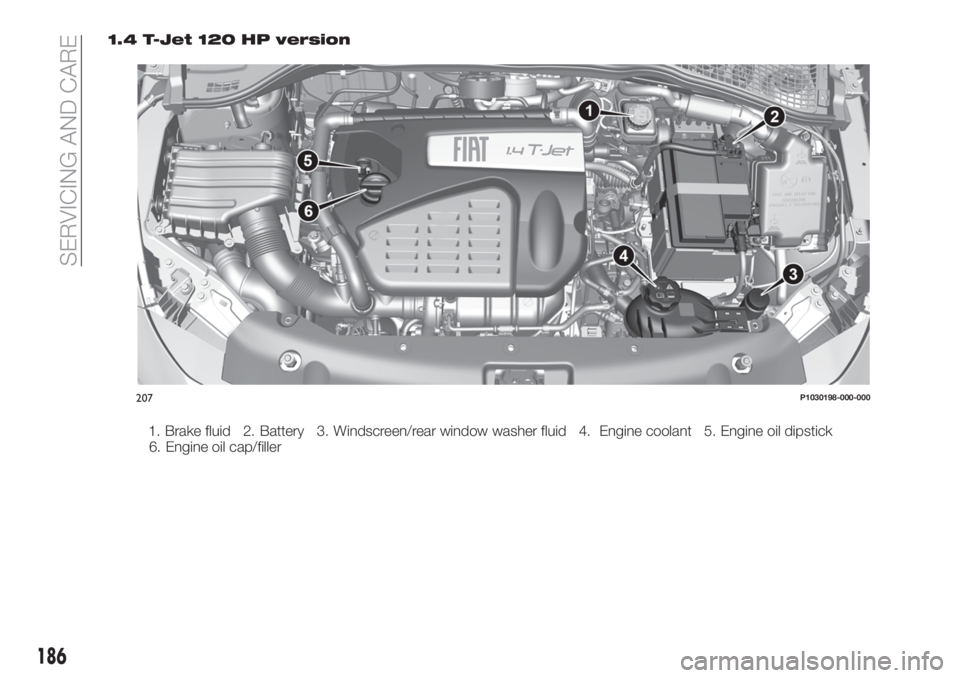

1.4 T-Jet 120 HP version
207P1030198-000-000
186
SERVICING AND CARE
1. Brake fluid 2. Battery 3. Windscreen/rear window washer fluid 4. Engine coolant 5. Engine oil dipstick
6. Engine oil cap/filler

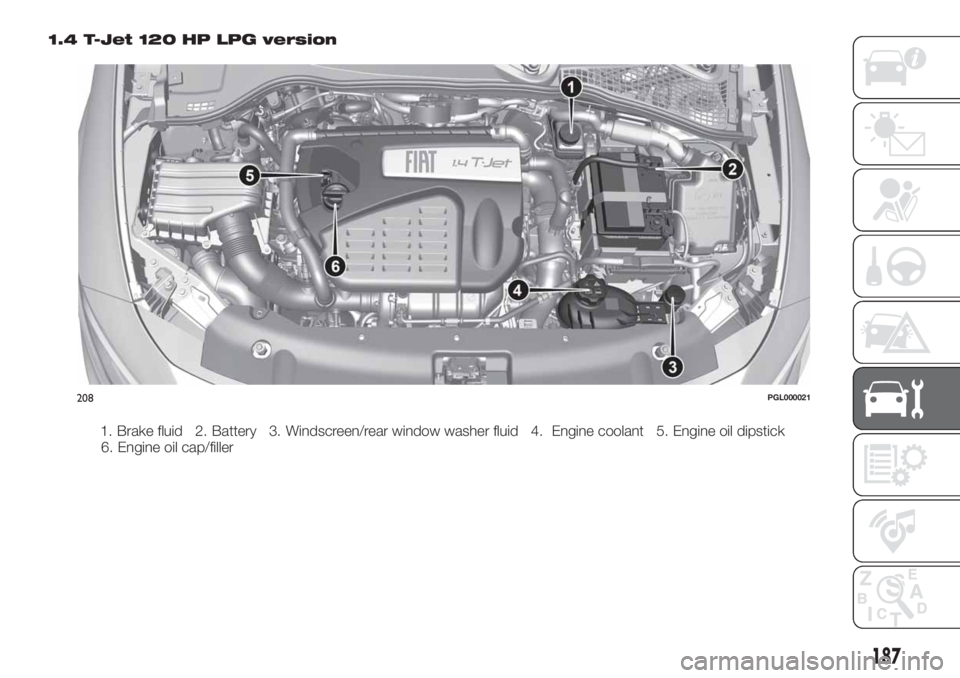

1.4 T-Jet 120 HP LPG version
208PGL000021
187
1. Brake fluid 2. Battery 3. Windscreen/rear window washer fluid 4. Engine coolant 5. Engine oil dipstick
6. Engine oil cap/filler

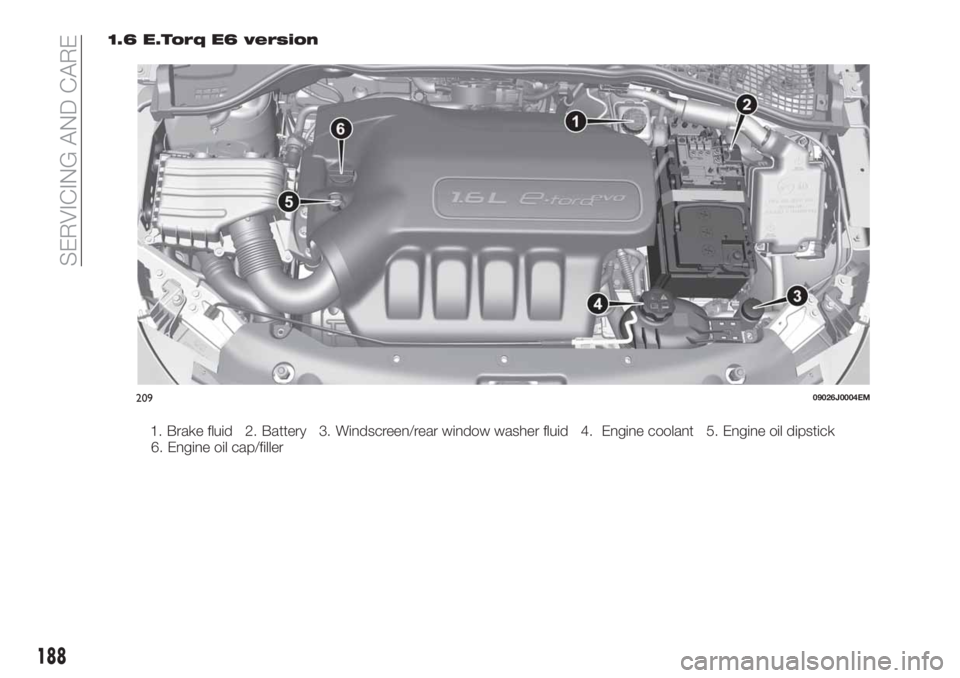

1.6 E.Torq E6 version
20909026J0004EM
188
SERVICING AND CARE
1. Brake fluid 2. Battery 3. Windscreen/rear window washer fluid 4. Engine coolant 5. Engine oil dipstick
6. Engine oil cap/filler

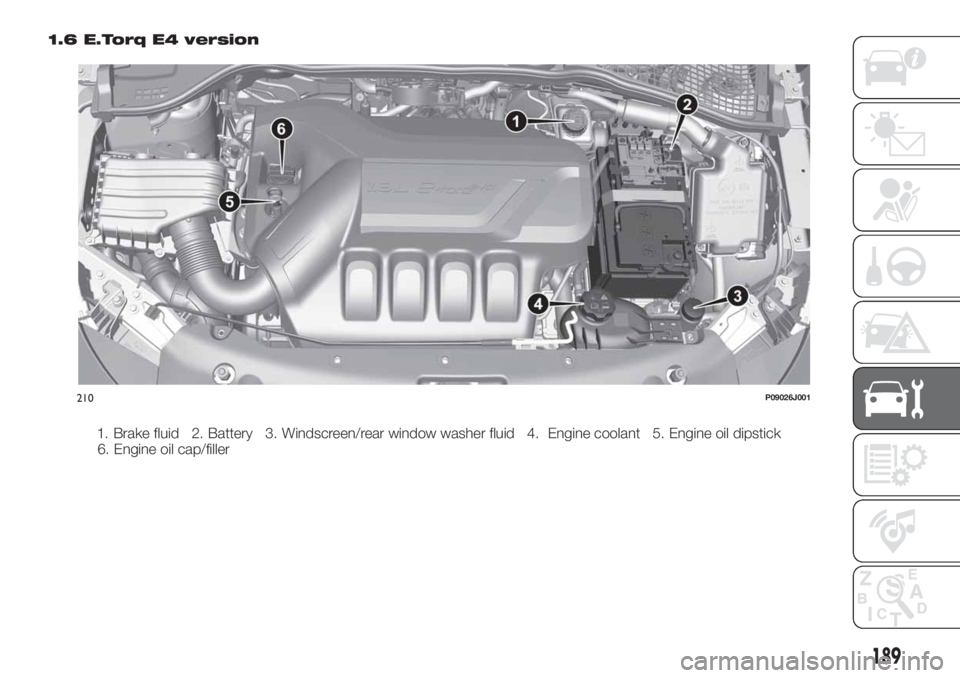

1.6 E.Torq E4 version
210P09026J001
189
1. Brake fluid 2. Battery 3. Windscreen/rear window washer fluid 4. Engine coolant 5. Engine oil dipstick
6. Engine oil cap/filler

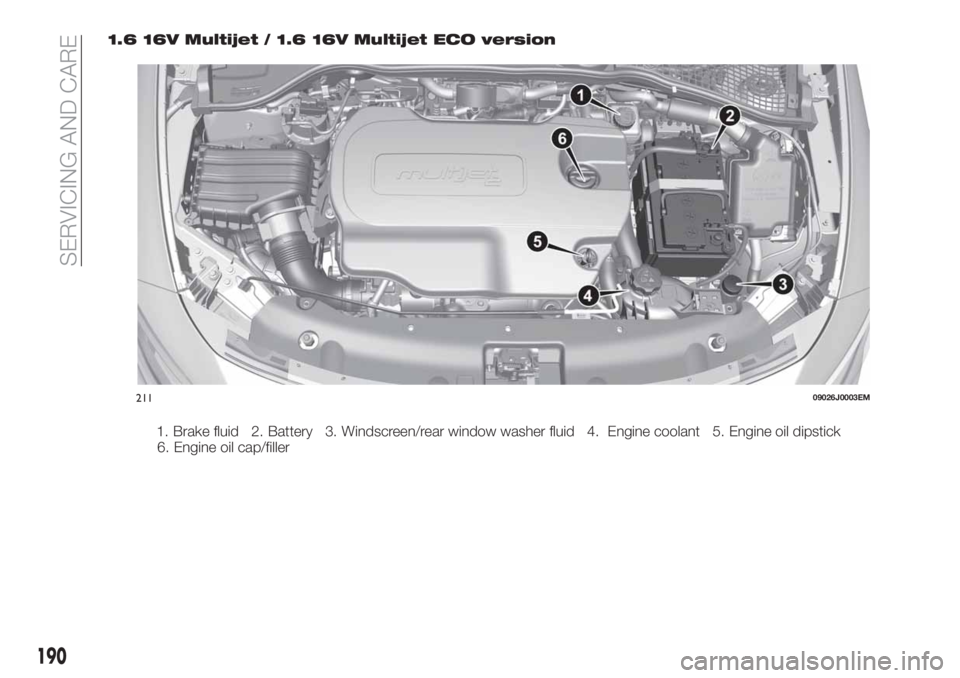

1.6 16V Multijet / 1.6 16V Multijet ECO version
21109026J0003EM
190
SERVICING AND CARE
1. Brake fluid 2. Battery 3. Windscreen/rear window washer fluid 4. Engine coolant 5. Engine oil dipstick
6. Engine oil cap/filler
