2018 FIAT TALENTO Owner handbook (in English)

Backrest in table
position
(For versions/markets where provided)
66) 69) 70)
If the vehicle is equipped with one, put
the centre seat backrest down by lifting
up control 24 fig. 126; on the back of it
there are:
one beverage holder 21 fig. 126;
one storage compartment 25
fig. 127;
one shelf 23 fig. 126.NOTE Make sure that the cup holder on
the shelf is closed before putting the
centre seat backrest down.
Storage compartment
To open the compartment 25 fig. 127,
pull handle 22 fig. 126.
Inside, belt 26 fig. 127 can hold an item
in place.
When compartment 25 fig. 127 is
closed, channel 27 lets you connect a
device charging cable to an accessory
socket.Shelf
To open the compartment 23 fig. 128,
press handle 30.
To install the shelf, insert the end 31
fig. 128 of the shelf referred to in 28 or
29.
Unlock the locking device 32
fig. 129 and press the handle 33
fig. 129 to open the shelf.
125T38818126T38820127T36580
128T36650
63

NOTE Make sure you put the shelf back
correctly and remove all the items from
the beverage holder before lifting the
centre seat backrest back up. Check
that the centre seat backrest is
correctly locked in place.
GRAB HANDLE
Handle 34 fig. 130 serves to grab onto
while driving.
IMPORTANT Do not use it to get into or
out of the vehicle.
CLOTHING HOOK
Depending on the trim, the hooks 35
fig. 131are on the wall in the baggage
area.
For safety reasons, the hooks are only
for hanging garments.
STORAGE AREA ABOVE
THE REAR
COMPARTMENT
72) 73)
Compartment 36 fig. 132 is only for
carrying items.
The total weight of the compartment
contents for the storage area above the
rear compartment must not exceed
35 kg spread out uniformly.
CARGO PLUS
(COMPARTMENT AND
FLAP)
65) 71)
Depending on the length of the items
carried in the rear area, use the
compartment or recess 38 fig. 133.
Open flap 37, which is held closed
magnetically.
129T38812
130T36565
131T36634
132T36678
64
KNOWING YOUR VEHICLE

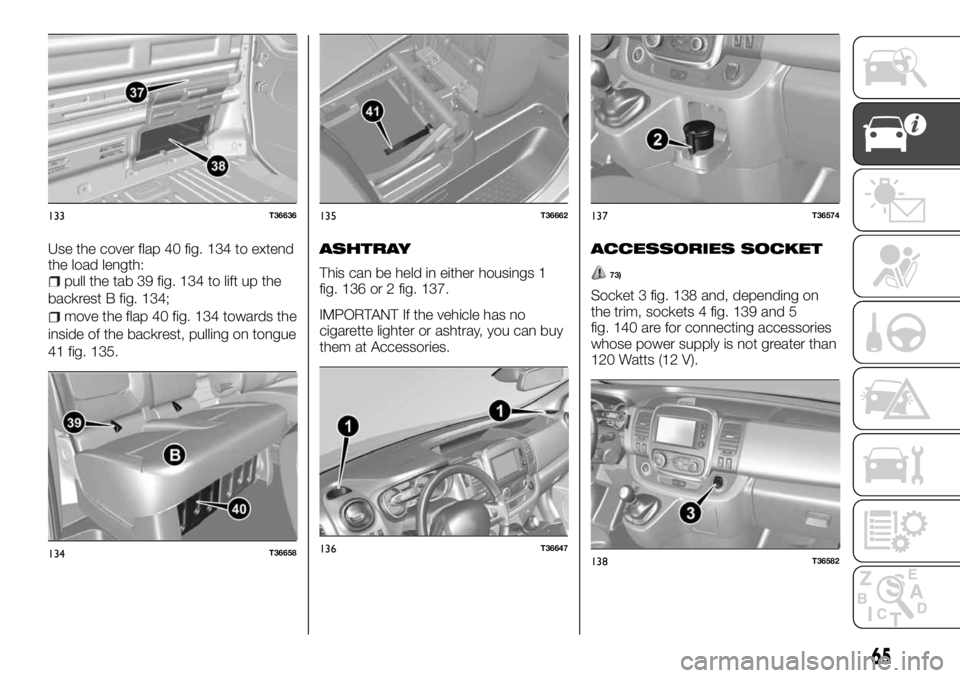

Use the cover flap 40 fig. 134 to extend
the load length:
pull the tab 39 fig. 134 to lift up the
backrest B fig. 134;
move the flap 40 fig. 134 towards the
inside of the backrest, pulling on tongue
41 fig. 135.
ASHTRAY
This can be held in either housings 1
fig. 136 or 2 fig. 137.
IMPORTANT If the vehicle has no
cigarette lighter or ashtray, you can buy
them at Accessories.
ACCESSORIES SOCKET
73)
Socket 3 fig. 138 and, depending on
the trim, sockets 4 fig. 139 and 5
fig. 140 are for connecting accessories
whose power supply is not greater than
120 Watts (12 V).
133T36636
134T36658
135T36662
136T36647
137T36574
138T36582
65

WARNING
65)There should be no objects on the
driver's side floorboard: in case of sharp
braking, they could slide under the pedals,
hampering their use.66)Check there are no hard, heavy or
sharp objects sticking out or in the "open"
compartments: they could endanger the
safety of the vehicle's occupants in a curve
or in case of sharp braking.
67)We would like to remind you to respect
local laws regarding use of phones and/or
multi-media tablets.
68)In a curve, while accelerating or
braking, make sure that the liquid in the
container in the beverage holder does not
spill. Risk of injury if the liquid is hot
69)Always leave the seat closed while
driving. Risk of injury in case of sharp
braking or accident, risk of objects falling
into the passenger compartment.
70)Sitting on the central seat while its
backrest is reclined is prohibited.
71)When compartment flap 40 fig. 134 is
open, you cannot use the front side
passenger seat. Risk of serious injury in
case of abrupt braking or collision.
72)Make sure not to place heavy or sharp
items that could fall. Risk of injury.
73)Attach only accessories with a
maximum of 120 Watts (12 V). In case
several sockets are being used at the same
time for accessories, the total ppower for
these items cannot exceed 180 Watts. Fire
risk.
RADIO
Radio preparation
Unhook the panel covering the radio
compartment 1 fig. 141. The aerial
connections, power supply and
speaker wires are behind the panel.
Speakers
Turn the grille 2 fig. 142 to access the
loudspeaker wires.
NOTE For this equipment to operate:
please read the supplement relative to
the attachment to the on board
documentation.
139T36583
140T36719
141TIMAGE-2
66
KNOWING YOUR VEHICLE

IMPORTANTThe features of the supports and
wiring (available at a Fiat Service
Dealership) vary according to the
vehicle's level of fittings and the radio
model. For their reference, contact a
Fiat Dealership.
Any intervention on the vehicle's
electrical circuit can be carried only by a
Fiat Dealership because an incorrect
connection could damage the electrical
system and/or parts it is connected to.
BAGGAGE COVER
74)
The luggage cover consists of one or
two rigid parts.
There are two possible positions:
position A high fig. 143;
position B low fig. 145.
Depending on the versions, you can lift
up part 1 fig. 144 to the vertical position
to make luggage loading easier.
WARNING
74)Do not put anything, especially if it is
heavy or blunt, on the boot. In case you
brake suddenly or have an accident, you
risk the safety of the vehicle's occupants.
142T36707
143T36651
144T36652
145T36653
67

CRUISE CONTROL
(constant speed
regulator)
75) 76)
This is an electronically controlled
driving assistance device that allows the
desired vehicle speed to be maintained,
without having to press the accelerator
pedal.
This device can be used at a speed
above 30 km/h on long stretches of dry,
straight roads with few variations (e.g.
motorways).
Commands (fig. 146 and fig. 147 )
1fig. 146 General switch ON/Off.
2fig. 147 Activate, store and
increase speed regulator (+).
3fig. 147 Lower speed regulator (-).
4fig. 147 Activate with stored speed
regulator recall (R).
5fig. 147 Put the function in standby
(with stored speed regulation) (O).Activation
Press the switch 1 fig. 146 side
.
Green warning light 6 fig. 148 turns on
and the appropriate message appears
on the instrument panel along with
dashes to indicate that the function is
active and waiting for the speed limit
recording.
Setting the speed
At constant speed (over about
30 km/h), press button 2 fig. 147 (+):
the function is activated and the current
speed is stored.
The speed replaces the dashes and is
confirmed when a green light 6
fig. 148 appears after light 7 fig. 148.
Guide
After storing the regulation speed and
activating regulation, you can take your
foot off the accelerator.
77) 78)
146T36543
147T36544
148T36504-3
68
KNOWING YOUR VEHICLE

Changing the speed
You can vary the speed regulator by
pressing in succession:
button 2 fig. 149 to increase the
speed.
button 3 fig. 149 to decrease the
speed.
Exceeding the speed limit
At any time you can raise the speed by
pressing the accelerator pedal. When
the speed is higher than that set, the
speed indicator will flash on the
instrument panel.
Then release the accelerator pedal:
after a few seconds, the vehicle will
automatically return to the initial speed
set.
Impossibility to maintain speed
In the event of a steep slope, the speed
cannot be respected by the system: the
stored speed will flash on the
instrument panel to inform you of this.Placing the function in stand-by
The function can be suspended:
by pressing button 5 (O) fig. 150;
by using the brake pedal;
by using the clutch pedal.
In the three cases, the speed stays
stored and the message to that effect
appears on the display screen.
Activation is confirmed when the light
goes off
.
Recalling the stored speed limit
If you have stored a speed, you can
recall it, after making sure the driving
conditions allow it (traffic, road
conditions, weather, etc.). Press button
4 fig. 150 if the vehicle speed is over
30 km/h. When recalling a stored
speed, the activation is confirmed when
the warning light goes on
.NOTE If the preceding stored speed is
much higher than the present speed,
the vehicle will accelerate powerfully up
to this limit.
IMPORTANT When the function is in
stand-by, pressing switch 2 fig. 150 will
reactivate the regulator function without
taking into account the stored speed:
the speed the vehicle is travelling will be
used.
Interrupting the function
The function can be disengaged by
pressing button 1 fig. 151. The green
lights turning off
andon the
instrument panel confirm the function
has been deactivated.
79) 80) 81)
149T36544-1
150T36544151T36543
69

WARNING
75)The Cruise Control does not impact the
braking system in any case.
76)It provides a supplementary driving aid.
However, it does not replace the driver. It
cannot take the place of local speed limit
observations, attentiveness (always be
ready to brake) or driver responsibility. The
Cruise Control must not be used when
traffic is heavy, on winding or slippery
roads (ice, aquaplaning, gravel) or when
weather conditions are unfavourable (fog,
rain, wind gusts, etc.). Risk of accident.
77)Warning: keep your feet near the
pedals so they are ready to intervene in an
emergency.
78)When travelling with the device active,
never move the gear lever to neutral.
79)Putting the engine in stand-by or
deactivating the Cruise Control does not
rapidly lower the speed: you need to brake
using the brake pedal.
80)In case of a malfunction or failure of the
device, contact a Fiat Dealership.
81)The electronic Cruise Control can be
dangerous if the system cannot keep a
constant speed. In specific conditions
speed may be excessive, resulting in the
risk of losing control of the vehicle and
causing accidents. Do not use the device
in heavy traffic or on winding, icy, snowy or
slippery roads.
SPEED LIMITER
The cruise control is a function that
keeps you from going over a certain
pre-set speed limit.
Controls
1fig. 152 General switch ON/Off.
2fig. 153 Activating, storing and
increasing cruise control (+).
3fig. 153 Lowering cruise control (-).
4fig. 153 Activation with stored
cruise control recall (R).
5fig. 153 Placing function in stand
by (with stored cruise control) (O).
Activation
82)
Press button 1 side. Warning light 6
fig. 154 turns orange and the message
"LIMITER" appears on the instrument
panel along with dashes to indicate that
the cruise control is active and waiting
for the speed limit recording.
To record the current speed, press
switch 2 (+): the speed limit replaces
the dashes.
The minimum speed that can be set is
30 km/h.
Guide
When the speed has been stored, until
this speed has been reached, driving is
the same as driving a vehicle not
equipped with cruise control.
152T36543
153T36544
154T36504-2
