2018 FIAT TALENTO Owner handbook (in English)

FRONT AIRBAGS
DRIVER AND
PASSENGER AIR BAGS
101) 102)
These are installed in correspondence
to the driver's and front passenger's
seats. The "airbag" mark on the
steering wheel and dashboard (airbag
area A fig. 177 ) are reminders of this
device's presence.
Each air bag system consists of:
an inflatable cushion and relative gas
generator installed in the steering wheel
for the driver and in the dashboard for
the passenger;
an electronic module control system
device that controls the gas generator
electric trigger device;
a single monitoring warning light
on the instrument panel.Operation
The system is operational only after
turning on the starter switch.
In the event of afrontalimpact, the air
bags inflate, allowing limited impact at
the driver's head and chest level
against the steering wheel and for the
passenger against the dashboard; they
deflate immediately after collision so as
not to impede exiting the vehicle
fig. 178.
Irregular operation
The warning light 4 fig. 179 goes on
when the starter device is inserted, and
they go off after a few seconds. If the
light does not go on when the starter
device is inserted or if it goes on when
the engine is on, it indicates a system
malfunction. Contact a Fiat Dealership
as soon as possible. Any delay in
deployment can compromise
effectiveness.All warnings below are aimed a not
impeding air bag inflation and
avoiding serious injury owing to
flying objects when they open up.
Warnings concerning the driver's
air bag
103) 104) 105)
Warnings concerning the
passenger's air bag
106) 107) 108) 109) 110)
FRONT PASSENGER SIDE
AIR BAG AND CHILD
RESTRAINT
Deactivation of the front passenger
air bags (for vehicles that allow it)
111) 112)
You must deactivate the passenger
airbag before installing a child restraint
system on the front passenger seat.
177T36503178T31857-1
179T36504
95

To deactivate the air bags: with the
vehicle stopped, contact disengaged,
push and turn stop 1 fig. 180 to the
OFF position.
With contact inserted, you must check
that the warning light
on display
panel 2 fig. 181 is on and, depending
on the vehicle version, the appropriate
message appears.This light stays on permanently to
confirm that you can install a child
restraint system on the passenger seat.
The printing on the dashboard and
labels A fig. 182 and fig. 183 on each
side of the passenger’s sun visor 3
fig. 182, remind you of these
instructions.Front passenger air bag activation
When the child restraint is no longer in
use, reactivate the air bag to ensure
front passenger protection in case of an
accident.
Reactivating the airbags: with the
vehicle stopped, contact disengaged,
push and turn stop 1 fig. 184 to the ON
position. With starter switch on, you
must check that the warning light
is
off and that the lighton the display
panel 2 fig. 185 turns on for about
1 minute each time you turn the engine
on.
180T36502
181T36500
182T36505
183T35770
184T36501
96
SAFETY

The safety devices complementary to
the front passenger seat belt have to be
activated.
Operating faults
If the activation/deactivation system for
the front passenger air bags is not
functioning, you cannot install the child
restraint on the front seat with the head
facing rear. We advise you also not to
travel with passengers seated there.
Contact a Fiat Dealership as soon as
possible.
WARNING
101)The air bag system uses a
pyrotechnical principle, meaning that its
activation produces heat, emits smoke
(that does not mean fire) and generates an
explosive sound. Air bag deployment,
which should be immediate, can cause
skin injuries or other problems.102)Do not attach any object (pins, logos,
watches, phone support, etc.) to the
steering wheel.
103)The steering wheel must not be
covered in any way.
104)Dismantling the steering wheel is
prohibited (except by a qualified Fiat
Dealership technician).
105)Do not drive to close to the steering
wheel: adopt a driving position with your
arms slightly bent. This position will ensure
a sufficient distance for the air bag to
deploy efficiently.
106)Do not glue anything (pins, logos,
watches, phone supports, etc.) to the
dashboard near the airbag.
107)Do not place anything (animals,
umbrella, cane, boxes, etc.) between the
dashboard and the passenger.
108)Do not rest your feet on the
dashboard or the seat: these positions
could cause serious injuries. In general,
keep all parts of the body (knees, hands,
head, etc.) away from the dashboard.
109)The passenger air bag only protects
the side front seat passenger; the centre
front seat passenger is only protected by
the seat belt. We recommend you respect
normal safety regulations (fasten your seat
belt). There may be serious injuries in the
event of an accident.
110)The passenger airbag must be
activated/deactivated when the vehicle is
stationary. If deactivated while driving, theandwarning lights turn on. To
turn these lights off, you need to deactivate
then reactivate the passenger air bag again
when the vehicle is stopped.111)When the child restraint is no longer in
use, reactivate the front seat belt
complementary safety devices to ensure
front passenger protection in case of an
accident. Installing a rear-facing child
restraint system on the front passenger is
prohibited until the front seat belt
complementary safety devices have been
deactivated (refer to the "Passenger side
airbag and child restraint systems – how to
deactivate the airbags" paragraph in the
"Knowing your vehicle” chapter).
112)Because of the incompatibility of the
front passenger air bag deployment and
the positioning of a child seat facing
forward, NEVER INSTALL a child restraint
system facing backwards on a seat
equipped with FRONT AIRBAG
ACTIVATION. Otherwise, the CHILD may
risk DEATH or SERIOUS INJURY.
185T36500
97

SIDE AIR BAGS
SIDE AIRBAGS(For versions/markets where provided)
These are air bags that can be installed
in the front seats and inflate to the side
of the seat (door side) in order to
protect the car's occupants in the event
of a violent side collision.
DRIVER'S AIR BAG(For versions/markets where provided)
These are air bags on each upper side
of the vehicle. They inflate along the
front door side windows to protect the
occupants in case of a violent side
collision.
Warnings concerning the side air
bag
113) 114) 115) 116) 117) 118) 119) 120)
21)
4)
WARNING
113)When you lend or re-sell the vehicle,
tell the new owner of these conditions for
use and hand over this owner handbook.
114)Installing seat covers: seats equipped
with airbags require covers specifically
made for the vehicle. Consult a Fiat
Dealership. Using any other liner (or liners
specific to another vehicle) could cause
these airbags to function incorrectly and
jeopardise the occupants' safety.115)Never place an accessory, an object
or an animal between the backrest, the
door and interior coverings. Do not cover
the seat backrest with items like clothing or
accessories. These could cause the airbag
to function incorrectly or cause injury when
the airbag deploys.
116)Any dismantling or changes made to
the seats and their coverings is prohibited,
except if done by qualified Fiat Dealership
personnel.
117)The airbag was conceived to
complement the seat belt. The airbag and
seat belt together constitute inseparable
components to the same protective
system. Therefore, you always need to
fasten your seat belt. Not fastening them
can put the vehicle's occupants at risk of
aggravated injury and can increase injury
risk caused by deployment of the airbag
itself.
118)Seat belt pre-tensioner and airbag
deployment in case the vehicle flips over or
a violent rear collision is not systematic.
Collisions beneath the vehicle, like hitting a
curbstone, road unevenness, stones, etc.,
can cause the system to deploy.
119)Any intervention or modification to the
complete airbag system (airbag,
pre-tensioners, electronic modules, wiring,
etc.) is severely prohibited (except by
qualified Fiat Dealership personnel).
120)For safety reasons, check the airbag
system after the vehicle has undergone an
accident, theft or attempted theft.
IMPORTANT
21)To maintain correct operation and to
prevent accidental deployment, only
qualified Fiat Dealership personnel can
intervene on the airbag system.
IMPORTANT
4)When the vehicle is scrapped, contact a
Fiat Dealership to have the gas generator
removed.
98
SAFETY

CHILD PROTECTION
SYSTEMS
CARRYING CHILDREN
SAFELY
121) 122) 123) 124) 125) 126) 127) 129) 130) 131)
A child, just like any adult, must be
seated properly with their seat belt
attached regardless of the trip. You are
responsible for children while they are
being carried.
A child is not a miniature adult. He/she
is exposed to specific injuries because
his/her muscles and bones are not fully
developed. A seat belt alone is not
sufficient for carrying children. Use an
appropriate child restraint system and
use it correctly.
Using child restraint systems
The level of protection offered by a child
restraint system depends on its ability
to hold the child and on its installation.
Incorrect installation compromises a
child's protection in case of abrupt
braking or collision.
Before buying a child restraint system,
make sure that it conforms to the
regulations of the country where you
are and where it will be installed in the
vehicle. Contact a Fiat Dealership to
know which child seats are
recommended for vehicles.
Before installing the child restraint
system, read the handbook and follow
the instructions in it.If you have and difficulty during
installation, contact the child restraint
system manufacturer. Keep the
instructions with the child restraint
system.
IMPORTANT Teach the child to:fasten it properly;
get in and out of the vehicle on the
side opposite traffic.
Do not use child seat that are on sale or
do not have a handbook. Make sure no
object, in the seat or nearby, gets in the
way of its installation.
CHOICE OF CHILD RESTRAINT
SEAT
Child seats facing backwards
In proportion, a child's head is heavier
that an adult's and his/her neck is very
fragile.
Transport a child this way as long as
possible (up to at least 2 years old).It supports the head and neck fig. 186.
Select an encompassing child seat for
better side protection and replace it
when the child's head is higher than the
seat.
Child seats facing forwards
A child's head and abdomen are the
main parts of the body that need
protecting. A forward-facing child
restraint system that is solidly fastened
to the vehicle reduces the risk of hitting
the head.
Move the child to a forward-facing child
restraint system as soon as his/her size
allows it. For better side protection,
choose an encompassing child restraint
system fig. 187.
186T31235
187T38824
99

Booster seats
From 15 kg or 4 years up, a child can
travel on a booster seat that adapts the
seat belt to his/her shape fig. 188. The
booster seat must have guides that
position the belt on his/her thighs and
not on the stomach.
The height-adjustable backrest and
seat belt track is recommended to
position the belt at the centre of the
shoulder. It must never rest on the neck
or arm. Choose an encompassing child
seat for better side protection.
INSTALLING A CHILD RESTRAINT
SEAT
Some child seats cannot be installed.
The diagrams on the following pages
show the child seat attachment
position.
Before using a child restraint system,
make sure that it can be fitted.In the front seat
Carrying children in the front passenger
seat is country-specific. Check with the
current laws and follow the indications
in the following diagram.
Before installing a child seat in this seat
(if authorised):
lower the seat belt completely;
move the seat back completely;
incline the backrest slightly (about
25°);
for vehicles that are able to do so,
raise the seat as high as possible.
Raise headrest as far up as possible so
that it does not interfere with the child
restraint system (refer to the "Front
headrest" paragraph in the "Knowing
your vehicle” chapter).
After installing the child seat, you can
move the seat forwards again (to leave
enough space in the rear for other
passengers or child seats). With a
rear-facing child restraint system, it
should not touch the dashboard or
anything in front of it.
Do not change any other adjustments
after installing the child seat.
In the rear side seat
The cot is installed crosswise with
respect to the vehicle and takes up at
least two seats. Place the child's head
opposite the door. Move the front seat
as far forward as possible to install the
child seat backwards from driving
direction, then move it back tomaximum so it does not come into
contact with the child seat.
For the safety of children who are facing
forward, do not move the seat in front
of the child back farther than the centre
of its travel, do not incline the backrest
excessively (25° at most) and raise the
seat up as far as possible.
Remove the headrest from the rear seat
with the child restraint system on it
(refer to the "Rear headrest" paragraph
in the "Knowing your vehicle” chapter).
This must be done before positioning
the child seat.
Make sure that the forward-facing child
restraint system is resting against the
seat backrest.
In the rear central seat
Make sure the seat belt is adapted to
your child seat. Consult a Fiat
Dealership.
128)
FITTING A CHILD
RESTRAINT SYSTEM
WITH SEAT BELTS
129) 130)
The seat belt must be adjusted to
ensure it works in case of abrupt
braking or collision. Comply with the
belt direction indicated by the child
restraint system manufacturer.
Check that the seat belt is fastened
correctly.
188T31234
100
SAFETY

Check that the child seat is correctly
locked in place by moving it left/right
and forwards/backwards: the seat
should remain firmly in place. Make sure
that the child restraint system is not
installed crosswise and is not resting
against a window.
101

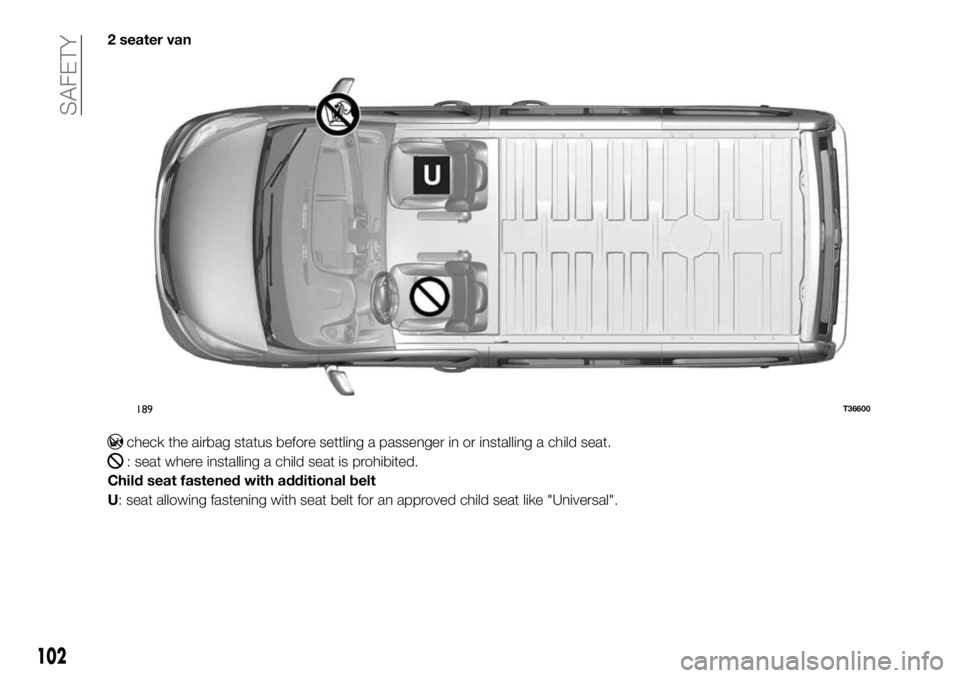

2 seater van
check the airbag status before settling a passenger in or installing a child seat.
: seat where installing a child seat is prohibited.
Child seat fastened with additional belt
U: seat allowing fastening with seat belt for an approved child seat like "Universal".
189T36600
102
SAFETY
