2018 CITROEN DISPATCH SPACETOURER Handbook (in English)

63
The electric controls are inhibited in the
event of an impact. Manual opening and
closing remain possible.
While starting the engine, the movement
of a door is interrupted and restored once
the engine is running.Depending on the engine, in
Stop mode of Stop & Start,
if the door is closed and you
initiate opening of the door, the
door opens partially and stops.
When the engine changes
automatically to Start mode, the
door continues its movement.The doors and the overall
dimensions of the vehicle
When open, a door projects beyond the body.
Be sure to take this into account when you park
alongside a wall, a post or a high kerb, etc.
When open, a door never projects beyond
the rear bumper.
Safety/Obstacle detection with
electric door(s)
The obstacle detection system is triggered
when the moving door encounters an obstacle
with a certain level of physical resistance.
-
I
f an obstacle is detected while the door is
closing, the door stops then opens fully.
-

I
f an obstacle is detected while the door is
opening, the door stops and then closes.
-

I
f an obstacle is detected twice in
succession during a movement of the door,
it will no longer close electrically. This
resets the door.
O

n a steep slope: a safety system slows
down the movement of the door.
I

n any case, wait a few seconds before
operating the door (closing or opening).
2
Access

64
Close the door manually for safety reasons.
Then reinitialise the door.
Reinitialising electric doors
If electrical operations no longer work,
the doors must be closed manually then
reinitialised:
F
F
ully close the door(s) manually.
F

F
ully open the door(s) manually.
F

C
lose the door(s) electrically.
On completion of this procedure, electric
operation of the doors is restored.
However, if a problem persists following this
procedure, contact a CITROËN dealer or a
qualified workshop.
Fuel filler flap
If your vehicle is equipped with one, do not
open the sliding left side door when the
fuel filler flap is open, other wise there is a
risk that the fuel filler flap and the sliding
door will be damaged and the person
filling up will be injured.
If the fuel filler flap is open and you open
the left side door, a mechanism prevents it
being opened.
The door can be opened half way
h o w eve r.
With a mechanical door, close the fuel
filler flap again to regain use of the door.
With an electrical door, in order to be able
to use it correctly, close the fuel filler flap
then press an opening button.
On a steep slope
It is possible to open and close doors
electrically on slopes of up to a 20% gradient.
However, if your vehicle is on a slope, with the
front of the vehicle facing up, open the door
with care. The door may open more quickly due
to the incline.
On a steep slope, guide the side door manually
to help it to close.
Access

65
However, if your vehicle is on a slope, with the
front of the vehicle facing down, the door may
not stay open and may close again jerkily with
the risk of injury.In the case of a steep slope, the door
may be driven by its own weight and as a
consequence may open or close jerkily.
There would not be time for action at the
electric controls to take effect.
There would not be time for the
obstacle detection system to react.
Take care not to leave the vehicle on a
steep slope with the door(s) open without
supervision. If this advice is not followed,
injuries or damage may occur if a person
or an object is trapped or caught.
Hands-free sliding side
d o o r (s)
The automatic locking after closing the
door is programmable in the vehicle
configuration menu. Before making the movement with your
foot, ensure that you are steady and well
positioned, so that you do not lose your
balance (rain, snow, ice, mud, etc).
Take care not to touch the exhaust tailpipe
when making the movement with your foot
– risk of burns.
F
P
ut your foot beneath the corner of the rear
bumper, then move your foot at normal
speed with a side sweep movement.
The sensor detects your foot approaching and
leaving and triggers opening or closing of the
side door.
By keeping the remote control on your person
and with a movement of your foot, the system
unlocks and opens the sliding side door or
closes and locks it.
The remote control must be located at the rear
of the vehicle, more than about 30
cm and less
than about 2 m from the vehicle.
2

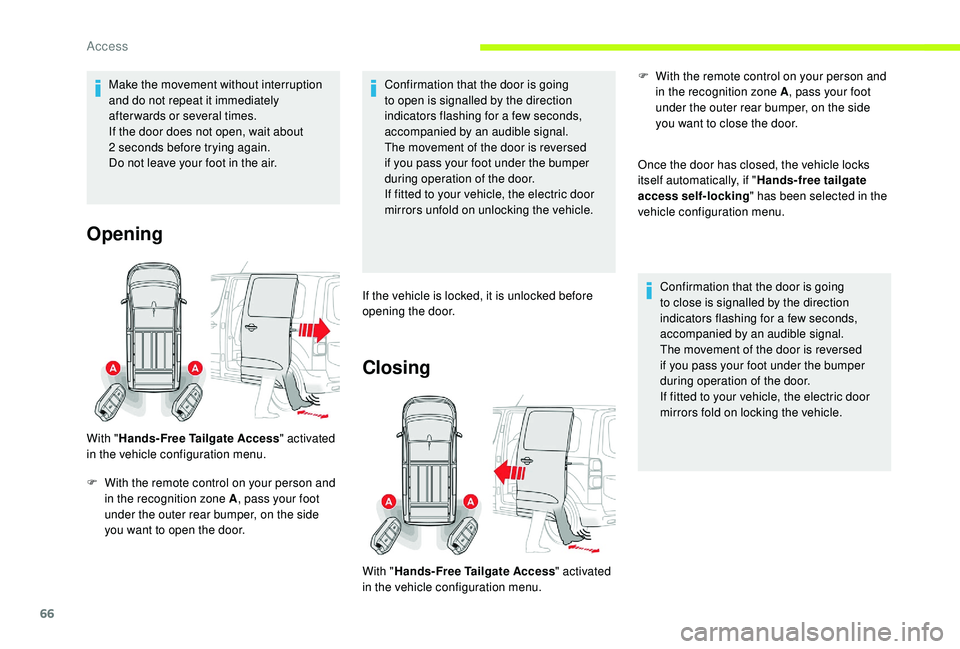

Access

66
Make the movement without interruption
and do not repeat it immediately
after wards or several times.
If the door does not open, wait about
2 seconds before trying again.
Do not leave your foot in the air.
Opening
With " Hands-Free Tailgate Access " activated
in the vehicle configuration menu.
F

W
ith the remote control on your person and
in the recognition zone A , pass your foot
under the outer rear bumper, on the side
you want to open the door. Confirmation that the door is going
to open is signalled by the direction
indicators flashing for a few seconds,
accompanied by an audible signal.
The movement of the door is reversed
if you pass your foot under the bumper
during operation of the door.
If fitted to your vehicle, the electric door
mirrors unfold on unlocking the vehicle.
If the vehicle is locked, it is unlocked before
opening the door.
Closing
Once the door has closed, the vehicle locks
itself automatically, if " Hands-free tailgate
access self-locking " has been selected in the
vehicle configuration menu.
Confirmation that the door is going
to close is signalled by the direction
indicators flashing for a few seconds,
accompanied by an audible signal.
The movement of the door is reversed
if you pass your foot under the bumper
during operation of the door.
If fitted to your vehicle, the electric door
mirrors fold on locking the vehicle.
With " Hands-Free Tailgate Access " activated
in the vehicle configuration menu. F

W
ith the remote control on your person and
in the recognition zone A , pass your foot
under the outer rear bumper, on the side
you want to close the door.
Access

67
Deactivation
By default, hands-free access is activated.
The function can be deactivated in the vehicle
configuration menu.
Automatic locking
The vehicle locks itself following the hands-free
closing of a sliding door.
The automatic locking can be deactivated in
the vehicle configuration menu.If your vehicle is not fitted with an alarm,
locking is confirmed by fixed illumination
of the direction indicators for about two
seconds.
Depending on your version, the door
mirrors fold at the same time.
With audio system
In the " Personalisation-
configuration " menu, activate/
deactivate " Hands-Free Tailgate
Access ".
With the touch screen
In the "Driving/Vehicle " menu,
activate/deactivate " Hands-Free
Tailgate Access ".
Then, if you want automatic locking after
closing the door, activate/deactivate " Hands-
free tailgate access self-locking ".
Operating fault
An audible signal repeated three times
indicates a fault with the system.
Contact a CITROËN dealer or a qualified
workshop to have the system checked. If the "
Hands-free tailgate access self-
locking " option is selected in the vehicle
menu and after closing the door, make
sure that the vehicle is locked.
This is because locking will not take place:
-
i
f the ignition is on,
-
i
f one of the doors or the tailgate is
open,
-
i
f a "
K
eyless Entry and Starting"
remote control is inside the vehicle.
If a number of gestures with your foot
have no effect, wait a few seconds before
starting again.
The system is automatically deactivated in
heavy rain or with accumulations of snow.
If it does not work, make sure that the
remote control is not exposed to a
source of electromagnetic interference
(smartphone, etc.).
Operation may be affected if using a
prosthetic leg.
This system may not work correctly if your
vehicle is fitted with a towbar.
2
Access

68
The side door may open or close
erratically if:
-
y
our vehicle is fitted with a towbar,
-

y
ou hitch or unhitch a trailer,
-

y
ou fit or remove a bicycle carrier,
-

y
ou load or unload bicycles on a
bicycle carrier,
-

y
ou place or lift something behind the
vehicle,
-
an

animal approaches the bumper,
-

y
ou are washing your vehicle,
-

a s
er vice is being carried out on your
vehicle,
-

y
ou change a wheel.
To avoid unwanted operation, keep the
key away from the detection zone (also
from the boot’s interior sides) or deactivate
the function in the vehicle configuration
menu.
Ensure that no person or object could
prevent the correct opening or closing of
the doors.
Be aware of children when operating the
doors.Side-hinged rear doors
The side-hinged rear doors are asymmetrical.
The left-hand door is fitted with a lock.
From outside
F After unlocking the vehicle (using the key, remote control or Keyless Entry and
Starting, depending on equipment) pull the
door handle.
For more information on the Key, Remote
control or

K
eyless Entr y and Star ting ,
and in particular unlocking the vehicle,
refer to the corresponding section. F

A
fter first opening the left-hand door, pull
the lever A towards you to open the right-
hand door.
Closing
F First close the right-hand door, then the left- hand door.
If the left-hand door
is closed first, a
buffer stop located
on the edge of the
right-hand door
prevents it closing.
Access

69
If the left-hand door is not fully closed
(the right-hand door is not detected):
-
v
ehicle stationary and the engine
running, this warning lamp comes
on, accompanied by an alert
message for a few seconds,
-

v
ehicle moving (speed above
6
mph (10 km/h)), this warning
lamp comes on, accompanied
by an audible signal and an alert
message for a few seconds.
Opening to approximately 180°
If fitted to your vehicle, a check strap system
that allows the doors to be opened from about
90° to about 180°.
F

P
ull the yellow control when the door is
open.
The check strap will engage again
automatically on closing. When parking with rear
doors opened at 90°, they
conceal the rear lamps.
To signal your position to
other road users driving
in the same direction who
may not have noticed that
your vehicle has stopped,
use a warning triangle or
other device required by the
legislation in your country.
From inside
Opening
Vehicle locked and child lock off (disabled).
F

T
wist this handle down to fully unlock the
vehicle and open the right-hand door.
Vehicle unlocked and child lock disabled.
F

T
wist this handle down to open the right-
hand door.
If the child lock is on (enabled), the handle
is inoperative.
For more information on the Child lock ,
refer to the corresponding section.
Closing
F First close the right-hand door, then the left-hand door.
2
Access

70
Tailgate
Opening
For more information on the Key, Remote
control or K eyless Entr y and Star ting ,
and in particular unlocking the vehicle,
refer to the corresponding section.
F

A
fter unlocking the vehicle with the key,
the remote control or the
K
eyless Entry
and Starting, pull the handle, then raise the
tailgate.
Closing
If the tailgate is not fully closed:
-

v

ehicle stationary and the engine running,
this warning lamp comes on, accompanied
by an alert message for a few seconds,
-

v

ehicle moving (speed above 6 mph
(10
km/h)), this warning lamp comes on,
accompanied by an audible signal and an
alert message for a few seconds.
For more information on the Key, Remote
control or

K
eyless Entr y and Star ting ,
and in particular locking the vehicle, refer
to the corresponding section.
Back-up control
It allows the mechanical unlocking of the
tailgate in the event of a battery or central
locking system malfunction.
Unlocking
F If fitted to your vehicle and if necessary, fold the rear seats to gain access to the lock
from inside.
Locking after closing
If the fault persists after closing again, the
tailgate will remain locked.
F

L

ower the tailgate using the interior grab
handle then push it home to fully close it.
F
I
nsert a small screwdriver into hole A of the
lock to unlock the tailgate.
F
M
ove the latch to the left.
Access
