INTRODUCTION
39
NOTE
Hide the apps that you rarely or never use by moving them to the bottom, off the visiblescreen. This way it will be easier to find theapps you use more often.
Scrolling in a list, article or viewWhen a scroll indicator is visible in the screen, it is possible to scroll downward or upward in theview. Swipe downwards/upwards anywhere in theview.
The scroll indicator appears in the centre display when it is possible to scroll in the view.
Using the controls in the centre display
Temperature control.
The control is used for many of the car's func- tions. Regulate e.g. temperature by means of oneof the following: •drag the control to the desired temperature,
• tap on
+/− in order to raise/lower the tem-
perature gradually, or
• tap on the desired temperature on the con- trol.
Related information
•
Navigating in the centre display's views(p. 40)
• Settings view (p. 169)
• Sensus - connection and maintenance(p. 29)
• Remote control key range (p. 238) •
Downloading, updating and uninstalling apps(p. 468)
• Using the keyboard in the centre display(p. 49)
• Change settings for the centre display(p. 45)

INTRODUCTION
}}
45
Symbols in the centre display's status bar Overview of the symbols that can be shown in the centre display's status bar.
The status bar shows activities in progress and, in some cases, their status. Not all symbols areshown all the time due to the limited space in thestatus bar.
SymbolSpecification
Roaming activated.
Signal strength in mobile phone net- work.
Bluetooth device connected.
Bluetooth activated but no device connected.
Connected to Wi-Fi network.
Tethering activated (Wi-Fi hotspot). The car then shares the availableconnection.
Car modem activated.
Remote diagnostics active.
Process in progress.
SymbolSpecification
Preconditioning in progress.
Audio source being played back.
Audio source stopped.
Phone call in progress.
Audio source muted.
News is received from the radio channel.
Traffic information is received.
Clock.
Related information
•Messages in the driver display and the centre display (p. 106)
• Navigating in the centre display's views(p. 40)
Change settings for the centre display The centre display is started automatically when the driver's door is opened. The settings can bechanged for the centre display to personalisesound and themes. The screen can be switchedoff so as not to be disruptive whilst driving.
Switching off/changing the system
sounds volume in the centre display.
The system sounds volume in the centre display can be adjusted or switched off: 1. Press
Settings in the top view in the centre
display.
2. Press
SoundSystem Volumes.
3. Under
Screen Touch, drag the control to
change the volume/switch off screen touch sounds and
Keypad Touch in order to
adjust the volume/switch off screen key- board touch sounds. Drag the control to thedesired volume.
Changing the appearance of the screen1. Press Settings in the top view.
2. Press
My CarDisplaysDisplay
Themes.
3. Then select theme, e.g.
Minimalistic orChrome Rings.
As a supplement to these appearances, it is pos- sible to choose between
Normal and Bright.

INTRODUCTION
}}
49
Using the keyboard in the centre display The centre display keyboard makes it possible make entries using keys. It is also possible to"draw in" letters and characters on the screenby hand.
Making entries with the keyboardThe keyboard can be used to enter characters, letters and numbers, e.g. to write text messagesfrom the car, enter passwords or search for arti-cles in the digital owner's manual. The keyboard is only shown when entries can be made on the screen.

||
INTRODUCTION
50
The image shows an overview of some of the buttons which may be shown in the keyboard. The appearance varies depending on language settings and the context in which the keyboard is being used.

INTRODUCTION
}}
51
Row of suggested words or characters11
.
The suggested words are adjusted as new letters are being entered. Browse among thesuggestions by pressing on the right and leftarrows. Tap on a suggestion to select it. Notethat this function is not supported by all lan-guage selections. If not available, the row willnot be shown on the keyboard.
The characters available on the keyboard depend on which language was selected(see point 7). Tap on a character to enter it.
The button works in different ways, depend- ing on the context in which the keyboard is used - either to enter @ (when an email
address is entered) or to create a new row
(for normal text input).
Hides the keyboard. If this is not possible, the button is not shown.
Used to enter capital letters. Press again to enter one capital letter and then continuewith lower-case letters. Another press makesall letters capital letters. The next pressrestores the keyboard to lower-case letters.In this mode, the first letter after a full stop,exclamation mark or question mark is a capi-tal letter. The first letter in the text field isalso a capital letter. In text fields intended fornames or addresses, each word automaticallystarts with a capital letter. In text fields forpassword, web address or email address entry, all letters are automatically lower caseunless otherwise set with the button.
Number entry. The keyboard (2) is then shown with numbers. Press
, which in
number mode is shown instead of
, to
return to the letter keyboard, or
to
open the keyboard with special characters.
Changes text input language, e.g. UK. The
available characters and word suggestions (1) vary depending on the selected language.Press to open a list of languages and thentap on the language to be used. To add addi-tional languages in the keyboard - see theheading "Changing keyboard language"below.
Space.
Undoes entered text. Press briefly to delete one character at a time. Hold the buttondepressed to delete characters more quickly.
Changes keyboard mode to write letters and characters by hand instead. Read moreunder the heading "Writing characters/letters by hand on the screen".
Press the confirmation button above the key-board (not visible in the image) to confirm theentered text. The appearance of the button dif-fers depending on context.
Changing the keyboard languageTo make it possible to switch between differentlanguages for the keyboard, the languages must first be added under
Settings.
Adding/deleting languages in settings
The keyboard is automatically set to the same languages as the system language. The keyboardlanguage can be manually adapted withoutaffecting the system language. 1. Press
Settings in the top view.
2. Press
SystemKeyboard Layouts.
3. Select one or more languages from the list. > It is now possible to switch between theselected languages directly from the key- board for text input.
If no languages have been actively selected under
Settings, the keyboard uses the same lan-
guage as the car's system language; see the section "Changing system settings in the set-tings view".
11 Applies to Asiatic languages.

||
INTRODUCTION
52
Switching between different languages in the keyboard
When a number of languages have been selected in
Settings, the keyboard button
(shown in context as number 7 in the illustration above) is usedto switch between different lan-guages.
To change keyboard language:
1. Press and hold the button (see image above).
> A list opens.
2. Select the required language. If more than four languages have been selected under
Settings, it is possible to scroll in the list
from the keyboard.
> The keyboard is adapted to the selected language and other word suggestions are given.
Variants of a letter or character
To enter a variant of a letter/character, e.g. é or
è :
1. Press and hold the letter/character. > A box with possible variants of the letter/character opens.
2. Press the required variant. If none of the vari- ants are selected, the original letter/charac- ter is entered.
Related information
• Settings view (p. 169)
• Operating the centre display (p. 36)
• Managing text messages (p. 461)
• Changing system settings in the settingsview (p. 172)

INTRODUCTION
53

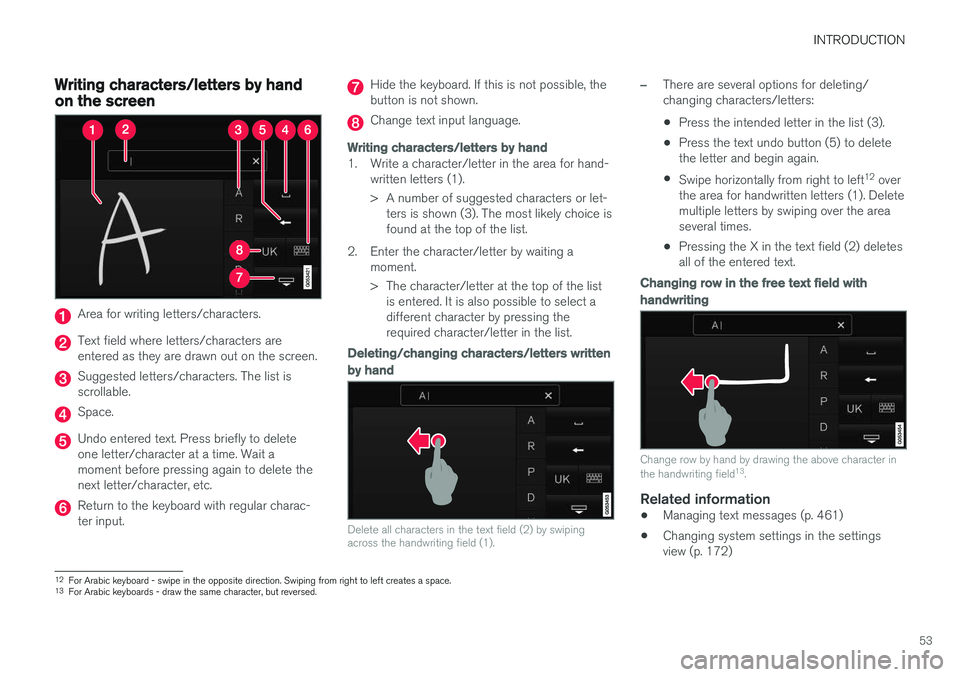

Writing characters/letters by hand on the screen
Area for writing letters/characters.
Text field where letters/characters are entered as they are drawn out on the screen.
Suggested letters/characters. The list is scrollable.
Space.
Undo entered text. Press briefly to delete one letter/character at a time. Wait amoment before pressing again to delete thenext letter/character, etc.
Return to the keyboard with regular charac- ter input.
Hide the keyboard. If this is not possible, the button is not shown.
Change text input language.
Writing characters/letters by hand
1. Write a character/letter in the area for hand-written letters (1).
> A number of suggested characters or let-ters is shown (3). The most likely choice is found at the top of the list.
2. Enter the character/letter by waiting a moment.
> The character/letter at the top of the listis entered. It is also possible to select a different character by pressing therequired character/letter in the list.
Deleting/changing characters/letters written by hand
Delete all characters in the text field (2) by swiping across the handwriting field (1).
–There are several options for deleting/ changing characters/letters: •Press the intended letter in the list (3).
• Press the text undo button (5) to delete the letter and begin again.
• Swipe horizontally from right to left 12
over
the area for handwritten letters (1). Deletemultiple letters by swiping over the areaseveral times.
• Pressing the X in the text field (2) deletesall of the entered text.
Changing row in the free text field with handwriting
Change row by hand by drawing the above character in the handwriting field 13
.
Related information
• Managing text messages (p. 461)
• Changing system settings in the settings view (p. 172)
12
For Arabic keyboard - swipe in the opposite direction. Swiping from right to left creates a space.
13 For Arabic keyboards - draw the same character, but reversed.

SAFETY
62
Door and seatbelt reminderThe system reminds unbelted occupants to wear a seatbelt, and also warns about an open door,bonnet, tailgate or fuel filler flap.
Driver display graphics
Graphics in the driver display with different types of warnings. The warning colour on the door and tailgate isdependent on the vehicle's speed.
The driver display's graphics show which seats in the car are occupied by belted and unbelted pas-sengers. The same graphic also shows if the bonnet, tail- gate, fuel filler flap or any door is open. The graphics are cleared automatically after approximately 30 seconds of driving, or by press-ing on the right-hand the steering wheel keypad's O button.
Seatbelt reminder
Visual reminder in the roof console.
A visual reminder is given in the roof console and by means of the warning symbol in the driver dis-play. The acoustic reminder is dependent on speed, driving time and distance. The belt status of the driver and passengers is shown in the driver display graphics when a beltis buckled or unbuckled. Child seats are not covered by the seatbelt reminder system.
Front seat
A visual and acoustic reminder remind the driver and front seat passenger to use a seatbelt ifeither of them is not wearing one.
Rear seat
The seatbelt reminder in the rear seat has two subfunctions: • Provides information on which seatbelts are being used in the rear seat. The driver dis-play's graphics are shown when the seatbeltsare in use.
• Reminding that a seatbelt in the rear seat isunfastened during a journey by means of avisual and acoustic reminder. The reminderstops when the seatbelt is refastened, or itcan be acknowledged manually by pressing the
O button on the right-hand steering
wheel keypad.
Reminder for doors, bonnet, tailgate
and fuel filler flap
If the bonnet, tailgate, fuel filler flap or a door is not closed properly, the driver display's graphicsshow what is open. Stop the car in a safe placeas soon as possible and close the source of thewarning.
If the car is driven at a speed lowerthan approx. 10 km/h (6 mph) then thedriver display's information symbol illu-minates.
If the car is driven at a speed higher than approx. 10 km/h (6 mph) then thedriver display's warning symbol illumi-nates.
