MAINTENANCE AND SERVICE
535
•
Using jump starting with another battery (p. 388)
• Symbols on the batteries (p. 533)
Fuses All electrical functions and components are pro- tected by a number of fuses in order to protectthe car's electrical system from damage by shortcircuiting or overloading.
If an electrical component or function does not work, it may be because the component's fusewas temporarily overloaded and failed. If thesame fuse fails repeatedly then there is a fault inthe circuit. Volvo recommends contacting anauthorised Volvo workshop for checking.

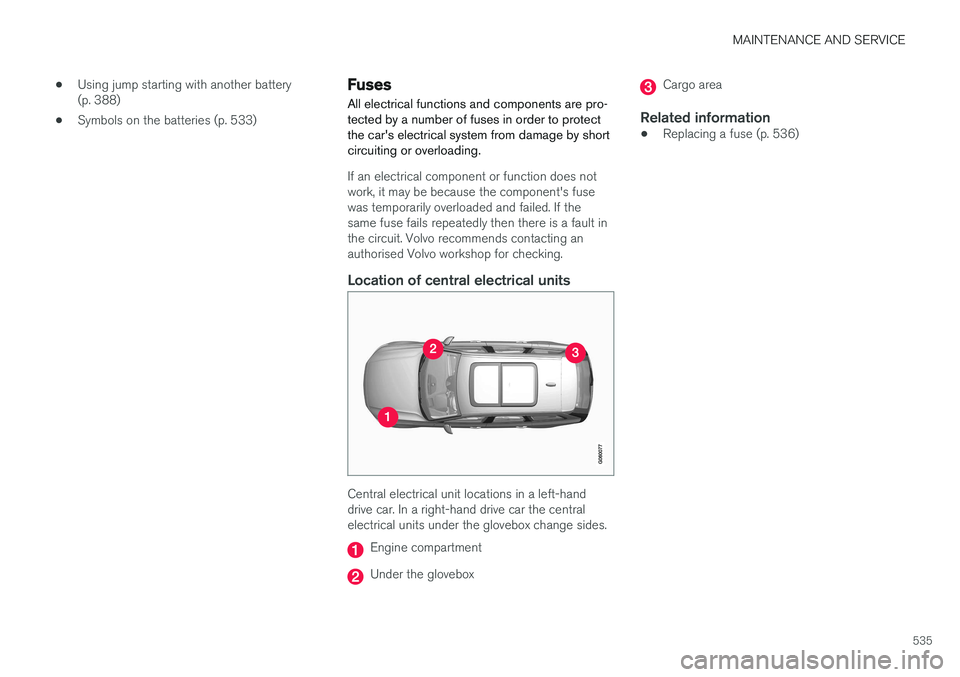

Location of central electrical units
Central electrical unit locations in a left-hand drive car. In a right-hand drive car the centralelectrical units under the glovebox change sides.
Engine compartment
Under the glovebox
Cargo area
Related information
•Replacing a fuse (p. 536)

MAINTENANCE AND SERVICE
536
Replacing a fuse All electrical functions and components are pro- tected by a number of fuses in order to protectthe car's electrical system from damage by shortcircuiting or overloading.
Changing1. Look in the fuse diagram to locate the fuse.
2. Pull out the fuse and check from the side tosee whether the curved wire has blown.
3. If this is the case, replace it with a new fuse of the same colour and amperage.
WARNING
Never use a foreign object or a fuse with an amperage higher than that specified whenreplacing a fuse. This could cause significantdamage to the electrical system and possiblylead to fire.
Related information
• Fuses (p. 535)
• Fuses in engine compartment (p. 537)
• Fuses under glovebox (p. 542)
• Fuses in cargo area (p. 546)

||
MAINTENANCE AND SERVICE
* Option/accessory.
538
Applies to the Bi-Fuel model variant *B
On the inside of the cover there are tweezers that facilitate the procedure for the removal and fittingof fuses. The fuse box also provides space for severalspare fuses.PositionsOn the inside of the cover is a label that showsthe location of the fuses.

MAINTENANCE AND SERVICE
541
FunctionAA
- -
- -
Starter motor Shunt
Starter motor 40
A
Ampere
B Applies to the Bi-Fuel model variant.
C LED (Light Emitting Diode)
Related information
• Replacing a fuse (p. 536)
• Fuses under glovebox (p. 542)
• Fuses in cargo area (p. 546)

MAINTENANCE AND SERVICE
542
Fuses under glovebox
Fuses under the glovebox protect, amongst other things, the 230 V socket, displays anddoor modules.

MAINTENANCE AND SERVICE
}}
543
On the inside of the cover there are tweezers that facilitate the procedure for the removal and fittingof fuses.The
fuse box in the engine compartment also
provides space for several spare fuses.
