1053-2. Opening, closing and locking the doors
3
Operation of each component
■Customization that can be co nfigured at Toyota dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: →P. 543)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out
of the vehicle, resulting in death or serious injury.
● Ensure that all doors are properly closed and locked.
● Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● Double Cab and CrewMax models: Set the rear door child-protector locks
when children are seated in the rear seats.

1063-2. Opening, closing and locking the doors
Tailgate
Unlock the tailgate
Lock the tailgate
Pull the handle
Open the tailgate slowly
The support cables will hold the
tailgate horizontal.
Lift and close the tailgate
After closing the tailgate, try pulling
it toward you to make sure it is
securely locked.
The tailgate can be opened using the tailgate handle. The tail-
gate can be locked/unlocked using a key.
Locking/unlocking the tailgate
1
2
Opening/closing the tailgate
1
2
3

1073-2. Opening, closing and locking the doors
3
Operation of each component
■Before removing the tailgate
These connector covers are used when removing the tailgate, to
prevent the back-up camera wire harness connectors from being
contaminated.
Connector cover (Gray)
Connector cover (White)
Store the connector covers in the
glove box in a plastic bag when not
using.
To disconnect the wire harness
connectors ( and ),
depress small plastic tab on
connector and pull apart
from connector .
Tailgate wire harness con-
nector (White)
Frame wire harness connec-
tor (Gray)
Attach the connector cover
(White) to the frame wire har-
ness connector (Gray). Connector cover (White)
Frame wire harness connec-
tor (Gray)
Removing the tailgate
1
12
1
2
1
2
2
2

1083-2. Opening, closing and locking the doors

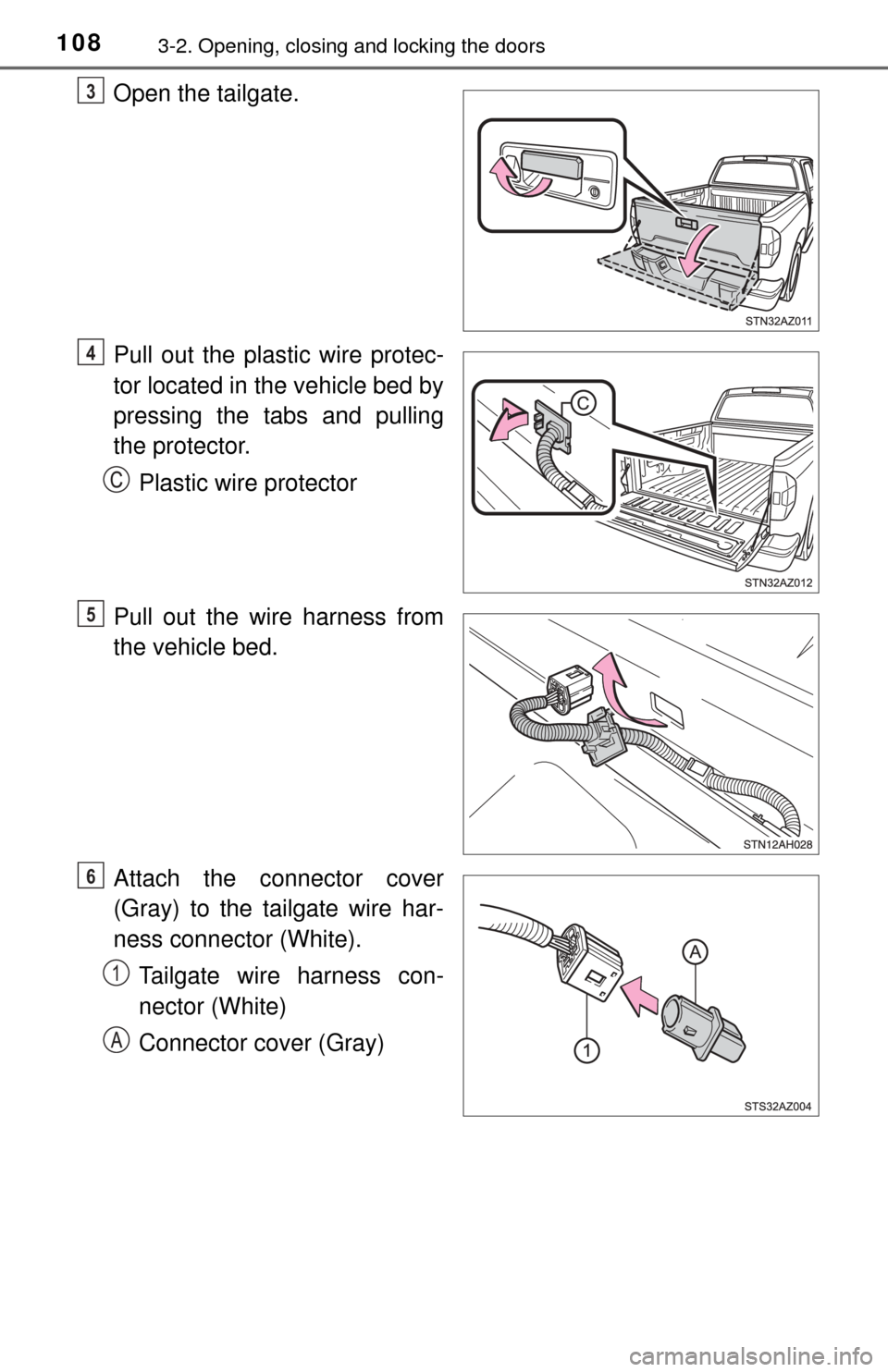

Open the tailgate.
Pull out the plastic wire protec-
tor located in the vehicle bed by
pressing the tabs and pulling
the protector.Plastic wire protector
Pull out the wire harness from
the vehicle bed.
Attach the connector cover
(Gray) to the tailgate wire har-
ness connector (White). Tailgate wire harness con-
nector (White)
Connector cover (Gray)3
4
5
6
1

1093-2. Opening, closing and locking the doors
3
Operation of each component
■Removing the tailgate
Open the tailgate to the angle
where you can release the
brackets on the support cables
from the lugs on both sides.
Lift the support cable bracket
up and slide it off.
To unhook the support cable
bracket, keep pulling up the clip on
the bracket and unhook the
bracket.
Support cable bracket
Clip
Tilt the tailgate to about 45°
from vertical and pull up the
right side of the tailgate to
unhook the right side.
Tilt the tailgate up to 15°.
Slide the tailgate a little to the
right to unhook the left side.
To attach the tailgate, follow the
removal procedure in reverse
order.
1
1
2
2
3
4

1103-2. Opening, closing and locking the doors
For rear end protection and easier
step-up loading.
To get on the rear step bumper,
use the shaded area in the illustra-
tion.
Rear step bumper
CAUTION
■Before removing the tailgate
Disconnect the wire harness between the back-up camera and the vehicle.
Failure to do so may result in serious personal injury or damage to the \
vehi-
cle components.
■ Caution while driving
Observe the following precautions.
Failure to do so may result in death or serious personal injury.
● Do not drive with the tailgate open.
● Do not allow others to get on the rear step bumper.
NOTICE
■To prevent damage to the tailgate wire harness
Do not pull out all of the tailgate wire harness before opening the tailgate.
■ To prevent damage to the camera lens
Store the removed tailgate with the back-up camera lens facing upward.
■ After closing the tailgate
Try pulling it toward you to make sure it is securely locked.
■ To prevent damage to the rear step bumper
Do not allow more than one person to get on the rear step bumper at a time.

1113-3. Adjusting the seats
3
Operation of each component
Front seats
■Driver’s seat
■Passenger’s seat
Manual seat

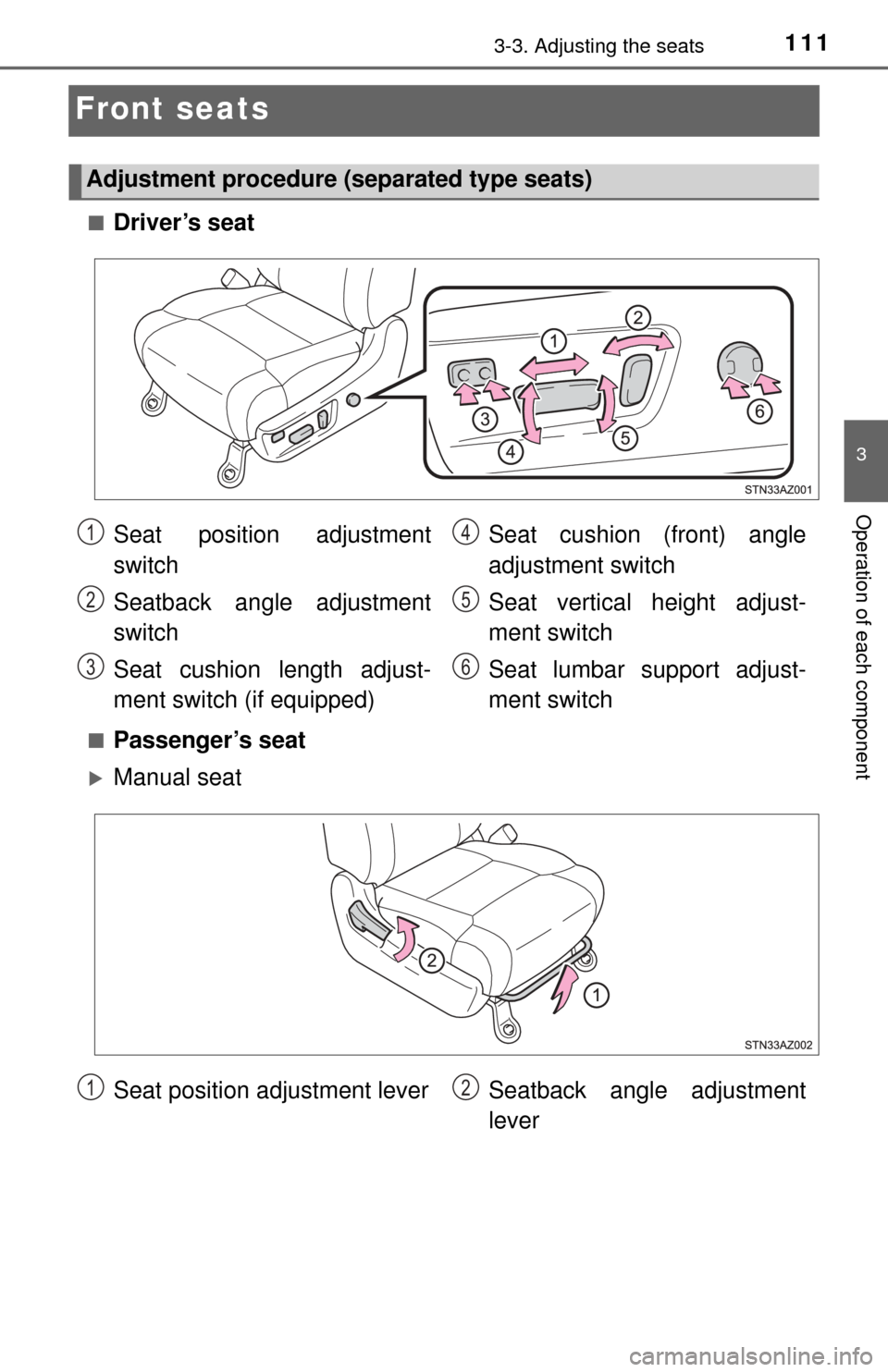

Adjustment procedure (separated type seats)
Seat position adjustment
switch
Seatback angle adjustment
switch
Seat cushion length adjust-
ment switch (if equipped)Seat cushion (front) angle
adjustment switch
Seat vertical height adjust-
ment switch
Seat lumbar support adjust-
ment switch1
2
3
4
5
6
Seat position adjust
ment lever Seatback angle adjustment
lever12

1123-3. Adjusting the seats
Power seat
Seat position adjustment
switch
Seatback angle adjustment
switchSeat lumbar support adjust-
ment switch
Adjustment procedure (bench type seats)
1
2
3
Seat position adjustment
levers
Seatback angle adjustment
leversCenter seat seatback angle
adjustment lever1
2
3
