2017 TOYOTA PRIUS PRIME display

PRIUS PRIME_OM_OM47A88U_(U)
2473. Instrument cluster
3
Instrument cluster
■Function summary
The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.
■Flow of energy and display details
When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright point of light are not displayed.
If the “Trip Information” or “Past Record” screen is displayed, select
“Energy”.
How to read the energy monitor
Audio system screen
When the vehicle is powered by
the electric motor (traction
motor)
When the vehicle is powered by
both the gasoline engine and
the electric motor (traction
motor)
When the vehicle is powered by
the gasoline engine

PRIUS PRIME_OM_OM47A88U_(U)
2493. Instrument cluster
3
Instrument cluster
The current remaining charge in the hybrid battery (traction battery) is
displayed on the energy monitor screen.
The system automatically switches to the HV mode when the neces-
sary amount of battery charge for EV driving in EV mode is insuffi-
cient.
The hybrid battery (traction bat-
tery) for EV mode is fully
charged
There is a remaining charge in
the hybrid battery (traction bat-
tery).
The hybrid battery (traction bat-
tery) for EV mode is not remain-
ing
The hybrid battery (traction bat-
tery) for HV mode is fully
charged
When the hybrid battery (traction
battery) charge for EV mode is
depleted, the hybrid battery (trac-
tion battery) charge for HV mode is
displayed.
The hybrid battery (traction battery) is not remaining
The image is an example only, and may vary slightly from actual condi-
tions.
The approximate distance that
can be driven using only the elec-
tric motor (traction motor).
• Only EV mode is displayed.
• When the air conditioning is on,the displayed value may differ
from the hybrid indicator.
(→ P. 215)
• The image is an example only, and may vary slightly from actual
conditions.
Display of the remaining hybr id battery (traction battery)
1
2
3
4
EV driving range
5

250
PRIUS PRIME_OM_OM47A88U_(U)
3. Instrument cluster

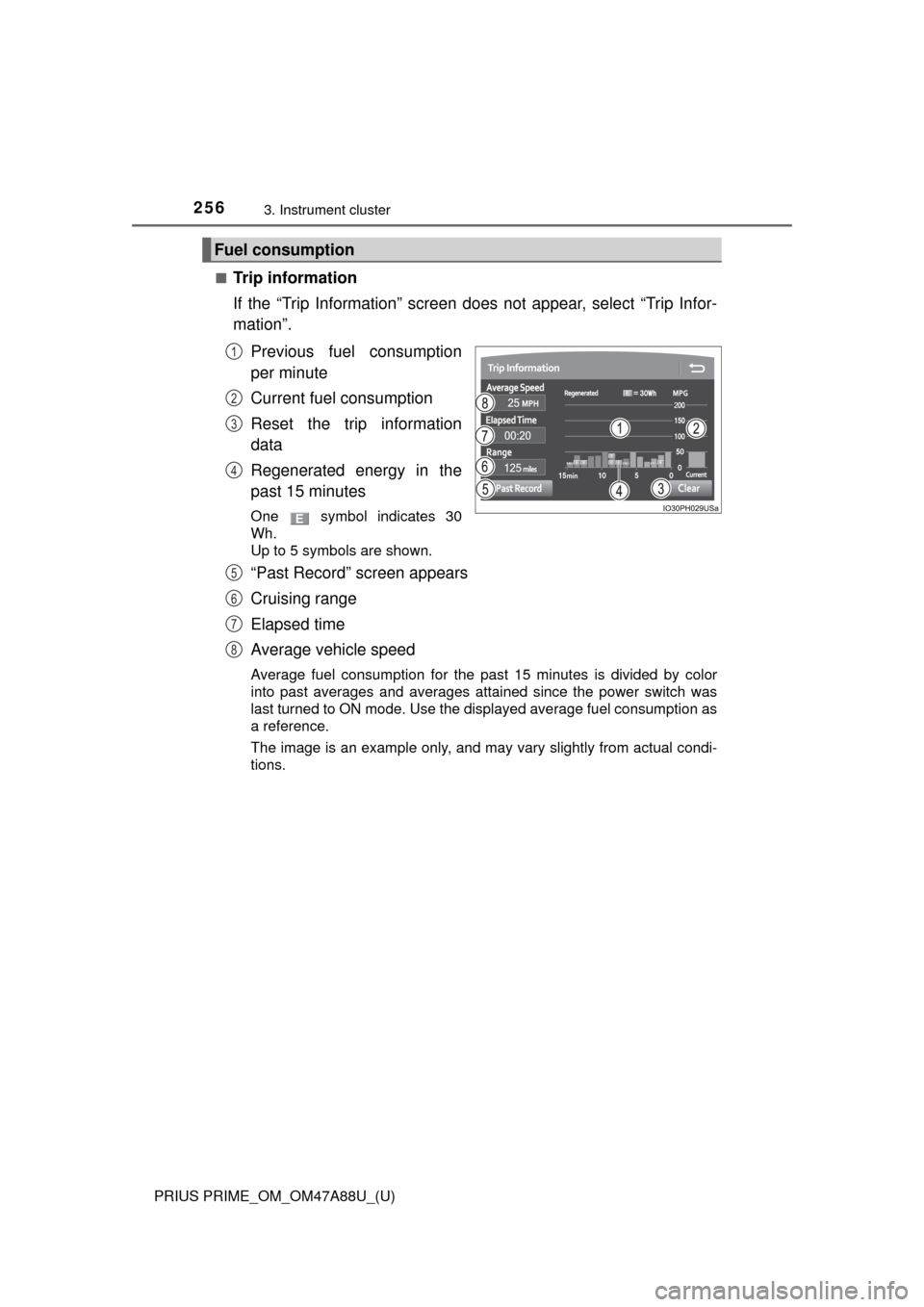

■Trip information
If the “Trip Information” screen does not appear, select “Trip Infor-
mation”.Reset the trip information
data
Previous fuel consumption
per minute
Current fuel consumption
Regenerated energy in the
past 15 minutes
One symbol indicates
30 Wh.
Up to 5 symbols are shown.
“Energy Monitor” screen appears
“Past Record” screen appears
Cruising range
Elapsed time
Average vehicle speed
Average fuel consumption for the past 15 minutes is divided by
color into past averages and av erages attained since the power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.
The image is an example only, an d may vary slightly from actual
conditions.
Fuel consumption
1
2
3
4
5
6
7
8
9

PRIUS PRIME_OM_OM47A88U_(U)
2513. Instrument cluster
3
Instrument cluster

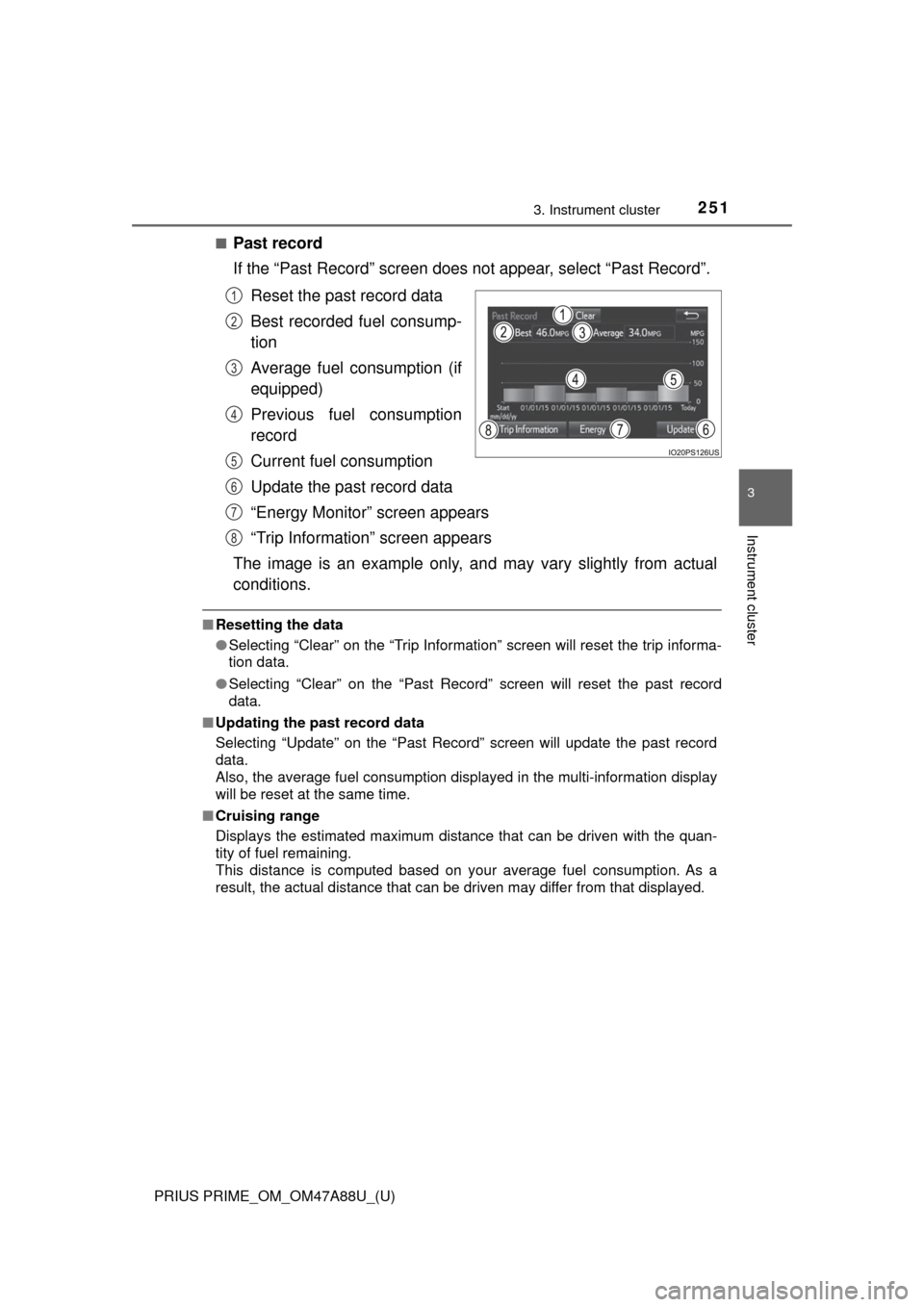

■Past record
If the “Past Record” screen does not appear, select “Past Record”.
Reset the past record data
Best recorded fuel consump-
tion
Average fuel consumption (if
equipped)
Previous fuel consumption
record
Current fuel consumption
Update the past record data
“Energy Monitor” screen appears
“Trip Information” screen appears
The image is an example only, an d may vary slightly from actual
conditions.
■ Resetting the data
●Selecting “Clear” on the “Trip Information” screen will reset the trip informa-
tion data.
● Selecting “Clear” on the “Past Record” screen will reset the past record
data.
■ Updating the past record data
Selecting “Update” on the “Past Record” screen will update the past record
data.
Also, the average fuel consumption displa yed in the multi-information display
will be reset at the same time.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.
1
2
3
4
5
6
7
8

252
PRIUS PRIME_OM_OM47A88U_(U)
3. Instrument cluster
Energy monitor/consumption screen/detail
screen (vehicles with 11.6-inch display)
◆Multi-information display
→P. 2 0 5
◆Audio system screen
■Display the energy monitor, tr ip information or past record
screen
Press the “MENU” button.
Select “Info” on the screen
Display the “Energy monitor”,
“Trip information” or “Past
record” screen.“Energy Monitor”:
Select “Energy” on the
screen.
“Trip Information” or “Past
Record” screen:
Select “Past Record” on
the screen.
“Trip Information” or “Past Record” screen will be displayed.
Press the “HOME” button and select “Info” on the screen. You can
select “Energy” and “Past Record”.
You can view the status of your vehicle on the multi-information
display and the audio system screen
*.
*: For navigation system
1
2
3
1
2

PRIUS PRIME_OM_OM47A88U_(U)
2533. Instrument cluster
3
Instrument cluster
■Display the detail screenDisplay “Energy Monitor” screen.
Select on the upper right screen.
■Function summary
The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.
The flow of electric energy during charging is displayed when
charging from an external power source.
For vehicles equipped with a solar charging system, a guide for the
state of the solar charging system is displayed.
■Flow of energy and display details
When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright point of light are not displayed.
● The display when the engine is operating is in blue while the
engine is being warmed up and yellow afterwards.
● The arrow from the engine to the motor and tires is displayed in
red.
● The arrow indicating energy consumption is displayed in yellow
and the arrow indicating energy regeneration or charging is dis-
played in green. Also, the hybr id battery (traction battery)
changes color accordingly.
● There is an icon , , on the lower side of the
screen. The screen switches to each point of view when you
select it.
● When you select , this screen is displayed in the lower half of
the screen, it will be displaye d together with the navigation
screen.
● These images are examples only, and may vary slightly from
actual conditions.
How to read the energy monitor
1
2

PRIUS PRIME_OM_OM47A88U_(U)
2553. Instrument cluster
3
Instrument cluster
*: When the air conditioning compressor is not operating, an arrow does notappear and the bright point of light are not displayed.

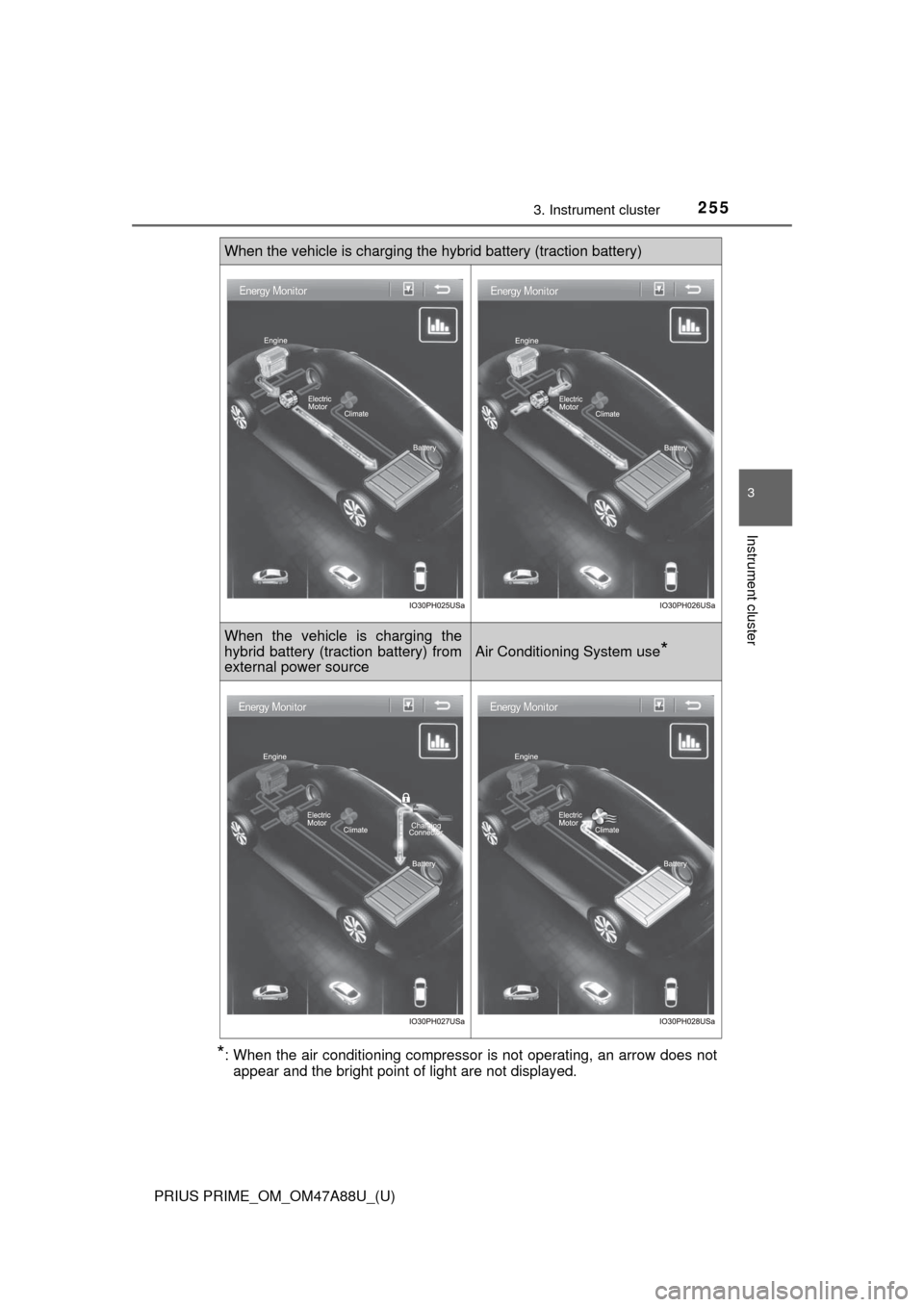

When the vehicle is charging the hybrid battery (traction battery)
When the vehicle is charging the
hybrid battery (traction battery) from
external power source
Air Conditioning System use*

256
PRIUS PRIME_OM_OM47A88U_(U)
3. Instrument cluster
■Trip information
If the “Trip Information” screen does not appear, select “Trip Infor-
mation”.Previous fuel consumption
per minute
Current fuel consumption
Reset the trip information
data
Regenerated energy in the
past 15 minutes
One symbol indicates 30
Wh.
Up to 5 symbols are shown.
“Past Record” screen appears
Cruising range
Elapsed time
Average vehicle speed
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the power switch was
last turned to ON mode. Use the displayed average fuel consumption as
a reference.
The image is an example only, and may vary slightly from actual condi-
tions.
Fuel consumption
1
2
3
4
5
6
7
8
