17Pictorial index
PRIUS PRIME_OM_OM47A88U_(U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 350
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 482
Precautions against car wash (vehicles with rain-sensing
windshield wipers) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 558
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 710
Charging port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 102
Charging method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 125
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 594
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 716
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 482
Checking/rotation/tire pressure warning system . . . . . . . . . P. 594
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 671
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 577
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 577
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 712
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 700
Headlights/parking lights/
daytime running lights/
side marker lights/LED accent lights
*. . . . . . . . . . . . . . . . . P. 338
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
Fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 348
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
Back-up lights
Shifting the shift position to R . . . . . . . . . . . . . . . . . . . . . . . . . P. 330
4
5
6
7
8
Light bulbs of the exter ior lights for driving
(Replacing method: P. 635, Watts: P. 717)
*: If equipped
9
10
11
12
13
14
15

710
PRIUS PRIME_OM_OM47A88U_(U)

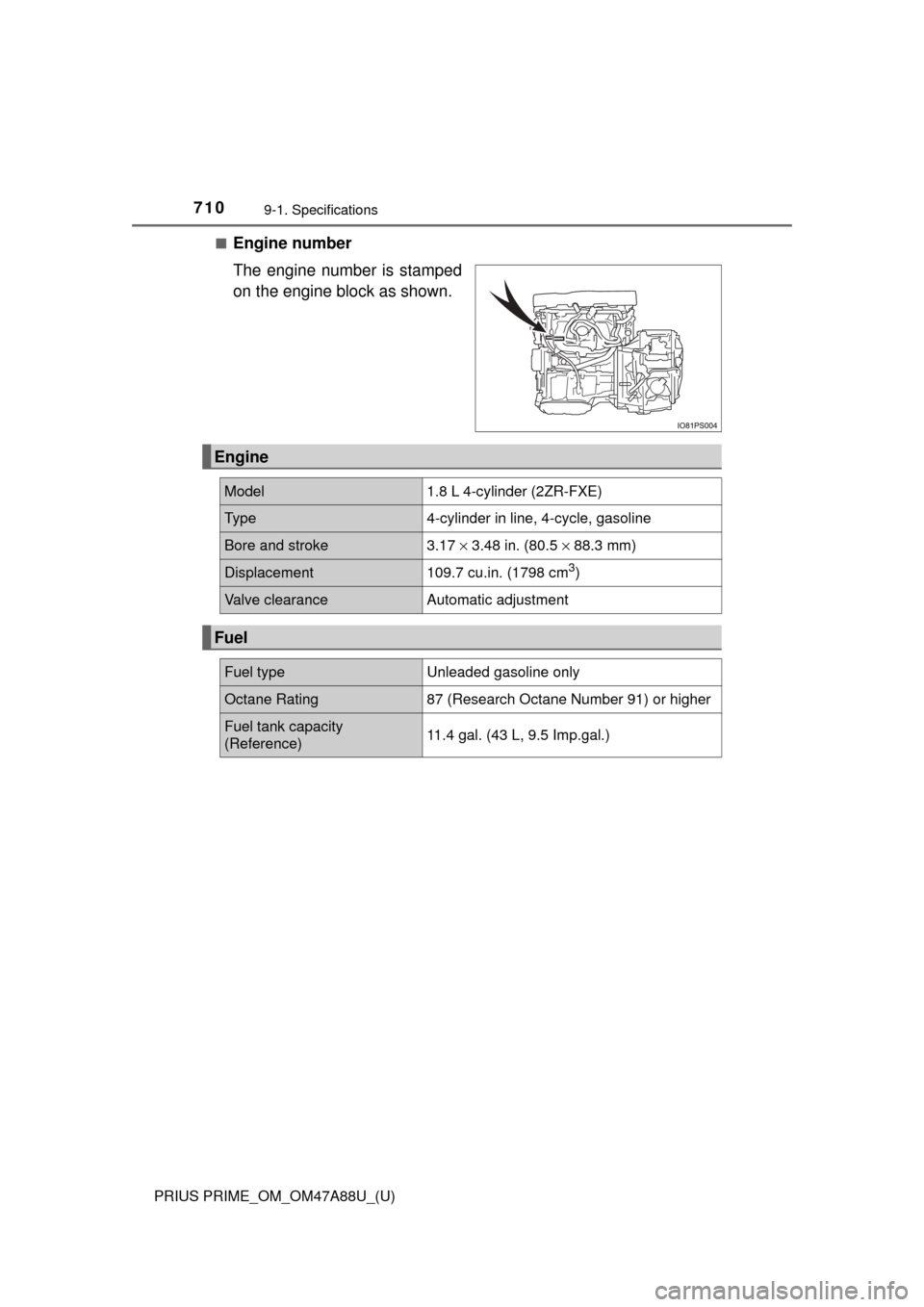

9-1. Specifications
■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model1.8 L 4-cylinder (2ZR-FXE)
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.17 × 3.48 in. (80.5 × 88.3 mm)
Displacement109.7 cu.in. (1798 cm3)
Valve clearanceAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)11.4 gal. (43 L, 9.5 Imp.gal.)

776Alphabetical index
PRIUS PRIME_OM_OM47A88U_(U)
Power control unit coolant ..... 584Capacity ................................ 714
Checking ............................... 584
Preparing and checking before winter....................... 482
Radiator ................................ 586
Power outlets ........................... 531
Power sources ......................... 122
Power steering (Electric Power Steering system) ....... 477 Function ................................ 477
Warning light ......................... 654
Power switch............................ 324 Auto power off function ......... 326
Changing the power
switch modes...................... 326
If your vehicle has to be
stopped in an emergency ... 645
Starting the hybrid system .... 324
Power windows........................ 300
Catch protection function ...... 301
Door lock linked window operation ............................ 302
Jam protection function......... 301
Operation .............................. 300
Window lock switch............... 300
Pre-Collision System (PCS) .... 369
Enabling/disabling the system ......... ....................... 373
Function ................................ 369
Warning light ......................... 654 Radar cruise control
(dynamic radar cruise
control with full-speed
range) ..................................... 391
Radiator .................................... 586
Radio
*
Rear passengers’ seat belt reminder light ........................ 656
Rear seat .................................. 289
Rear side marker lights........... 338 Light switch ........................... 338
Replacing light bulbs ............ 640
Rear turn signal lights ............ 336 Replacing light bulbs ............ 640
Turn signal lever ................... 336
Rear view mirror Inside rear view mirror .......... 296
Outside rear view mirrors ..... 298
Rear view monitor system
*
Rear window defogger .... 491, 502
Refueling .................................. 356 Capacity................................ 710
Fuel types ............................. 710
Opening the fuel tank cap..... 358
When the fuel filler door cannot be opened .............. 359
Regenerative braking ................ 86
Remote Air Conditioning
System ................................... 509
Replacing
Electronic key battery ........... 627
Fuses .................................... 630
Light bulbs ............................ 635
Tires...................................... 609
Wiper rubber ......................... 624
Reporting safety defects
for U.S. owners...................... 746
Resetting the message indicating maintenance is
required.................................. 568
Road accident cautions ............ 94
R

784
PRIUS PRIME_OM_OM47A88U_(U)
GAS STATION INFORMATION
Auxiliary catch leverFuel filler door
P. 577 P. 358
Fuel filler door openerHood lock release leverTire inflation pressure
P. 358 P. 577P. 716
Fuel tank capacity
(Reference)11.4 gal. (43 L, 9.5 Imp.gal.)
Fuel type
Unleaded gasoline only P. 710
Cold tire inflation
pressure P. 7 1 6
Engine oil capacity
(Drain and refill —
reference)With filter
Without filter
4.4 qt. (4.2 L, 3.7 Imp.qt.)
4.1 qt. (3.9 L, 3.4 Imp.qt.)
Engine oil type “Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC GF-5 multigrade engine oil
P. 712
