2313. Instrument cluster
3
Instrument cluster
The operation contents of the driving support systems and settings
related to the combination meter display can be changed.
Driving support systems such as the PCS (Pre-Collision System) and Blind
Spot Monitor (if equipped) is turned on and off by simply pressing .
Make sure not to cancel the systems accidentally.
■
Setting procedure
On the screen, press or of the meter control
switches and select the item to change, and then press .
If the function is turned on and
off or the sensitivity, etc. is
changed on the setting screen,
the setting is changed each time
the is pressed.
For functions that allow opera-
tion contents, display contents,
etc., of a function to be selected,
the setting screen is displayed.
When the setting screen is displayed, select the setting or
desired value (time, etc.) with the meter control switches.
*1, 2
For selectable operation con-
tents and setting values, select
the desired setting or value, and
then press .
To stop the selection, press .
When the setting check screen
is displayed, select proceed or
cancel and press .
*1: Depending on the items, a subsequent setting screen may be displayed
after selecting an item.
*2: For items which set the adjustment level or time, after the item is set,the setting screen remains displayed until is pressed.

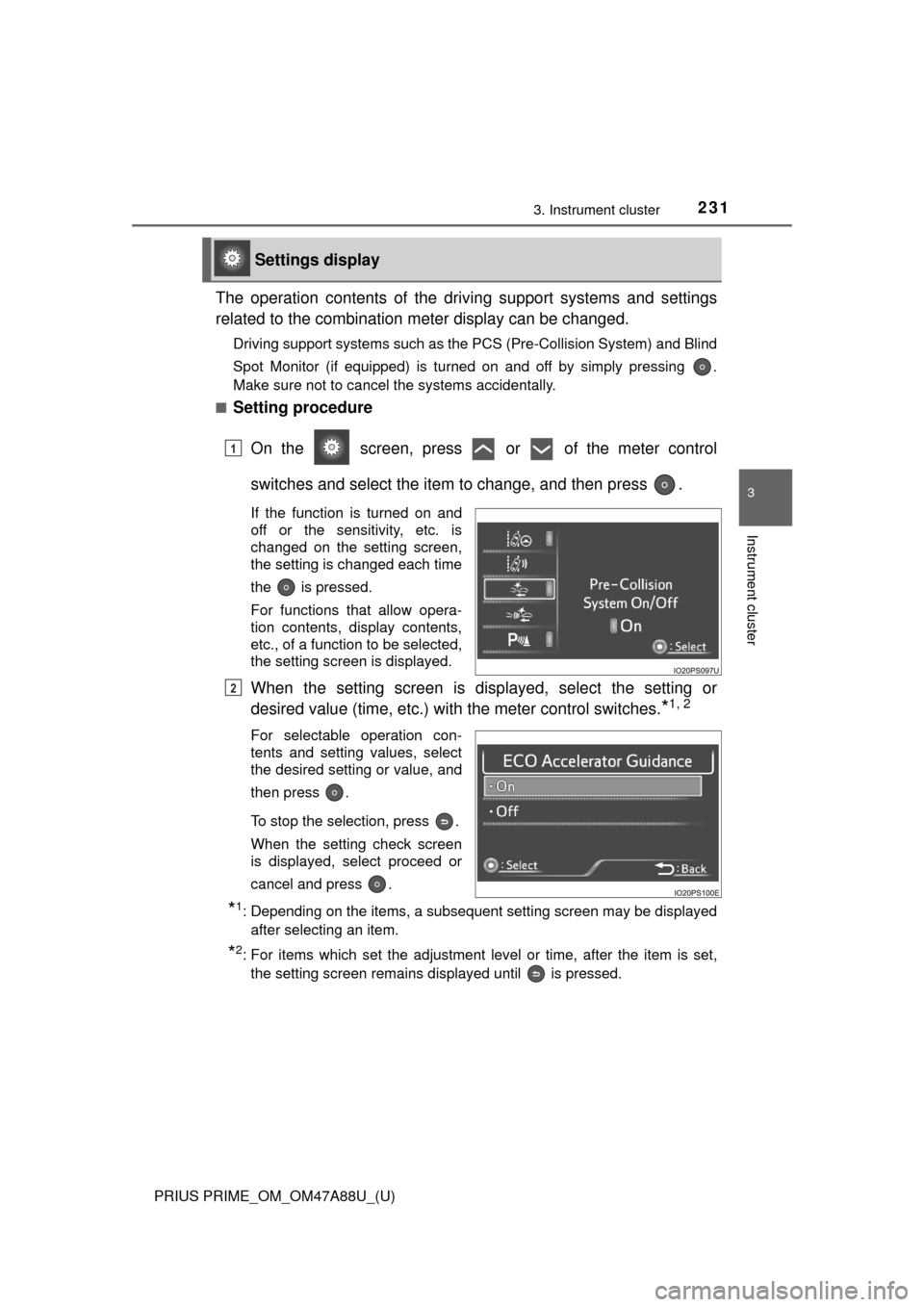

Settings display
1
2

232
PRIUS PRIME_OM_OM47A88U_(U)
3. Instrument cluster

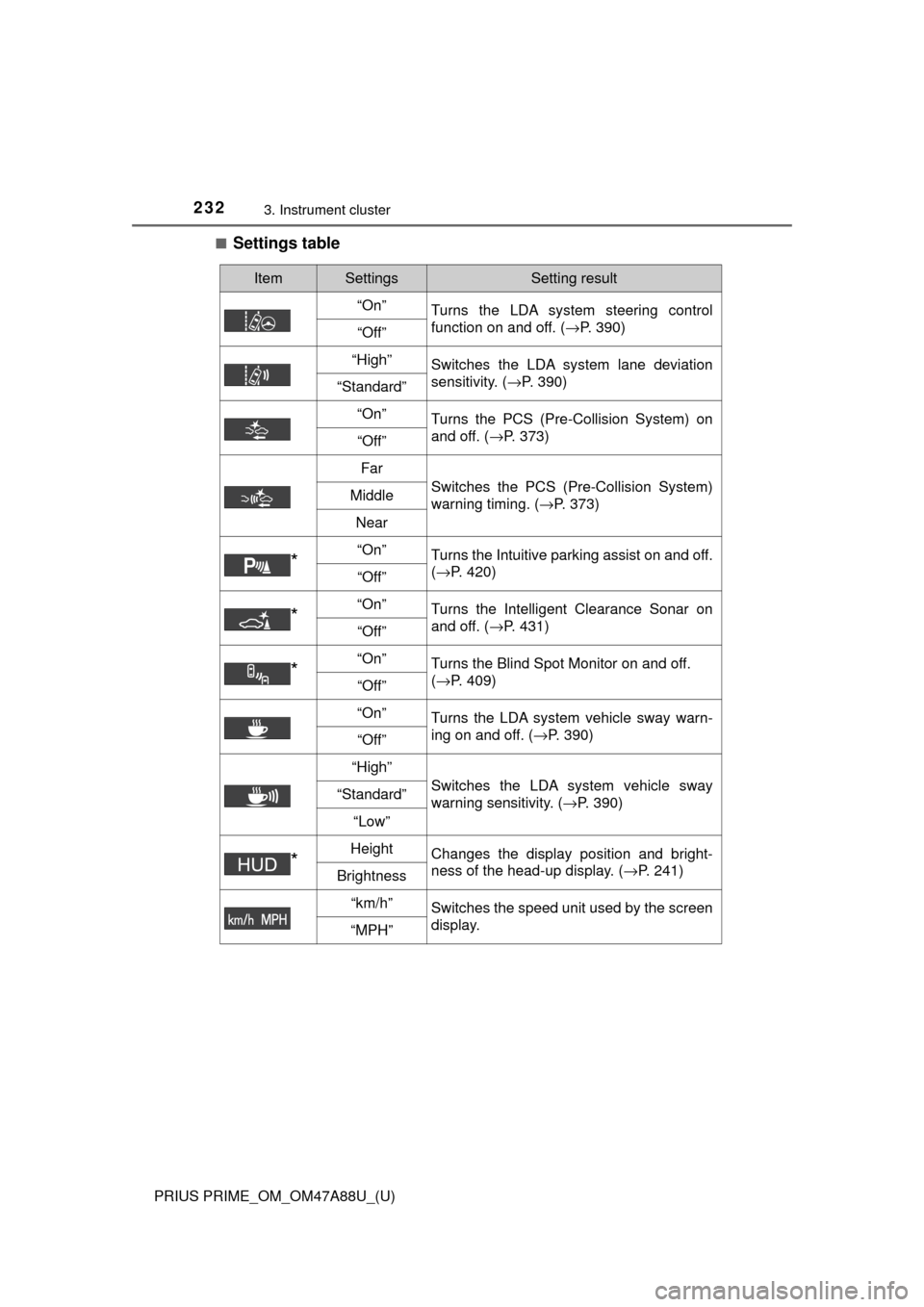

■Settings table
ItemSettingsSetting result
“On” Turns the LDA system steering control
function on and off. ( →P. 390)
“Off”
“High”Switches the LDA system lane deviation
sensitivity. (→P. 390)
“Standard”
“On”
Turns the PCS (Pre-Collision System) on
and off. ( →P. 373)
“Off”
Far
Switches the PCS (Pre-Collision System)
warning timing. ( →P. 373)Middle
Near
*“On”Turns the Intuitive parking assist on and off.
(→P. 420)
“Off”
*“On”Turns the Intelligent Clearance Sonar on
and off. ( →P. 431)
“Off”
*“On”Turns the Blind Spot Monitor on and off.
(→P. 409)
“Off”
“On”
Turns the LDA system vehicle sway warn-
ing on and off. ( →P. 390)
“Off”
“High”
Switches the LDA system vehicle sway
warning sensitivity. ( →P. 390)“Standard”
“Low”
*HeightChanges the display position and bright-
ness of the head-up display. ( →P. 241)
Brightness
“km/h”Switches the speed unit used by the screen
display.
“MPH”

PRIUS PRIME_OM_OM47A88U_(U)
2333. Instrument cluster
3
Instrument cluster
*: If equipped
■
“Meter Customize” settings ( )
Clock setting
Adjusts the clock. ( →P. 185)
Sets the minutes to “00”. (→P. 185)
“Meter Customize” settings: →P. 233
“Vehicle Settings” settings: →P. 732
ItemSettingsSetting result
ItemSettingsSetting result
“Simple/Split
Screen” “Simple”
Switches the display mode of
the main display. (→P. 200)
“Split”
“Screen
OFF”
*1
“Yes”Turns the multi-information dis-
play off.
“No”
“HV System
Indicator”
( → P. 210)
“ECO Acceler-
ator Guidance”“On”Turns the “ECO Accelerator
Guidance” on and off.
“Off”
“EV Indicator
Light On/Off” “On”Turns the EV indicator on and
off.
“Off”
“EV Drive
Monitor”“EV
Dis-
tance”
Switches the information dis-
play in the left upper corner of
the Hybrid System Indicator.
(
→ P. 215)
“EV
Energy”
“Blank”

234
PRIUS PRIME_OM_OM47A88U_(U)
3. Instrument cluster
“Pop-up Display
On/Off”
“Navigation”*2“On”
Turns the pop-up display of the
selected item on the multi-
information display on and off.
“Off”
“Instrument
Panel Light”“On”
“Off”
“Climate
Settings”“On”
“Off”
“Cruise
Control
Operation
Display”“On”
“Off”
“HUD
Settings”
*2
“On”
“Off”
“Driving Mode
Select”
“On”
“Off”
“Multimedia
Menu”
*2
“On”
“Off”
“Traction
Battery
Cooler”“On”
“Off”
“Speed
Limit”
*2, 3
(
→ P. 243)
“Off”Switches the operation con-
tents of the speed limit func-
tion.
“Only Display”
“With Caution”
“Language”
“English” (English)
Switches the language dis-
played on the screen.“Français” (French)
“Español” (Spanish)
“Calendar”
Month/Day/Year*4Changes the date used to
record electricity and fuel con-
sumption data.
Day/Month/Year*5
ItemSettingsSetting result

PRIUS PRIME_OM_OM47A88U_(U)
2353. Instrument cluster
3
Instrument cluster
*1: When the screen is turned off, pressing displays the setting screenagain.
*2: If equipped
*3: U.S.A. only
*4: Except for Canada
*5: For Canada

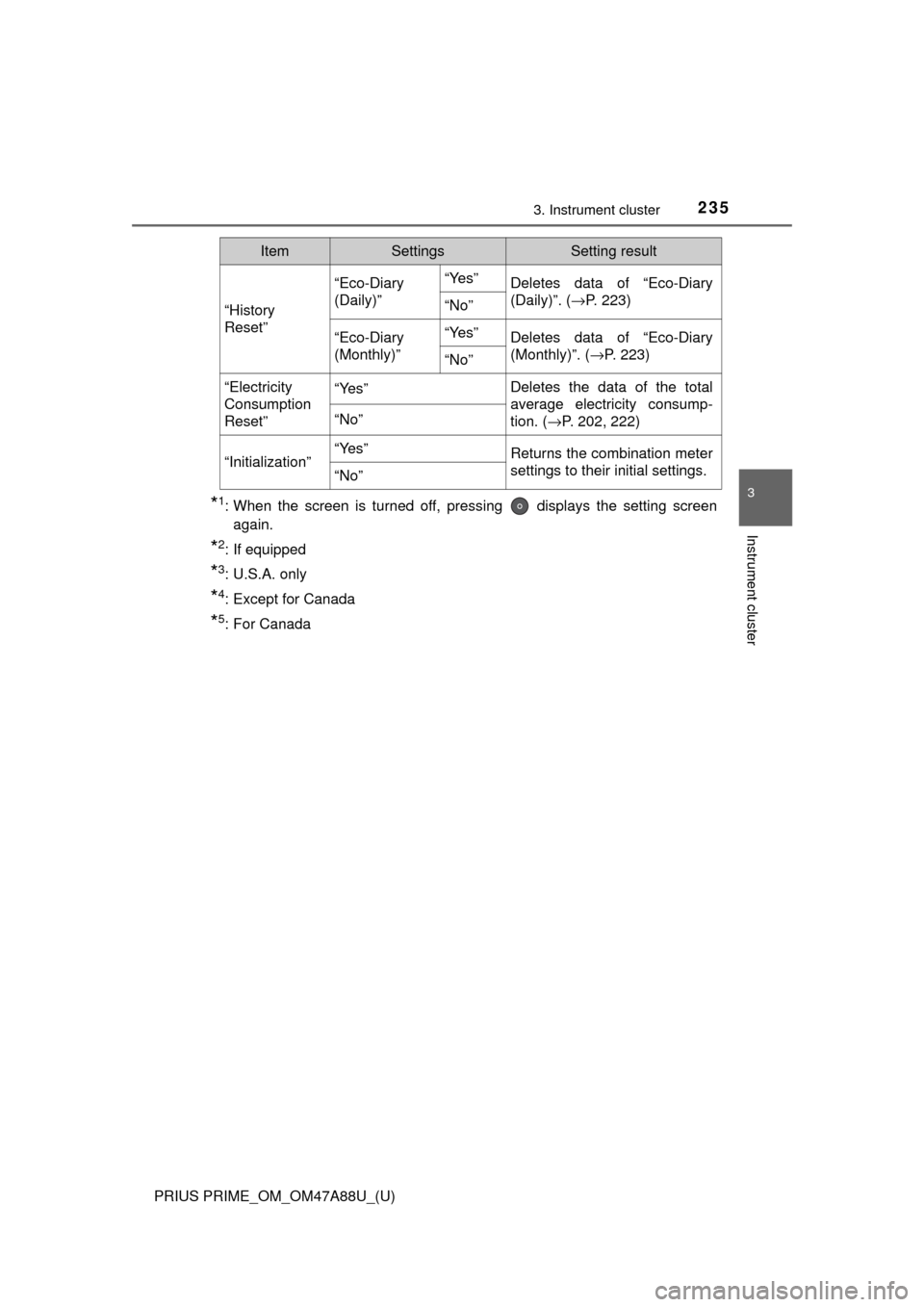

“History
Reset”
“Eco-Diary
(Daily)”“Yes”Deletes data of “Eco-Diary
(Daily)”. ( →P. 223)
“No”
“Eco-Diary
(Monthly)”“Yes”Deletes data of “Eco-Diary
(Monthly)”. ( →P. 223)
“No”
“Electricity
Consumption
Reset”“Yes”Deletes the data of the total
average electricity consump-
tion. (→P. 202, 222)
“No”
“Initialization”“Yes”Returns the combination meter
settings to their initial settings.
“No”
ItemSettingsSetting result

236
PRIUS PRIME_OM_OM47A88U_(U)
3. Instrument cluster
■Setting items
●“Meter Customize” and “Vehicle Settings” setting items are not selectable
during driving and cannot be operated.
Also, the settings screen is temporarily canceled in the following situations.
• A warning message is displayed.
• The vehicle starts off.
● Settings for functions not equipped to the vehicle are not displayed.
● When a function is turned off, the related settings for that function are not
selectable.

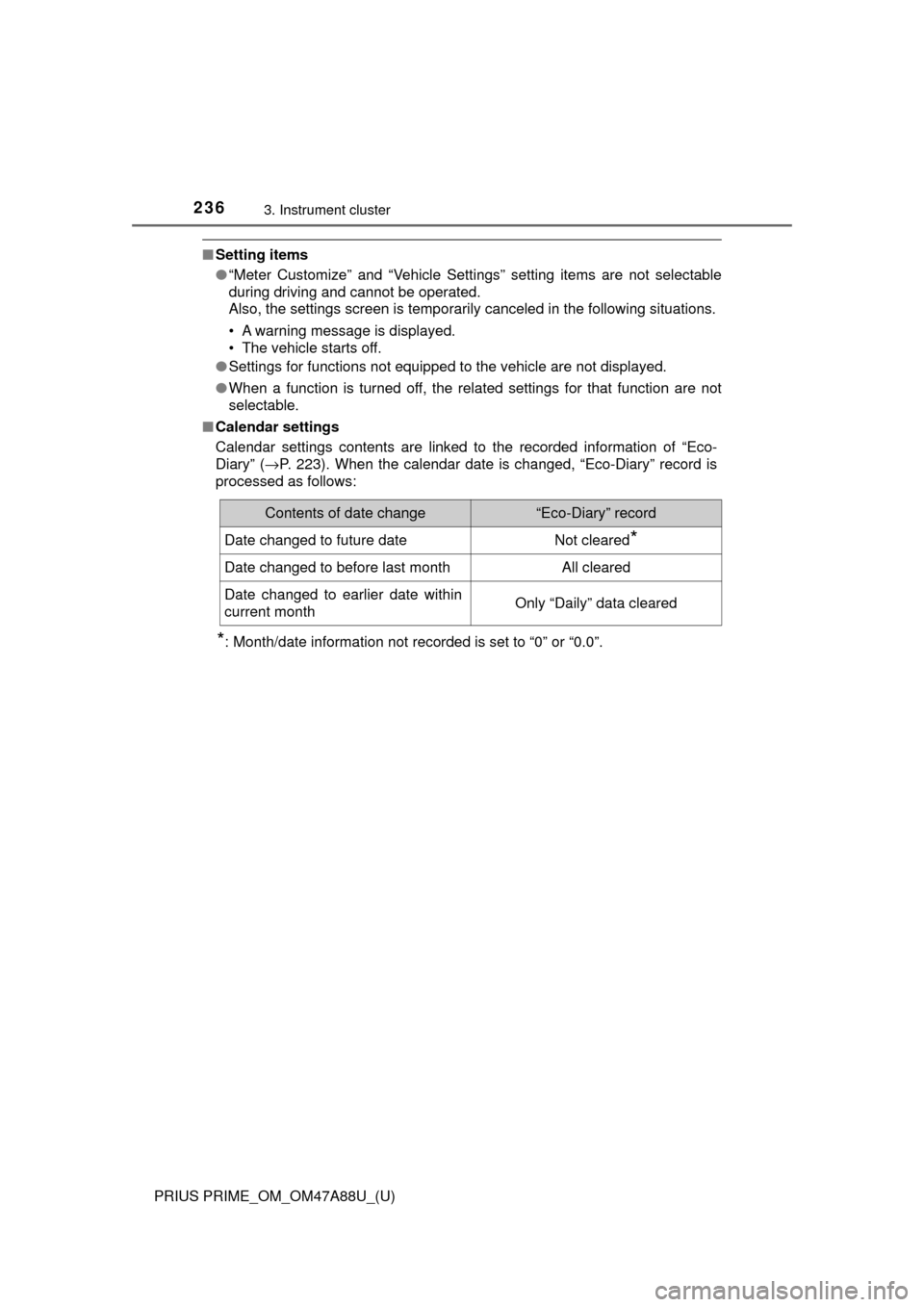

■ Calendar settings
Calendar settings contents are linked to the recorded information of “\
Eco-
Diary” ( →P. 223). When the calendar date is changed, “Eco-Diary” record is
processed as follows:
*: Month/date information not recorded is set to “0” or “0.0”.
Contents of date change“Eco-Diary” record
Date changed to future dateNot cleared*
Date changed to before last monthAll cleared
Date changed to earlier date within
current monthOnly “Daily” data cleared

PRIUS PRIME_OM_OM47A88U_(U)
2373. Instrument cluster
3
Instrument cluster
WARNING
■Cautions while setting up the display
As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■While setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

238
PRIUS PRIME_OM_OM47A88U_(U)
3. Instrument cluster
Head-up display∗
The units used on the display may differ depending on the target region.
∗: If equipped
The head-up display can display the current vehicle speed and
Hybrid System Indicator in front of the driver. Also, it can display
various types of information to assist the driver.
Operation switches and display contents
