2017 TOYOTA PRIUS PRIME engine oil capacity

17Pictorial index
PRIUS PRIME_OM_OM47A88U_(U)Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 350
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 482
Precautions against car wash (vehicles with rain-sensing
windshield wipers) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 558
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 710
Charging port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 102
Charging method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 125
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 594
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . P. 716
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 482
Checking/rotation/tire pressure warning system . . . . . . . . . P. 594
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 671
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 577
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 577
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 712
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 700
Headlights/parking lights/
daytime running lights/
side marker lights/LED accent lights
*. . . . . . . . . . . . . . . . . P. 338
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
Fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 348
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 336
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
Back-up lights
Shifting the shift position to R . . . . . . . . . . . . . . . . . . . . . . . . . P. 330
4
5
6
7
8
Light bulbs of the exter ior lights for driving
(Replacing method: P. 635, Watts: P. 717)
*: If equipped
9
10
11
12
13
14
15

712
PRIUS PRIME_OM_OM47A88U_(U)
9-1. Specifications
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Park the vehicle on level ground. After warming up the
engine and turning off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is us ed in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Lubrication system
With filter4.4 qt. (4.2 L, 3.7 Imp.qt.)
Without filter4.1 qt. (3.9 L, 3.4 Imp.qt.)
Outside temperature

726
PRIUS PRIME_OM_OM47A88U_(U)
9-1. Specifications

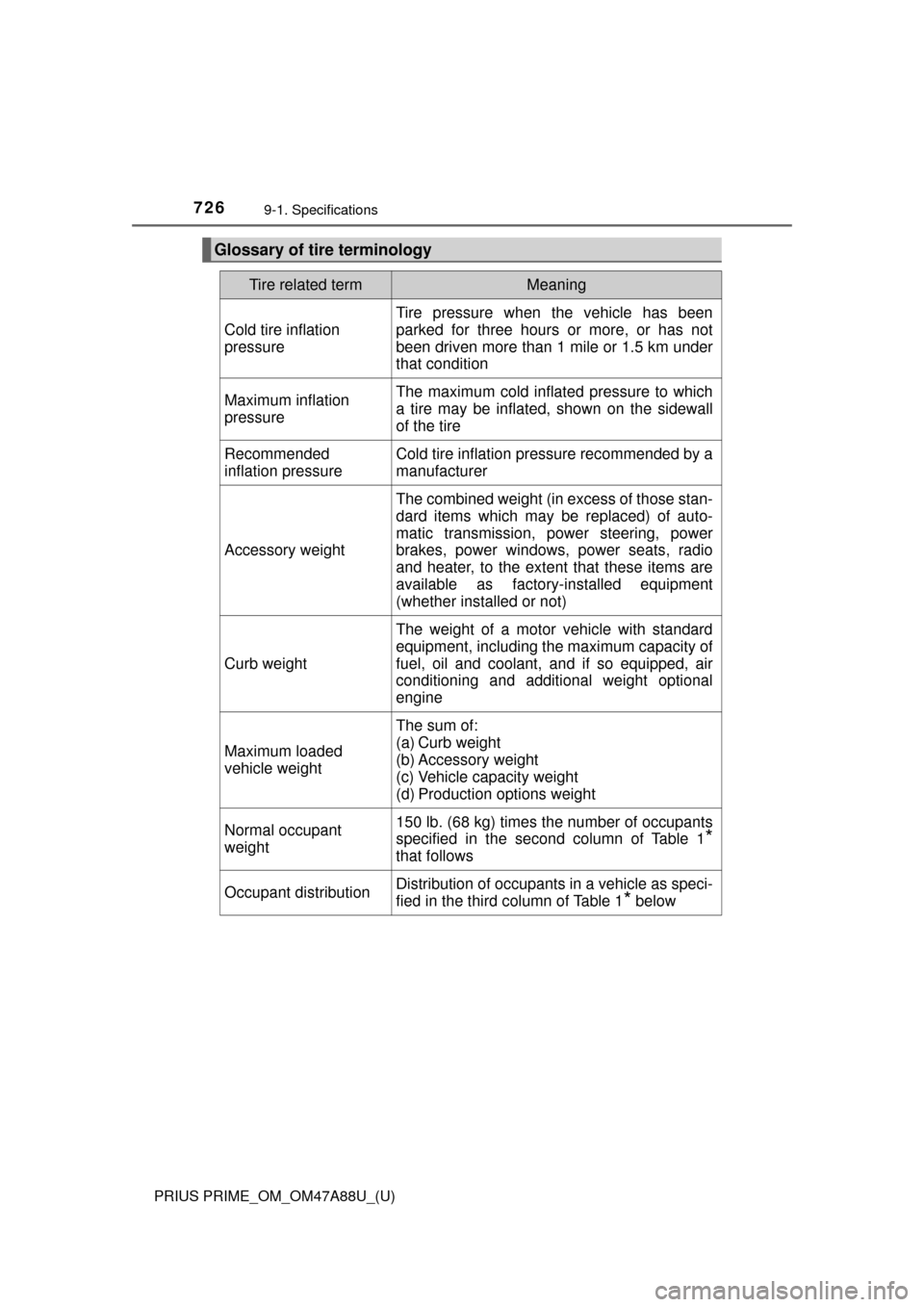

Glossary of tire terminology
Tire related termMeaning
Cold tire inflation
pressure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire
Recommended
inflation pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded
vehicle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
*
that follows
Occupant distributionDistribution of occupants in a vehicle as speci-
fied in the third column of Table 1
* below

771Alphabetical index
PRIUS PRIME_OM_OM47A88U_(U)
Engine coolant ......................... 584Capacity ................................ 714
Checking ............................... 584
Preparing and checking before winter....................... 482
Engine oil ................................. 581 Capacity ................................ 712
Checking ............................... 581
Oil pressure warning light ..... 653
Preparing and checking before winter....................... 482
Engine switch .......................... 324 Auto power off function ......... 326
Changing the power switch modes...................... 326
If your vehicle has to be stopped in an emergency ... 645
Starting the hybrid system .... 324
EPS (Electronic Power Steering)................................. 477
Function ................................ 477
Warning light ......................... 654
EV auto mode............................. 79
EV driving range ...................... 100
EV mode ..................................... 79
EV/HV mode selection switch ....................................... 82
Event data recorder (EDR) ........ 11
Exhaust gas precautions .......... 56
Flat tire...................................... 671
Floor mats .................................. 26
Fluid Brake .................................... 716
Transmission ........................ 715
Washer ................................. 592
Fog lights ................................. 348 Replacing light bulbs............. 640
Switch ................................... 348 Footwell lights ......................... 515
Front doors .............................. 267
Front passenger occupant
classification system .............. 50
Front passenger’s seat
belt reminder light................. 656
Front seats ............................... 287 Adjustment............................ 287
Cleaning ............................... 561
Correct driving posture ........... 28
Head restraints ..................... 291
Seat heaters ......................... 513
Front side marker lights ......... 338 Light switch ........................... 338
Replacing light bulbs ............ 640
Front turn signal lights ........... 336 Replacing light bulbs ............ 640
Turn signal lever ................... 336
Fuel ........................................... 356 Capacity................................ 710
Fuel gauge............................ 196
Information............................ 718
Refueling .............................. 356
Type...................................... 710
Warning light......................... 655
Fuel consumption ... 218, 250, 256 Average fuel consumption .... 218
Current fuel consumption ..... 256
Fuel filler door ......................... 356 Opener.................................. 358
Refueling .............................. 356
When the fuel filler door cannot be opened .............. 359
Fuses ........................................ 630
Garage door opener ................ 541
Glove box ................................. 519
F
G

784
PRIUS PRIME_OM_OM47A88U_(U)
GAS STATION INFORMATION
Auxiliary catch leverFuel filler door
P. 577 P. 358
Fuel filler door openerHood lock release leverTire inflation pressure
P. 358 P. 577P. 716
Fuel tank capacity
(Reference)11.4 gal. (43 L, 9.5 Imp.gal.)
Fuel type
Unleaded gasoline only P. 710
Cold tire inflation
pressure P. 7 1 6
Engine oil capacity
(Drain and refill —
reference)With filter
Without filter
4.4 qt. (4.2 L, 3.7 Imp.qt.)
4.1 qt. (3.9 L, 3.4 Imp.qt.)
Engine oil type “Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC GF-5 multigrade engine oil
P. 712
