2017 SUBARU LEGACY Quick Reference Guide

2017 Quick Reference Guide

2
Remote keyless entry system
Remote
transmitter key
(if equipped) Access key
(if equipped)
Lock/Unlock doors
PANIC
basic ope
Ration
* Grip the driver’s door handle to unlock the
driver’s door. Grip the front passenger’s door
handle to unlock all doors.
All doors will be locked/unlocked by the following procedures carrying the access key on
your person. (The driver should always carry the access key.)
For detailed operating and safety information, please refer to
your o
wner’s Manual.
Keyless access function (if equipped)
Opening trunk:
Side door (front door handles only):
1
All doors will be locked.
2
The driver’s door will be unlocked.
(To unlock all doors, briefly press the button
a second time within 5 seconds.)
3
Press and hold to open the trunk.
4
The horn will sound and the hazard warning
flashes will flash.
23
4
1
1
2
3
4
Lock Unlock*
Door lock sensor
Grip
To u c h
Press
u Some functions are available on certain models.
u For detailed operating and safety information, please refer to your Own\
er’s Manual.

3
Ignition switch must be in ACC or ON position.
1
Select side to adjust
2
To adjust the mirror, move the switch in the
direction of your desired position.

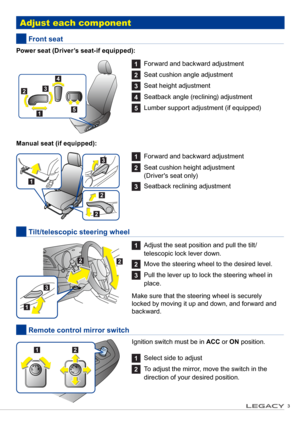

a djust each component
1
Forward and backward adjustment
2
Seat cushion angle adjustment
3
Seat height adjustment
4
Seatback angle (reclining) adjustment
5
Lumber support adjustment (if equipped)
1
Forward and backward adjustment
2
Seat cushion height adjustment
(Driver's seat only)
3
Seatback reclining adjustment
Power seat (Driver’s seat-if equipped):
Manual seat (if equipped):

Front seat
Tilt/telescopic steering wheel
Remote control mirror switch
1
Adjust the seat position and pull the tilt/
telescopic lock lever down.
2
Move the steering wheel to the desired level.
3
Pull the lever up to lock the steering wheel in
place.
Make sure that the steering wheel is securely
locked by moving it up and down, and forward and
backward.
1
2
3
2
1
2
3
2
12
1
2
4
3
5

4
start/stop engine
To start engine:
STEP1: Carry the access key, and sit in the driver’s seat.
STEP2: Apply the parking brake.
STEP3: Shift the select lever in the P position.
STEP4: Depress the brake pedal until the indicator on
the push-button ignition switch turns green.
STEP5: While depressing the brake pedal, press the
push-button ignition switch.
To stop engine:
STEP1: Stop the vehicle completely.
STEP2: Move the select lever to the P position .
STEP3: Press the push-button ignition switch.
Every time the button is pressed without depressing the brake pedal, the\
power is switched
in the sequence of OFF
➞ACC
➞ON
➞OFF
.
OFF ( Tu r n e d o f f ) ACC (Orange) ON (Orange)
Change of the power supply (Without starting engine)
The key can be turned from ACC to LOCK
only when the key is pushed in while turning
it (all models) and the select lever is in the P
position (CVT models).
Push-button ignition switch (if equipped)
Electronic parking brake switch Ignition switch (if equipped)
*The design may be slightly different from the illustration
depending on the models.
Operation indicator
Apply
Release
X Some functions are available on certain models.
X For detailed operating and safety information, please refer to your Own\
er’s Manual.

5
You must raise the slider and hold it in that position
before you can move the shift lever to the R position.
To change gears, fully depress the clutch pedal, move
the shift lever, and gradually let up on the clutch pedal. Shift paddle:
Gearshifts can be performed using the shift paddle
behind the steering wheel.
o perate s elect lever/ shift lever
M = Manual mode:
With the vehicle either moving or stationary, move the
select lever from the D position to the M position to
select the manual mode.
Continuously variable transmission (if equipped)
Manual transmission (if equipped)
With the brake pedal depressed, shift while
pressing the button in
Shift while pressing the button in
Shift without pressing the button
Select lever button
Downshift Upshift

6
Main pa Rts an D opeRation
1
Headlights
2 Headlight flasher, High/Low beam change (dimmer)
3
Turn signal
4 Front fog lights (if equipped)
To turn on the front fog lights, rotate dial to
.
Front fog lights operate only when headlight switch is in...
-
position.
- AUTO position and the headlights are on.
Headlight switch/Turn signal lever/Front fog light switch (if equipped)A
Models without EyeSight system Models with EyeSight system
ACL
HI
FD
K
G
E
J
4
3
3
1
2
B
FD
The high beam assist function automatically changes
the headlight from high beam to low beam (or vice versa).
The high beam assist function is activated when:
1. The light control switch is in the AUTO position and
the low beam headlights are on automatically.
2. The turn signal lever is pushed forward.
When the high beam assist
function is activated, the indicator
(green) on the combination meter
will illuminate.
High beam assist function (if equipped)
High beam assist
indicator
u Some functions are available on certain models.
u For detailed operating and safety information, please refer to your Own\
er’s Manual.

7
1
Windshield wiper
To operate the wiper, rotate knob to;
: Mist (for a single wipe) : Off : Intermittent : Low speed : High speed
2
Wiper intermittent time control
3
Windshield washer
Wiper and washer switchB
To turn on the hazard warning flasher, press the button.
Use the hazard warning flasher when you have to park
in emergency conditions.
Hazard warning flasher switchC
Turn the dial to adjust the illumination brightness of the
instrument panel.
When the control dial is turned fully upward to
position, the illumination brightness becomes the
maximum and the automatic dimming function does not
work at all.
Illumination brightness control dialD
*The design may be slightly different from the
illustration depending on the models.
1
2
3

8
1
Defroster button:
Press the button to defrost the windshield.
2
Rear window defogger button:
Press the button to turn on rear window defogger,
outside mirror defogger and windshield wiper deicer
(if equipped). The function will automatically shut off
after approximately 15 minutes.
*The illustration of the print is Type A.
Defroster button/Rear window defogger buttonE
Hood release knobG
1
Lock switch
2
For driver’s window
3
For front passenger’s window
4
For rear left passenger’s window
5
For rear right passenger’s window
Power window switchesH
Trunk lid opener switchF
12
124
53
Pull
Press and hold the
switch for more than
1 second.
0058 Some functions are available on certain models.
00030058 For detailed operating and safety information, please refer to your Own\
er’s Manual.
