2017 Peugeot 308 Owner's Manual

159
308_en_Chap06_conduite_ed01-2016
Repeat this procedure to reactivate automatic
operation.
Reactivation of automatic operation is
confirmed by the indicator lamp in the
instrument panel going off.
Deactivating automatic operation
In some situations, such as very cold weather
or towing (caravan, recovery), it may be
necessary to deactivate automatic operation of
the system.
F
S
tart the engine.
F

A
pply the parking brake with the control
lever, if it is released.
F
t
a
ke your foot off the brake pedal.
F

P
ush and hold the control lever in the
release direction for at least 10 seconds
and no more than 15 seconds.
F

R
elease the control lever.
F

P
ress and hold the brake pedal.
F

P
ull the control lever in the apply direction
for 2 seconds.
Deactivation of the automatic functions
is confirmed by illumination of this
indicator lamp in the instrument panel.
F Release the control lever and the brake pedal. From this point, the parking brake can only
be applied and released manually using the
control lever.
Emergency braking
the emergency braking should only be
used in an exceptional situation.
In the event of a failure of the brake pedal or
in an exceptional situation (e.g. driver taken
ill, under instruction), a continuous pull on the
control lever will brake the vehicle. Braking
takes place while the control lever is being
pulled. It is interrupted if the control lever is
released.
th

e ABS and DSC systems provide stability of
the vehicle during emergency braking.
If the emergency braking malfunctions, the
message "Parking brake control faulty" will be
displayed.
If the ABS and DSC systems malfunction,
signalled by the illumination of one or both
warning lamps in the instrument panel, then
stability of the vehicle is no longer guaranteed.
In this event, stability must be assured by the
driver by repeating alternate "pull-release"
actions on the control lever until the vehicle is
immobilised.
6
Driving

160
308_en_Chap06_conduite_ed01-2016
Operating faults
the various alert situations are described in this table.
In the event of a fault with the electric parking brake it is recommended that you contact a PeugeOt dealer or a qualified workshop without delay.
Situation Consequences
Display of the message " Parking brake fault" and this
warning lamp. -

A
utomatic release is not available.
-

I
f you attempt an automatic release, a help message is displayed on acceleration
when the parking brake is applied, prompting you to use manual release.
Display of the message " Parking brake fault" and these
warning lamps. -

B
ack-up braking does not have full power.
-

I
f automatic release is not available, a help message is displayed on acceleration
when the parking brake is applied, prompting you to use manual release.
Display of the message " Parking brake fault" and these
warning lamps. -

A
utomatic application is not available: use the control lever.
-
t
h
e electric parking brake can only be used manually.
-

I
f automatic release is also not available, a help message is displayed on
acceleration when the parking brake is applied, prompting you to use manual
release.
Display of the message " Parking brake fault" and these
warning lamps. -

I
f manual application and release do not work, the control lever is faulty.
-
t
h
e automatic functions must be used in all circumstances: they are
automatically reactivated in the event of failure of the control lever.
-

Y
ou can no longer immobilise the vehicle with the engine running.
Driving

161
308_en_Chap06_conduite_ed01-2016
SituationConsequences
Display of the message " Parking brake fault" and these
warning lamps.
th

e parking brake is faulty, the manual and automatic functions may not operate.
When stationary , to immobilise your vehicle:
F

p
ull and hold the control lever for about 7 to 15 seconds, until the warning lamp
comes on in the instrument panel.
If this procedure does not work, you should make your vehicle safe:
F

p
ark on a level sur face,
F

enga
ge a gear,
F

i
f possible, fit a wheel chock.
Call on a P
e

uge
Ot
dealer or a qualified workshop.
Display of the message " Parking brake fault" and these
warning lamps. -
t
h
e parking brake does not have its full per formance to securely hold the vehicle
in all situations.
You should make your vehicle safe:
-

p
ark on a level sur face,
-
enga

ge a gear,
-

i
f possible, fit a wheel chock.
Call on a P
e

uge
Ot
dealer or a qualified workshop.
th

e flashing of the P warning lamps on starting the vehicle indicates that the parking
brake is not correctly applied.
As soon as possible, stop the vehicle and try to completely release the parking brake,
using the control lever, with your foot on the brake pedal.
Display of the message " Battery fault" and this warning
lamp. -
t
h
e state of charge of the battery is very low and requires immobilisation of the
vehicle in a safe place.
-

O
nce the battery is completely discharged, the controls do not operate: to
release the parking brake, call on a P
e

uge
Ot
dealer or a qualified workshop.
6
Driving

162
308_en_Chap06_conduite_ed01-2016

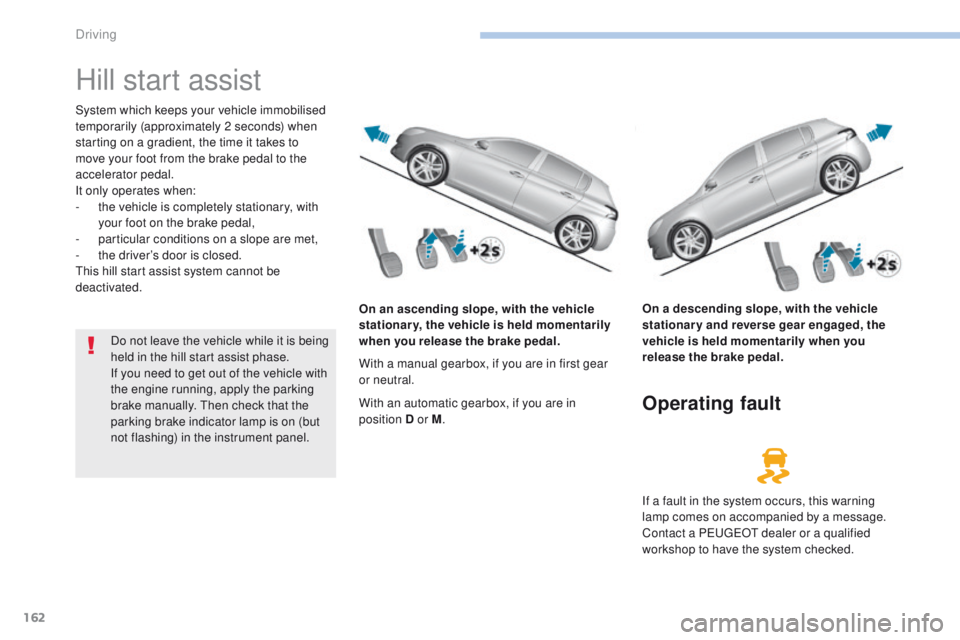

Hill start assist
System which keeps your vehicle immobilised
temporarily (approximately 2 seconds) when
starting on a gradient, the time it takes to
move your foot from the brake pedal to the
accelerator pedal.
It only operates when:
-
t
he vehicle is completely stationary, with
your foot on the brake pedal,
-

p
articular conditions on a slope are met,
-
t

he driver’s door is closed.
th

is hill start assist system cannot be
deactivated.
On an ascending slope, with the vehicle
stationary, the vehicle is held momentarily
when you release the brake pedal. On a descending slope, with the vehicle
stationary and reverse gear engaged, the
vehicle is held momentarily when you
release the brake pedal.
Operating fault
Do not leave the vehicle while it is being
held in the hill start assist phase.
If you need to get out of the vehicle with
the engine running, apply the parking
brake manually.
t
h
en check that the
parking brake indicator lamp is on (but
not flashing) in the instrument panel.
If a fault in the system occurs, this warning
lamp comes on accompanied by a message.
Contact a P
e

uge
Ot
dealer or a qualified
workshop to have the system checked.
With a manual gearbox, if you are in first gear
or neutral.
With an automatic gearbox, if you are in
position D or M
.
Driving

163
308_en_Chap06_conduite_ed01-2016
Only engage reverse gear when the
vehicle is stationary with the engine at idle.
As a safety precaution and to facilitate
starting of the engine:
-
a
lways select neutral,
-

p
ress the clutch pedal.

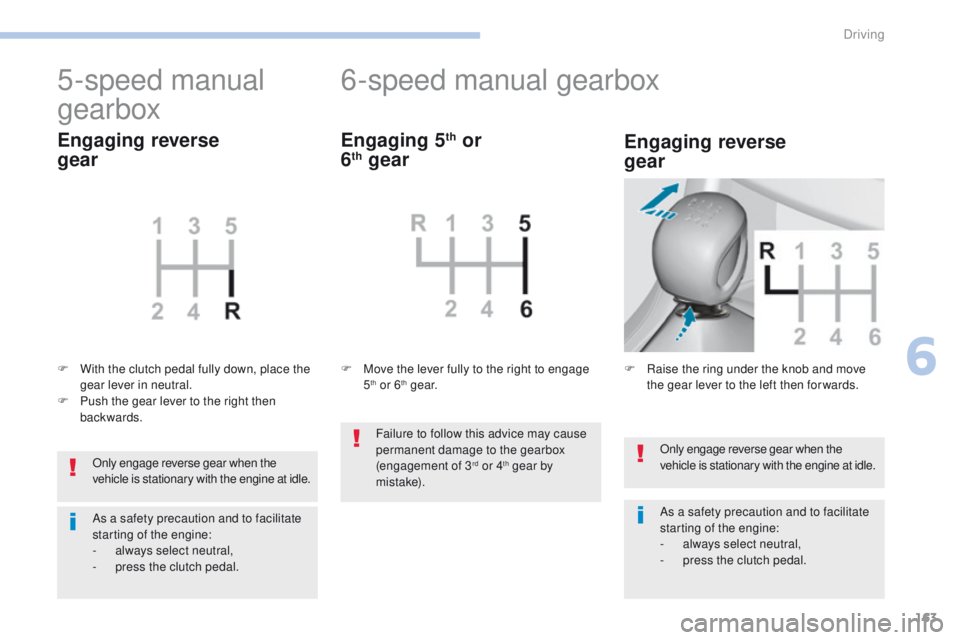

6-speed manual gearbox
Engaging 5th or
6th gear
Only engage reverse gear when the
vehicle is stationary with the engine at idle.
As a safety precaution and to facilitate
starting of the engine:
-

a
lways select neutral,
-

p
ress the clutch pedal.
5-speed manual
gearbox
F With the clutch pedal fully down, place the gear lever in neutral.
F

P
ush the gear lever to the right then
backwards.
Engaging reverse
gear Engaging reverse
gear
F Raise the ring under the knob and move
the gear lever to the left then for wards.
F
M
ove the lever fully to the right to engage
5th or 6th g e a r.
Failure to follow this advice may cause
permanent damage to the gearbox
(engagement of 3
rd or 4th gear by
m i st a ke).
6
Driving

164
308_en_Chap06_conduite_ed01-2016
gear shift indicator
T he gear engagement recom mendations
must not be considered compulsory.
This is because the confi guration of the
road, traffic density and safety remai n
important factors in the choice of the best
g e a r.
th

e gear shift indicator system does not
replace the need for vigilance on the part of the
driver. -

Y
ou are in third gear.
ex
ample:
-
Y
ou press the accelerator pedal.-
t
h
e system may suggest that you engage
a higher gear.
th

e information appears in the instrument
panel in the form of an arrow.
On vehicles with manual gearbox, the arrow
may be accompanied by the recommended
g e a r.
th

e system adapts its gear change
recommendation according to the
driving conditions (gradient, load,
...)
and the demands of the driver (power,
acceleration, braking,


...).
th

e system never suggests:
-
e

ngaging first gear,
-
enga

ging reverse gear.
-
c

hanging down.
System which reduces fuel consumption by recommending the most suitable gear.
Depending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one or more gears.
You can follow this instruction without going
through the intermediate gears.
th

is function cannot be deactivated.
Driving

165
308_en_Chap06_conduite_ed01-2016

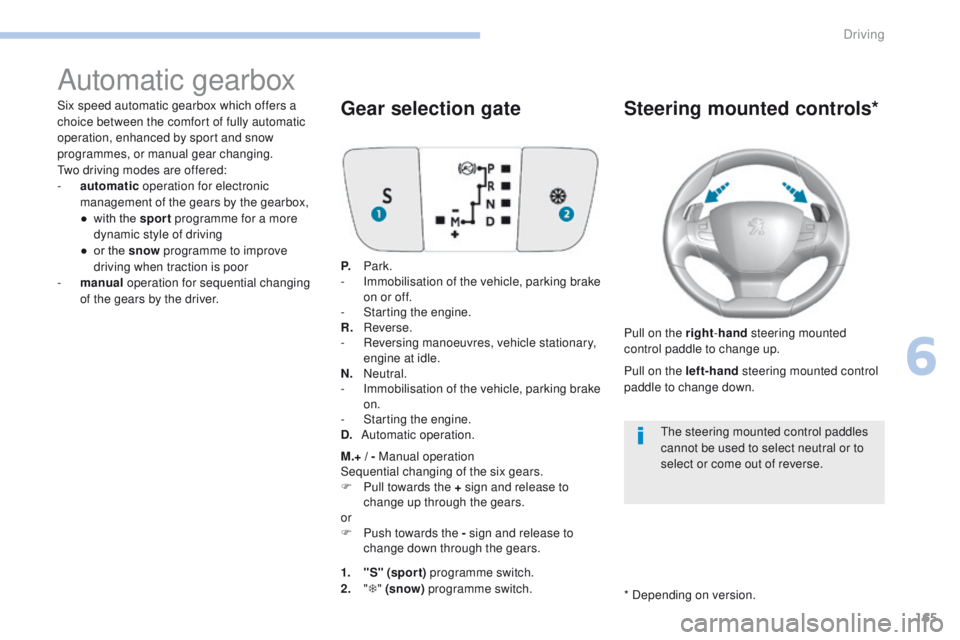

Automatic gearbox
Six speed automatic gearbox which offers a
choice between the comfort of fully automatic
operation, enhanced by sport and snow
programmes, or manual gear changing.
tw
o driving modes are offered:
-

a
utomatic operation for electronic
management of the gears by the gearbox,
●

w
ith the sport programme for a more
dynamic style of driving
●

o
r the snow programme to improve
driving when traction is poor
-

m
anual operation for sequential changing
of the gears by the driver.
1.
"

S" (spor t) programme switch.
2.
" T "

(snow) programme switch.Gear selection gate
P. Park.
-
I mmobilisation of the vehicle, parking brake
on or off.
-
S

tarting the engine.
R.

R
everse.
-

R
eversing manoeuvres, vehicle stationary,
engine at idle.
N.

N
eutral.
-

I
mmobilisation of the vehicle, parking brake
on.
-
S

tarting the engine.
D.

A
utomatic operation.
M.+ / - Manual operation
Sequential changing of the six gears.
F

P
ull towards the + sign and release to
change up through the gears.
or
F

P
ush towards the - sign and release to
change down through the gears.
Steering mounted controls*
Pull on the right -hand steering mounted
control paddle to change up.
th

e steering mounted control paddles
cannot be used to select neutral or to
select or come out of reverse.
* Depending on version. Pull on the left -hand steering mounted control
paddle to change down.
6
Driving

166
308_en_Chap06_conduite_ed01-2016
When you move the gear selector in the gate
to select a position, the corresponding symbol
appears in the instrument panel.
P.

Park
R.
R

everse
N.
N

eutral
D.
D

rive (automatic operation)
S.
Sport programme
T .

S
now programme
1 to 6.
g
ea
r engaged during manual operation
-.
I

nvalid value during manual operation
Displays in the instrument panelMoving off
F With your foot on the brake, select position P or N .
If position N is engaged inadvertently
while driving, allow the engine to
return to idle then engage position D to
accelerate. When the engine is running at idle, with
the brakes released, if position R
, D or
M is selected, the vehicle moves even
without the accelerator being pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the parking
brake and select position P .
F

S

tart the engine.
If the conditions are not met, there is an audible
signal, accompanied by a message in the
instrument panel screen.
F

W

ith the engine running, press the brake
pedal.
F

R

elease the parking brake, unless it is
programmed to automatic mode.
F

Sel

ect position R , D or M.
F
g
r

adually release the brake pedal.
th

e vehicle moves off.
Driving
