2017 Peugeot 3008 Hybrid 4 ignition

96
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Storing driving positions
Associated with the electric driver's seat,
this function allows two driving positions to
be stored to facilitate adjustment if there is a
frequent change of driver.
It takes account of the electric adjustments of
the seat and the door mirrors.Storing a position
Using buttons M / 1 / 2
F S it in the driver's seat.
F

S
witch on the ignition.
F

A
djust your seat and the door mirrors.
F

P
ress button M , then press button 1 or 2
within four seconds.
An audible signal indicates that the position has
been stored.
Storing a new position cancels the
previous position. You can interrupt the current movement
by pressing button M
, 1 or 2 or by using
one of the seat controls.
A stored position cannot be recalled
while driving.
Recalling stored positions is
deactivated 45 seconds after switching
off the ignition.
Recalling a stored position
Ignition on or engine running
F P ress button 1 or 2 to recall the
corresponding position.
An audible signal confirms that adjustment is
complete.
Ease of use and comfort

97
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Heated seats
The function is active only with the engine
running.
Switching on
F Press the button for your seat.
F E ach press changes the level of heating;
the corresponding number of indicator
lamps come on:
●

1 i
ndicator lamp = low.
●

2 i
ndicator lamps = medium.
●

3 i
ndicator lamps = high. Do not use the function if the seat is not
occupied.
Reduce the level of heating as soon as
possible.
Once the temperatures of the seat and
the passenger compartment are at
adequate levels you can switch off the
function; lower current consumption
reduces fuel consumption.
Switching off
F Press the button again until all of the
indicator lamps are off.
The state of the function is not held in memory
when the ignition is switched off. Prolonged use at the highest setting
is not recommended for those with
sensitive skin.
There is a risk of burns for those that
do not have normal perception of heat
(illness, taking medicines, ...).
There is a risk of overheating the
system if material with insulating
properties is used, such as cushions or
seat covers.
Do not use the system:
-

i
f wearing damp clothing,
-

i
f child seats are fitted.
To avoid breaking the heating element
in the seat:
-

d
o not place heavy objects on the
seat,
-

d
o not kneel or stand on the seat,
-

d
o not place sharp objects on the
seat,
-

d
o not spill liquids onto the seat.
To avoid the risk of short-circuit:
-

d
o not use liquid products for
cleaning the seat,
-

n
ever use the heating function
when the seat is damp.
3
Ease of use and comfort

100
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop.
If necessary the mirrors can be folded
manually.
Unfolding
F From outside: unlock the vehicle using the remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rearwards.
Automatic tilting in reverse gear
System which provides a view of the ground
during parking manoeuvres in reverse gear.
With the engine running, on engaging reverse
gear, the mirror glasses tilt downwards.
They return to their initial position:
-

a few seconds after coming out of reverse gear,- once the speed of the vehicle exceeds 6 mph (10 km/h),
-

o
n switching off the engine.This function can be activated or
deactivated in the Driving menu of
the touch screen.
If the mirrors are folded using control A ,
they will not unfold when the vehicle is
unlocked. Pull again on control A .
Folding
F From outside: lock the vehicle using the
remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rearwards.
F

Sel
ect the"Setting " tab then " Comfort"
and " Auto mirror dipping in reverse ".
Ease of use and comfort

102
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
i-Cockpit Amplify function
This function allows the driving ambiences to be managed.
Specific system settings are offered for each ambience.
These ambiences can be personalised in the touch screen.
Content of an ambienceAccess to the i-Cockpit Amplify home page
Direct access by this button
Access via the Applications menu
An ambience is defined as the settings for each
of the following systems:Activating an ambience
From the home page:
F
Sel ect an ambience: "Relax" or "Boost".
Depending on the settings made for the
ambience, the systems are activated
immediately.
Deactivating an ambience
From the home page:
F Press "Deactivate the ambience" .
or
F

Sel
ect another ambience.
The ambience is automatically deactivated
when the ignition is switched off.
F

Sel

ect "
i-Cockpit Amplify ".
-
t

he passenger compartment
mood lighting,
(activation / deactivation and
adjustment of brightness)
-

t

he audio ambience,
(choice of predetermined settings for
the audio system equaliser)
- s
cented air freshener,
(activation / deactivation, selection of
a fragrance and a setting for diffusion
intensity)
-
m

ultipoint massage,
(selection of the seat, activation /
deactivation, selection of a type of
massage and a setting for intensity)
-
D

ynamic pack.
(activation / deactivation)
Ease of use and comfort

111
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

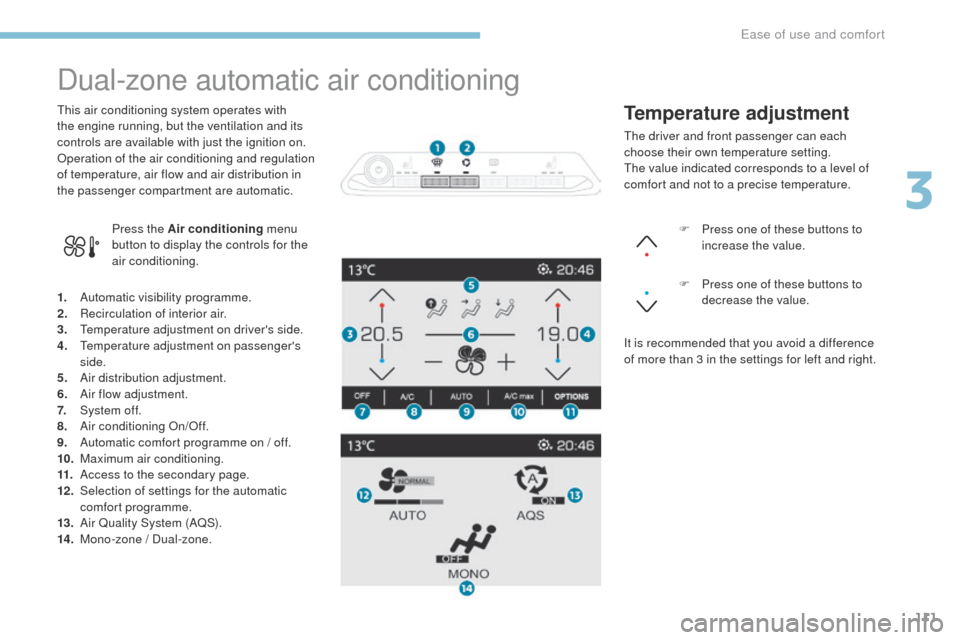

Dual-zone automatic air conditioning
1. Automatic visibility programme.
2. Recirculation of interior air.
3.
T

emperature adjustment on driver's side.
4.
T

emperature adjustment on passenger's
side.
5.
A

ir distribution adjustment.
6.
A

ir flow adjustment.
7.
S

ystem of f.
8.
A

ir conditioning On/Off.
9.
A

utomatic comfort programme on / off.
10.
M

aximum air conditioning.
11.
A

ccess to the secondary page.
12 .
S

election of settings for the automatic
comfort programme.
13.
A

ir Quality System (AQS).
14 .
M

ono-zone / Dual-zone.
This air conditioning system operates with
the engine running, but the ventilation and its
controls are available with just the ignition on.
Operation of the air conditioning and regulation
of temperature, air flow and air distribution in
the passenger compartment are automatic.
Press the Air conditioning menu
button to display the controls for the
air conditioning. F
P
ress one of these buttons to
increase the value.
F P ress one of these buttons to
decrease the value.
It is recommended that you avoid a difference
of more than 3 in the settings for left and right.
Temperature adjustment
The driver and front passenger can each
choose their own temperature setting.
The value indicated corresponds to a level of
comfort and not to a precise temperature.
3
Ease of use and comfort

115
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Mono-zone / Dual-zone
The passenger temperature setting can be
indexed to the driver's setting (mono-zone
function).
It is available in the secondary page by
pressing the "OPTIONS" button.
F

P
ress this button to activate the
" MONO " function; its " ON" status
is displayed.
The function is automatically deactivated if the
passenger uses their temperature adjustment
buttons (dual-zone function).
Ventilation with the ignition on
With the ignition on, you can use the ventilation
system, controlling the air flow and distribution
in the passenger compartment.
This function is also available for a few minutes
after switching off the ignition, depending on
the state of charge of the vehicle's battery.
You can also make use of the residual
heat in the engine to warm the passenger
compartment, using the temperature
adjustment buttons.
This function does not activate operation of the
air conditioning.
Switching off the system
F Press this button; its indicator lamp comes on and all other indicator
lamps for the system go off.
This action deactivates all functions of the air
conditioning system.
Temperature is no longer regulated. A slight air
flow can still be felt however, resulting from the
for ward movement of the vehicle.
Avoid driving for long periods with
the system off - Risk of misting and
deterioration of air quality!
Pressing any button reactivates the
system with the settings that were
previously in use.
3
Ease of use and comfort

120
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Cigarette lighter /
12 V accessory socket
F To use the cigarette lighter, press it in
and wait a few seconds until it pops out
automatically.
F

T
o connect a 12 V accessory (max power:
120 W), remove the cigarette lighter and
connect a suitable adaptor.
Component which protects against sunlight
from the front or the side, also equipped with an
illuminated vanity mirror.
F

W

ith the ignition on, raise the concealing
flap; the mirror is illuminated automatically.
This sun visor is also equipped with a ticket
h o l d e r.
Sun visor Illuminated glove box
It can be used for storing a water bottle, the
vehicle's handbook pack...
F

T
o open the glove box, raise the handle.
The glove box is illuminated when the lid is
opened.
It gives access to the passenger's front airbag
deactivation switch A .
It also gives access to the housing for scented
air freshener B cartridges. The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
You can use this socket to connect a telephone
charger, a bottle warmer...
After use, put the cigarette lighter
back into
place straight away.
Ease of use and comfort

122
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Wireless charger
Operation
The charger works with the engine running and
in STOP mode of Stop & Start.
Charging is managed by the smartphone. This system allows the wireless charging of a
portable device, such as a smartphone, using
the principle of magnetic induction, based on
the Qi 1.1 standard.
The portable device to be charged must be
compatible with the Qi standard, either by
design or by using a compatible holder or shell.
The charging zone is identified by the
Qi symbol.
For versions with Keyless Entry and Starting,
operation of the charger may be interrupted
when opening a door or switching off the
ignition.
FOCAL® premium Hi-Fi
system
Your vehicle is equipped with a high-fidelity
acoustic system designed by the French brand
FOCAL
®, a specialist in acoustics for more
than 35 years and recognised throughout the
world for its patented innovations and its unique
audio signature. 10 speakers incorporating exclusive FOCAL
®
technologies offer the pleasure of pure and
detailed sound inside the vehicle:
-

H

igh fidelity woofer / mid-range speakers:
Polyglass technology delivering balance
and precise sound.
-

T

NF tweeters: Inverted dome aluminium
technology giving optimum sound
dispersion and very detailed treble.
-

S

ub-woofer: 200 mm triple coil Power
Flower™ technology for defined and
dynamic reproduction of low frequencies.
-

1

2-way active amplification - 515 Watts:
Hybrid Class AB / Class D technology
providing breadth and finesse in the high
frequency signals, as well as real power in
the bass.
Ease of use and comfort
