2017 Peugeot 3008 Hybrid 4 light

18
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
Diesel engine
pre-heating fixed.
When the ignition is switched on
with a key in the ignition switch or
a starting instruction made using
the
"START/STOP " button, the
engine temperature makes engine
pre-heating necessary. The period of illumination of the indicator lamp is
determined by the ambient conditions (up to about
thirty seconds in severe winter conditions).
With an ignition switch and key, wait until the indicator
lamp goes off before starting.
With Keyless Entry and Starting, once it goes off,
starting is immediate, on condition that the brake
pedal remains pressed with an automatic gearbox, or
the clutch pedal is pressed fully down with a manual
gearbox.
If the engine does not start, switch the ignition off and
then on, wait until the indicator lamp goes off again,
then start the engine.
Stop & Star t fixed. When the vehicle stops (red lights, traffic
jams,
...) the Stop & Start system has put
the engine into STOP mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want
to move off.
flashes for a few
seconds, then goes
of f. STOP mode is temporarily
unavailable,
or
START mode is invoked
automatically. For more information on Stop & Star t
, refer to the
corresponding section.
Rear foglamps
fixed. The rear foglamps have been
switched on using the ring on the
lighting control stalk. Turn the ring on the lighting control stalk rear wards to
switch off the rear foglamps.
Front foglamps fixed. The front foglamps are switched on
using the ring on the lighting control
stalk. Turn the ring on the lighting control stalk rear ward
twice to switch off the front foglamps.
Instruments

42
3008-2_en_Chap01_instruments-de-bord_ed01-2016

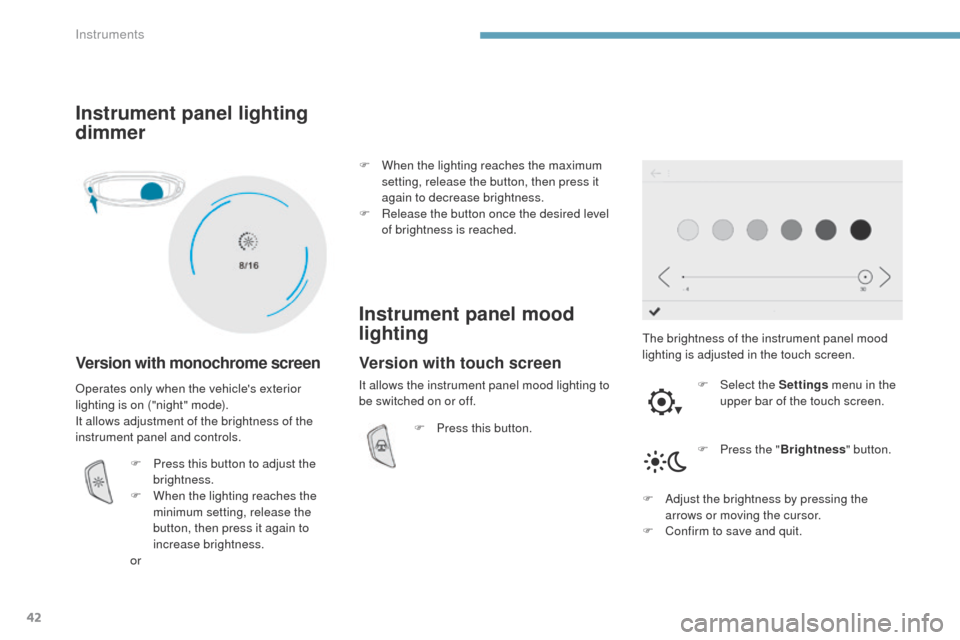

Instrument panel lighting
dimmer
Version with monochrome screen
The brightness of the instrument panel mood
lighting is adjusted in the touch screen.F

Sel
ect the Settings menu in the
upper bar of the touch screen.
Operates only when the vehicle's exterior
lighting is on ("night" mode).
It allows adjustment of the brightness of the
instrument panel and controls.
F

P

ress this button to adjust the
brightness.
F

W

hen the lighting reaches the
minimum setting, release the
button, then press it again to
increase brightness.
or F

W

hen the lighting reaches the maximum
setting, release the button, then press it
again to decrease brightness.
F

R

elease the button once the desired level
of brightness is reached.
Instrument panel mood
lighting
F Press this button.
F
P
ress the "Brightness " button.
F

A
djust the brightness by pressing the
arrows or moving the cursor.
F

C
onfirm to save and quit.
Version with touch screen
It allows the instrument panel mood lighting to
be switched on or off.
Instruments

46
3008-2_en_Chap01_instruments-de-bord_ed01-2016
"Telephone" menu
"Connections" menu
With the audio system on, this menu allows
a Bluetooth device (telephone, media player)
to be paired and the connection mode to be
defined (hands-free, playing audio files).
For more information on the "Connections"
application, refer to the "Audio equipment and
telematics" section. With the audio system switched on, this menu
allows you to make a call, view the calls log or
the various telephone directories.
For more information on the "Telephone"
application, refer to the "Audio equipment and
telematics" section.This menu gives access to the following
functions:
-
"
Define the vehicle parameters",
-
"
Choice of language",
-
"
Display configuration",
-
"
Comfort"
:
●
"
Rear wipe in reverse gear".
F

or more information on the Wipers
,
refer to the "Lighting and visibility"
section.
●
"
Parking assistance".
F

or more information on Parking
assistance , refer to the "Driving"
section.
●
"
Fatigue Detection System".
F

or more information on the Fatigue
detection system , refer to the "Driving"
section.
Define the vehicle parameters
This menu allows the activation or deactivation
of the following equipment, depending on
version:
-

"
Lighting" :
●

"
Follow-me-home headlamps".
●

"
Welcome lighting".
For more information on Exterior lighting ,
refer to the "Lighting and visibility" section.
"Personalisation-configuration" menu
- "Access to the vehicle" :
● " Plip action".
For more information on the Remote control
and selective door unlocking in particular, refer
to the "Access" section. -

"
Driving assistance"
:
●
"
Auto. emergency braking".
F

or more information on the Active
Safety Brake , refer to the "Driving"
section.
● " Speed recommendation".
F

or more information on Speed limit
recognition , refer to the "Driving"
section.
●

"
Tyre inflation".
F

or more information on Under-
inflation detection and reinitialisation in
particular, refer to the "Driving" section.
Instruments

50
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Driving menu
"Settings" tab
ButtonComments
" Lighting " -
"

Directional headlamps": activation/deactivation of cornering lighting.
-

"
LED daytime running lamps" (depending on the country of sale).
" Vehicle access "-
"

Driver plip action": activation/deactivation of selective unlocking of the driver's door.
-

"
Unlock boot only": activation/deactivation of selective unlocking at the tailgate.
-
"

Motorized tailgate": activation/deactivation of motorized operation of the tailgate.
-

"
Hands-Free Tailgate Access": activation/deactivation of the hands-free tailgate access system.
" Comfort " -
"

Rear wiper in reverse": activation/deactivation of the rear wiper coupled with reverse gear.
-
"

Guide-me-home lighting": activation/deactivation of automatic guide-me-home lighting.
-
"

Welcome lighting": activation/deactivation of exterior welcome lighting.
-
"

Mood lighting": activation/deactivation of mood lighting and adjustment of brightness.
-

"
Auto mirror dipping in reverse": activation/deactivation of automatic dipping of door mirrors in reverse gear.
" Safety " -
"

Collision risk alert and automatic braking": activation/deactivation of collision risk alert and automatic emergency
braking.
-
"

Recommended speed display": activation/deactivation of speed limit recognition.
-
"

Fatigue Detection System": activation/deactivation of the driver fatigue detection system.
For more information on one of these functions, refer to the corresponding section.
Instruments

52
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Configuration
The functions available through this menu are detailed in the table below.
Button Comments
Turn off the screen (black screen).
To return to the current screen, press the black screen or one of the menu buttons.
Adjustment of the brightness of the instrument panel mood lighting.
Choice and settings for three user profiles.
Settings for the touch screen and the digital instrument panel...
Activation and adjustment of Wi-Fi settings.
Instruments

54
3008-2_en_Chap02_ouvertures_ed01-2016
Remote control
The remote control can be used for the
following functions, depending on version:
-
u
nlocking / locking / deadlocking the
vehicle,
-

u
nlocking and opening the boot,
-

s
witch on the lighting from a distance,
-

f
olding / unfolding the door mirrors,
-

a
ctivation / deactivation of the alarm,
-
o

pening the windows,
-
c

losing the windows and the opening roof,
-

l
ocating the vehicle,
-
v

ehicle immobiliser.
In normal operating conditions, it is preferable
to use the remote control.
General points
The key, integral with the remote control, can
be used for the following functions, depending
on version:
-

u
nlocking / locking / deadlocking the
vehicle,
-

t
urning the child lock on or off,
-
a

ctivation / deactivation of the passenger's
front airbag,
-

b
ack-up door locking,
-

s
witching on the ignition and starting /
stopping the engine.
Ejecting the key
Version with Keyless Entr y and Star ting
F P ull on this button to remove the key from
the housing.
To return it to the housing, first pull on this
button. Version without Keyless Entr y and Star ting
F
P
ress this button; the key is ejected from its
housing.
To avoid damaging the mechanism, first press
this button to fold it.
Back-up procedures allow the vehicle to be
locked or unlocked in the event of a failure
of the remote control, the central locking,
the


batter y...
For more information on the Back-up
procedures , refer to the corresponding
section.
Access

56
3008-2_en_Chap02_ouvertures_ed01-2016
Deadlocking
F Make a first press on this button.
F W ithin five seconds, press this
button again to deadlock the
vehicle.
Deadlocking renders the interior door
controls inoperative.
It also deactivates the interior central
locking button on the dashboard.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Locating your vehicle
F Press this button.
This will switch on the courtesy lamps and door
mirror spot lamps and the direction indicators
will flash for around ten seconds. This function allows you to identify your vehicle
from a distance, particularly in poor light. Your
vehicle must be locked.
For versions without alarm, deadlocking is
confirmed by illumination of the direction
indicators for few seconds on the second press
of the locking button. Closing the windows and sunroof
Pressing and holding the locking
button closes the windows and,
depending on version, the sunroof to
the desired position.
When closing the windows and sunroof
you must ensure that nothing prevents
their correct closing.
If, on versions with alarm, you want to
leave the windows and/or sunroof partly
open, you must first deactivate the
volumetric alarm protection.
For more information on the Alarm ,
refer to the corresponding section.
This operation also starts closing of the blind.
Access

57
3008-2_en_Chap02_ouvertures_ed01-2016
If selective unlocking of the boot is
deactivated, pressing the unlocking
button unlocks the whole vehicle.
Remote operation of
exterior lighting
Availability of this function depends on version.F
M
ake a short press on this
remote control button.
Pressing again before the end of the timed
period switches off the lighting immediately.
Unlocking and opening the
boot
Selective unlocking of the boot
F Make a long press on this button to unlock the boot and start the
motorised opening of the tailgate.
The doors and fuel filler flap remain locked.
The sidelamps, dipped beam headlamps,
number plate lamps and door mirror spotlamps
come on for 30 seconds.
The setting for selective unlocking of the boot
is done in the vehicle configuration menu in the
screen.
By default, selective unlocking of the boot is
activated.
If motorised operation of the tailgate
is deactivated, pressing the unlocking
button releases the tailgate.
To lock the vehicle, it is necessary to
close the tailgate manually.
On pressing the boot unlocking button, flashing
of the direction indicators for a few seconds
signals:
-

t
otal or selective unlocking of the vehicle
for versions without alarm,
-

d
eactivation of the alarm for other versions.
Depending on version, the door mirrors unfold.
The setting for motorised operation
of the tailgate is done in the
Driving


menu of the touch screen.
By default, motorised operation is deactivated.
2
Access
